Beko D 7081 E Manuale utente

Dear Customer,

We wish that this product, manufactured at modern facilities with total quality

notions, will deliver you the best performance. In order to guarantee this, please

read this instruction manual thoroughly and keep it for your future reference.

Contents

1Technical features Page 3

2Steps before operating Fullautomatic

Washing Machine and safety precautions Page 6

3Preparation Page 8

4Program selection and washing operations Page 13

5Care and Maintanence Page 19

6Determining location and installation Page 21

7Helpful tips on stain removal Page 24

8Before calling service Page 24

Models

220/50

2100

1000

Hot&cold

water

inlet

D 7102 E

D 7102 ES

220/50

2100

800

Hot&cold

water

inlet

D 7081 E D 7082 E

220/50

2100

800

cold

water

inlet

D 7101 E

220/50

2100

1000

cold

water

inlet

Maximum capacity (kg.)

Height (cm.)

Width (cm.)

Depth (cm.)

Net weight (kg.)

Power requirement (V/Hz)

Nominal current (A)

Power (W)

Washing speed (rpm)

Spin speed (rpm)

The appearance and specifications

are subject to change without notice

to raise the unit quality.

The graphics shown in the manual

are schematic and it is possible that

they not conform with your washing

machine.

1Technical features

Top lid

Control panel

Front door

Kick plate

Kick plate cover

Your Washing Machine

•The current requirement in order for safe operation of this machine is 16 Ampheres. You will need to have a certified

electrician to connect a 16 Amp fuse, if there is not enough current load.

• Your washing machine is set to 230 Volts.

• Do not forget to check the grounding in all cases of use with or without the transformer. Our company will not be

responsible for any damages caused by operations without grounding.

• The performance of the washing machine depends on the effectiveness of the cleaning agent. Stains can be

permanent if low quality detergents are used. Please take necessary effort to clean the stained clothes as described

in following pages before washing them in the machine.

• Your washing machine is designed only for domestic use.

• In order to bring the machine ready to use, please call your service technician or a certified plumber.

• If the power cord or the plug is damaged, please call a certified technician.

• Always use new “water inlet hose” received within your machine.

• Please perform the first wash with detergent, at COTTON 90 program and without placing your laundry inside the

washing machine. This will ensure that the drum is free from any left over dirt from production .

Due to the quality control processes during production, there may be some water left over in your machine.

This does not cause any damage to your product.

2Steps before operating Fullautomatic Washing Machine and safety precautions

Attention! Before any operation of the machine check the following.

• Did you close the front door?

• Is the tap open?

• Is water drain hose placed properly?

• Is power connected?

Sorting laundry

Sort the laundry according to the following groups and wash them seperately:

- white and resistant colored fabrics,

- colored fabrics,

- delicate fabrics (silk, rayon etc.),

- wool.

Be sure to empty pockets and remove any belts, buttons, pins, etc. from the clothing. You can place little clothing materials

(baby socks, etc) inside of pillow cases to avoid them slip into the pump and filter. For stained fabrics, refer to the “Practical

information” section of the operating manual.

Open the front door

To open the front door press the “door open” button.

For your safety, front door can be opened only when the machine is off.

Loading the machine

Place the fabrics uniformly inside the machine. Hand knits should be placed inside out in the machine. Make sure that there

is no clothing at the side of the door. Close the door by pushing lightly. If the door does not close completely, the machine

could not be started-a safety measure. Front door is locked untill the end of the washing program and it will not be opened

about 2 minutes following the end of the program.

3Preparation

Detergent and softener selection

Choose the appropirate detergent specifically used at the full automatic washing machines. Suggested amount is given

on the detergent cover.

Do not attempt to use detergents and bleaching elements that contain chlor and sulphur. The amount of the detergent

depends on the dirt level of fabric, the amount of fabric and the softness of the water.

The detergent dispensing drawer comprises 3 compartments:

– left compartment ( II ) for main wash

– middle compartment for fabric softener

– right compartment ( I ) for pre-wash

Detergent Dispenser

Attention! Fill the softener according to the supplier recommendation (app. <100 ml).

Do not exceed the “MAX level” marked on the detergent dispenser.

WARNING!

When the CURTAIN program is selected Pre-wash function is automatically set. Pre-wash

can be operated even without detergent.

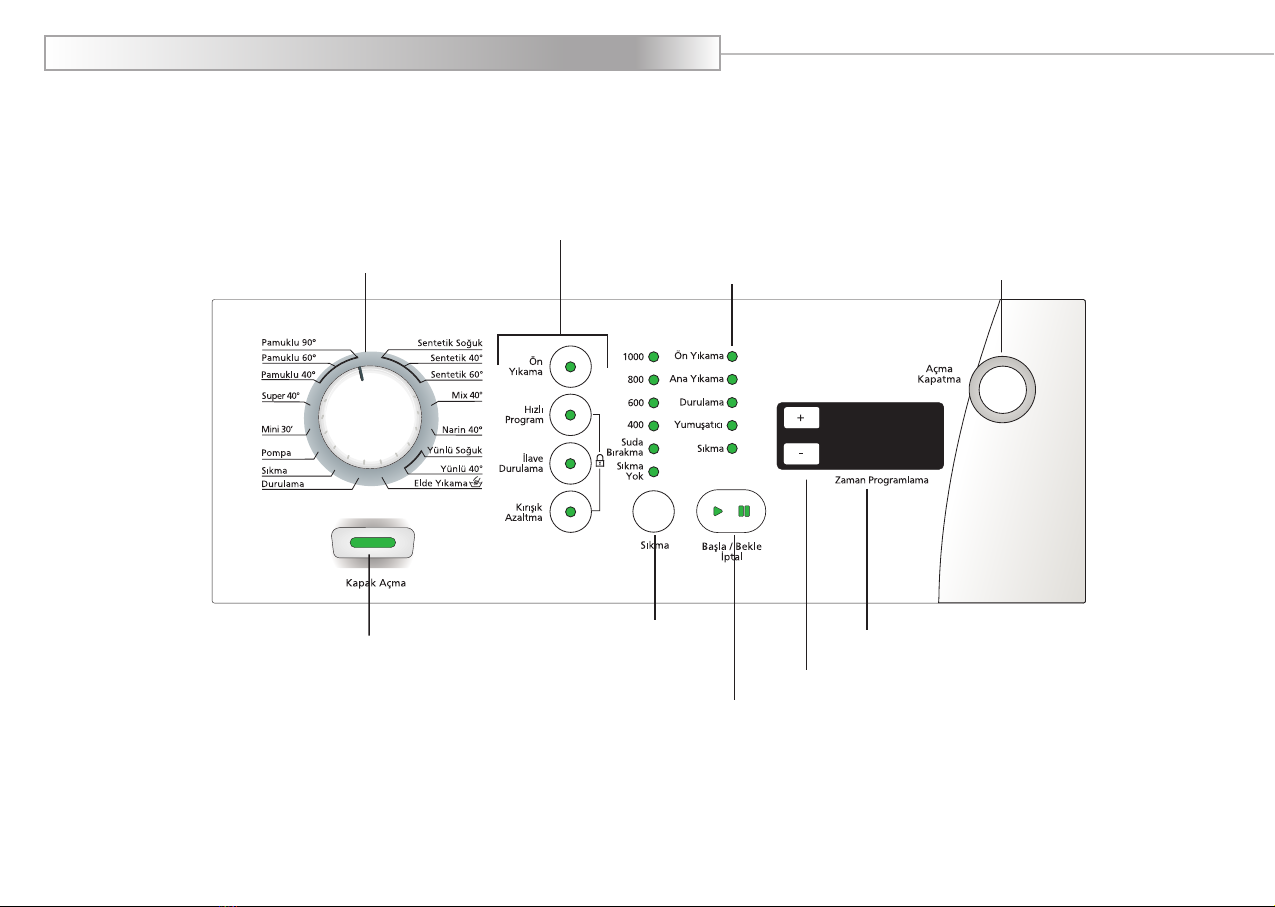

Control Panel

Auxillary washing machine

On/Off Button

Timedelay adjustment button

Remain time

Start/Pause/Cancel button

Program follower

Spin speed selection

Door open button

Program selection knob
