Belavi 23700-23 Manuale utente

User Manual

________________

Manual

del usuario

PERGOLA

English.... Page 3

Español.... Página 25

PÉRGOLA

For Reference Only

Getting Started .................................. 3

Warnings & Cautions .......................... 4

Pack Contents .................................... 5

Parts List ............................................. 6

Hardware List .................................... 7

Assembly Instructions ....................... 8

Warranty ............................................ 22

Contents •Índice

Para comenzar .................................. 25

Advertencias y precauciones ............ 26

Contenido de la caja/piezas .............. 27

Lista de piezas ................................... 28

Lista de herraje .................................. 29

Instrucciones de ensamblaje ............ 30

Garantía ............................................. 44

For Reference Only

Getting Started

Ensure all parts packaged in carton match the parts list.

Remove all protective materials and place parts on a

non-abrasive surface to avoid scratching. If any parts are

missing or damaged, DO NOT attempt to assemble. Please

contact our customer service center (Monday-Friday

9:00am – 5:00pm EST) at 1-800-599-8898.

Caution

Read all the instructions before assembly. Failure to

comply with instructions may result in faulty assembly and

potential injury! Assemble product on a soft, non-abrasive

surface such as a carpet or cardboard to avoid damaging

the item. Seek assistance to assemble bulky or heavy

items. After ﬁnal alignment, make sure all bolts and nuts

are securely tightened with screw covers pressed in place.

We do not recommend securing this structure to a patio

deck or concrete surface, nor can we advise on how to

do so.

Cleaning & Maintenance

Wash canopy top with a mild solution of soap and water;

rinse thoroughly. Dry completely.

Getting Started

For Reference Only

WARNING

KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT

FABRIC. This tent is made with fabric that meets CPAI-84 specicaons

for ame resistance. It is not re proof. The fabric will burn if le in

connuous contact with any ame source.

Warnings & Cautions

1. Some sections require working overhead and lifting components. Beams

can be heavy and awkward to lift into place by yourself.

2. Ask others to lend a hand. We recommend having four people to help

in the assembly of your pergola. Having others to help in the building

process will result in faster installation.

3. Use appropriate safety measures when working on ladders. Make sure

any ladders you’re using are sturdy and safe. Follow manufacturer safety

instructions when using ladders.

4. Keep a clean, uncluttered work space.

5. Your pergola is susceptible to wind. Make sure the canopy is tied and

stakes are hammered down.

6. In the event of adverse weather conditions, it is recommended that the

canopy is removed from the frame so that no damage will occur.

7. This product is designed for leisure use only and is not a shelter against

adverse weather conditions.

8. DO NOT stand, sit, or store items on top of the pergola

9. DO NOT climb on or hang from any portion of your pergola.

10. Failure to heed these recommendations may result in personal injury or

components of the pergola being damaged.

11. At regular intervals, inspect your pergola to make sure that assembly

integrity has been maintained.

12. Exercise caution using a lawn mower, edge trimmer or other yard

equipment near pergola.

For Reference Only

Pack Contents

Box 1

AUpper Pole

BUpper Pole

FLower Pole

HCanopy Support Connector

ICrossbeam Connector

JLong Crossbeam Connector

KFoot

Box 2

CLong Crossbeam

DCanopy Support

ECrossbeam

GSlide Bar

LCover

MShort Canopy Weight Bar

NCanopy Weight Bar

OSupport

PStake

QTop Slide Bar Connector

RSlide Bar Connector

SCanopy

THex Key

1M6x15 Bolt

2M6x25 Bolt

3M6x45 Bolt

4M6x55 Bolt

5M6x65 Bolt

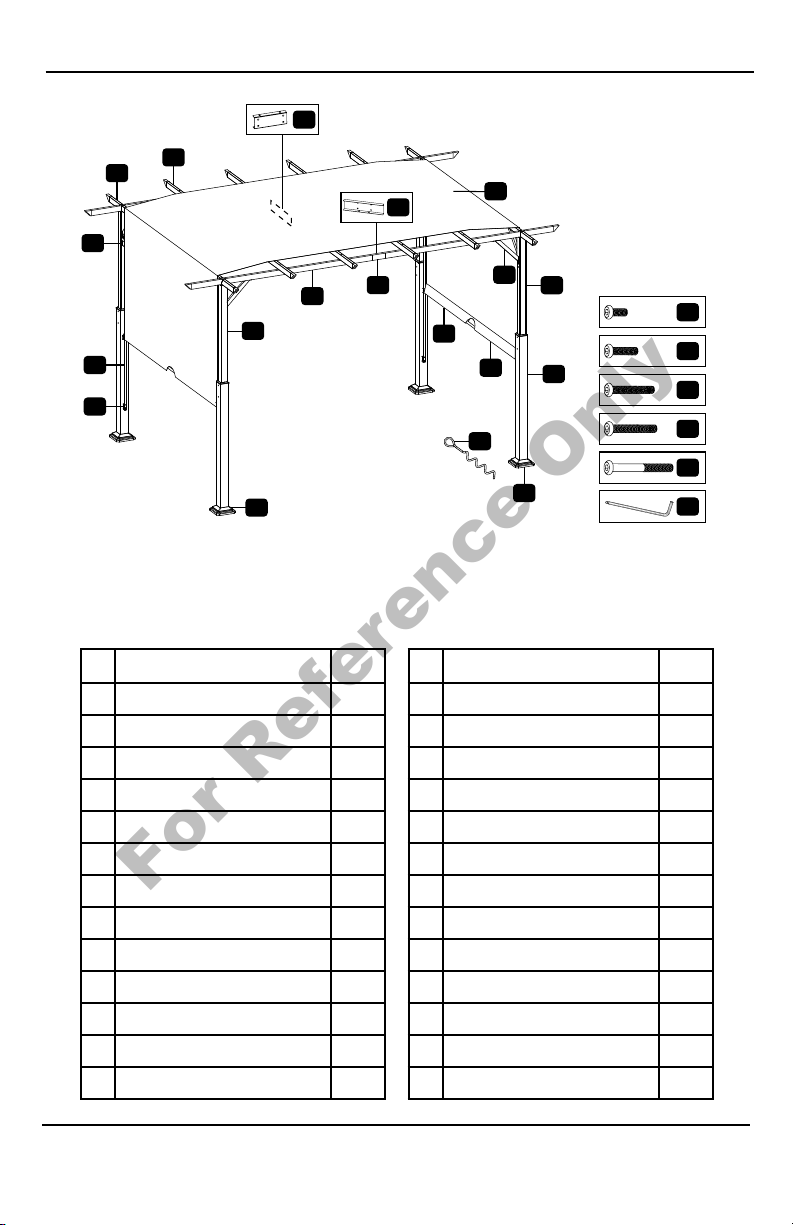

Pack contents / parts

Please check that you have the two boxes with all the Pergola parts.

For Reference Only

Description Qty Description Qty

A Upper Pole 2 N Canopy Weight Bar 2

B Upper Pole 2 O Support 8

C Long Crossbeam 4 P Stake 16

D Canopy Support 8 Q Top Slide Bar Connector 4

E Crossbeam 4 R Slide Bar Connector 4

F Lower Pole 4 S Canopy 1

GSlide Bar 4 T Hex Key 1

HCanopy Support Connector 6

I Crossbeam Connector 8 1M6x15 Bolt 72

JLong Crossbeam Connector 22M6x25 Bolt 16

KFoot 4 3M6x45 Bolt 4

L Cover 4 4M6x55 Bolt 4

MShort Canopy Weight Bar 25M6x65 Bolt 24

** WE RECOMMEND THAT YOU SAVE THE HEX KEY AND WRENCH

AND PERIODICALLY TIGHTEN ALL SCREWS.**

Parts List

CIA

For Reference Only

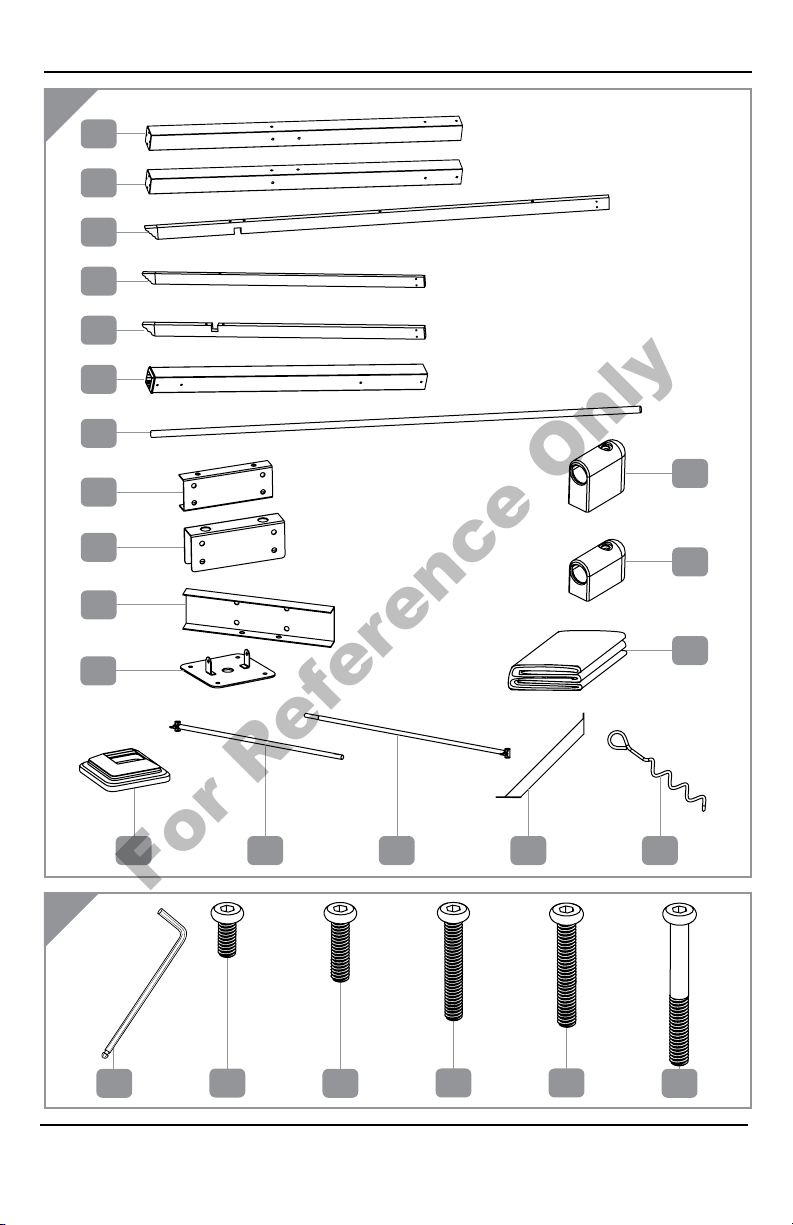

Hardware List

T1235

M N O

For Reference Only

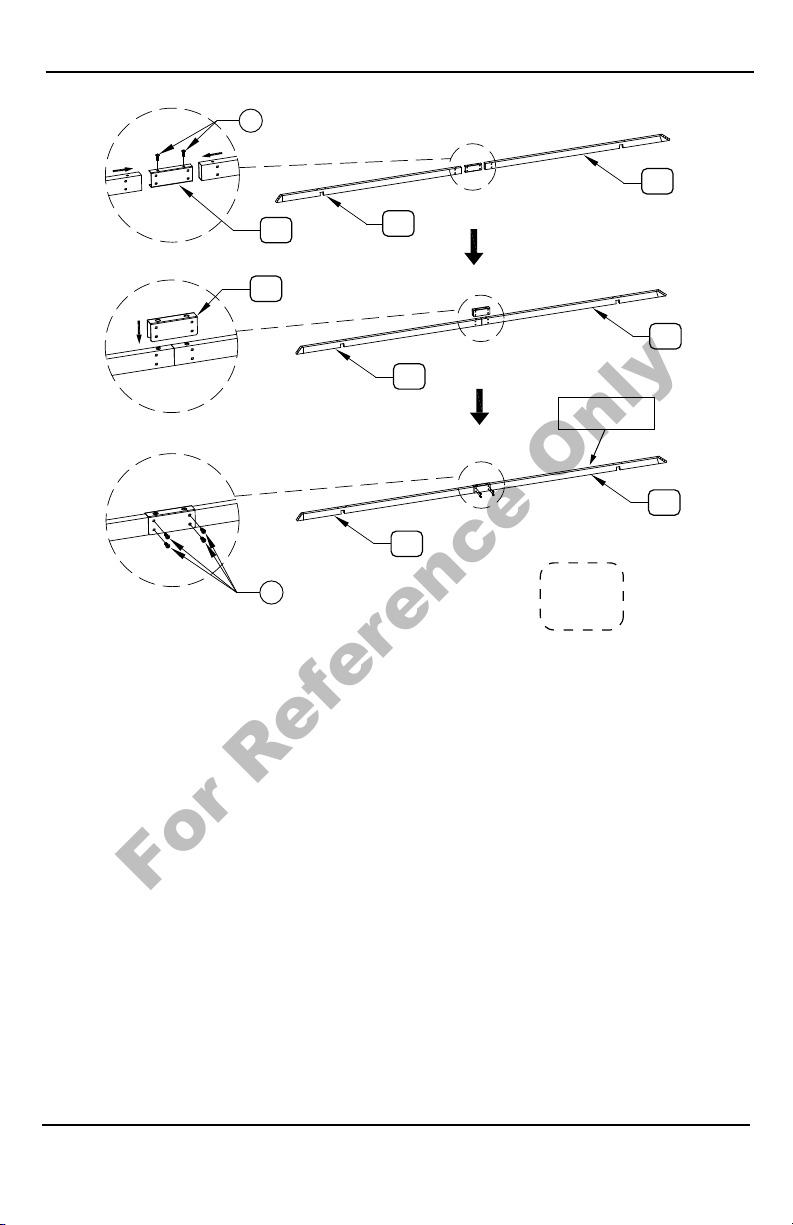

STEP 1:

Set two Crossbeams (E) upside down on the ground as illustrated here.

Insert Canopy Support Connector (H) into the open end of Crossbeam

(E), see Fig. 1. Insert one M6x15 Bolt (1) through the bottom eyelet of

Crossbeam (E), and into the bolt-threading found at the bottom of

Canopy Support Connector (H), see Fig. 1. Insert open end of a second

Crossbeam (E) over opposite end of Canopy Support Connector (H) and

use one M6x15 Bolt (1) to secure these parts together, see Fig. 1.

Place Crossbeam Connector (I) over where these Crossbeams (E) meet

as illustrated here, see Fig. 2.

Insert two M6x15 Bolts (1) through eyelets on both ends of

Crossbeam Connector (I), and into the bolt-threading found on the

sides of Crossbeams (E) where these parts meet, see Fig. 3. Make sure all

bolts are securely tightened. Follow these steps to connect remaining

part E’s with part H and part I.

Assembly Instructions

This is the bottom

side of this part.

Fig. 1

Fig. 2

Fig. 3

For Reference Only

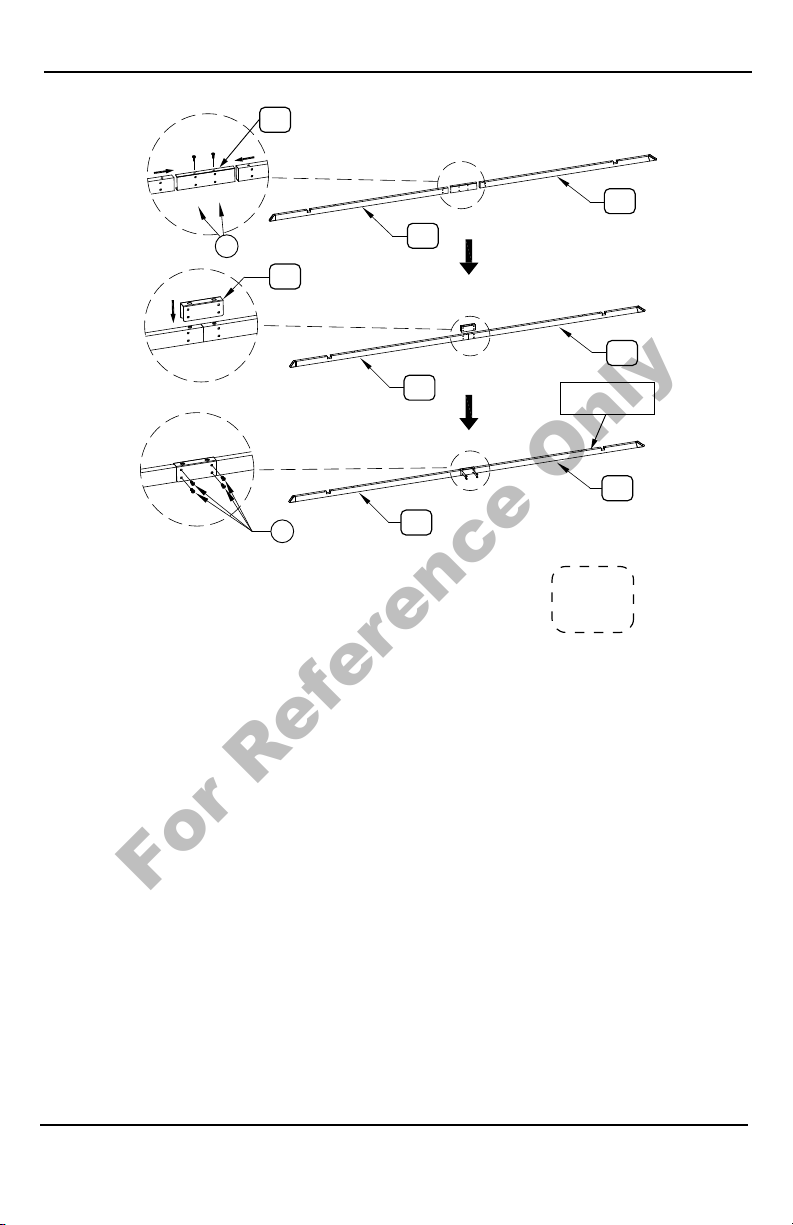

STEP 2:

Set two Long Crossbeams (C) with the cutout notches facing up, and

on the ground as illustrated here. Insert Long Crossbeam Connector (J)

into the open end of Long Crossbeam (C), see Fig. 4. Insert one M6x15

Bolt (1) through the bottom eyelet of Long Crossbeam (C), and into the

bolt-threading found at the bottom of Long Crossbeam Connector

(J), see Fig. 4. Insert open end of a second Long Crossbeam (C) over

opposite end of Long Crossbeam Connector (J) and use one M6x15 Bolt

(1) to secure these parts together, see Fig. 4.

Place Crossbeam Connector (I) over where these Long Crossbeams (C)

meet as illustrated here, see Fig. 5.

Insert two M6x15 Bolts (1) through eyelets on both ends of

Crossbeam Connector (I), and into the bolt-threading found on the

sides of Long Crossbeams (C) where these parts meet, see Fig. 6. Make

sure all bolts are securely tightened. Follow these steps to connect

remaining part C’s with part J and part I.

Assembly Instructions

This is the bottom

side of this part.

Fig. 6

Fig. 5

Fig. 4

For Reference Only

Assembly Instructions

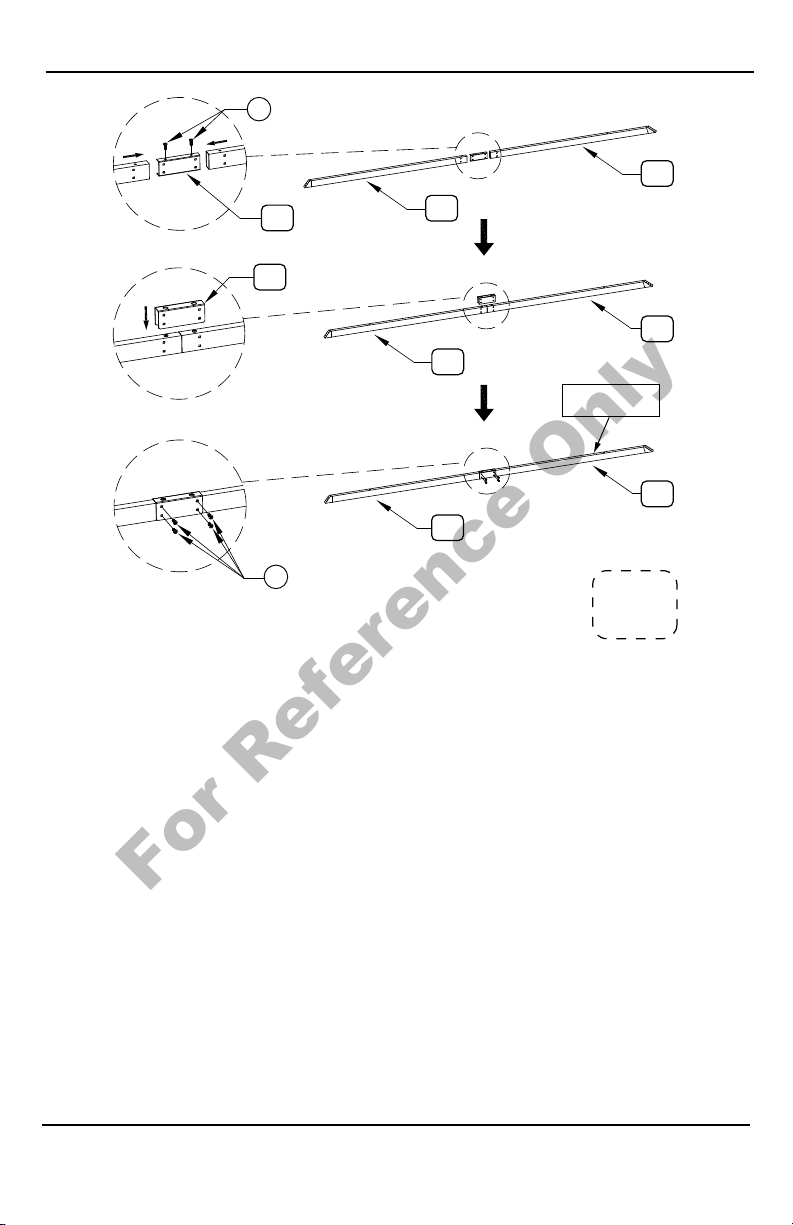

STEP 3:

Set two Canopy Supports (D) upside down on the ground as illustrated

here. Insert Canopy Support Connector (H) into the open end of Canopy

Support (D), see Fig. 7. Insert one M6x15 Bolt (1) through the bottom

eyelet of Canopy Support (D), and into the bolt-threading found at the

bottom of Canopy Support Connector (H), see Fig. 7. Insert open end

of a second Canopy Support (D) over opposite end of Canopy Support

Connector (H) and use one M6x15 Bolt (1) to secure these parts together,

see Fig. 7.

Place Crossbeam Connector (I) over where these Canopy Supports (D)

meet as illustrated here, see Fig. 8.

Insert two M6x15 Bolts (1) through eyelets on both ends of

Crossbeam Connector (I), and into the bolt-threading found on the

sides of Canopy Supports (D) where these parts meet, see Fig. 9. Make

sure all bolts are securely tightened. Follow these steps to connect

remaining part D’s with part H and part I.

This is the bottom

side of this part.

Fig. 9

Fig. 8

Fig. 7

For Reference Only
