Belden Miranda Kaleido-X (4RU) Manuale utente

Quick Start Guide

M809-9905-110

12 January 2014

Notices

Belden, Belden Sending All The Right Signals, and the Belden logo are trademarks or

registered trademarks of Belden Inc. or its affiliated companies in the United States and

other jurisdictions. Miranda, Kaleido-X, iControl, and Densité are trademarks or registered

trademarks of Miranda Technologies Partnership. Belden Inc., Miranda Technologies

Partnership, and other parties may also have trademark rights in other terms used herein.

Terms and Conditions

Please read the following terms and conditions carefully. By using Kaleido-X multiviewer

documentation, you agree to the following terms and conditions.

Miranda Technologies Partnership (“Miranda”) hereby grants permission and license to

owners of Kaleido-X multiviewers to use their product manuals for their own internal

business use. Manuals for Miranda products may not be reproduced or transmitted in any

form or by any means, electronic or mechanical, including photocopying and recording, for

any purpose unless specifically authorized in writing by Miranda.

A Miranda manual may have been revised to reflect changes made to the product during its

manufacturing life. Thus, different versions of a manual may exist for any given product.

Care should be taken to ensure that one obtains the proper manual version for a specific

product serial number.

Information in this document is subject to change without notice and does not represent a

commitment on the part of Miranda.

Warranty information is available in the Support section of the Miranda Web site

(www.miranda.com).

Title Kaleido-X (4RU) Quick Start Guide

Part Number M809-9905-110

Revision 12 January 2014, 1:30 pm

iii

Kaleido-X (4RU)

Quick Start Guide

Safety Compliance

This equipment complies with the requirements of the following standards for

safety of information technology equipment:

– CSA-C22.2 No. 60950-1-07

– UL 60950-1 (2nd Edition)

– IEC 60950-1:2005 (2nd Edition)

Electromagnetic Compatibility

This equipment has been tested for verification of compliance with FCC Part 15,

Subpart B requirements for class A digital devices.

This equipment has been tested and found to comply with the requirements of the

EMC directive 2004/108/EC:

WARNING

An appropriately listed/certified mains supply power cord must be used

for the connection of the equipment to the mains voltage at either 120V~

or 240V~

CAUTION

This equipment is meant to be installed in a restricted access location

These servicing instructions are for use by qualified service personnel

only

To reduce the risk of electric shock, do not perform any servicing other than

that contained in the operating instructions unless you are qualified to do so.

Refer all servicing to qualified service personnel. Disconnect both power

supply units before servicing. Servicing should be done in a static-free

environment.

Battery handling

There is a danger of explosion if the battery is replaced incorrectly. Replace

the battery only with the same or equivalent type recommended by the

manufacturer. Dispose of used batteries according to the manufacturer’s

instructions. Before disposing of your Miranda equipment, please review the

“Disposal and Recycling Information” appendix, in the Kaleido-X (4RU)

Hardware Description & Installation Manual.

Note: This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy, and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Notices

• EN 55022 Class A Radiated and conducted emissions

• EN 61000-3-2 Limits for harmonic current emissions

• EN 61000-3-3 Limitation of voltage changes, voltage fluctuations and flicker

• EN 61000-4-2 Electrostatic discharge immunity

• EN 61000-4-3 Radiated, radio-frequency, electromagnetic field immunity

• EN 61000-4-4 Electrical fast transient/burst immunity

• EN 61000-4-5 Surge transient immunity

• EN 61000-4-6 Conducted disturbances immunity

• EN 61000-4-11 Voltage dips, short interruptions and voltage variations

immunity

Setting Up Your Multiviewer

Welcome to the Kaleido family of multiviewers! This Quick Start Guide is designed to help

you get your Kaleido-X (4RU) multiviewer up and running for the first time. The following

sections will guide you through the installation of a Kaleido-X (4RU) system in its default

configuration.

Summary

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Getting Organized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Step 1: Physical Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Step 2: Networking Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step 3: XEdit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Step 4: System Verification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

RS-422 Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Introduction

Miranda's Kaleido family of multiviewers ranges from quad-splits to large-scale, multi-room

monitoring systems, with outstanding image quality and signal flexibility. The Kaleido

multiviewers are available in different models: the new Kaleido-MX, the Kaleido-IP, the

Kaleido-X (7RU), the Kaleido-X (4RU), the Kaleido-X16, and the Kaleido-XQUAD frames, as

well as the new Kaleido-Modular-X cards, and the Kaleido-Modular KMV-3901/3911 cards.

The Kaleido-X (4RU) can display 32 3Gbps, HD, SD or analog inputs any number of times, in

any size, across four displays of any resolution and orientation.

At the heart of every multiviewer system is the Kaleido-X software, which includes two

client applications:

•XAdmin is a Web client that your system administrator will use to manage the

multiviewer system.

•XEdit is a client application used to create layouts for the monitor wall, and to configure

the multiviewer, from your PC or laptop.

A Kaleido-X multiviewer system in its default configuration includes a number of layout

presets. Each preset shows the video signals from a specific input module (card). Consult

the Kaleido-X User’s Manual (on the DVD that shipped with your multiviewer) for

instructions on how to create rooms and layouts according to your specific requirements.

Setting Up Your Multiviewer

Introduction

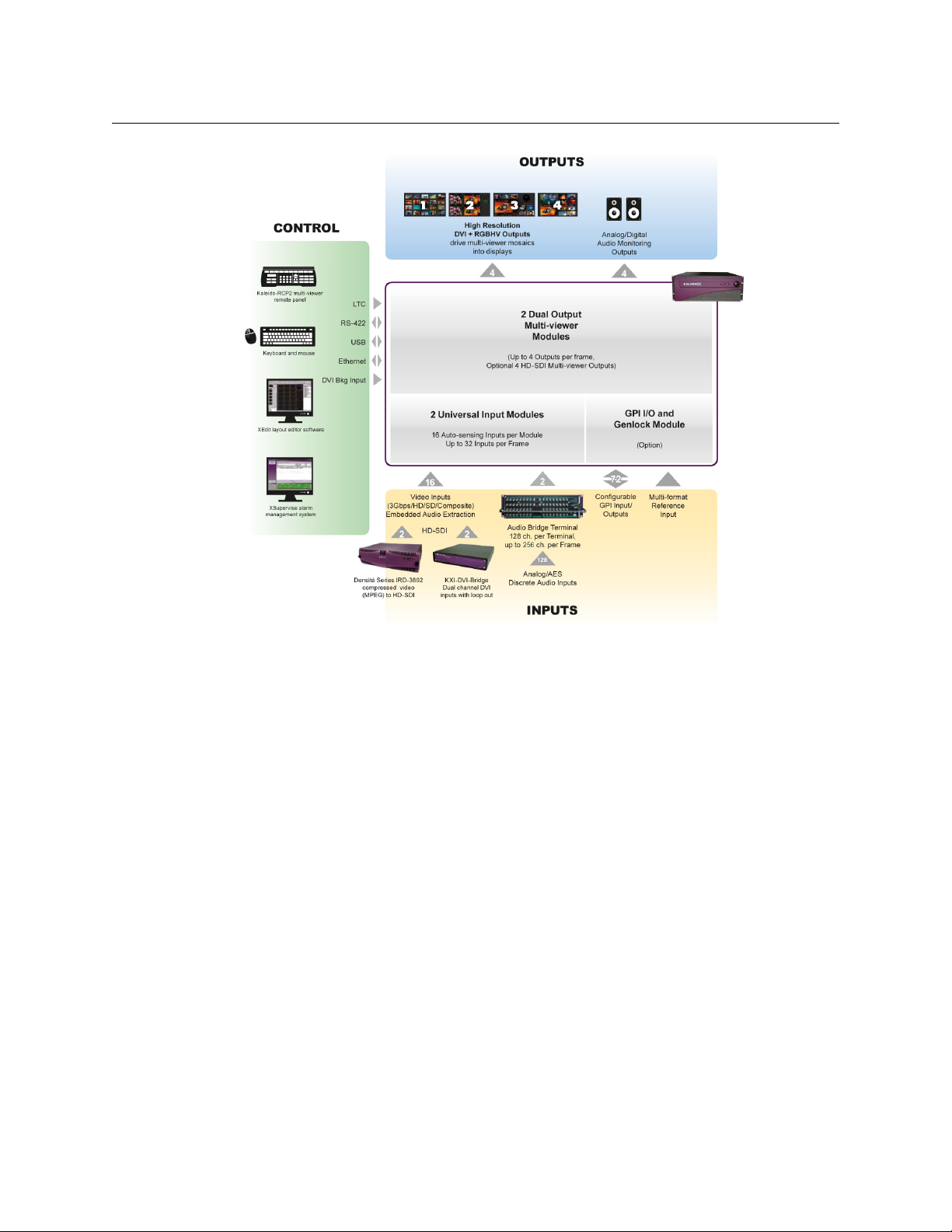

Kaleido-X (4RU) system overview

Kaleido-X (4RU) Frame

The Kaleido-X (4RU) frame is 4 RU high. It comprises an internal midplane for

interconnecting the cards. Cards are installed from the front of the frame. Each card is

associated with input and/or output connectors which are mounted on a connector panel.

These connector panels are installed from the rear of the frame, in the same horizontal

position as their associated card. The redundant power supplies are located in the lower

right-hand corner of the frame. The hinged front door gives access to the cards.

The Kaleido-X (4RU) frame comprises the following key elements:

• A rack-mountable mechanical framework

• A side-opening, removable door to cover and protect the front of the frame and the

installed cards

• A midplane board that enables inter-card communication

• Slots for installing signal processing cards that plug into the midplane

• Mounting points for rear connector panels

• Redundant power supplies

• Ventilation

The front slots and rear panel connection points are color-coded according to the type of

card that can be located in the slot. The extractor handles on the cards are color-coded to

Kaleido-X

Quick Start Guide

match. The cards are physically configured so they cannot be installed in the wrong type of

slot.

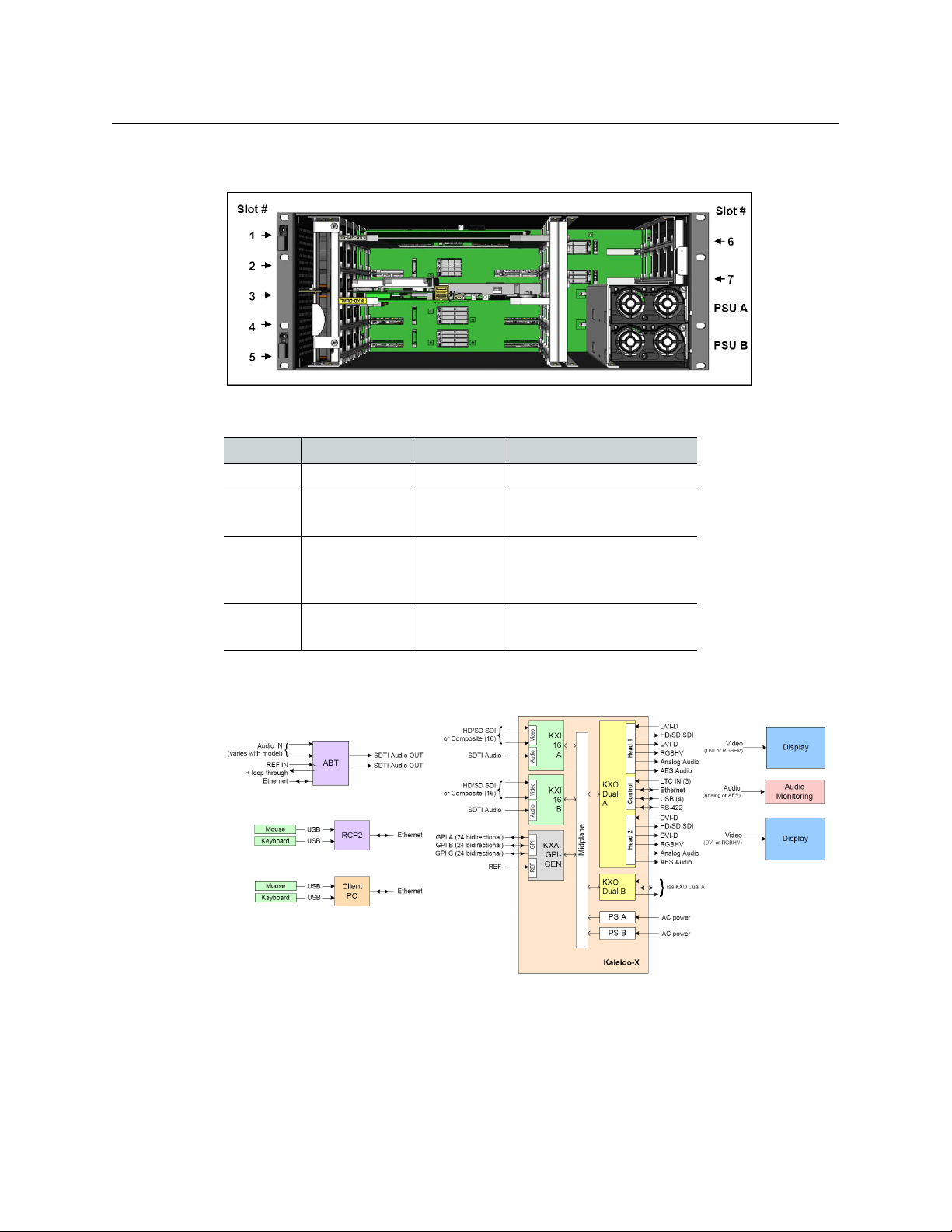

Location and available slots

Kaleido-X (4RU) System Block Diagram

For more information about the Kaleido-X (4RU) hardware, refer to the Kaleido-X (4RU)

Hardware Description & Installation Manual.

Slots Function Color Code Card Types

1Main Grey KXA-GPI-GEN

Output A

Output B

Yellow KXO-DUAL3

KXO-DUAL

Input A

Input B

Green KXI-16HSV

KXI-16HS

KXI-16SV

Option A

Option B

Mauve (future use)

Setting Up Your Multiviewer

Getting Organized

This section provides information about system requirements, and items shipped with your

Kaleido-X (4RU).

Required Materials

Your Kaleido-X (4RU) system package includes the following:

• A Kaleido-X (4RU) frame (enclosure) containing various input, output and option

modules (cards)

• One keyboard

•Onemouse

• Serial port adapters (one with straight cabling and one with crossover cabling—see

RS-422 Connection Diagram, on page 24) for each output module in your multiviewer:

• Two AC power cord per power supply

• The Kaleido-X (4RU) Quick Start Guide (this document)

• DVD including the Release Notes for the current version of the Kaleido-X software, the

Kaleido-X User’s Manual, database samples, Quick Start guides and hardware reference

manuals for all multiviewer models

In addition to the above, you will need the following (not supplied):

•Upto4displays

• A dedicated 100Base-T Ethernet switch with enough ports for the Kaleido-X, client PCs,

Kaleido-RCP2, and Audio Bridge Terminals

• Client PC (see below for system requirements)

Part number Adapter cabling RS-422 pinout at the DE-9P connector

1737-3000-102 Straight Controller (SMPTE master) mode

1792-3700-100 Crossover Tributary (SMPTE slave) mode

Note: In line with our commitment to environmental preservation, only the

Quick Start Guide for your multiviewer model, and some ancillary

documents (e.g. welcome letters, warranty cards) are distributed in printed

form. All manuals are available on the DVD that shipped with your

multiviewer. See the “Documentation” section of the Release Notes for a

complete list. You can obtain the latest version of the manuals, the Release

Notes, as well as software and useful data, from the Software and

documentation section of Miranda’s support portal.

Kaleido-X

Quick Start Guide

• Cables (to connect your multiviewer to video sources, to displays, and to the network):

System Requirements for a Client PC

A client PC running Windows XP (or Windows 7) is required to access the XAdmin Web

client, as well as to run the XEdit application.

Step 1: Physical Setup

Setting up the Kaleido-X (4RU) Hardware

To set up the Kaleido-X (4RU) hardware

1 With the Kaleido-X (4RU) frame (enclosure) installed in its designated rack position, and

before powering up the unit, verify that each card is securely seated in its slot.

The Kaleido-X has been configured to automatically detect the resolution of any

connected display. If the required information is not available, then a fall-back

resolution of 1280 × 1024 @ 60 Hz is used.

2 Connect outputs of the Kaleido-X to one or more displays that support this resolution,

and connect one or more video sources to the frame (see Cabling Diagram, on page 6).

If you wish to use a different resolution, see Changing the Output Resolution, below, for

detailed instructions.

3 Make the network and other connections as shown in the cabling diagram. Connect a

client PC, the Kaleido-RCP2, one or more Audio Bridge Terminals, and every output

module to a dedicated 100Base-T Ethernet switch. You can also connect a mouse and a

keyboard to your Kaleido-RCP2.

Cable type Purpose

CAT-5 For Ethernet connectivity

Display cables Either extension modules—for example Miranda’s

DXF-200 (part number DXF-200-A)—or DVI cables

Video cables Standard coaxial cables with BNC connectors

Note: On all Miranda multiviewers, the network adapters are set to auto-

negotiate. By default, the connection speed and duplex mode will be set

automatically based on the corresponding port settings on the switch.

Minimum configuration 1 GB of RAM

Pentium 4 at 1 GHz

Recommended At least 2 GB of RAM

Core 2 Duo at 2 GHz, or better

Hard disk At least 125 MB free

Setting Up Your Multiviewer

Setting up the Kaleido-X (4RU) Hardware

Cabling Diagram

Kaleido-X (4RU) cabling diagram

Notes

• The Kaleido-RCP2, and Audio Bridge Terminal (ABT) are optional devices,

and may not have been shipped with your Kaleido-X (4RU) system. For

information on these and other Kaleido-X options, please contact your

Miranda sales representative.

• You may need to upgrade your Audio Bridge Terminal and Kaleido-RCP2

devices (if available) to the latest firmware. The update files can be found

on the DVD that shipped with your multiviewer, and on Miranda’s support

portal. Please refer to the Kaleido-RCP2 Guide to Installation and Operation,

and to the Audio Bridge Terminal Guide to Installation and Operation

(available on the DVD, and from the portal) for instructions on how to

determine the firmware level, and how to perform the upgrade for these

devices.

Indice

Altri manuali Belden Monitor

Belden

Belden grass valley Kaleido-IP X320 Supplemento

Belden

Belden Grass Valley KMX-3921 Supplemento

Belden

Belden Miranda KMV-3901 Manuale utente

Belden

Belden grass valley Kaleido-IP X320 Supplemento

Belden

Belden Grass Valley KALEIDO-IP X310 Supplemento

Belden

Belden grass valley MV-831 Manuale utente

Belden

Belden KMX-4911 Istruzioni per l'uso e l'installazione

Belden

Belden grass valley KALEIDO-IP VM Manuale utente

Belden

Belden GRASS VALLEY KALEIDO-MX 1RU Supplemento

Belden

Belden grass valley KALEIDO-MX 4K Supplemento

Belden

Belden Grass Valley KALEIDO-X16 Supplemento

Belden

Belden Grass Valley Kaleido-Modular-X Istruzioni per l'uso e l'installazione

Belden

Belden Grass Valley Kaleido-X Supplemento

Belden

Belden Grass Valley KALEIDO-IP X310 Supplemento

Belden

Belden Grass Valley Kaleido-Modular-X Supplemento

Belden

Belden grass valley MV-800 Series Manuale utente

Belden

Belden grass valley MV-841 Series Manuale utente

Belden

Belden grass valley KALEIDO-MX 4K Istruzioni per l'uso e l'installazione

Belden

Belden Grass Valley Kaleido-Modular-X Istruzioni per l'uso e l'installazione

Belden

Belden GRASS VALLEY KALEIDO Series Supplemento

Belden

Belden KMX-4911 Manuale utente

Belden

Belden Miranda Kaleido-X16 Come usare

Belden

Belden GRASS VALLEY KMV-3901 Supplemento

Belden

Belden Grass Valley Kaleido-X Manuale utente

Manuali Monitor popolari di altre marche

Linear Acoustic

Linear Acoustic LQ-1000 Manuale utente

AOC

AOC I2579V Manuale utente

Gateway

Gateway FPD1520 Manuale utente

Furuno

Furuno Mu 120c Manuale utente

Asus

Asus VB171D - 17" LCD Monitor Manuale utente

Dell

Dell S2230MX Istruzioni utente

Philips

Philips 107C64 Manuale utente

Dell

Dell S2409WFP Manuale utente

EverFocus

EverFocus EN-7517E Manuale utente

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuale utente

Dell

Dell Precision 7680 Manuale di istruzioni

LG 50PM1M - - 50" Plasma Panel Manuale utente

Bosch

Bosch DDU 9 Manuale utente

Acer

Acer A231HL Manuale utente

Philips

Philips 86BDL4152T Manuale utente

NEC

NEC AccuSync LCD5V Manuale utente

Emay

Emay SleepO2 Manuale utente

IBM

IBM 6360 Istruzioni per l'installazione
