Share Powerline AV 3 Port

SECTIONS

Table of Contents 2341

INTRODUCTION

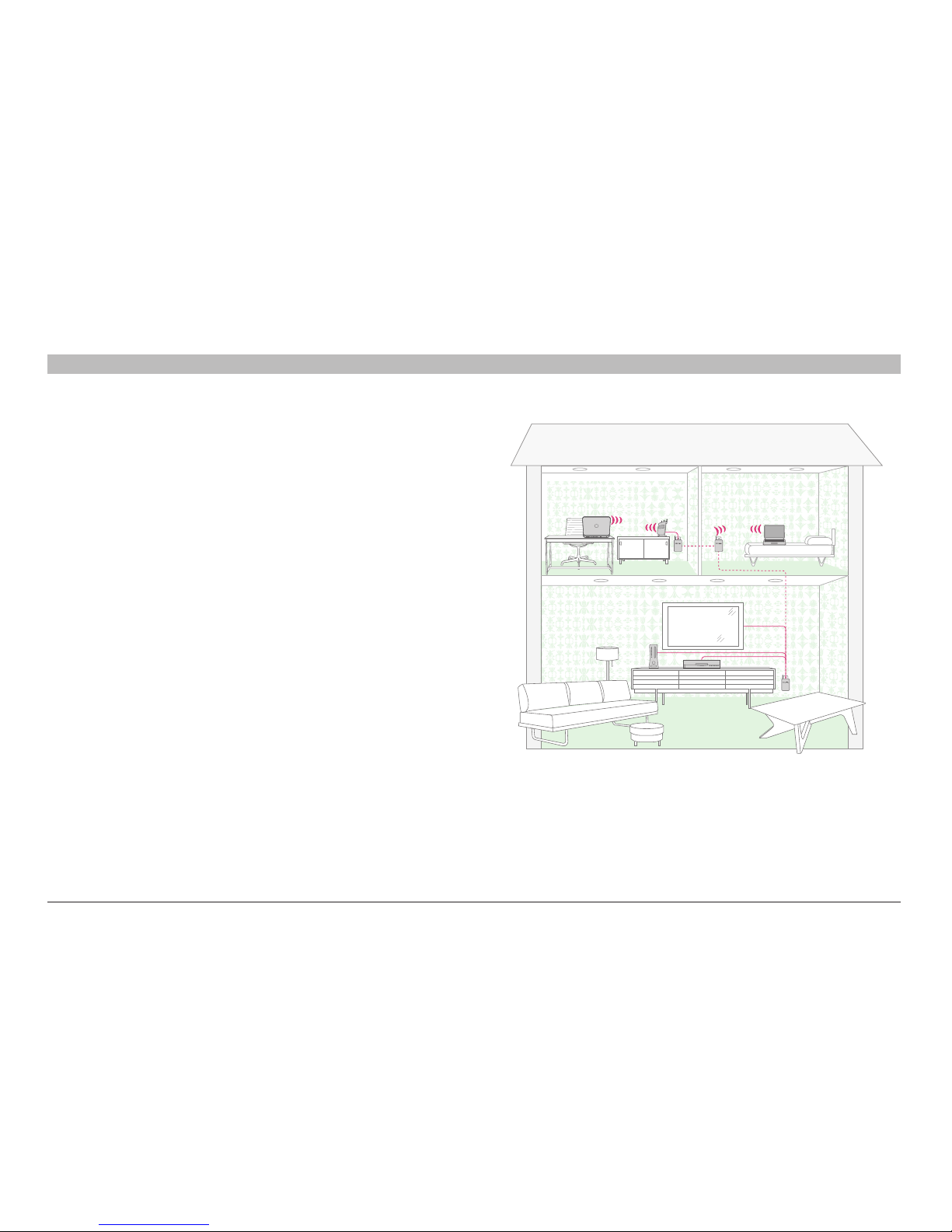

Thank you for purchasing the Share Powerline AV 3 Port (the Adapter). Most people don’t enjoy buying long and expensive Ethernet

cables or pulling the cables from one place to another, but the Share Powerline Adapter offers one of the easiest ways to enjoy

home or small-business networking. Users can now experience a total network solution with the Adapter. The Share Powerline AV 3

Port operates on the HomePlug® Powerline AV standard, providing up to 200Mbps* bandwidth over home AC wiring. The Adapter

is ideal for streaming online videos to your Internet TV or Blu-ray player, connecting multiple home computers to the Internet, or

playing online games. The advanced signal processing is capable of maintaining coverage throughout the entire house, even across

different phase rings.

These Adapters also use xtendnet technology to ensure the most robust

powerline network in the market. Each additional Belkin Share Powerline

AV 3 Port or Gigabit Powerline Adapter that is plugged in is capable of

repeating the data signal for maximum coverage of

your home.

The installation of the Adapter only requires that a 10/100Mbps Ethernet

port is available on your device. This makes the Share Powerline AV 3

Port compatible with any device, including Mac, Windows, and UNIX

machines. Note that you need at least two adapters to create a Share

powerline network.

For security, all HomePlug devices are equipped with 128-bit AES

encryption. The private home power grid plus encryption makes

HomePlug significantly more secure than competing technologies.

The Share Powerline AV Networking Adapter provides the best solution

for no-new-wires home networking. With easy plug-and-play installation,

and the reliability of HomePlug Ethernet’s products, the Share Powerline

AV Networking Adapter is the best solution for high-speed networking.

Share Powerline AV 3 Port

SECTIONS

Table of Contents 2341

INTRODUCTION

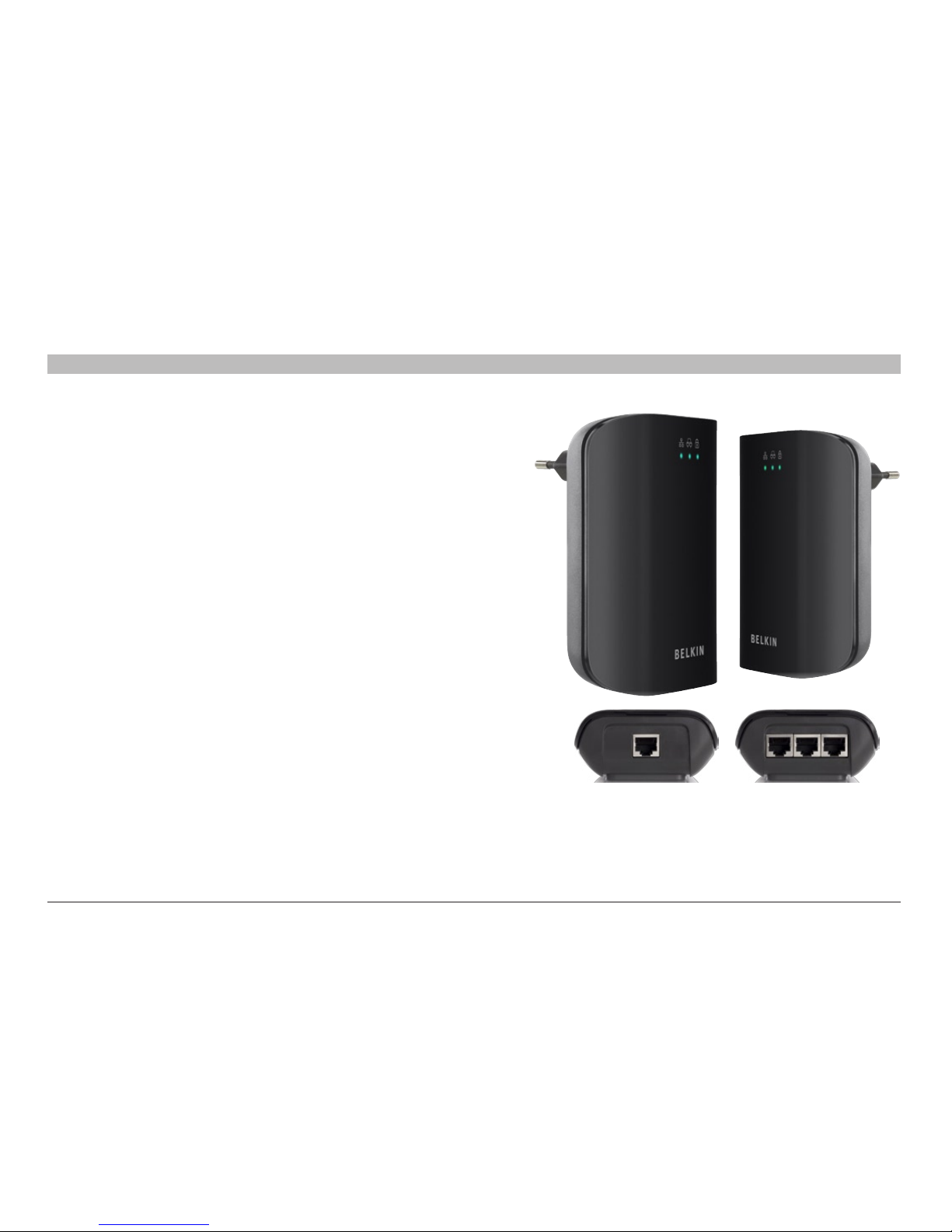

Features

• Up to 200Mbps* bandwidth over standard home power lines

• HomePlug signal easily passes through circuit breaker

• 128-bit AES encryption ensures data security

• Encryption completed by hardware, without sacrifice to bandwidth

• Uses IEEE 802.3 computer interface

• Plug-and-play installation

• xtendnet™ feature for a robust powerline network

• HomePlug Powerline AV-compliant

• Coexistence with HomePlug 1.0 and 1.0 Turbo networks

Share Powerline AV 3 Port

SECTIONS

Table of Contents 2341

INTRODUCTION

Product Specifications

Computer Interface: IEEE 802.3/802.3u

Operating Temperature: 32–104 degrees F (0–40 degrees C)

Storage Temperature: -4–176 degrees F (-20–80 degrees C)

Humidity: Max. 5%–90% (non-condensing)

*The standard transmission rate—200Mbps—is the physical data rate.

Actual data throughput will be lower.

Share Powerline AV 3 Port

SECTIONS

Table of Contents 2341

INTRODUCTION

System Requirements

• AvailableEthernetportoneachcomputerornetworkdevice

• Availablepoweroutlet

• Standardhomeelectricalwiring

• CD-ROMdrive

Package Contents

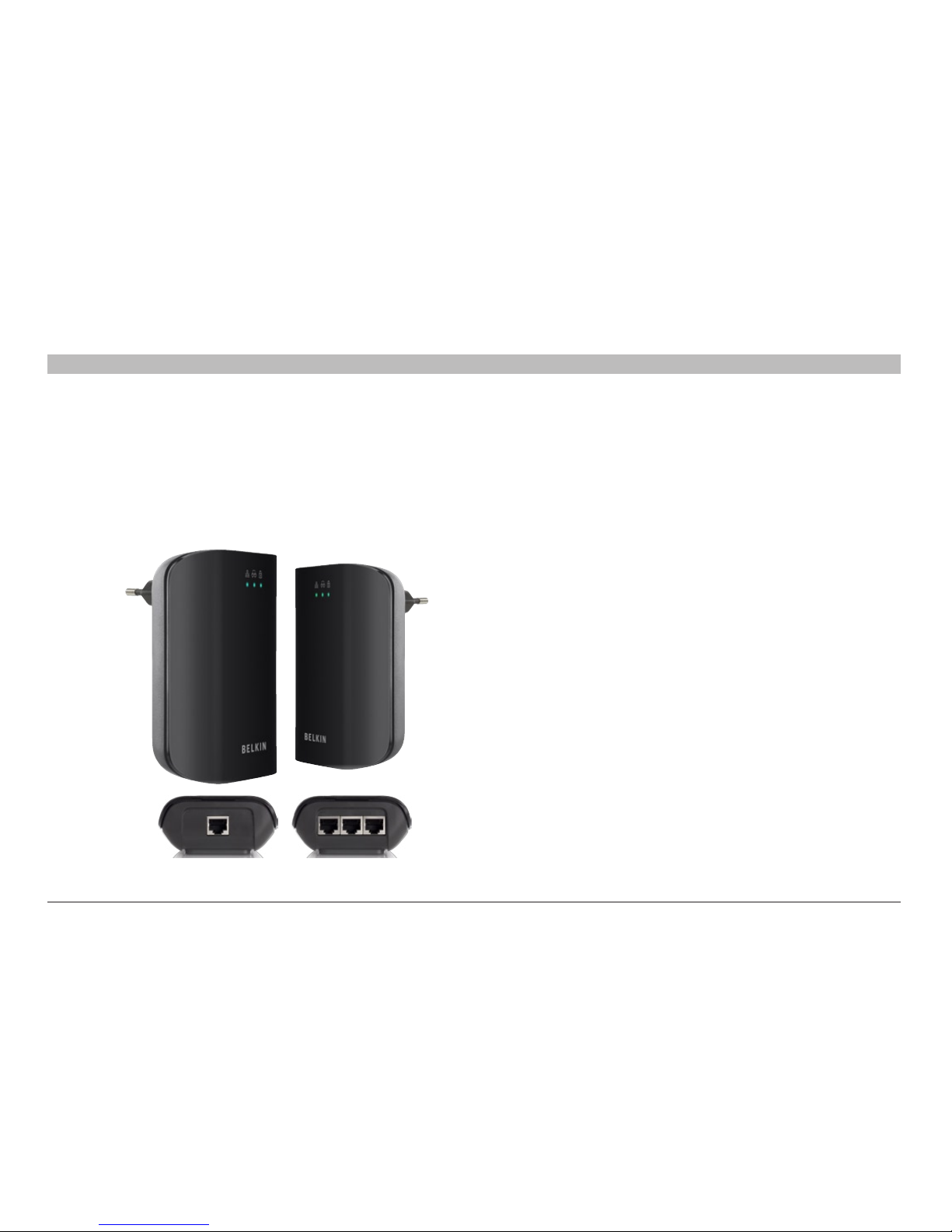

• One Share Powerline AV 3 Port

• One Surf Powerline AV Networking Adapter

• Share Powerline Quick Installation Guide

• Share Powerline User Manual (on CD)

• CD-ROM

• Two CAT5/RJ45 Ethernet Cables

Power LED

Solid Green Power on

Off Power off

Blinking Green Encryption setting up

Solid Green Encryption setup successful

Double Flash Fail in encryption

Powerline Link LED

Blinking Powerline data transmitting or

receiving

Color Green Link rate excellent: greater than

80Mbps

Color Amber Link rate low: less than 80Mbps

Off No activity

Ethernet Link LED

Solid Green 10/100Mbps port linked

Off No Ethernet link

Share Powerline AV 3 Port

SECTIONS

Table of Contents 1 3 4

INSTALLING AND SETTING UP THE ADAPTERS

Overview

Installation of the Share Powerline AV 3 Port takes only seconds and

does not require setting up long wires throughout the house. Simply

plug the units directly into any available wall outlet and connect to any

device with an Ethernet port. Users have the option to randomly change

the security password for their Share powerline network.

Hardware Setup

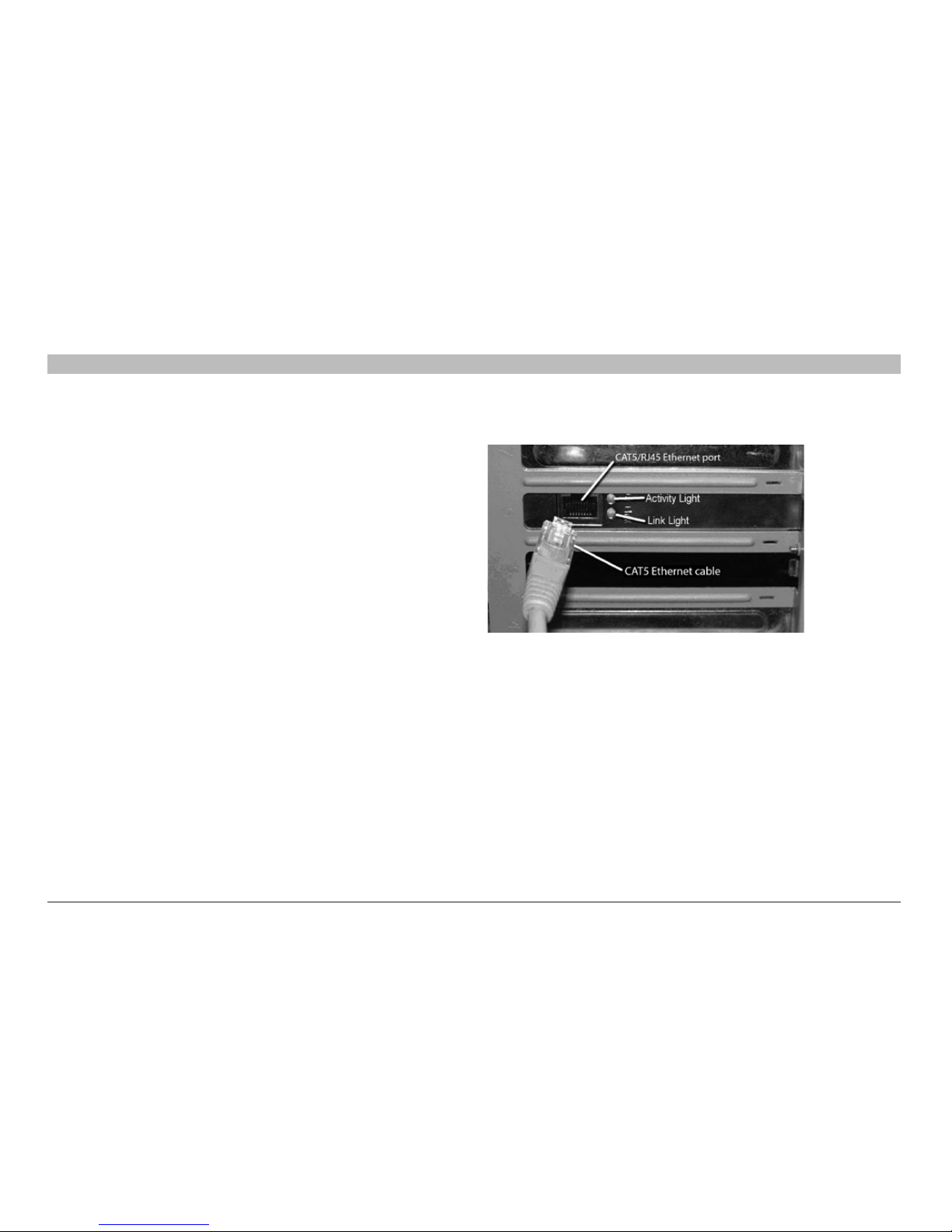

1. Plug your network cable into the device’s RJ45 Ethernet network

adapter port.

2. Plug the other end of your network cable into the RJ45 Ethernet

port located at the back of the Adapter.

3. Insert the Adapter directly into a power outlet in the wall.

NOTE: Do not plug the device into a UPS or power strip with

surge protection as they may filter the powerline signal.

4. Repeat this process for the second Adapter.

Share Powerline AV 3 Port

SECTIONS

Table of Contents 1 2 43

CONFIGURATION

Overview

The Adapter uses 128-bit AES encryption to block access from

the outside. By default, the protection is enabled. However, it is

recommended that you change the default network password with the

“Encryption” button located on the units.

Changing the Network Password

1. With both Adapters plugged into the wall, press the “Encryption”

button on both units for 10 seconds. The password on these

Adapters has now been changed to a random value.

2. Next, press the “Encryption” button on one unit for approximately

one to three seconds. The units will change the password in a

maximum wait time of two minutes.

3. Next, press the “Encryption” button on the second unit for

approximately one to three seconds. The units will change the

password in a maximum wait time of two minutes.

4. The new network password has now been saved to the second

unit. The password will not be lost, even if the Adapters are

unplugged from the wall.

Share Powerline AV 3 Port

SECTIONS

Table of Contents 1 2 43

CONFIGURATION

Adding Another Adapter to the Network

1. If the default network password has been changed, a new Adapter

will have to load the new password before it can join the network.

2. Press the “Encryption” button on an encrypted unit for more than

one second, but less than three seconds.

3. Within two minutes, press the “Encryption” button on the new unit

for more than one second, but less than three seconds.

4. The new device has now been loaded with the network password

and added to the current powerline network.

Resetting to Factory Defaults

Using a pointed object, press and hold the “Reset” button for one

second to restore defaults. This procedure resets the network password

to the default out-of-box value.

Technical Support

http://www.belkin.com/support

http://www.belkin.com/uk/support

Australia

http://www.belkin.com/au/support

New Zealand

http://www.belkin.com/au/support

Singapore

1800 622 1130

Europe

http://www.belkin.com/uk/support

You can find technical-support information on our website, www.

belkin.com, by navigating to the tech-support section.

If you want to contact technical support by phone, please call the

number you need from this list*:

*Local rates apply.

COUNTRY NUMBER INTERNET ADRESS

AUSTRIA 0820 200766 www.belkin.com/de/networking/

BELGIUM 07 07 00 073 www.belkin.com/nl/networking/

www.belkin.com/fr/networking/

CZECH REPUBLIC 239 000 406 www.belkin.com/uk/networking/

DENMARK 701 22 403 www.belkin.com/uk/networking/

FINLAND 0972519123 www.belkin.com/uk/networking/

FRANCE 08 - 25 54 00 26 www.belkin.com/fr/networking/

GERMANY 0180 - 500 57 09 www.belkin.com/de/networking/

GREECE 00800 - 44 14 23 90 www.belkin.com/uk/networking/

HUNGARY 06 - 17 77 49 06 www.belkin.com/uk/networking/

ICELAND 800 8534 www.belkin.com/uk/networking/

IRELAND 0818 55 50 06 www.belkin.com/uk/networking/

ITALY 02 - 69 43 02 51 www.belkin.com/it/networking/

LUXEMBOURG 34 20 80 85 60 www.belkin.com/uk/networking/

NETHERLANDS 0900 - 040 07 90 €0.10 per minute www.belkin.com/nl/networking/

NORWAY 81 50 0287 www.belkin.com/uk/networking/

POLAND 00800 - 441 17 37 www.belkin.com/uk/networking/

PORTUGAL 707 200 676 www.belkin.com/uk/networking/

RUSSIA 495 580 9541 www.belkin.com/networking/

SOUTH AFRICA 0800 - 99 15 21 www.belkin.com/uk/networking/

SPAIN 902 - 02 43 66 www.belkin.com/es/networking/

SWEDEN 07 - 71 40 04 53 www.belkin.com/uk/networking/

SWITZERLAND 08 - 48 00 02 19 www.belkin.com/de/networking/

www.belkin.com/fr/networking/

UNITED KINGDOM 0845 - 607 77 87 www.belkin.com/uk/networking/

OTHER COUNTRIES +44 - 1933 35 20 00
