Belkin F5U002 Manuale utente
P73177-A F5U002-MAC
USB Parallel
Printer Adapter
for Mac
User Manual
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 1
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 2
1
Introduction
To ensure the best operation and experience with this
product, please read this manual thoroughly and follow the
procedures to prevent any damage to the Belkin USB Parallel
Printer Adapter and/or to the connected devices.
The Belkin USB Parallel Printer Adapter will allow any USB-
equipped Mac®(running OS 8.6 through OS 9.x) to print to
most parallel Ink Jet or LaserJet printers (refer to
compatibility list for details). Simply plug the USB connector
into the computer’s USB port and the Centronics connector
into the printer. The Belkin USB Parallel Printer Adapter is
ideal for use with Macintosh computers which do not come
equipped with traditional parallel and serial ports but rather
come equipped with USB ports. These new computers are
referred to as "Legacy-Free". This Belkin product will allow
you to continue using your traditional printer with your
Legacy-Free Mac. Belkin provides a full line of USB adapter
solutions for Legacy-Free PCs and Macs. For the latest in
USB technology, visit belkin.com.
The Belkin USB Parallel Printer Adapter is supported by a
lifetime warranty and free technical support should you have
questions regarding installation or use of the product.
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 1
Features
2
Features
• Connect your existing parallel printer to your Mac
• Background printing lets you print while you work on
other tasks
• Convenient printing options including even/odd pages
printing, front-to-back and back-to front printing and cover
page/header printing
• Brightness and dithering adjustments ensure control over
the sharpness of your image printing. (Dithering adjustment
available for Ink Jet only)
• Allows connection of multiple printers (additional USB to
Printer adapter required)
• Supports most IEEE 1284-compliant Ink Jet and
LaserJet printers
• Supports most PCL level 3 Ink Jet printers
• Supports most PCL level 4 LaserJet printers
Hardware Requirements
• Apple®Macintosh®computers with USB ports built-in. This
includes G3, iMac™, G4, G4 Cube, G3 PowerBook®, G4
PowerBook and iBook™ computers
• 32MB of RAM
• One free USB port
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 2
Ink Jet Printer Driver Compatibility
• Supports most PCL level 3 DeskJet printers (or printers
with PCL level 3 DeskJet emulation), provided that the
printers are IEEE 1284-compliant and capable of
communicating a Device ID via the printer’s parallel port.
If the compatibility list does not list your printer, check
with your printer manufacturer to determine if your printer
broadcasts a Device ID via the printer’s parallel port.
This driver is capable of printing up to a maximum
resolution of 600dpi, provided the printer supports a
resolution that high.
LaserJet Printer Driver Compatibility
• Supports most PCL level 4 LaserJet printers (or printers
with PCL level 4 LaserJet emulation), provided that the
printers are IEEE 1284-compliant and capable of
communicating a Device ID via the printer’s parallel port. If
the compatibility list does not list your printer, check with
your printer manufacturer to determine if your printer
broadcasts a device ID via the printer’s parallel port. This
driver is capable of printing up to a maximum resolution of
600dpi, provided the printer supports a resolution that
high. Laser printers must have at least 1.5MB of available
RAM in order to print at 600dpi.
Operating System Requirements
• OS 8.6 through OS 9.x with USB support
Features
3
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 3
Features
4
Recommendations
• If you need more USB ports on your computer, Belkin
manufactures a variety of 4-port and 7-port USB hubs that
will allow you to expand your USB capabilities. Each 4-port
or 7-port hub will expand 1 port on your computer to 4 ports
or 7 ports.
• If you are using this device with a USB hub, the hub must
be self-powered (powered from the wall socket). If you
encounter an error with your hub stating that there is not
enough power to run this device, please be sure that the
hub is self-powered. All Belkin USB hubs can be configured
for self-power mode and include an AC wall outlet adapter
for this purpose.
Package Contents
• Belkin USB Parallel Printer Adapter
• Installation CD-ROM
• This User Guide
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 4
Parallel Printer Adapter Installation
5
Installation Overview
Installation of the Belkin USB Parallel Printer Adapter involves
just a few easy steps.
1. Hardware Installation.
2. Installing the Software.
3. Selecting your Printer.
Follow the directions that are specific to your operating system.
An uninstall procedure is also included in this manual if you
need to completely remove the device from your system.
Hardware Installation
1. Make sure your printer is turned off. Connect the Belkin
Parallel Printer Adapter to the parallel port on your printer.
Turn you printer on.
2. Connect the included USB cable to the Belkin Parallel
Printer Adapter.
3. Connect the USB connector to a free USB port on your
computer or USB hub. (Note: If connecting to a hub, the hub
must be powered from the wall socket.)
4. You will see the following message after connecting
the adapter:
5. Click Cancel. Now
move on to the
Software Installation
Section to install the
software. After
installing the
software, the adapter
will be configured
automatically.
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 5
6
Parallel Printer Adapter Installation
Software Installation
1. Make sure all applications are closed. Insert the Belkin USB
Parallel Printer Adapter CD into the CD-ROM drive, and
open the CD after the icon appears on the desktop.
2. Double-click on the LaserJet Print Driver Installer if you have
a laser printer or double-click on the Ink Jet Print Driver
Installer if you have an Ink Jet Printer. You can install both
drivers if you wish.
3. Read the End User License Agreement. If you agree, click
Accept to continue to install the software. If you do not
accept, the installation will not continue.
4. After accepting the agreement, the print driver installer
window will open. In the drop down box Easy Install is
selected. This option will install the printer driver and the
Background Printing Software. Select Install to install
the software.
5. A warning window will appear reminding you that no other
applications can be running during this installation. Make
sure all other applications are closed and click Continue.
6. A window will appear telling you that the installation was
successful. You must restart your computer. Click Restart.
7. When your computer restarts, the drivers are finished
installing. Go to the next section to learn how to select
your printer.
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 6
7
Parallel Printer Adapter Installation
Selecting Your Printer
1. Click on the Apple menu and select
Chooser.
2. In the Chooser window, select the
appropriate Belkin driver icon (i.e.,
LaserJet driver for laser printers or
Ink Jet driver for Ink Jet printers).
3. Under Select a USB printer, select your
printer.
4. It is recommended that you leave the Background Printing
On, however if you need to turn it off, you may do so.
5. When you have chosen the settings you want, close
the window.
6. Now your printer is selected. You can print from any
application that supports printing by selecting File then
Print. For more details on printing go to the next section.
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 7
8

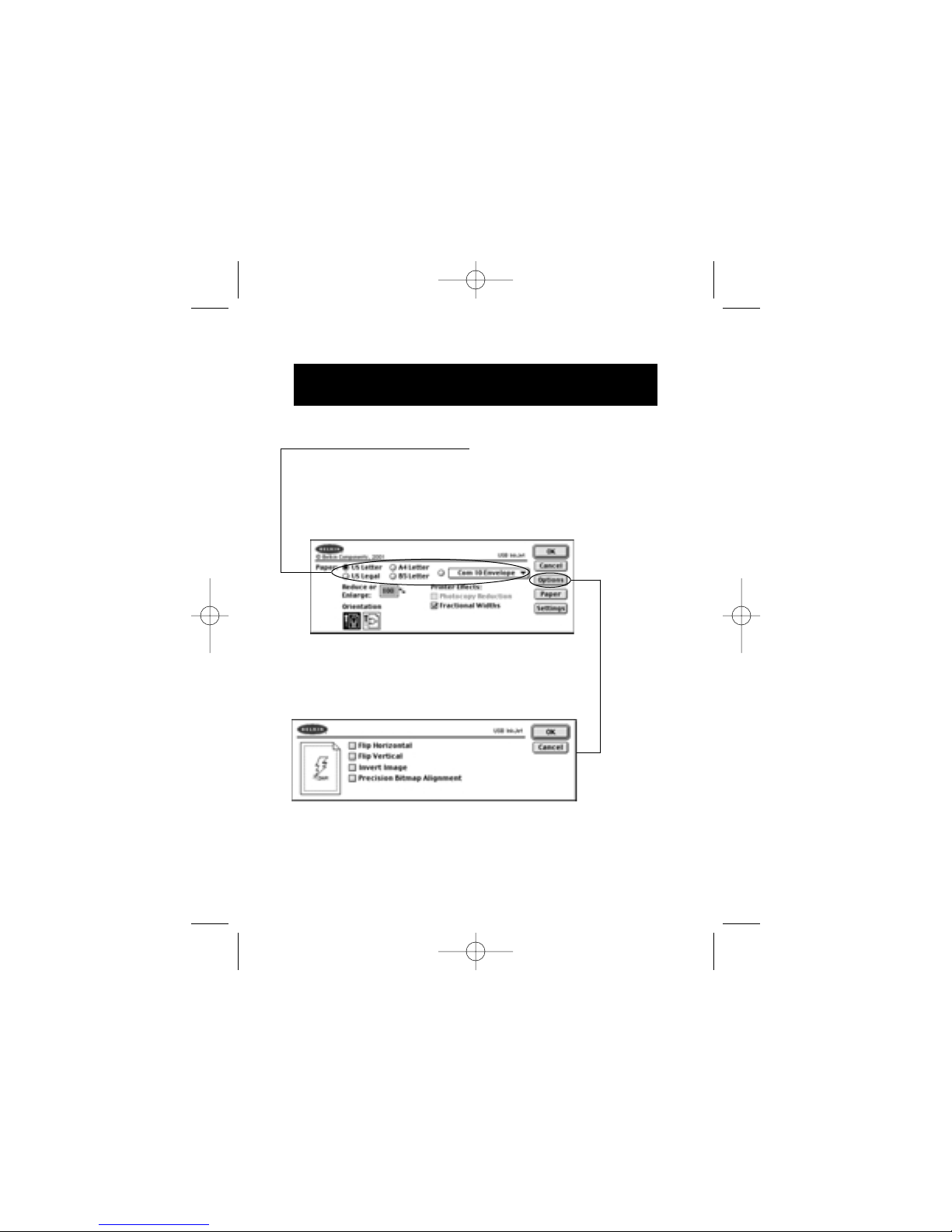

Click File then select Page Setup.
Selecting Paper/Envelope Size:
Select the paper size you want by clicking on the radio
button next to the desired paper/envelope size. When you
have selected the paper/envelope size you want, click OK.
To print, click File then select Print and click the
Print button.
Flip Horizontal: Prints a mirror image.
Flip Vertical: Prints upside-down mirror image.
Invert image: Changes black to white and white
to black.
Precision Bitmap Alignment: Canon printers only. Allows for
sharper printing of graphics and
fonts. Not needed when printing
TrueType fonts.
The Ink Jet Page Setup Menu
P73676_F5U002_mac_man.qxd 10/31/01 6:28 PM Page 8
