Belkin F8T001 Manuale di istruzioni

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

Connecting your Bluetooth Adapter to

the Nokia 3650 and PC Suite

Use with Belkin Bluetooth Software ver 1.3.x & 1.4.2.10

Bluetooth PC Adapters: F8T001 and F8T003

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

Before you Begin:

1. Make sure you have the latest version of Nokia PC Suite software installed on your computer.

The Nokia PC Suite is required to connect to the Nokia 3650.

Note: You must download the PC Suite software for your Region. For example. If you purchased

your Phone in the US, you must download PC Suite from www.nokiausa.com

2. Make sure the Belkin Bluetooth software and adapter is installed.

Section: 1 Activating Bluetooth and Pairing Procedure

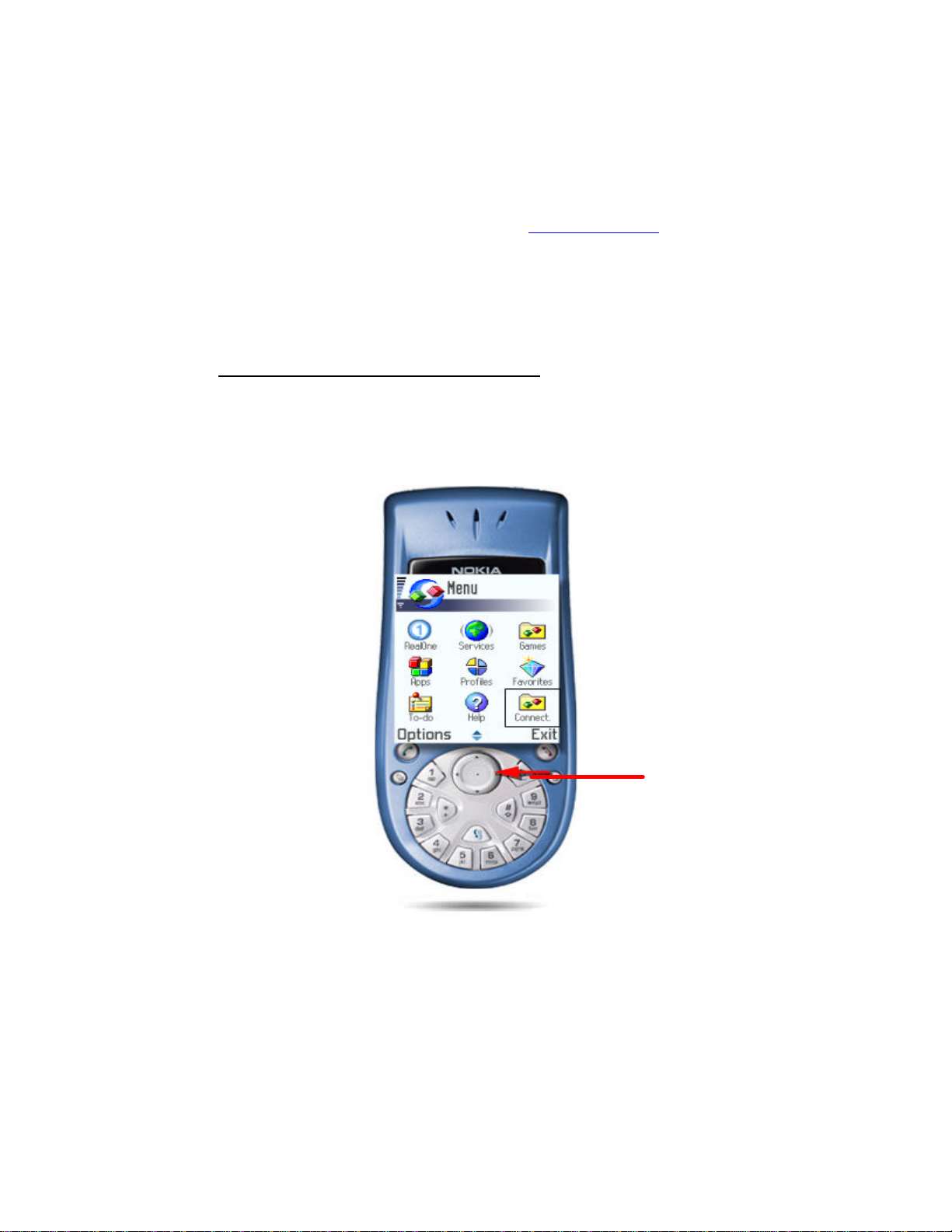

1. Go to the Main Menu or you’re Nokia 3650.

2. Go to Connect and select it by pressing the center of you’re Scroll Key.

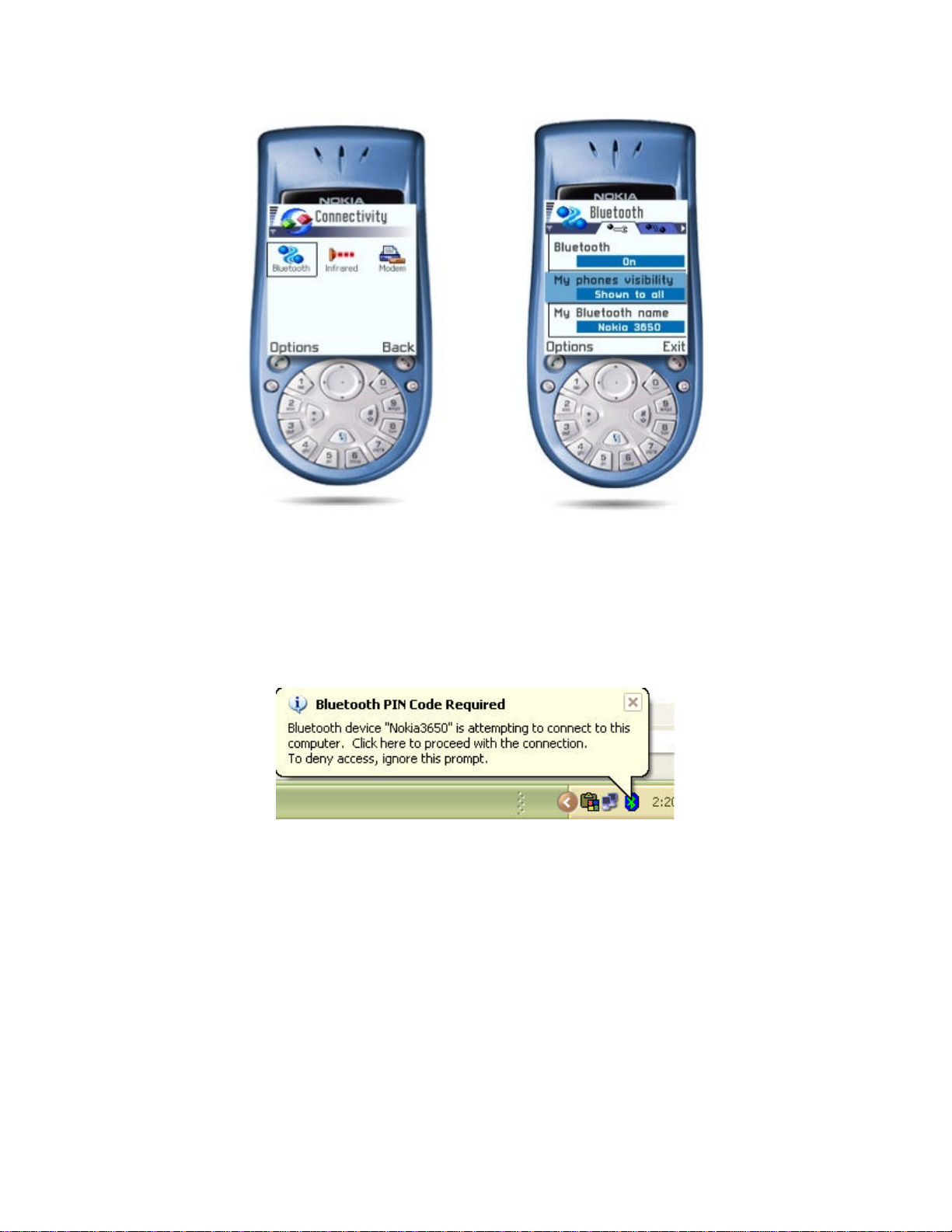

3. Select Bluetooth.

4. Make sure Bluetooth is set to ON.

5. Using your Scroll Key scroll to the next tab to the right in your Bluetooth Menu

Scroll Wheel

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

6. Select OPTIONS and then NEW PAIRED DEVICES

7. Your Phone will search you area for active Bluetooth devices

8. Select the Computer you would like to connect your phone To.

9. Enter a passkey, use 0000 and click OK.

10. On your Computer check the taskbar (next to the Clock) for the Passkey prompt

11. Click on the Bluetooth Passkey prompt or click on the Bluetooth Icon to enter the Passkey.

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

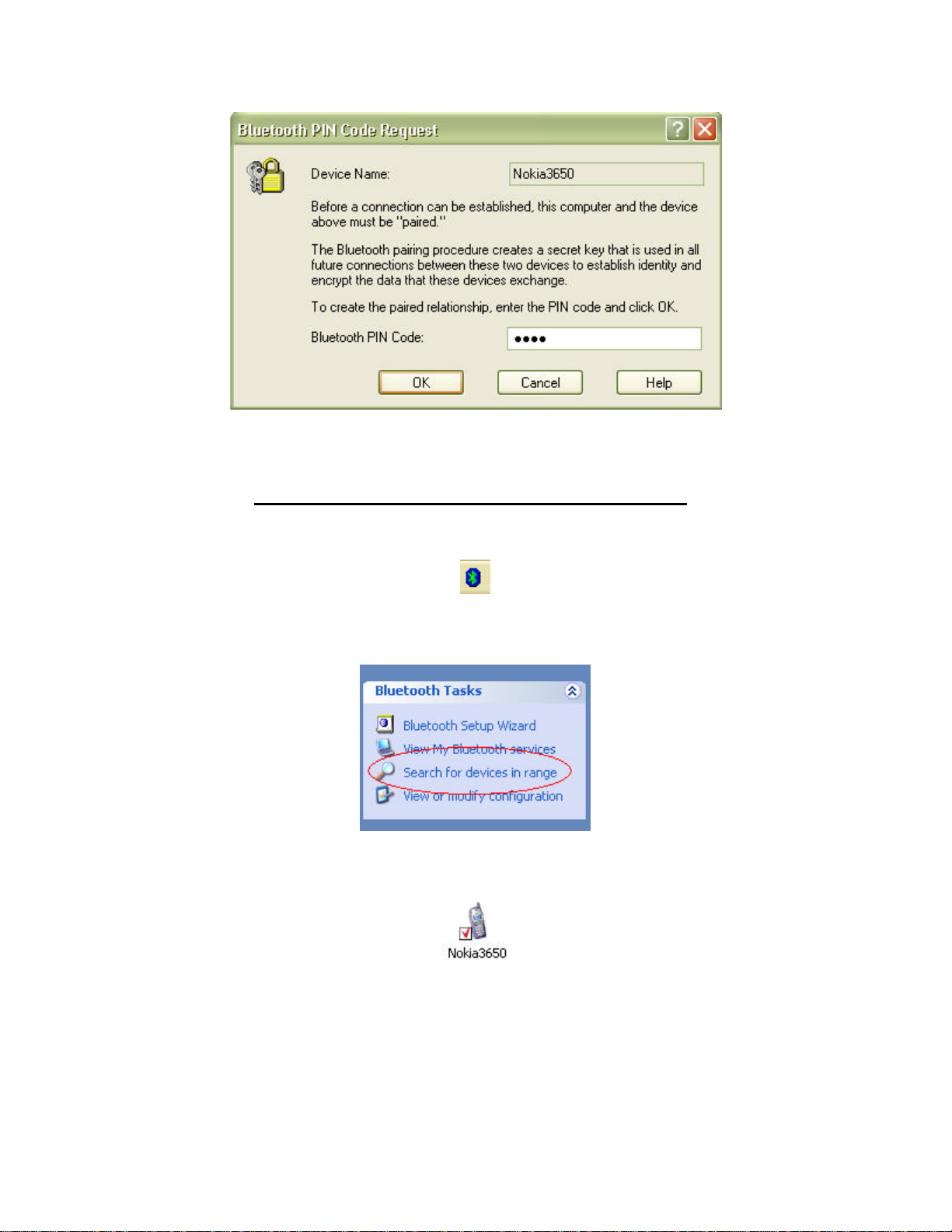

12. Enter in the Passkey (0000) and click OK.

Section: 2 Selecting the COM port on the computer

1. On your Computer, open Bluetooth Neighborhood or Double Click on the Bluetooth icon on the

Taskbar.

2. In the Bluetooth menu., located on the left, click on Search for Devices in range or click on

Entire Bluetooth Neighborhood (for Windows ME, 2K).

3. Make sure that the Nokia 3650 appears with a check-mark next to it. This means that the

device is Paired.

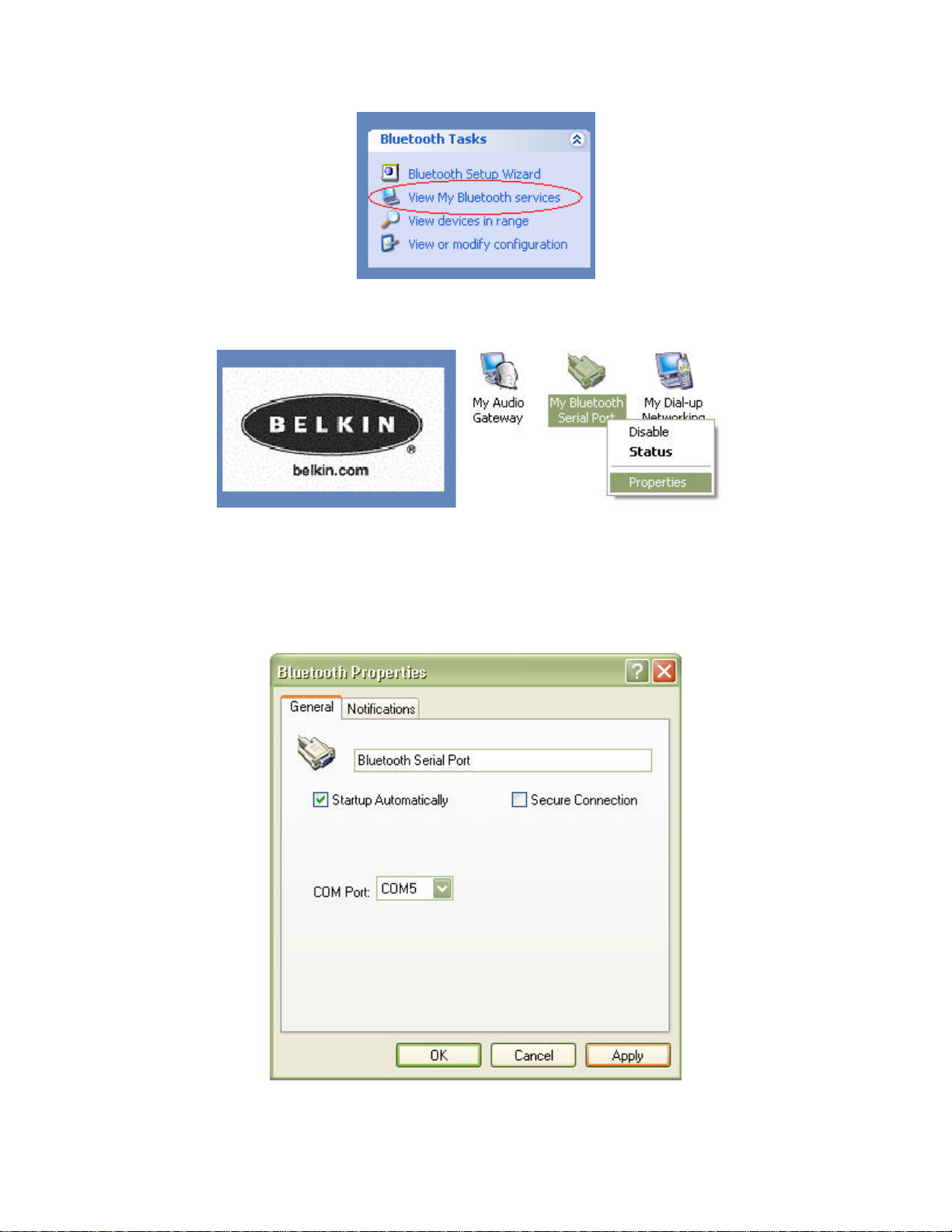

4. In the Bluetooth Menu, left, Click on View My Bluetooth Servicesor My Device (for Windows

ME, 2K.

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

5. Right click on the Serial Port Icon then go to Properties.

6. Make note of the COM port which is in use (Com 5) for your system. Make sure Start up

Automatically is checked and then uncheck Secure Connection. Click Apply to save the

settings..

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

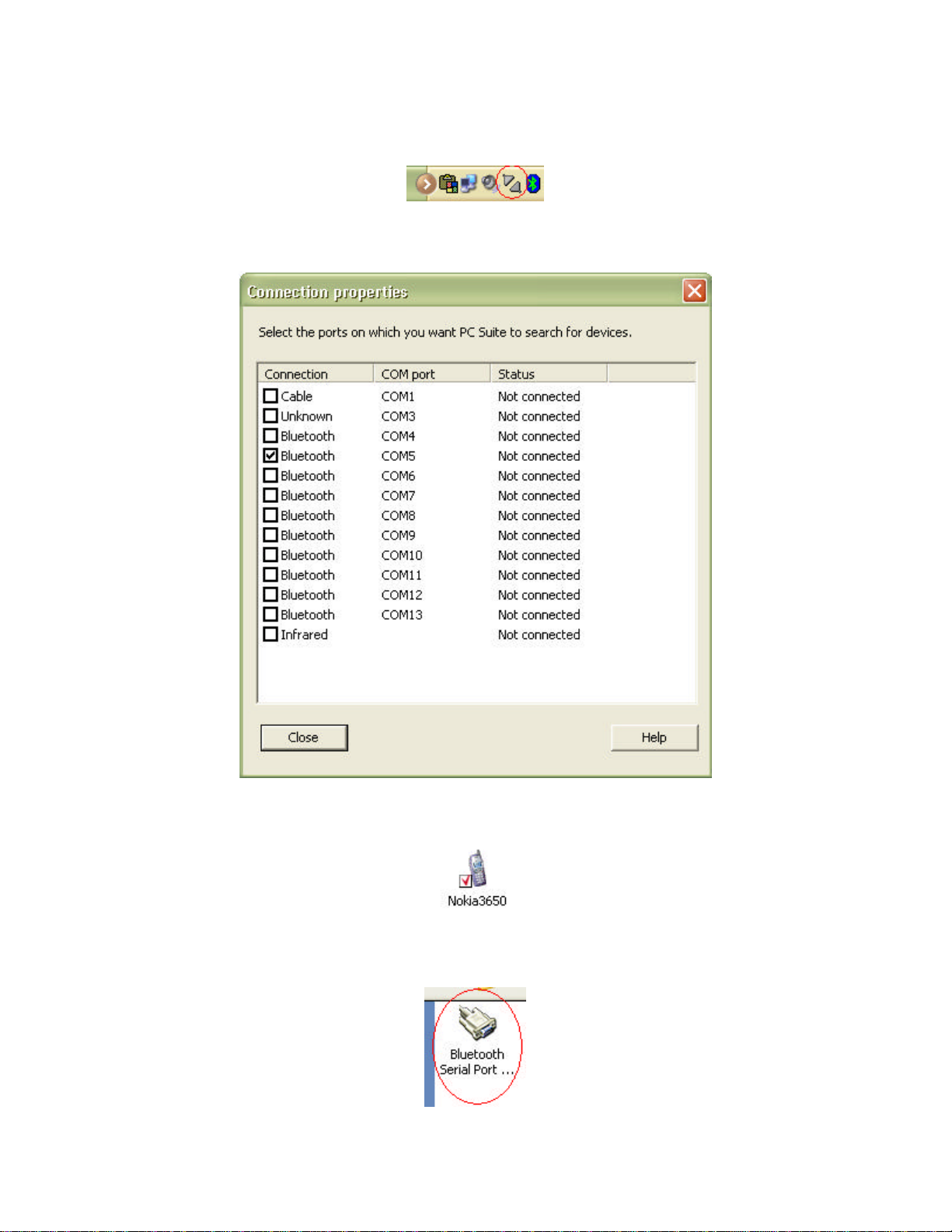

7. Double Click on the M-Router icon (PC Suite) on your taskbar.

8. Make sure that Com (Noted from step 6 Above) is the only COM port checked..

9. Go Back to Entire Bluetooth Neighborhood or View devices in Range and double click on

the Paired Nokia Phone Icon.

10. Double click on the serial Port icon.

11. Accept the connection on your Phone.

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

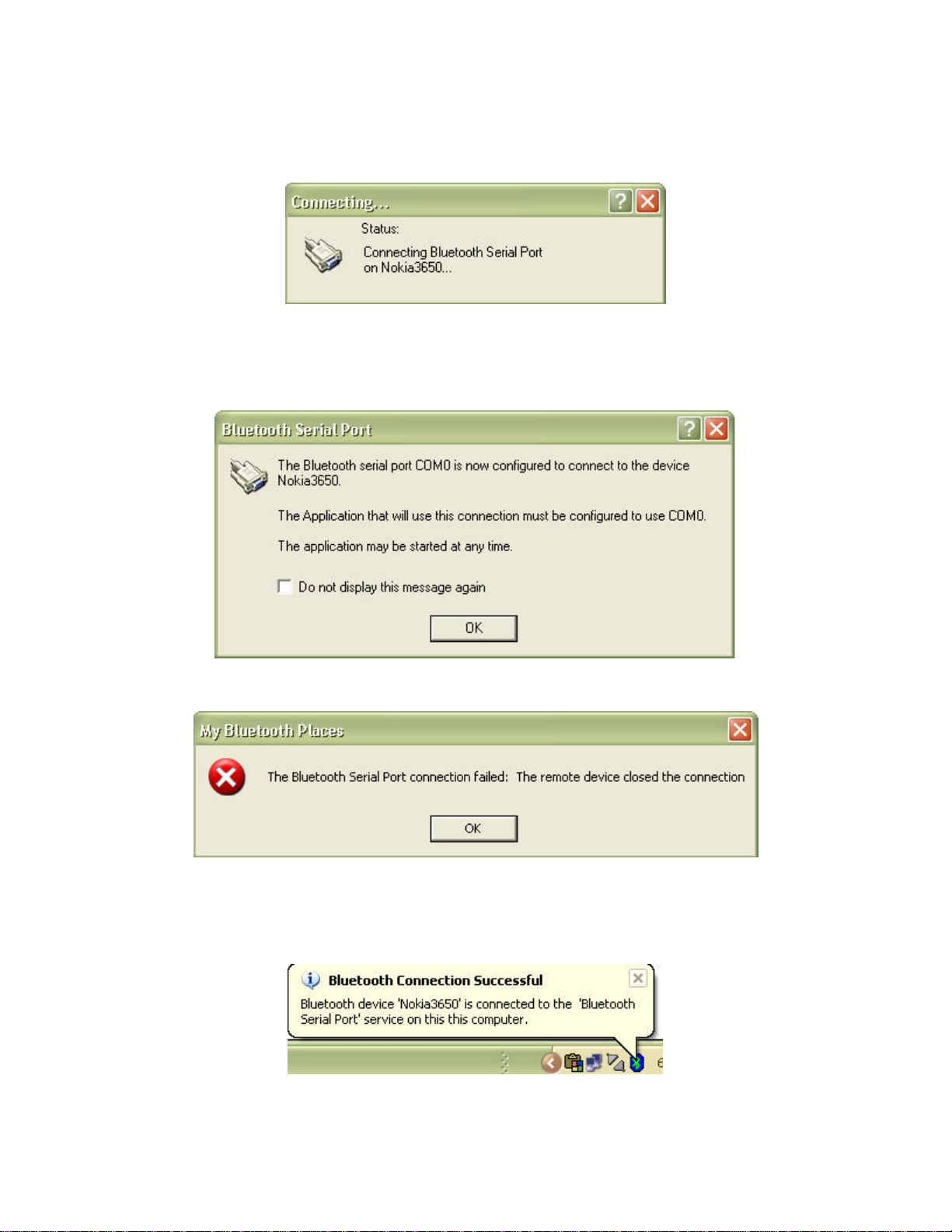

12. A window that shows the connection Status will be displayed.

12. You may receive an ERROR window on your computer stating that COM 0 is being used.

Click OK to continue.

13. You may also receive a connection fail prompt. Click OK

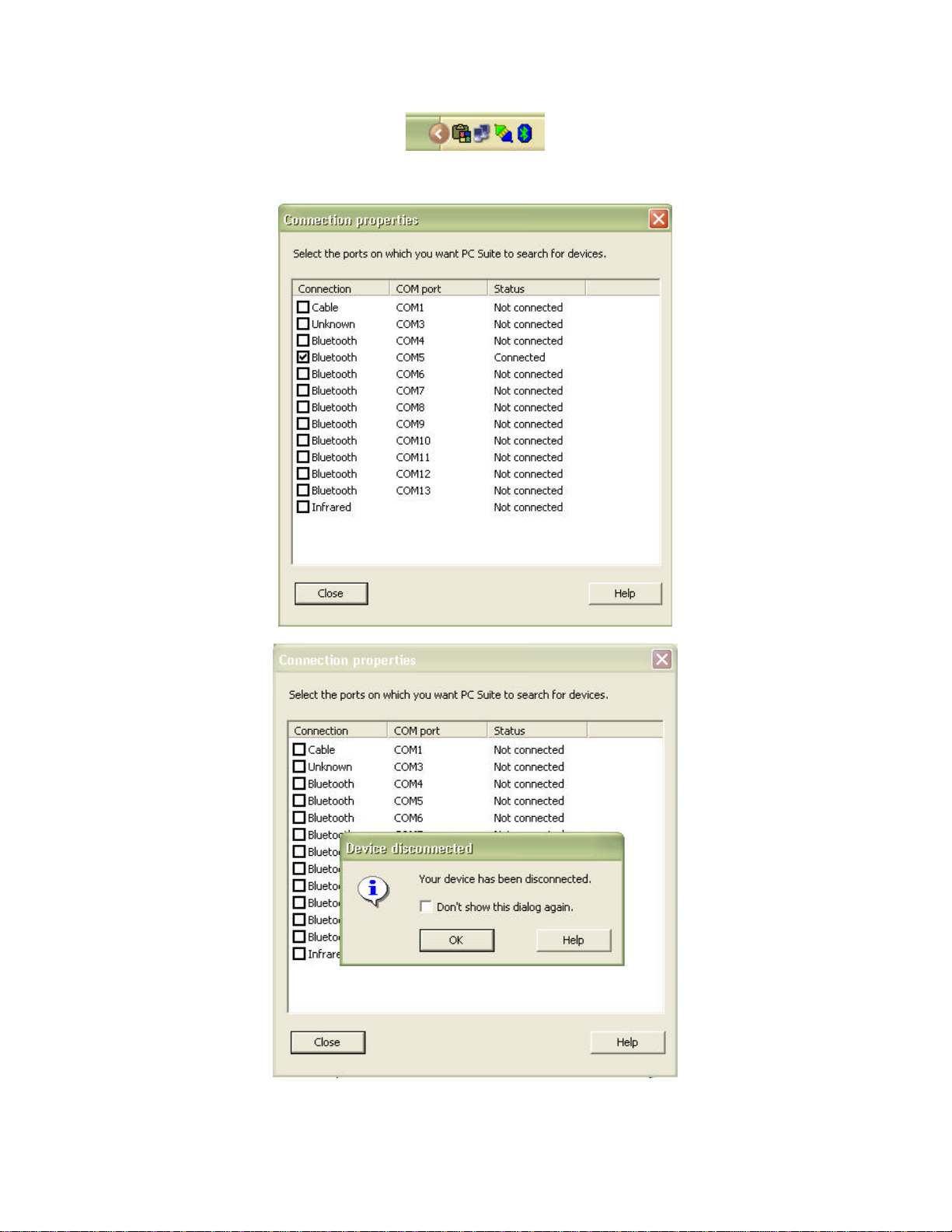

You are now connected to your phone. Verify the connection by double clicking on the M-router

icon on the bottom right of you’re tool bar. The PC Suite Icon in the system tray will also turn from

grayed out to blue and green meaning that is connected.

Connecting to your Nokia 3650 PC over Bluetooth, by Belkin

M-Router Connected

To disconnect, uncheck the COM port.
