Belkin EXPANDVIEW CAT5 Manuale utente
User Manual
F1D084
OmniView®
CAT5 Extender
OmniView®
CAT5 Extender
Table of Contents
1. Introduction .......................................................................... 1
Package Contents ..................................................................... 1
2. Overview ............................................................................... 2
Feature Overview ................................................................. 2
Equipment Requirements ...................................................... 3
System Requirements ........................................................... 4
Unit Display Diagrams .......................................................... 5
Specifications ...................................................................... 7
3. Installation ............................................................................ 8
Pre-Configuration ................................................................. 8
Connecting the Transmitter to the Computer or KVM Switch ... 9
Connecting the Local Console to the Transmitter ..................... 9
Connecting the Remote Console to the Receiver ................... 10
Connecting the Transmitter to the Receiver ............................ 11
Powering up the Systems ....................................................... 11
4. Using the CAT5 Extender ......................................................12
LED Operation ........................................................................ 12
Adjusting the Picture ................................................................13
Troubleshooting Tips ................................................................13
5. Information ......................................................................... 14
1
Congratulations and thank you for purchasing the Belkin OmniView CAT5
Extender. The CAT5 Extender allows you to control your computer or KVM
switch from up to 300 feet (91m) away. It is perfect for isolated server
rooms, large server farms, secure systems, or test benches where the
computer or KVM switch may be inaccessible to the user.
This User Manual provides all the details you’ll need to install and operate
your new CAT5 Extender, in addition to expert troubleshooting advice—in
the unlikely event of a problem.
We appreciate your business and are confident that you will soon see for
yourself why over 1 million Belkin OmniView products are in use worldwide.
Introduction

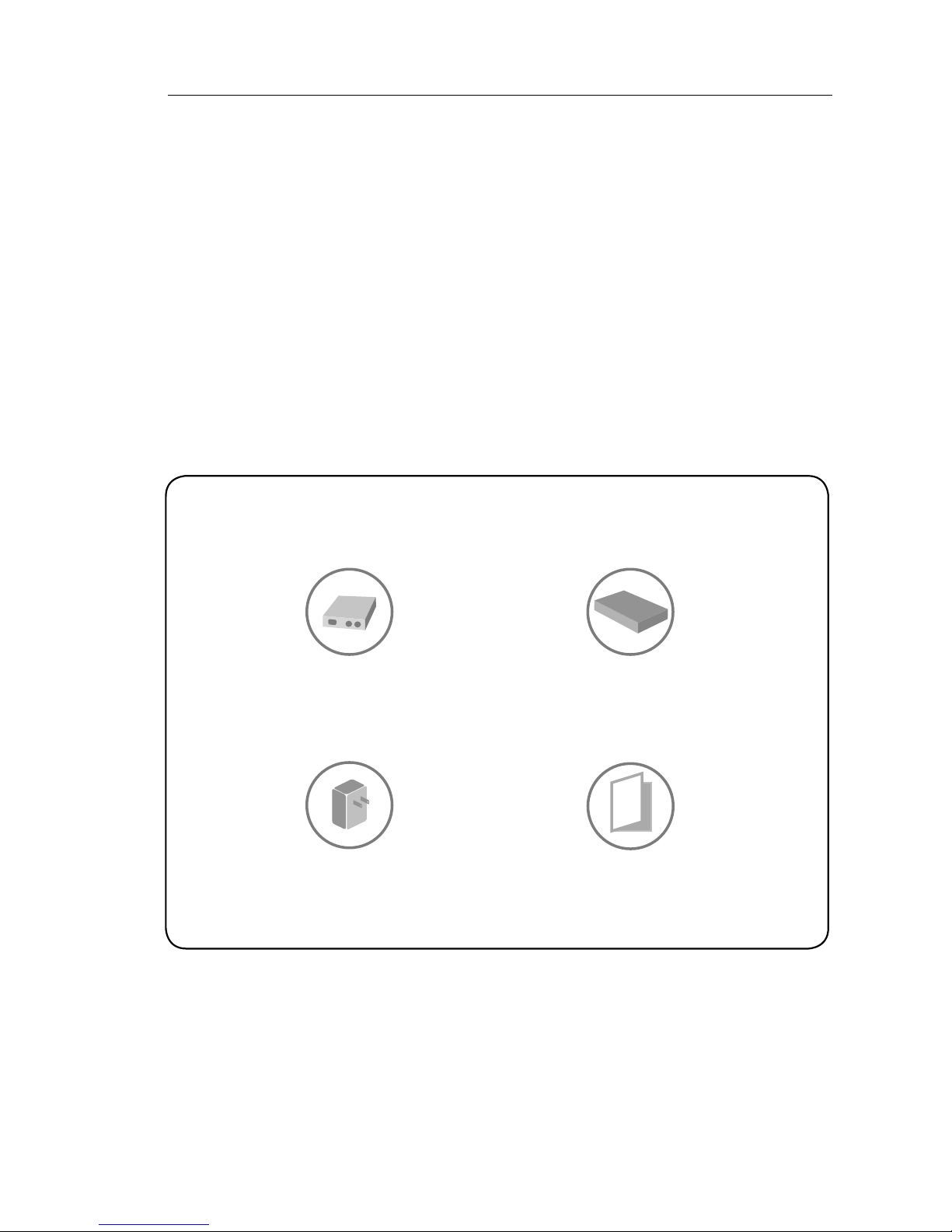

Package Contents
User Manual
OmniView CAT5
Extender Transmitter
5V AC, 1A
Power Supply
OmniView CAT5
Extender Receiver
2
section
1
2
3
4
5
Feature Overview
CAT5 Technology
Integrated CAT5 technology enables you to connect your KVM switch
to your servers up to 300 feet (91m) away using standard CAT5 cabling.
CAT5 cabling reduces cable bulk and simplifies cable management.
Video Resolution
The CAT5 Extender supports video resolutions of up to 1600x1200@75Hz.
Local and Remote Ports
The CAT5 Extender features local and remote console ports, enabling you
to control your computers from near or far.
Built-In Cabling
A built-in, 3-foot, all-in-one KVM cable provides an easy connection
between the CAT5 Extender and your computer or KVM switch.
LED Display
An LED display on the Transmitter and Receiver units provides quick
status monitoring. An orange LED indicates power is being supplied to
the unit. A flashing green LED indicates whether the Transmitter or
Receiver has control.
Overview
Equipment Requirements
Cables
Connecting the CAT5 Extender to a computer or KVM switch requires the
included KVM cable kit and a standard CAT5 patch cable.
Belkin highly recommends you use
Belkin Category 5e, FastCAT™ 5e, or
Category 6 Patch Cables for your
CAT5 Extender to help ensure the
superior performance of your video.
These cables offer the highest quality
possible to ensure optimal data and
video transmission.
Note: Use CAT6 solid cables for
optimal video at longer lengths.
Belkin UTP Patch Cables:
A3L791-XX-YYY (CAT5e)
A3L850-XX-YYY (FastCAT5e)
A3L980-XX-YYY (CAT6)
(-XX denotes length in feet)
(-YYY denotes color)
Note: Product codes and availability
may vary.
3
Overview
A3L791-XX-YYY
A3L850-XX-YYY
A3L980-XX-YYY
System Requirements
OS Platforms
The CAT5 Extender is compatible with CPUs running on, but not limited to,
the following OS platforms:
• Windows® NT®, 95, 98, 2000, Me, XP, Server 2003
• Microsoft® DOS 5.x and above
• Red Hat® Linux® 8.x and above
• Novell® NetWare® 5.x
• UNIX®
Keyboards
• PS/2-compatible
• Supports 101-/102-/104-/106-standard-key keyboards
Mice
• PS/2-compatible mice having 2, 3, 4, or 5 buttons
• PS/2-compatible wireless and optical mice
Monitors
• CRT and LCD (with VGA support)
4
1
2
3
4
5
section
Overview
Unit Display Diagrams
Receiver Unit
Control LED
Power LED
Picture-Adjust Dial
Power Jack
RJ45 CAT5 Port
Remote-Console Ports
5
Overview
Transmitter Unit
Keyboard PS/2 Cable
Mouse PS/2 Cable
Monitor VGA Cable
Local-Console Ports
Power LED
Control LED
RJ45 CAT5 Port
6
1
2
3
4
5
section
Overview
Specifications
Part No.: F1D084
Enclosure: Metal enclosure
Receiver Power: 5V, 600mA power adapter with
center-pin negative polarity
Transmitter Power: 5V, 220mA (from attached computer or
KVM switch via keyboard port)
Max. Video Resolution: Up to 1600x1200 @ 75Hz (depends on
cable length)
Keyboard Emulation: PS/2
Mouse Emulation: PS/2
Console Keyboard Input: MiniDIN6 (PS/2)
Console Mouse Input: MiniDIN6 (PS/2)
Console Monitor Ports: HDDB15 female (VGA)
CAT5 Extension Ports: RJ45
Operating Temp: 32° to 104° F (0° to 40° C)
Storage Temp: -4° to 140° F (-20° to 60° C)
Humidity: 0-80% RH, non-condensing
Warranty: 2 years
Dimensions: Transmitter: 4.5 x 3.3 x 0.9 in.
(115 x 85 x 24mm)
Receiver: 5.8 x 3.4 x 1.0 in.
(148 x 86 x 26mm)
Weight: Transmitter: 14.7 oz. (0.42kg.)
Receiver: 13.5 oz. (0.38kg.)
Note: Specifications are subject to change without notice.
7
Overview
