Belkin F5D5730au Manuale utente

Belkin Tech Support

Australia: 1800 666 040

New Zealand: 0800 441 913

Singapore: 800 616 1790

US: 310.898.1100 ext 2263

Belkin Corporation

501 West Walnut Street

Compton • CA • 90220 • USA

Tel: 310.898.1100

Fax: 310.898.1111

Belkin Components, Ltd.

Express Business Park

Shipton Way • Rushden • NN10 6GL

United Kingdom

Tel: +44 (0) 1933 35 2000

Fax: +44 (0) 1933 31 2000

Belkin Components B.V.

Starparc Building • Boeing Avenue 333

1119 PH Schiphol-Rijk • The Netherlands

Tel: +31 (0) 20 654 7300

Fax: +31 (0) 20 654 7349

Belkin Components, Ltd.

7 Bowen Crescent • West Gosford

NSW 2250 • Australia

Tel: +61 (0) 2 4372 8600

Fax: +61 (0) 2 4372 8603

P74476au

registered trademarks of respective manufacturers listed.

belkin.com

User Manual

F5D5730au

High-Speed

ADSL Modem

with USB and Ethernet

Connect your PC or network for

high-speed Internet access

TABLE OF CONTENTS

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Knowing your Modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Installation Method 1 – Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation Method 2 – USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Modem Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Annex A – Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Annex B – FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

INTRODUCTION

Thank you for purchasing the Belkin High-Speed ADSL Modem with USB and

Ethernet. This Modem will allow you to surf the Web and connect to some

popular game consoles.

Features

•RJ45 Ethernet interface support via crossover cable; USB interface support

•IEEE 802.3 standard 10/100Mbps compliance

•DHCP Server

•ANSI T1.413 Issue 2, ITU-T G.DMT (G.992.1), G.Lite (G.992.2) and

G.hs (G.994.1)

•IP Sharing via NAT routing function (Network Address Translation)

•NAT function for NetMeeting®, ICQ®, CU-SeeMe®, etc.

•PPPoE, PPPoA, Bridged and Routed IP (RFC 1493) Encapsulations

•Full ATM protocol support

•Multi-protocol support: IP, PPP, Transparent bridging, etc.

•Configuration, management, and firmware updates via Web

Browser Interface

•Two-level password protection for device management

•Flash memory for future firmware upgrades

•Simultaneous USB and Ethernet support

Package Contents

•Belkin High-Speed Modem with USB and Ethernet

•Power Adapter

•RJ45 Crossover Cable

•A–B USB Cable

•RJ11 Phone Cable

•CD

INTRODUCTION

System Requirements

PC running Windows® 98SE , Me, 2000, XP

CD-ROM drive (For USB Installation Only)

One free USB port (For USB Installation Only)

One RJ45 Ethernet port (Ethernet Installation Only)

KNOWING YOUR MODEM

(1)

(2)

Front of Modem

1. ADSL

ON ADSL Connected

OFF No ADSL Detected

Blinking Connecting/Handshaking

2. LAN

ON Ethernet Connected

OFF No Ethernet Connection

Blinking Data Transmitting

Back of Modem

KNOWING YOUR MODEM

Before You Start

Before you start to use your Modem you must have the following:

1. An active ADSL account and line with a user name and password.

2. IP address, DNS, and gateway settings from your ISP only if applicable.

3. At least one computer with either USB or Ethernet connection.

4. TCP/IP networking protocol installed on the computer (most computers have

this installed by default).

5. Microsoft® Internet Explorer 5.0 or Netscape® 4.5 or greater installed.

6. It may be necessary to disable any firewall or anti-virus software during

installation. It may prevent successful installation. This can be reactivated on

successful installation.

TIP: After plugging in the power cord, the Modem initialises and starts working

after 20 seconds.

TIP: If you push the Reset button, all the parameter settings will revert back to

factory default.

Ethernet USB

Reset

RJ11

Power

INSTALLATION

You can connect your equipment in one of two ways: via an Ethernet crossover

cable or a USB connection.

If you are connecting via an Ethernet crossover connection then follow the

diagram below and proceed to “Installation Method 1” on page 6.

If you have chosen to connect via a USB connection, make sure the computer

you are connecting to is switched off. Use the diagram below and then proceed

to “Installation Method 2” one page 6.

INSTALLATION

Installation Method 1 - Ethernet

1. Make sure that the computer that you are connecting to is powered off.

2. Connect one end of the Ethernet crossover cable to your Modem’s Ethernet

port; connect the other end to your computer’s Ethernet port.

3. Connect the RJ11 phone line provided for ADSL into the line socket in

the Modem.

4. Connect the power cord to the Modem and power on the Modem; wait 20

seconds for the Modem to initialise, then boot up your computer.

5. Open your web browser and type in the default IP address of the Modem to

the address bar—IP address: 10.0.0.2 (see image on the top of next page).

6. Proceed to “Modem Configuration” on page 7.

Installation Method 2 – USB

1. Make sure that the computer that you are connecting to is powered off.

2. Insert the rectangular end of a USB cable into a USB port on your PC.

3. Insert the square end of the USB cable into the USB port of the Modem.

4. Connect the RJ11 phone line provided for ADSL into the line socket in

the Modem.

5. Connect the power cord to the Modem and power on the Modem; wait 20

seconds for the Modem to initialise, then boot up your computer.

6. Your PC will automatically detect this Modem as “USB Net Card”.

7. Insert the bundled USB driver CD into the CD-ROM drive and follow the

on-screen instructions to install the USB Modem drivers.

8. After installation, the Modem will be installed as “USB Network Adapter”

within the Device Manager of Windows. You will be required to reboot your PC

before continuing.

9. Open your web browser and type in the default IP address of the Modem to

the address bar—IP address: 10.0.0.2 (see image on the top of the

next page).

INSTALLATION

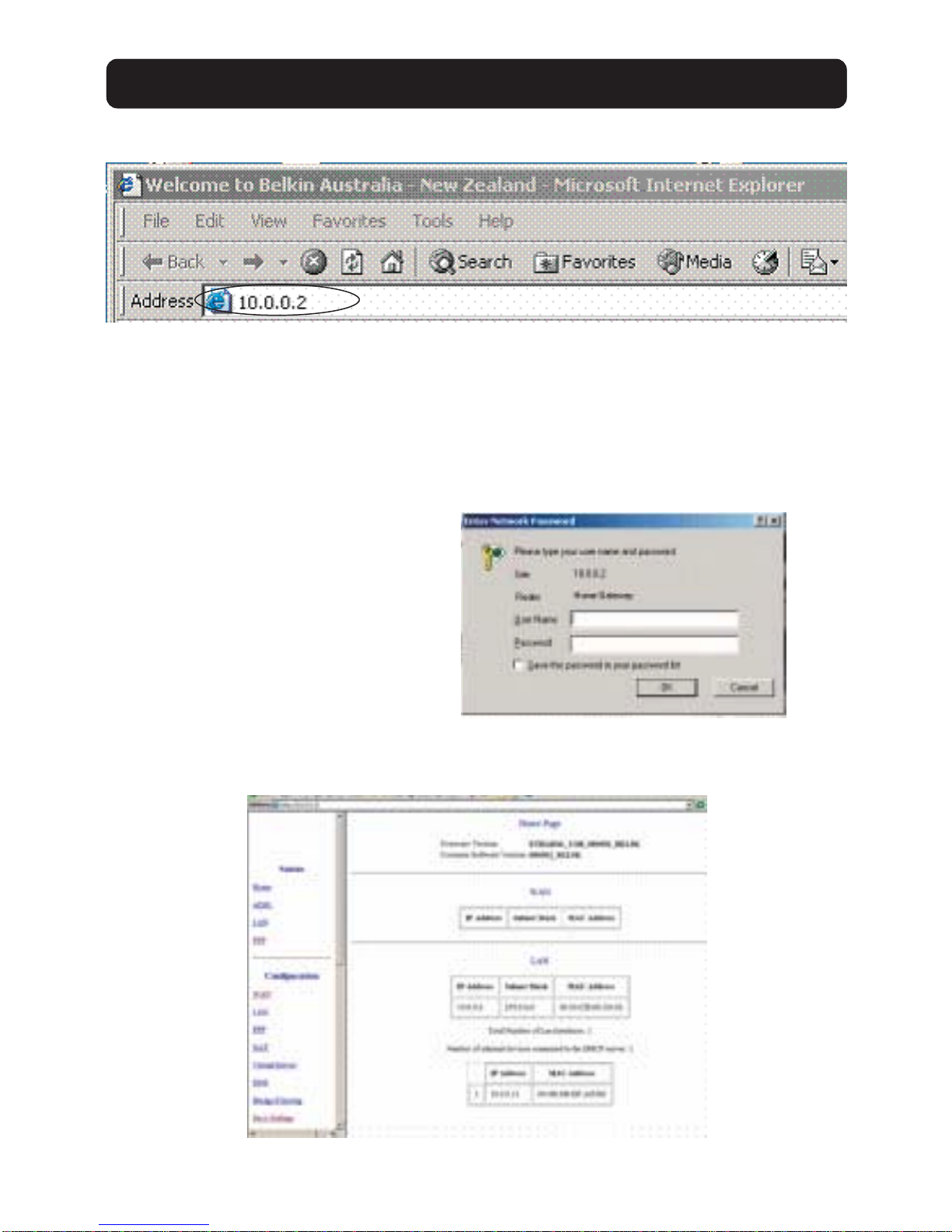

Modem Configuration

Enter the default user name and password and click “OK”. If you do not see the

screen below then turn to “Annex A Problem 1”.

Default User Name: admin

Default Password: password

You will then be logged into the web interface of the Modem.
