OVERVIEWINTRODUCTION

Congratulations and thank you for purchasing the Bluetooth Wireless Optical Mouse

from Belkin. This breakthrough technology makes it easier than ever to connect many

of your computing and communications devices—without physical connections or

cables. The Bluetooth Mouse gives you the accuracy and high-performance of optical

input technology along with the freedom and convenience of wireless design. Please

be sure to review this manual carefully, to ensure that you take advantage of all the

features and capabilities of your new Bluetooth Mouse.

Please Note: References made to the

Bluetooth USB Adapter are to

equipment included with our

Bluetooth Mouse, part number

F8T041-B. The Bluetooth USB

Adapter lets you easily add

Bluetooth capabilities to your

USB computer.

Benefits

• Offers the convenience of the wireless Bluetooth interface

• Delivers the accurate response of optical technology

• Features comfortable, ergonomic design

• Navigates easily using scroll wheel with blue LED indicator

• Works at distances of up to 10 meters (33 ft.)

• Installs and operates easily

• Includes Bluetooth USB Adapter that allows you to connect up to 7 Bluetooth

devices at one time

** Our Bluetooth Mouse, Belkin part number F8T041-B, includes our Bluetooth USB

Adapter (Belkin part number F8T005x).

Fourth button

Scroll wheel

and button

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 2

Product Features

The Bluetooth Mouse is compliant with Bluetooth standard version 1.1 and provides:

• Compliance with Bluetooth specification v1.1 devices

• 800dpi optical mouse technology for accuracy

• Side button acts as a browser and Windows back button

• Scroll wheel

• Operating distance of up to 10 meters

• Ergonomic design

OVERVIEW

The Bluetooth USB Adapter is compliant with Bluetooth standard version 1.1 and provides:

• Compliance with Bluetooth specification v1.1 devices

• USB bus powering; no external power supply necessary

• Support for Microsoft® Windows® 98 SE, Me, 2000, and XP

• Operating distance of up to 10 meters

• Point-to-multipoint connections

• Support for data rates up to 721Kbps

• Built-in security, including up to 128-bit encryption and authentication

• Compatibility with USB desktop and notebook computers

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 4

OVERVIEW

System Requirements

• PC-compatible computer, CPU speed 200MHz or above

• Memory: 64MB or above, 128MB recommended

• One available USB port, USB 1.1 standard

• Windows 98 SE, Me, 2000, or XP

Package Contents

• Bluetooth Wireless Optical Mouse

• Bluetooth USB Adapter

• USB base with 6 ft. extension

• CD-ROM for installation and documentation

• User Manual

• Quick Installation Guide

• 2 AA Batteries

• Registration Card

Mouse Specifications

Bluetooth Compliance Version 1.1

Compatible to Bluetooth

HID Profile 0.95c

Operating Frequency: 2.4 to 2.4835GHz

Output Power: Class II (<4 dBm) RF

Operation Range: 10m (33 ft.) radius

indoors

Antenna: Integrated

Mouse

Pointing Device: Optical, 800dpi

Buttons: 4+ scroll-wheel button

Left/Right-Handed

Design: Right

Batteries Required: 2 AA (included)

Battery Life: 25 days under normal

usages 100 days standby

LED: Blue LED indicator

Dimensions: 74 (W) x 130 (L) x 45mm (H)

Weight: 108g (without battery)

Operating Temp: 0 to 50 degrees Celsius

Storage Temp: 10 to 70 degrees Celsius

Humidity: 5~90% non-condensing

Supported Profiles: GAP, SDP, HCRP

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 6

OVERVIEW

USB Adapter Specifications

Bluetooth Compliance Version 1.1

Physical Interface: USB UHCI/OHCI

1.1-compliant

Operating Frequency: 2.4 to 2.4835GHz

Output Power: 0 dBm, Class 2

Sensitivity: <0.1% BER@ -80 dBm

Data Rate: 723/57.6Kbps

Operating Range: 10m radius indoors

Network Topology: Point-to-Multipoint

Packet Support: 1/3/5 Slots Packet

Operation: Master/Slave

Frequency Stability: +/- 10PPM

LED Indicator: Power On/Pairing/Low

Battery

Antenna Type: Internal

Dimensions: 57 (L) x 24 (W) x 10mm (H)

Weight: 0.3oz. (8.5g)

Operating Temp: 0 to 70 degrees Celsius

Storage Temp: -30 to 85 degrees Celsius

Humidity: 10-90% (non-condensing)

Supply Voltage: 5.0VDC (USB)

Nominal Current: 100mA

Support Profiles: Service Discovery, File

Transfer, LAN Access, Serial

Port, DUN, Generic Object

Exchange, Business Card,

Push, Pull & Exchange, Fax,

Synchronization, PAN, HCRP,

Audio Gateway, Headset,

Human Interface Device

OS Support: Windows 98 SE, Me, 2000,

and XP

Specifications subject to change without notice.

Supported Profiles

The services supported by your USB Adapter are defined as “Profiles”. Available

profiles include:

• Generic Access*

• Service Discovery*

• Serial Port

• LAN Access

• Dial-Up Networking

• Generic Object Exchange

• Object Push

• File Transfer

• Synchronization

• Fax

• Personal Area Network

• Human Interface Device*

• Audio Gateway

• Hardcopy Cable Replacement

*Supported by Bluetooth Mouse

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 8

SOFTWARE SETUP

Installing the USB Adapter

Software Setup for Windows 98 SE, Me, 2000, and XP

To install the software for the USB Adapter, follow the instructions below:

The installation process for Windows XP

may look slightly different from Windows

98 SE, Me, and 2000.

Note: Do not insert the USB Adapter into

the USB port prior to installation.

1. Insert the software installation CD into

the PC’s CD-ROM drive.

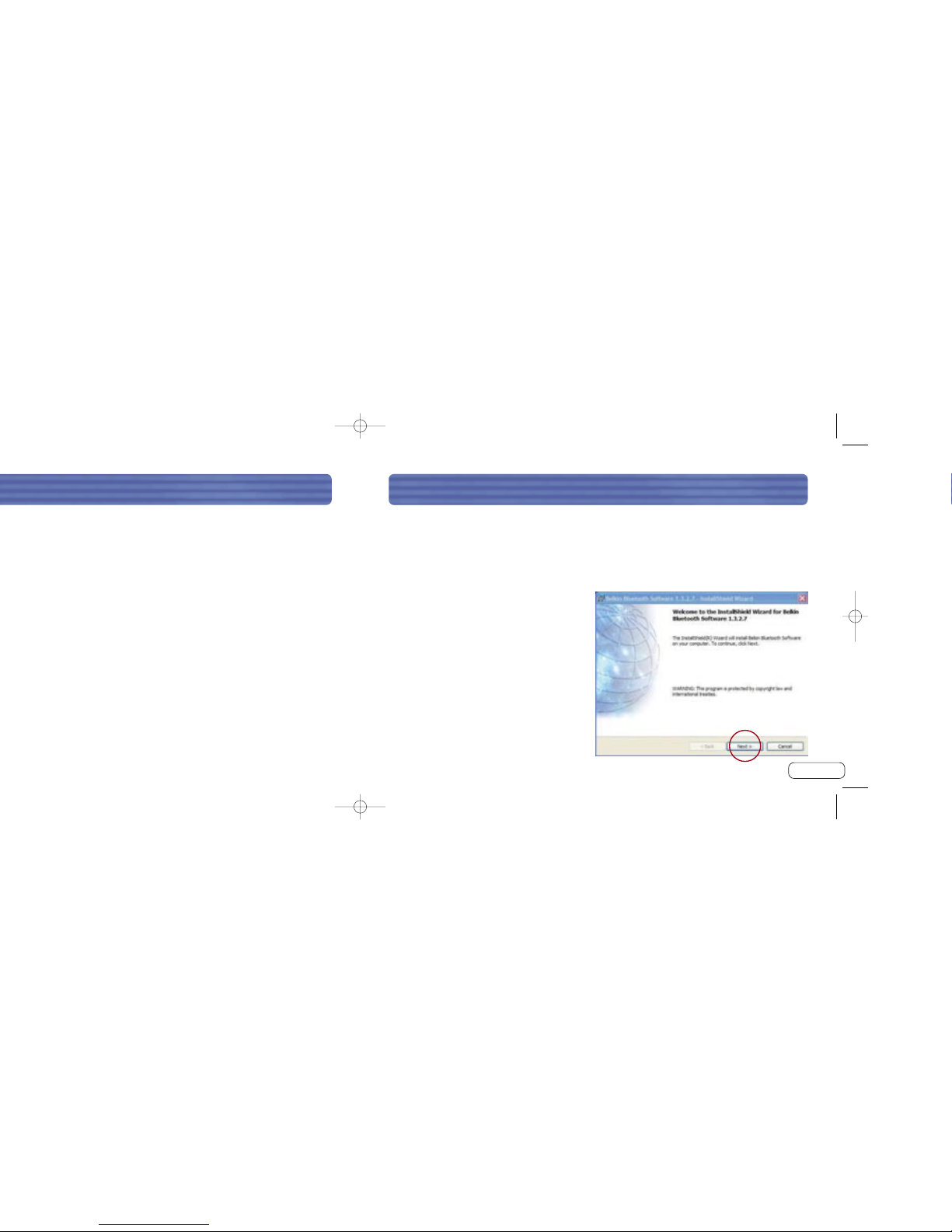

2. The “Software InstallShield Wizard”

window appears. Click on “Next” to

begin the installation process.

OVERVIEW

Supported Profiles

Your USB Adapter gives you the ability to do the following—without cables:

• Transfer files

• Access dial-up networks

• Connect to local area networks

• Perform an ActiveSync® session

The basic functions of the Bluetooth Neighborhood include:

• Device Discovery

• Service Discovery

• Establishing links with remote devices

• Connect to serial ports

• Exchange PIM data

• Send or exchange business cards

• Connect to input devices

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 10

SOFTWARE SETUP

5. Confirm that the device software is ready to be installed and click on “Install”.

6. The InstallShield Wizard will begin to install the Bluetooth software. This may

take several minutes.

SOFTWARE SETUP

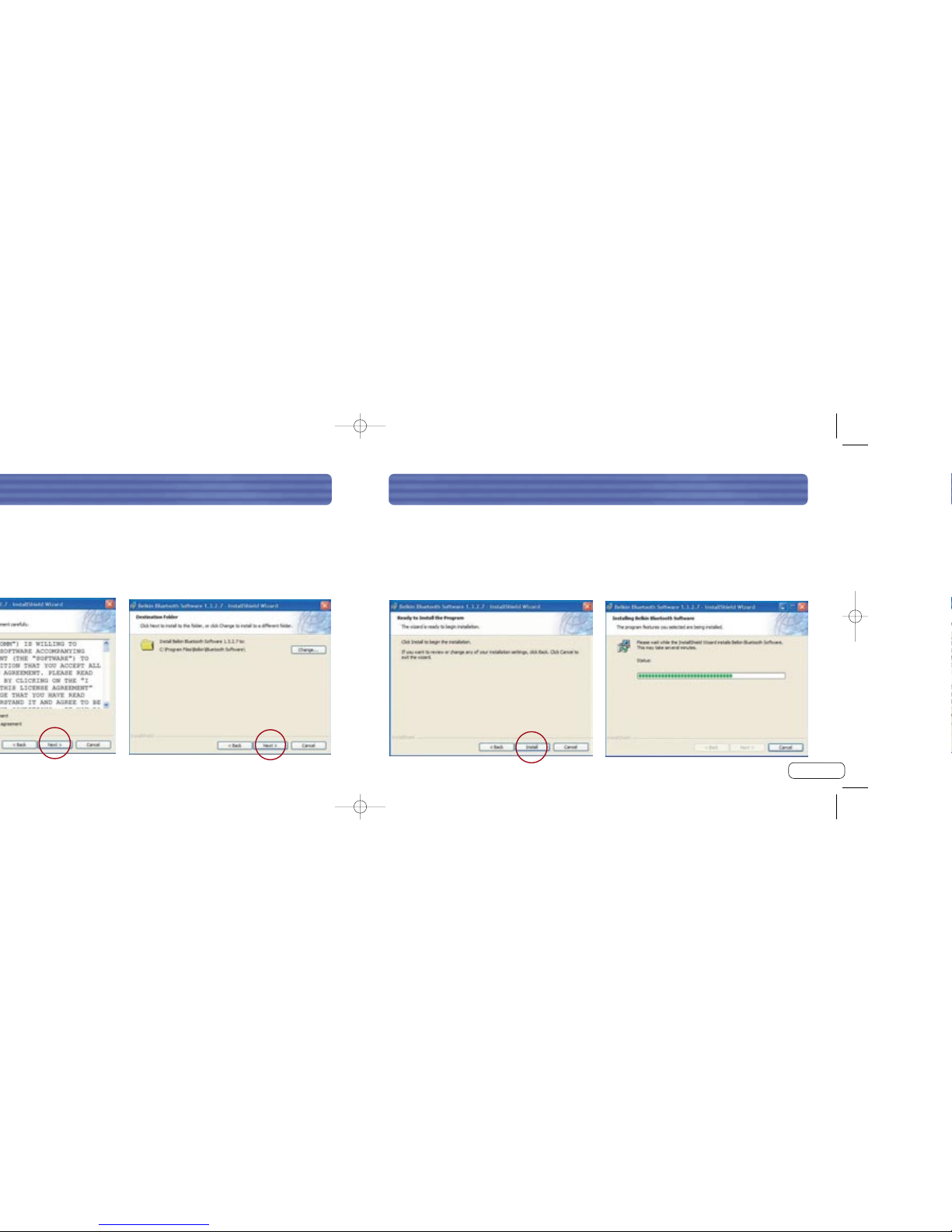

3. Choose “I accept the terms in the license agreement” to accept the license

agreement. Click on “Next” to continue.

4. Specify the location where the software files will be installed on your hard drive.

It is recommended that you install the software in the default directory

“C:\Program Files\Belkin\Bluetooth\Software\”. Click on “Next” to continue.

12 13

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 12

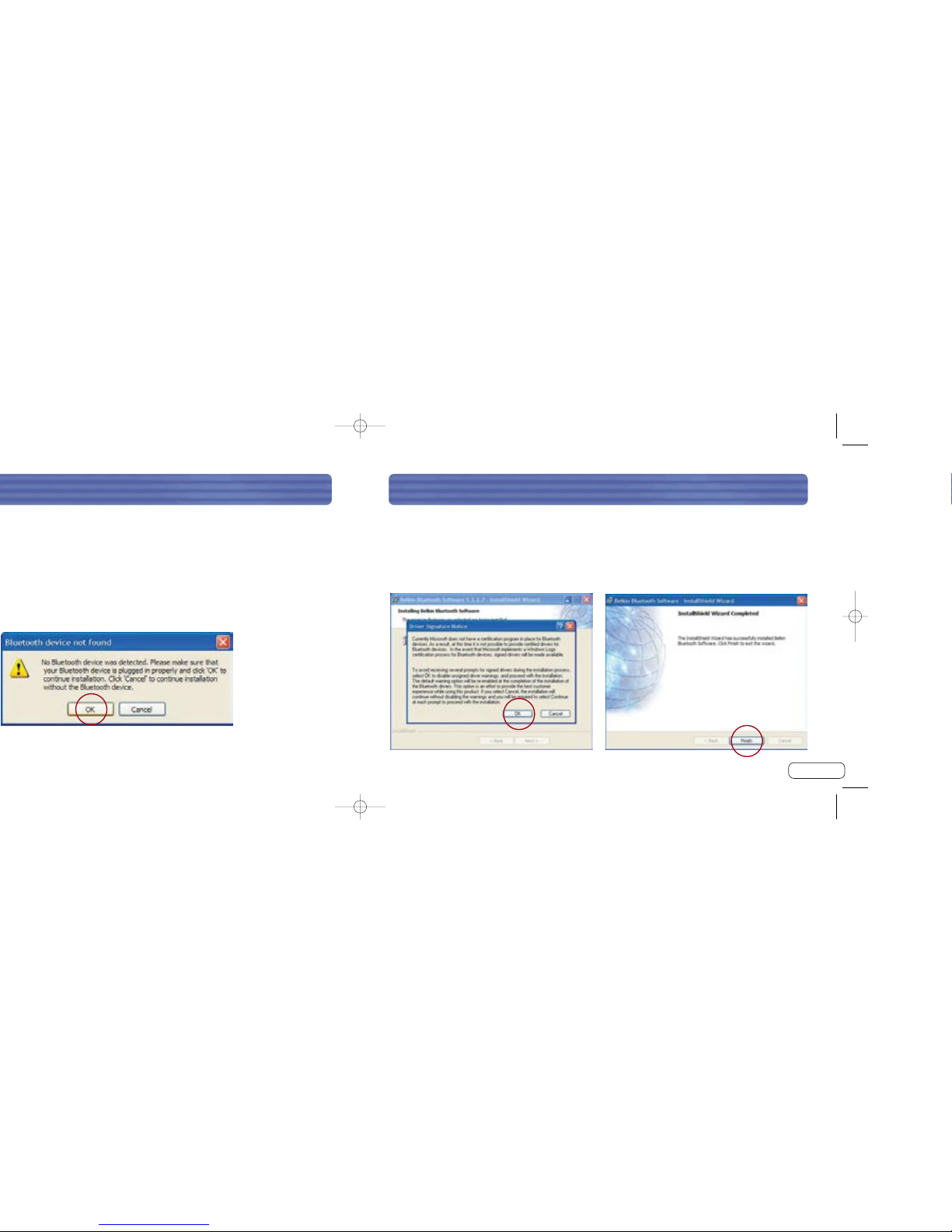

Note: If at any time during the installation process you receive a “Driver Signature

Notice”, click “OK” to continue the installation process.

8. Confirm the completion of the software installation; click “Finish” and restart the

system if prompted to do so.

SOFTWARE SETUPSOFTWARE SETUP

7. During the installation process, you may be prompted to insert your Bluetooth

USB Adapter. If your Adapter is not plugged into your computer at this time, you

may insert it into an available USB 1.1-compliant port on your desktop or

notebook, then click “OK” to continue. Click on “Cancel” to continue installation

without the Bluetooth device inserted. Refer to the “Hardware Setup”

section on page 16 for detailed instructions on connecting the USB Adapter to

your computer.

14 15

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 14

1716

HARDWARE SETUPHARDWARE SETUP

USB Adapter

You must connect the Bluetooth USB Adapter to an available Universal Serial Bus (USB)

port on your computer.

Note: Your USB Adapter is sensitive to static electricity, which can damage its delicate

electrical components. Electrostatic charges can be acquired simply by dry weather

conditions or they can occur when you walk across carpeted floors. To protect your

device, always touch the metal chassis of your computer before handling the USB

Adapter, or any internal computer component. This will ground a potential electrostatic

discharge. Avoid touching the metal connector when handling the USB Adapter.

There are two ways to connect your USB Adapter:

1. Connect the USB Adapter directly to an available USB A-type connector on your

desktop or notebook computer.

2. Connect the USB Adapter to the included USB base stand, and then connect the

other end of the cable to an available USB A-type connector on your desktop or

notebook computer. This is recommended for desktop computers.

Hardware Setup for Windows 98 SE, Me, 2000, and XP

1. Once you have connected the USB Adapter, your system will display a “New USB

device found” dialog box. Follow the prompts to install drivers for your Adapter.

2. Choose “Install from a list or Specific location”; then click “Next”.

P74312_F8T041_man.qxd 9/3/03 11:18 AM Page 16

Altri manuali per F8T041-B

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Belkin Topo

Belkin

Belkin F8E857 Manuale utente

Belkin

Belkin F8E845ea Manuale utente

Belkin

Belkin WIRELESS OPTICAL USB MOUSE Manuale utente

Belkin

Belkin F8E825-USB Manuale utente

Belkin

Belkin COMFORT MOUSE Manuale utente

Belkin

Belkin COMFORT MOUSE Manuale utente

Belkin

Belkin AeroCruiser F8E888 Manuale utente

Belkin

Belkin MiniWireless F8E874 Manuale utente

Belkin

Belkin MiniWireless F8E874 Manuale utente

Belkin

Belkin NOSTROMO N30 Manuale utente

Belkin

Belkin F8E800 series Manuale utente

Belkin

Belkin M450 Manuale utente

Belkin

Belkin F8E850-OPT - Optical Mouse Manuale utente

Belkin

Belkin NetMaster F8E204 Manuale utente

Belkin

Belkin MiniScroller F8E841-BLK Manuale utente

Belkin

Belkin ErgoMouse F8E203-BLK Manuale utente

Belkin

Belkin F5L075USB Manuale utente

Belkin

Belkin F8T041-B Manuale di istruzioni

Belkin

Belkin ErgoFit P74278 Manuale utente

Belkin

Belkin F8E874EA Manuale utente

Belkin

Belkin ClassicMouse F8E201 Manuale utente

Belkin

Belkin F8E845 Manuale utente

Belkin

Belkin ClassicMouse F8E201-BLK Manuale utente

Belkin

Belkin NETMASTER P73137 Manuale utente

Manuali Topo popolari di altre marche

Sven

Sven RX-G720 Manuale utente

3DConnexion

3DConnexion CadMouse Pro Manuale utente

Canyon

Canyon Puncher GM-20 Manuale utente

Sharkoon

Sharkoon Light2 180 Manuale utente

Cherry

Cherry MW 8C ERGO Manuale utente

NGS

NGS HIT RB Manuale utente

Sharkoon

Sharkoon FireGlider Manuale utente

Lenovo

Lenovo Wireless Mouse N3902 Manuale utente

BASETech

BASETech BN-S11 Manuale utente

Dell

Dell WM326 Manuale utente

Areson

Areson B213 Manuale utente

HP M17587-371 Manuale utente

Chatpen

Chatpen CHA-30 Manuale utente

GAMDIAS

GAMDIAS DEMETER GMS5000 Manuale utente

HP KJ453AA - Wireless Laser Mouse Manuale utente

Trust

Trust GRAPHIN GXT 960 Manuale utente

Lenovo

Lenovo SD-9082 Manuale utente

Alienware

Alienware AW320M Manuale utente
