Belkin F5D9001 Series Manuale utente

Starter Network Kit

Share your files and Internet connection

Professional Network Kit

*Actual product may vary from photograph

Share your files and Internet connection

Mobile Network Kit

able of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-3

Connecting the Starter Network Kit and the Mobile Network Kit . . .4

Connecting the Professional Network Kit . . . . . . . . . . . . . . . . . . . . .5

Installing the Belkin Desktop Network Card . . . . . . . . . . . . . . . . .6-8

Installing the Belkin Notebook PCMCIA Network Card . . . . . . . . . . .9

Installing the Network Drivers . . . . . . . . . . . . . . . . . . . . . . . . .10-12

Installing Software to All PCs on Your Network . . . . . . . . . . . . . . . .13

Configuring Your Computer Using Belkin NetSetup . . . . . . . . . .14-18

Configuring Additional Computers Using Belkin NetSetup . . . . .19-21

Sharing Files and Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . .22-26

Accessing Resources on Other Computers . . . . . . . . . . . . . . . .27-28

Connecting to a DSL or Cable Modem . . . . . . . . . . . . . . . . . . .29-36

Creating a Simple Network . . . . . . . . . . . . . . . . . . . . . . . . . . .37-49

Software Internet Connection Sharing with Multiple PCs . . . . . .50-67

Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Warranty, FCC, CE Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Introduction

Congratulations on your purchase of this quality Belkin product. You

can now enjoy the benefits of sharing printers and peripherals,

exchanging data quickly between connected computers, and

communicating via e-mail and the Internet. This guide explains how

to install and use the Belkin Desktop Network PCI Card on a PC

running Microsoft®Windows®98, 2000, Me, or NT 4.0 operating

system software.

Features

PCI Card:

• Conforms to the Ethernet IEEE 802.3 and 802.3u standards

• Compatible with PCI Local Bus specification Revision 2.1 and later

• Offers Wake-On-LAN support to keep resources available even if

computer has gone into sleep mode

• Supports optional boot ROM for remote system startup

• Provides LED indicators for monitoring network traffic

PCMCIA Card:

• Compatible with PCMCIA specifications

• Provides LED indicators for monitoring network traffic

Network Switch:

• Conforms to the Ethernet IEEE 802.3 and 802.3u standards

• Provides LED indicators for monitoring network traffic

• Provides 5 10/100Mbps auto-sensing RJ45 ports for easy migration

from 10Base-T to 100Base-T networks

• Allows you to easily add computers to your network through a

uplink port at any time

• Gives dedicated bandwidth to each port for an efficient and

error-free network

Introduction

F5D9001 Series Contents of Package:

• 2 10/100 PCI Cards with Wake-On-LAN

•1 25m CAT5 Crossover Cable

• 1 CD-ROM

• 1 User Guide

F5D9002 Series Contents of Package:

• 1 10/100 PCMCIA Card

• 1 10/100 PCI Card with Wake-On-LAN

•1 CAT5 Crossover Cable

• 1 CD-ROM

• 1 User Guide

F5D9100 Series Contents of Package:

• 1 5-Port Professional Network Switch (10/100BT Ethernet)

• 2 10/100 PCI Cards with Wake-On-LAN

•2 10m UTP CAT5e Cables

• 1 Power Supply

•1 CD-ROM

• 1 User Guide

Connecting two computers

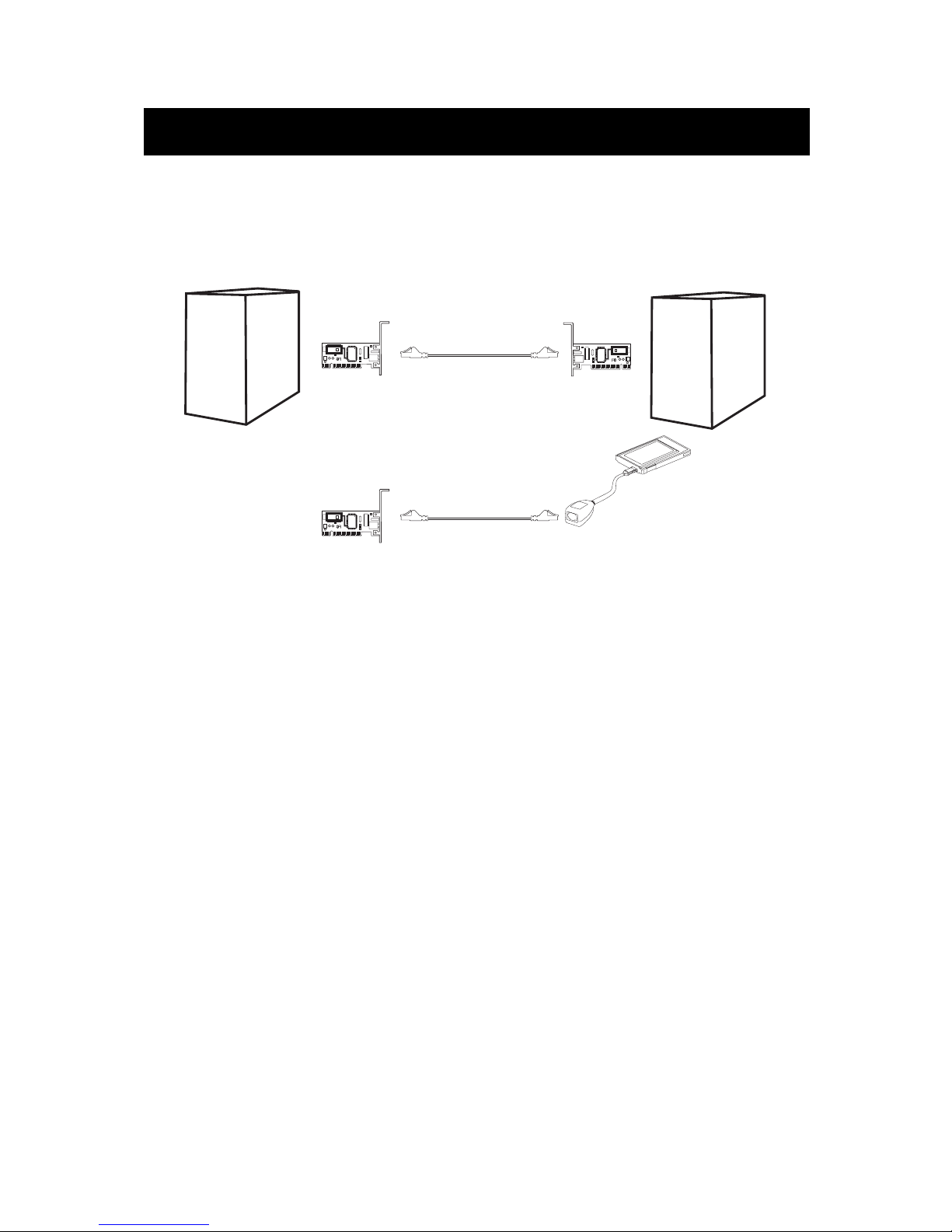

Connecting two computers simply requires each computer to have a

Network Card, such as a Belkin Desktop Network PCI Card included

in your Starter Network Kit, or a Belkin Notebook PCMCIA Network

Card included in your Mobile Network Kit. Once you have installed

the two Network Cards in your PCs, simply connect them together

using the CAT5e Crossover Cable included in this package.

Connecting the Starter Network Kit and the Mobile Network Kit

Connecting the Professional Network Kit

Connecting three or

more computers

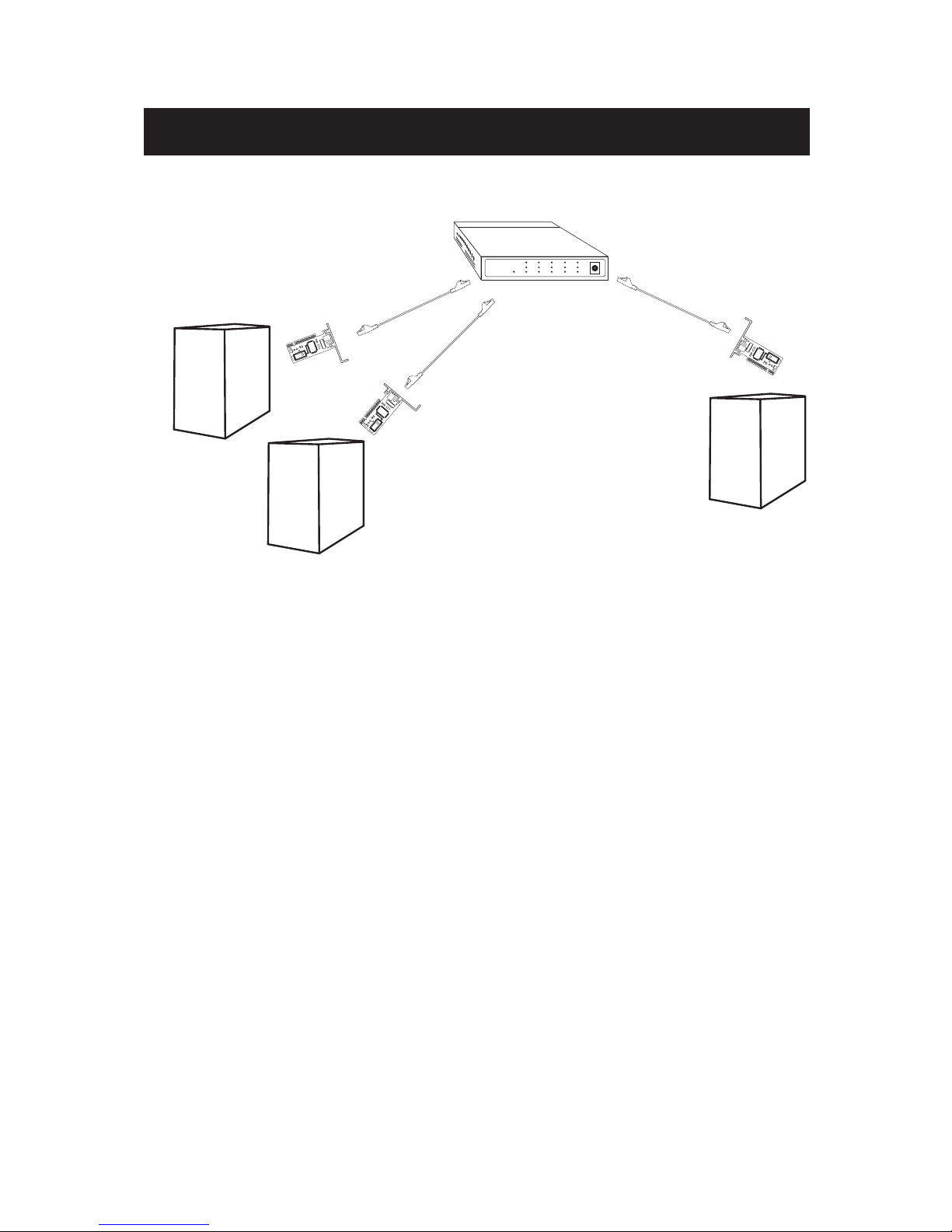

Connecting three or more computers requires each computer to have

a Network Card, such as a Belkin Desktop Network PCI Card, a

Belkin PCMCIA or CardBus Card for notebook computers. You should

also have a 10/100Base-T Hub or Switch with enough ports for the

number of computers you intend to connect immediately or in the

near future. Hubs and switches are physically and effectively very

similar; however, Belkin always recommends the use of a Switch, as

they offer much higher performance, efficiency, and speed than

standard hubs. For this reason, Belkin has included a Switch with

your Professional Network Kit. After installing the Network Cards,

connect each computer to the Switch using a UTP CAT5e Patch

Cable, also supplied with this package.

Installing the Belkin Desktop Network Card

1. Network cards are sensitive to static electricity, which can

damage their delicate electronic components. To protect your

device, always:

• Touch the metal chassis of your computer before you pick up

the card. This grounds the electrostatic charge.

• Avoid touching any of the electrical components when

handling the card. If possible, wear a grounded wrist strap

or antistatic gloves.

Note: Dry weather conditions or walking across a carpeted floor may

cause you to acquire an electrostatic charge.

2. Turn off the power to the PC and unplug the power cord from the

electrical outlet.

3. Remove the cover to the

PC. Please refer to your

computer’s installation

manual for instructions on

how to remove the cover.

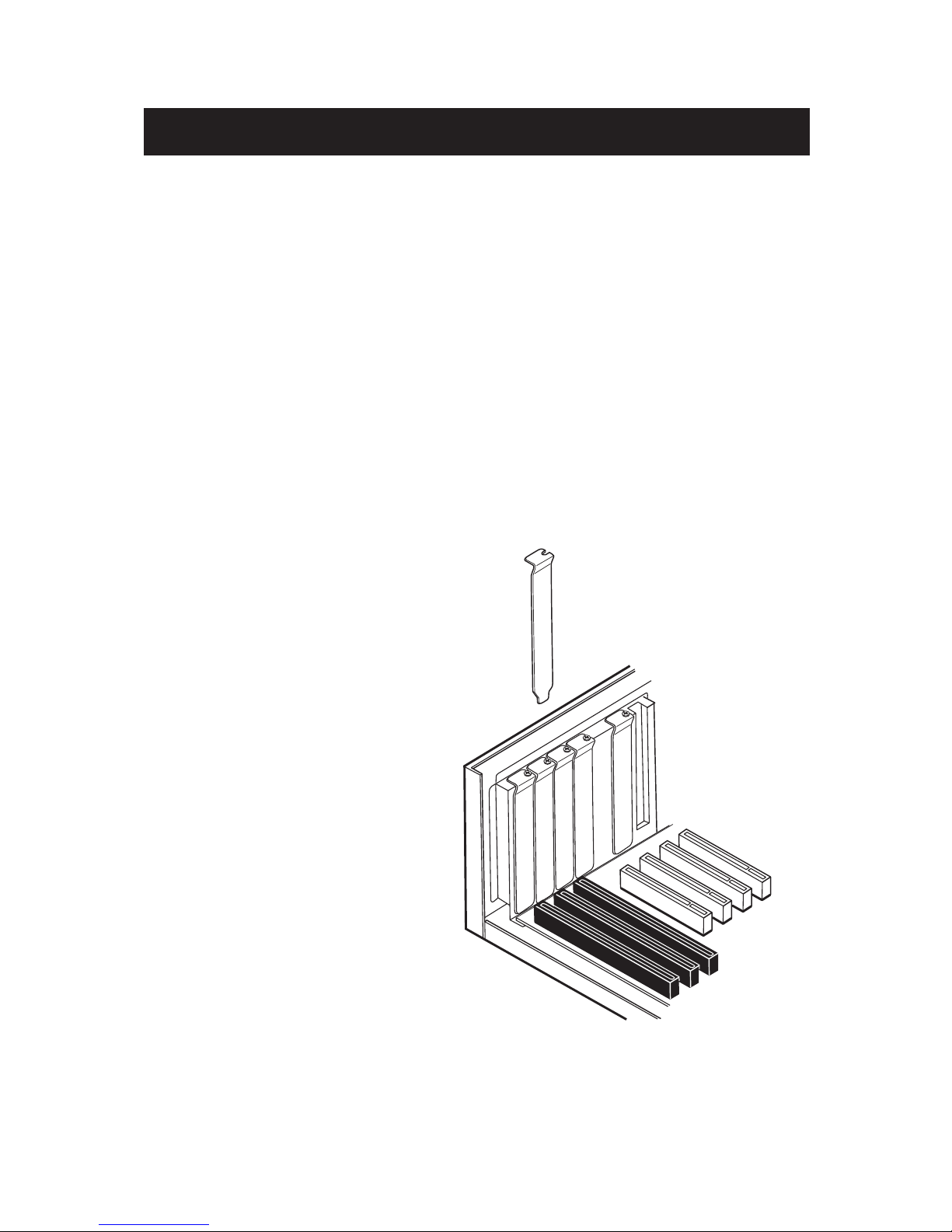

4. Find any available PCI

expansion bus slot and

remove the protector

bracket from the

computer’s case. If you

are planning to install the

Wake-On-LAN (WOL)

feature, choose an empty

PCI slot that is close to the

matching WOL connector

on the PC’s motherboard.

Installing the Belkin Desktop Network Card

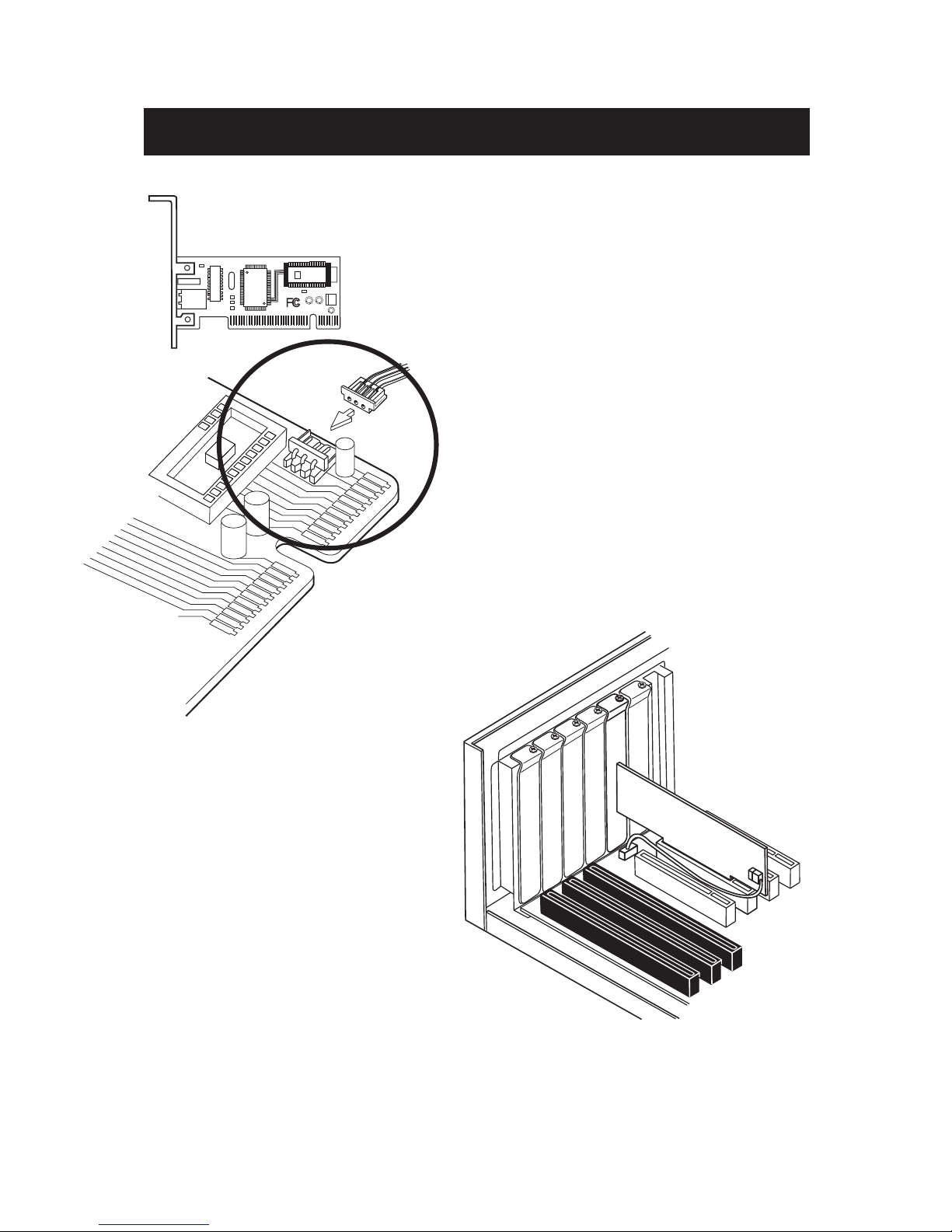

5. Connect the WOL cable to

the designated WOL

connector on the Desktop

Network PCI Card.

6. Connect the other end of

the WOL cable to the

WOL connector on the PC’s

motherboard. Please refer to

your computer’s installation

manual for the location of the

WOL connection on the motherboard.

Installing the Belkin Desktop Network Card

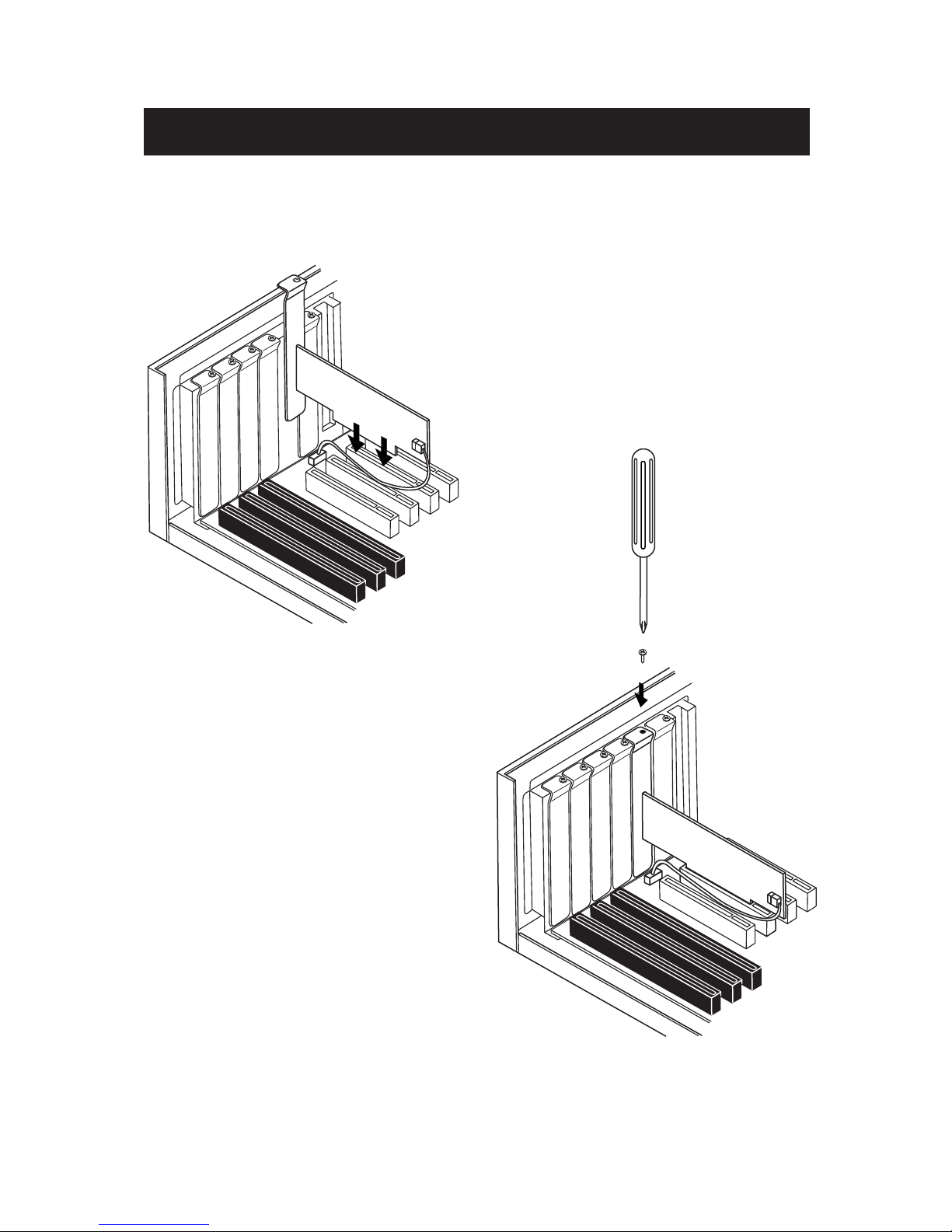

7. Carefully insert the card into the slot until the connectors at the edge

of the card are firmly in place.

8. Secure the card into the slot using a

standard case screw.

9. Replace the cover to the PC and

connect the power cord to the

electrical outlet. Be sure to

re-connect other cables that

may have come loose during

the installation.
