Belkin F5D5000t Manuale utente
Connect your PC to a network or broadband modem
Desktop Network
PCICard
network
F5D5000t
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Installing the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-4
Installing the Network Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7
Connecting to a DSL or Cable Modem . . . . . . . . . . . . . . . . . . .8-15
Creating a Simple Network . . . . . . . . . . . . . . . . . . . . . . . . . . .16-30
Sharing an Internet Connection . . . . . . . . . . . . . . . . . . . . . . . .31-48
Product Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Warranty, FCC, CE Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Congratulations on your purchase of this quality Belkin product.
You can now enjoy the benefits of sharing printers and
peripherals, exchanging data quickly between connected
computers, and communicating via e-mail and the Internet. This
guide explains how to install and use the Belkin Desktop Network
PCI Card on a PC running Microsoft®Windows®98, 2000, or Me
operating system software.
Features:
• Conforms to the Ethernet IEEE 802.3 and 802.3u standards
• Compatible with PCI Local Bus specification Revision 2.1
and later
• Supports optional Wake-On-LAN for powering on a PC from a
remote location
• Supports optional boot ROM for remote booting
• Provides LED indicators for monitoring network traffic
Contents of Package:
• One Desktop Network PCI Interface Card
• One Wake-On-LAN Cable
• One CD-ROM
• User Guide
Introduction
1
Installing the ardware
2
1. Network cards are sensitive to static electricity, which can
damage their delicate electronic components. To protect your
device, always:
• Touch the metal chassis of your computer before you pick up
the card. This grounds the electrostatic charge.
• Avoid touching any of the electrical components when
handling the card. If possible, wear a grounded wrist strap
or anti-static gloves.
Note: Dry weather conditions or walking across a carpeted floor may
cause you to acquire an electrostatic charge.
2. Turn off the power to the PC and unplug the power cord from the
electrical outlet.
3. Remove the cover to the
PC. Please refer to your
computer’s installation
manual for instructions on
how to remove the cover.

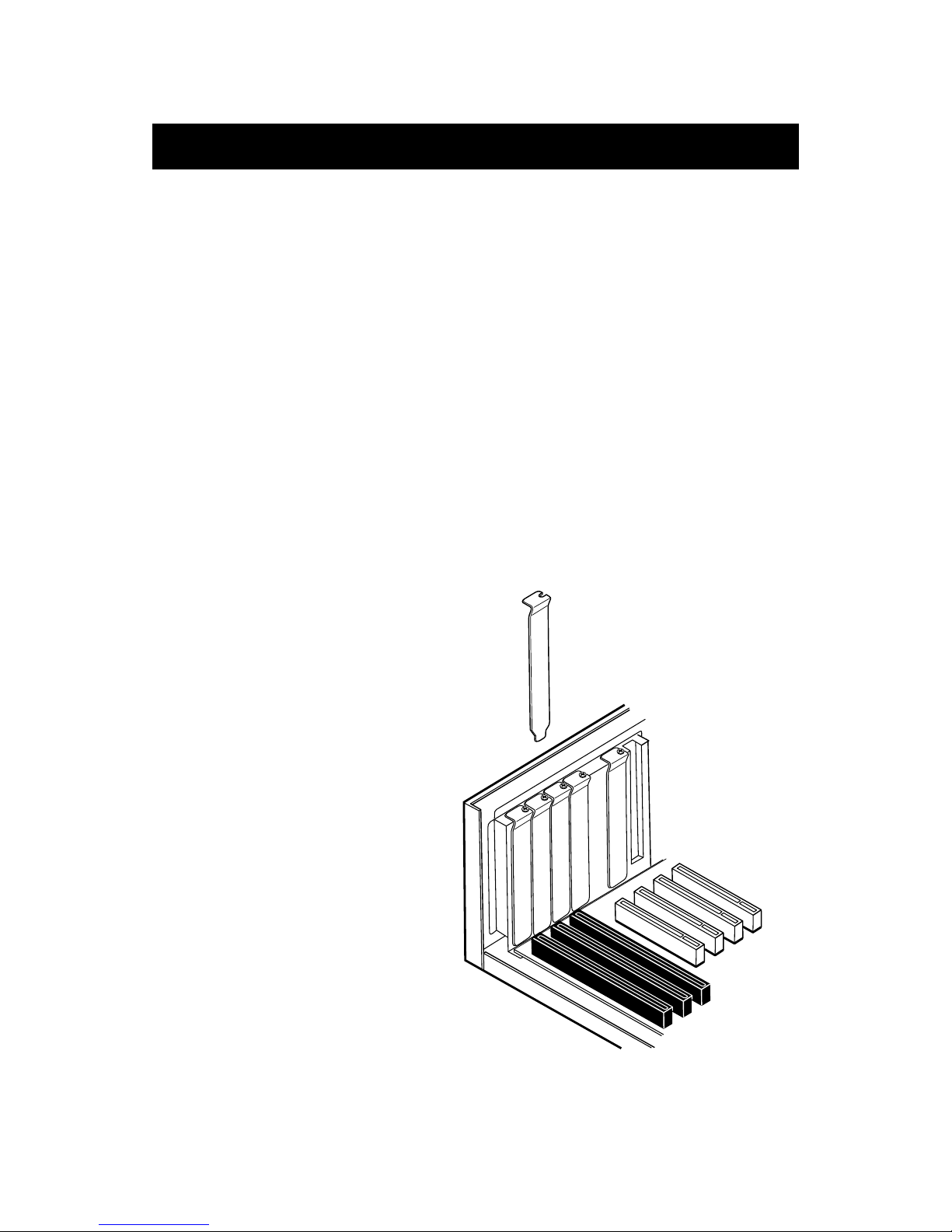

4. Find any available PCI
expansion bus slot and
remove the protector
bracket from the
computer’s case. If you
are planning to install the
Wake-On-LAN (WOL)
feature choose an empty
PCI slot that is close to the
matching WOL connector
on the PC’s motherboard.
Installing the ardware
3

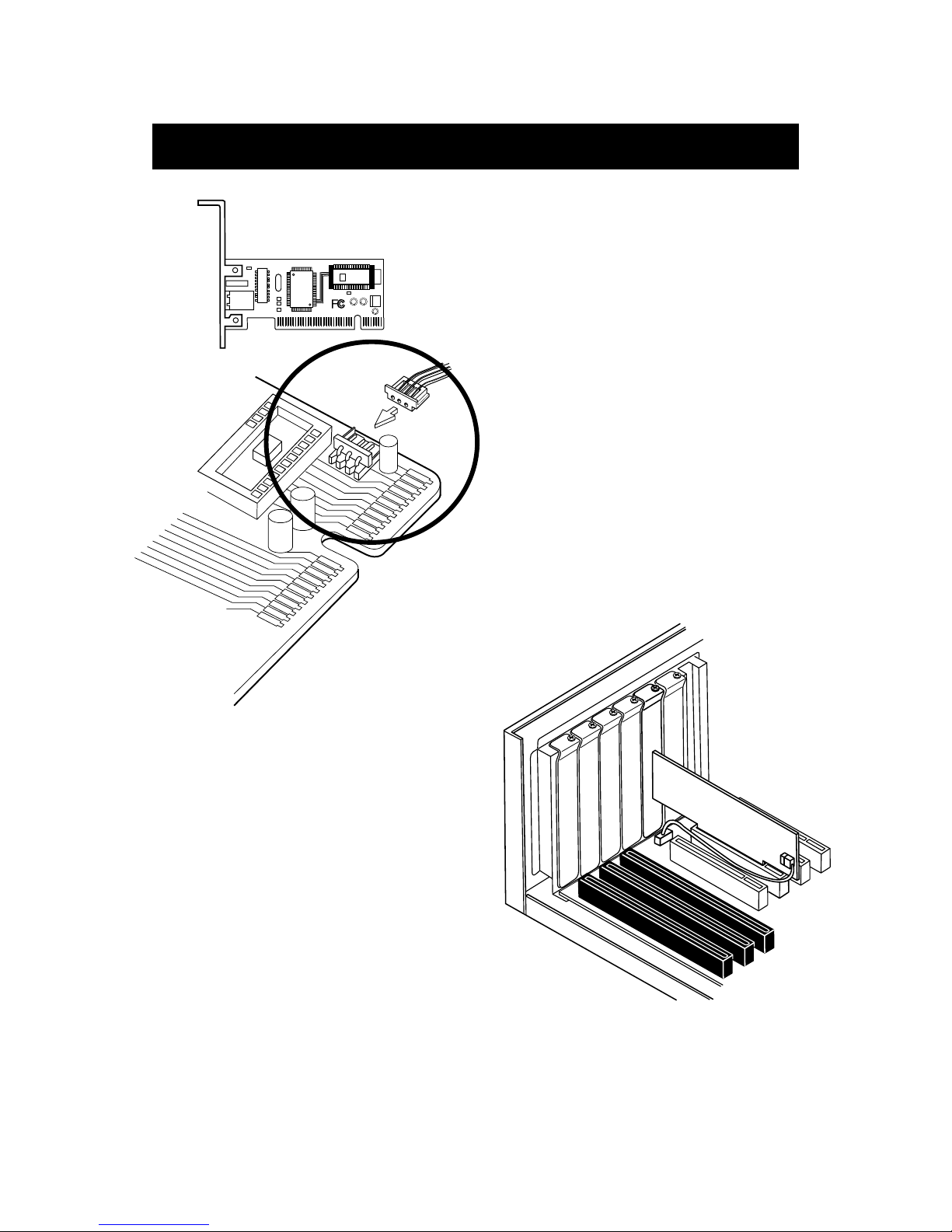

5. Connect the WOL cable to
the designated WOL
connector on the Desktop
Network PCI Card.
6. Connect the other end of
the WOL cable to the
WOL connector on the PC’s
motherboard. Please refer to
your computer’s installation
manual for the location of the
WOL connection on the motherboard.

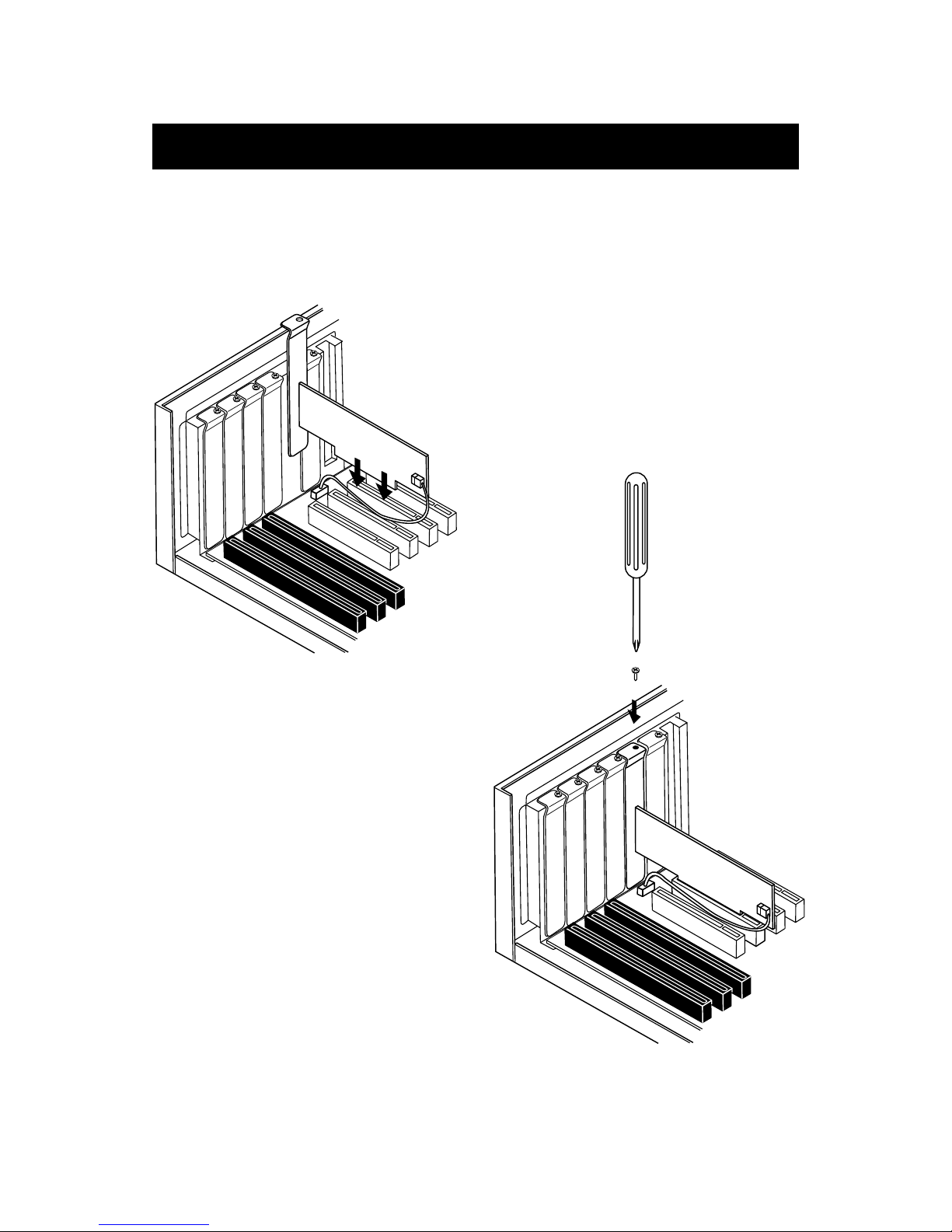

7. Carefully insert the card into the slot until the connectors at the edge
of the card are firmly in place.
8. Secure the card into the slot using a
standard case screw.
9. Replace the cover to the PC and
connect the power cord to the
electrical outlet. Be sure to
re-connect other cables that
may have come loose during
the installation.
Installing the ardware
4
Installing the Network Drivers
5
Installing the network drivers
Now that you have properly installed the Desktop Network PCI
Card and it is properly connected to the network, we are now
ready to configure the software to allow your computers to work
together efficiently.
1. Turn on the power to the PC. Windows will automatically
detect that a new device has been installed and will display
the following window:

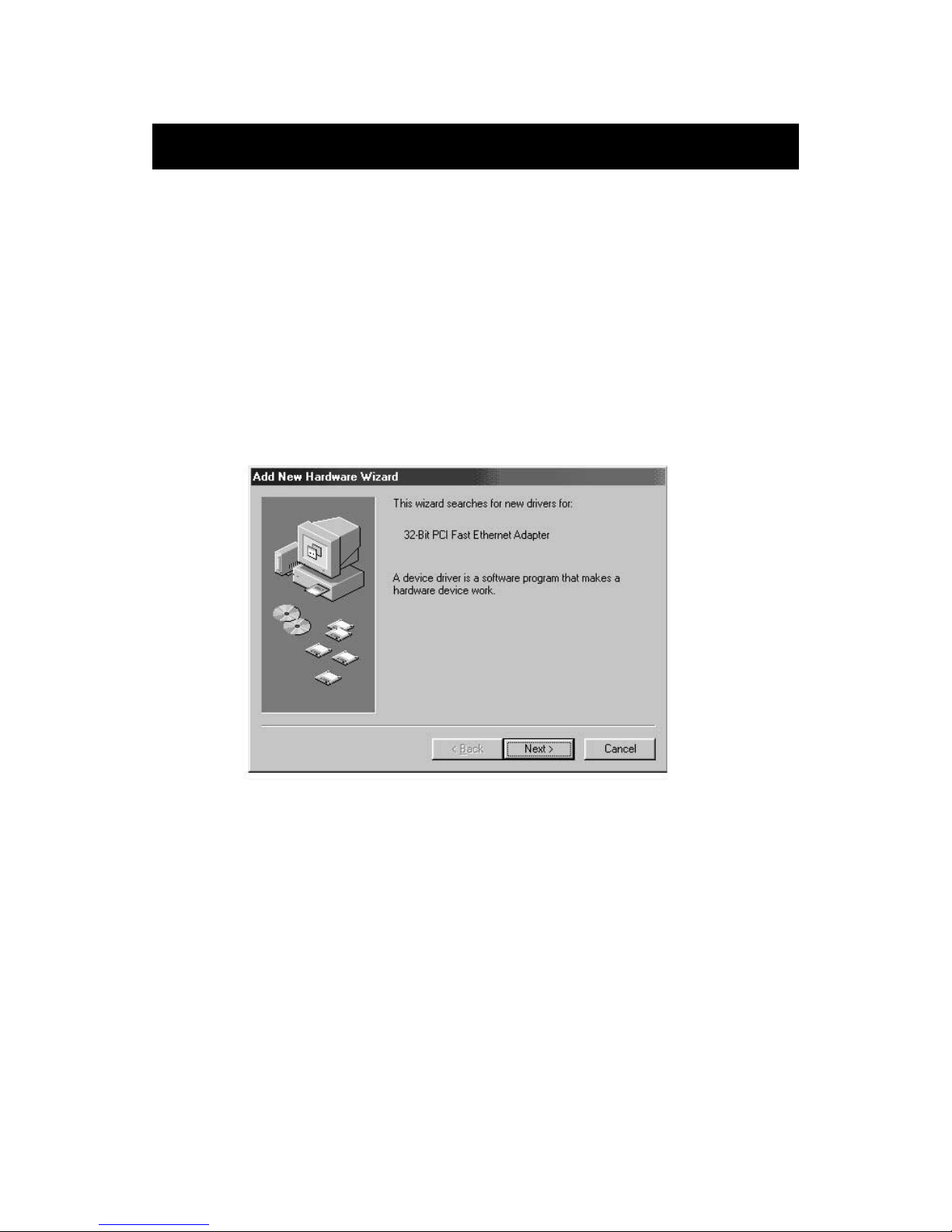

2. The "Add New Hardware Wizard" will begin:
3. Click the Next button.
Installing the Network Drivers
6
5. Select the CD-ROM drive box. Place the CD-ROM supplied with the
card in your CD-ROM and click the Next Button.

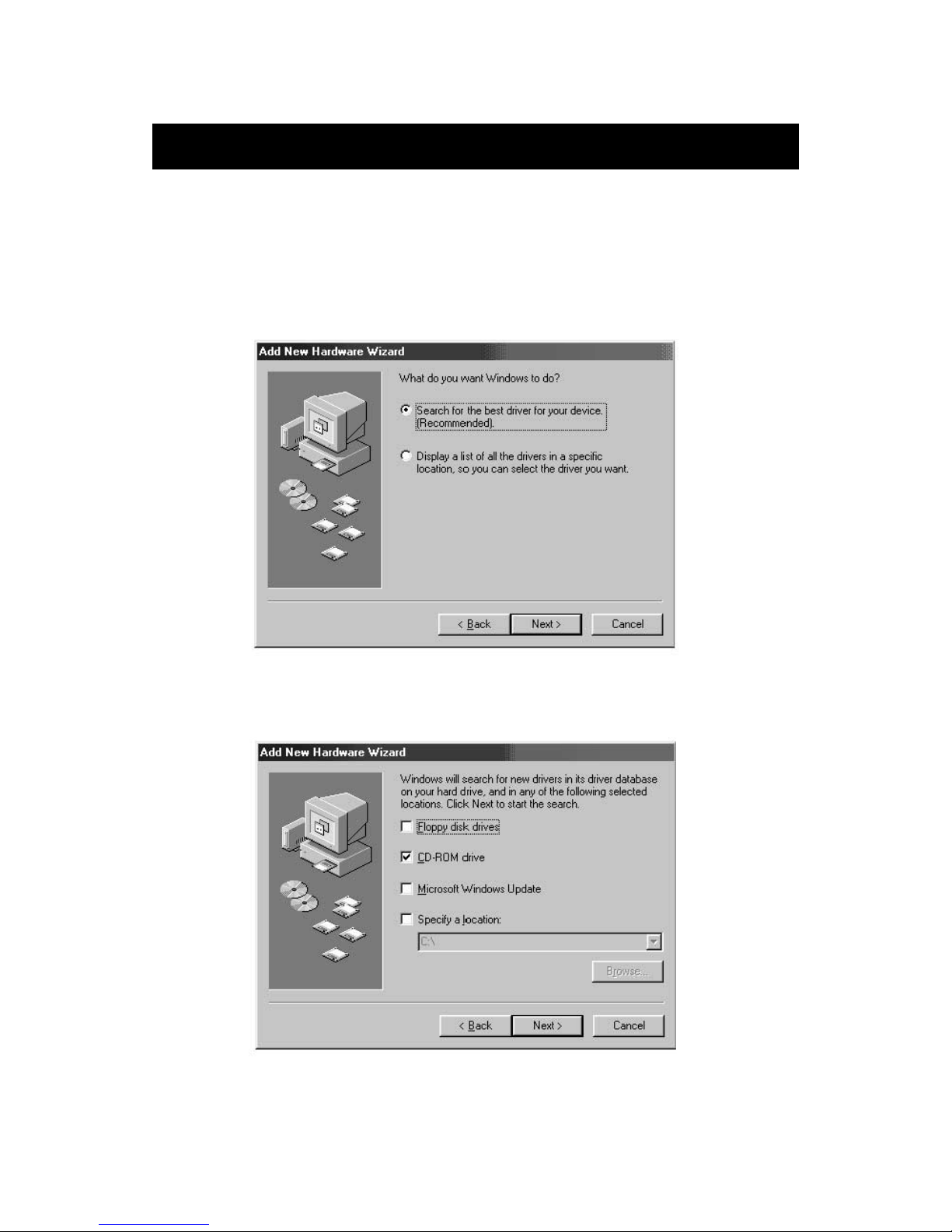

4. When asked, "What do you want Windows to do?" select the first
option- "Search for the best driver for your device.(Recommended)"
and click the Next Button.
Installing the Network Drivers
7

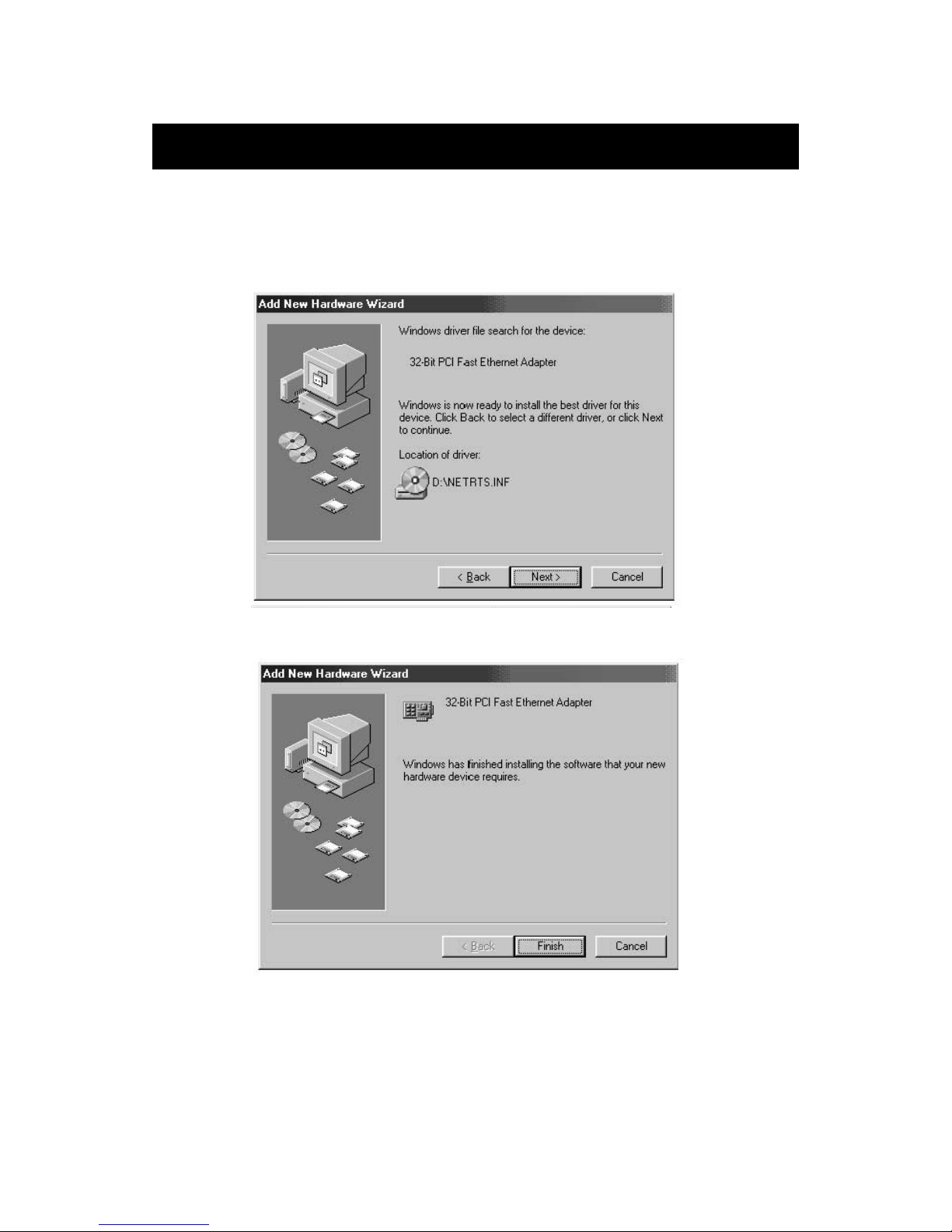

6. The following screen will appear:
7. Click the Next Button and the following screen will appear:
8. Click on the Finish Button to complete the wizard.Your computer may
prompt you to restart, if so, allow the system to restart.
Connecting to a DSL or Cable Modem
8
Many DSL or Cable modems require connection to a computer through
a network interface card (NIC).To determine if your cable or DSL
modem can be connected through a network interface card, you can
either consult your modem’s documentation or simply look at the ports

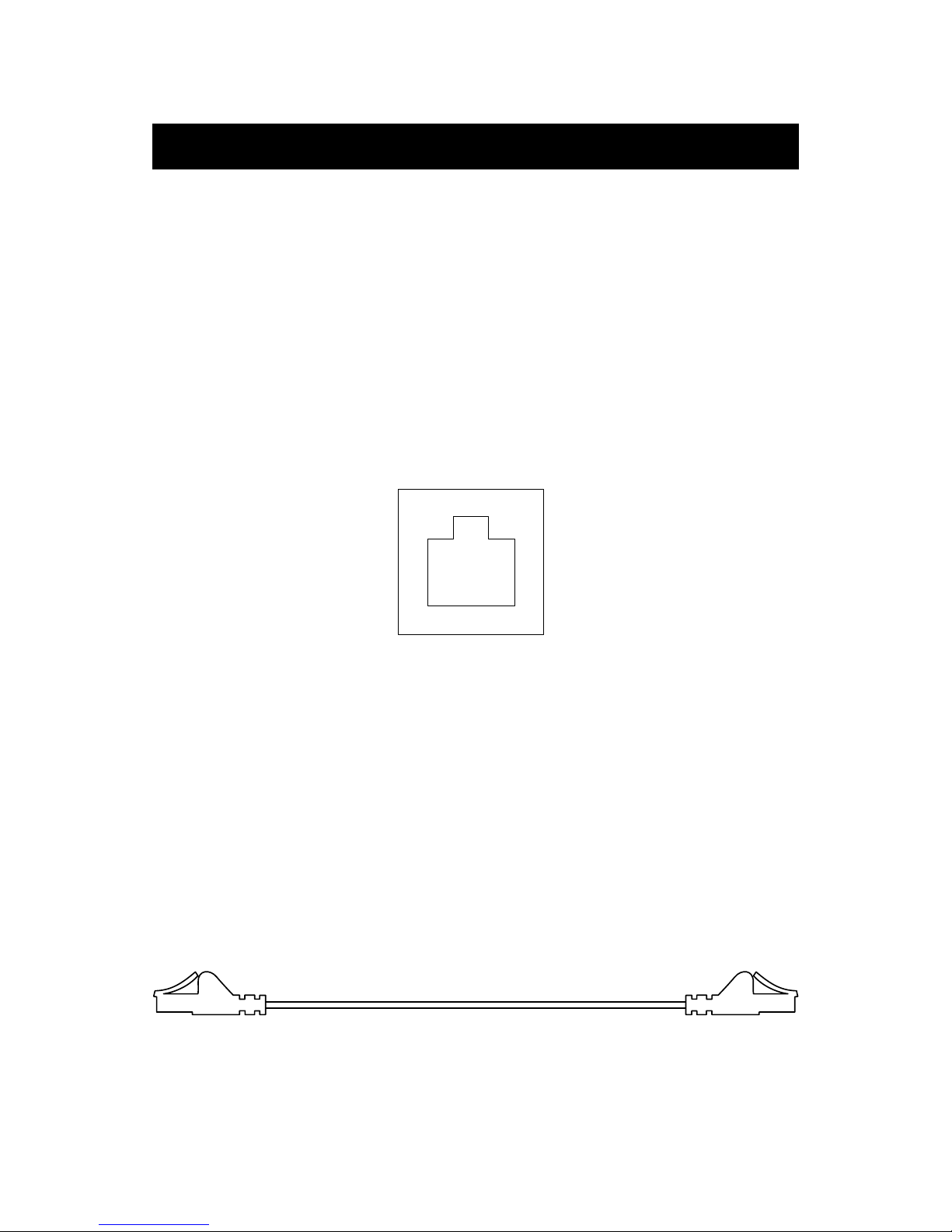

on the back of the modem. If your modem has a port that looks just
like the one pictured below (similar to a standard phone jack, but a
little larger), then the Belkin Desktop Network PCI Card is an easy
way to connect to these modems and take advantage of high-speed
internet access.
10/100Base-T Ethernet Connector
Connecting the hardware
To connect the modem to your Network Card, you will need an Ethernet
"patch cable," or "CAT 5 cable". Most cable and DSL modems will
require connection using a "crossover patch cable," however, some
modems offer a second network connector labeled "Computer," which
can be connected to the Network Card using a standard patch cable. To
determine which cable to use, it is recommended that you consult your
modem’s installation guide or user manual.
