RK2000 & RK2001 Instructions Page 1 P35727

RK2000 Product Inventory RK2001 Product Inventory

Vertical Upright Channel 84" (2) Vertical Upright Channel 48" (2)

Base Angle (2) Base Angle (2)

Top Angle (2) Top Angle (2)

1/2" - 13 x 1 Hex Bolt (12) 1/2" - 13 x 1 Hex Bolt (12)

1/2" Lock Washer (12) 1/2" Lock Washer (12)

12-24 x 1/2" lg. Screws (50) 12-24 x 1/2" lg. Screws (50)

Tools Required

3/4" Socket or Wrench

Level or Carpenter Square

RK2000 and RK2001 INSTRUCTIONS

Instructions

1. Install top angles to vertical upright channels.

a. Lay vertical upright channels on edge

so tapped holes face you and the

floor. Be sure open sides of upright

channels face each other.

b. Align holes in top angle with

corresponding holes in vertical

uprights. Formed leg of top

angle should be facing toward you.

c. Install hex head bolts and lock

washers. Finger tighten only.

d. Turn vertical upright over (rotate 180

degrees) and repeat steps (a)

through (c).

Finger tighten only.

Top Angle

Hex Bolt and

Lock Washer

RK2000 & RK2001 Instructions Page 2 P35727

www.belkin.com

Belkin Corporation

501 West Walnut Street

Compton, CA 90220-5221, USA

Tel: 310-898-1100; Fax: 310-898-1111

©2005 Belkin Corporation. All rights reserved.

All trade names are registered trademarks of respective manufacturers listed.

Instructions (cont'd.)

2. Install base angles to vertical upright channels.

a. Leaving vertical upright channels on edge,

align holes in base with corresponding holes

in each upright channel. Long leg of base

should be facing you.

b. Install 4 hex head bolts and lock washers.

Finger tighten only.

c. Turn vertical upright assembly over

(rotate 180 degrees) and repeat steps

(a) and (b). Finger tighten only.

3. Final tightening.

a. Stand rack upright.

b. Square unit using a level or carpenter square.

c. Tighten all bolts using socket or wrench.

4. Secure rack to floor.

All racks should be bolted to the floor, or to an

equally stabilizing and secure surface, after

desired location is determined.

5. Equipment installation.

Your rack is now ready for installation of

equipment and panels.

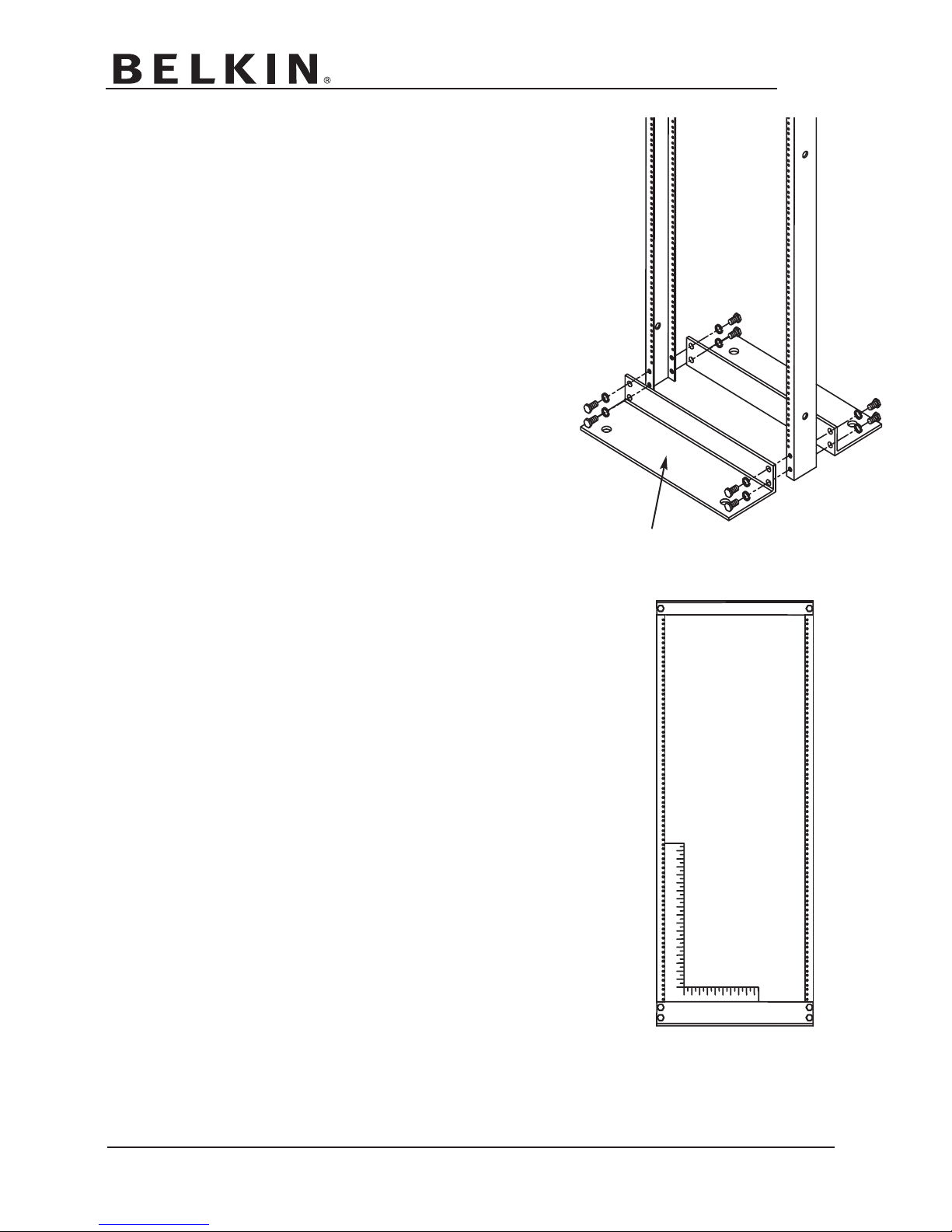

Base Angle
