Belkin PureAV AP30800-10 Manuale utente

Home Theater Battery Backup with AVR Technology

User Manual

Clear Picture

Clean Sound

AP30800-10

PureAV Battery Backup

Table of Contents

Page

Introduction ......................................................................................... 2

Package Contents ............................................................................... 2

PureAV Battery Backup Features and Functions ........................3

Alarms .................................................................................................. 4

Product Features .......................................................................... 5

Installation ................................................................................ 6-7

Troubleshooting ............................................................................. 8

Technical Specifications .............................................................. 9

Storage ........................................................................................... 9

Belkin Connected Equipment Warranty ................................ 10-12

Information ................................................................................... 13

Introduction

Congratulations and thank you for purchasing the PureAV Home Theater

Battery Backup with AVR Technology (the PureAV Battery Backup).

Frequent electrical disturbances, both natural and man-made, degrade

the quality of power supplied to your home theater system. Brownouts

or blackouts can cause you to lose your complex settings, and ultimately

damage your valuable equipment along with the overall quality of your

home theater experience. In addition to providing battery power in case

of a blackout, our PureAV Battery Backup provides outstanding surge

protection and power conditioning while ensuring that you experience the

clearest picture and cleanest sound directly from the source.

Please save this manual!

It contains important operating instructions and warranty information

pertaining to your PureAV Battery Backup.

Please save or recycle the packaging materials

The PureAV Battery Backup packaging was designed with great care to

provide protection during shipment and delivery. Please keep the packaging

materials in the unlikely event that you must return this product for service.

Damage sustained during transit is not covered under the warranty.

Package Contents

You should have received the following:

• 1 PureAV Battery Backup unit

• 2 rackmount Brackets

• 1 Network Line Cable

• 1 Phone Line Cable

• 1 Coaxial Cable

PureAV Battery Backup

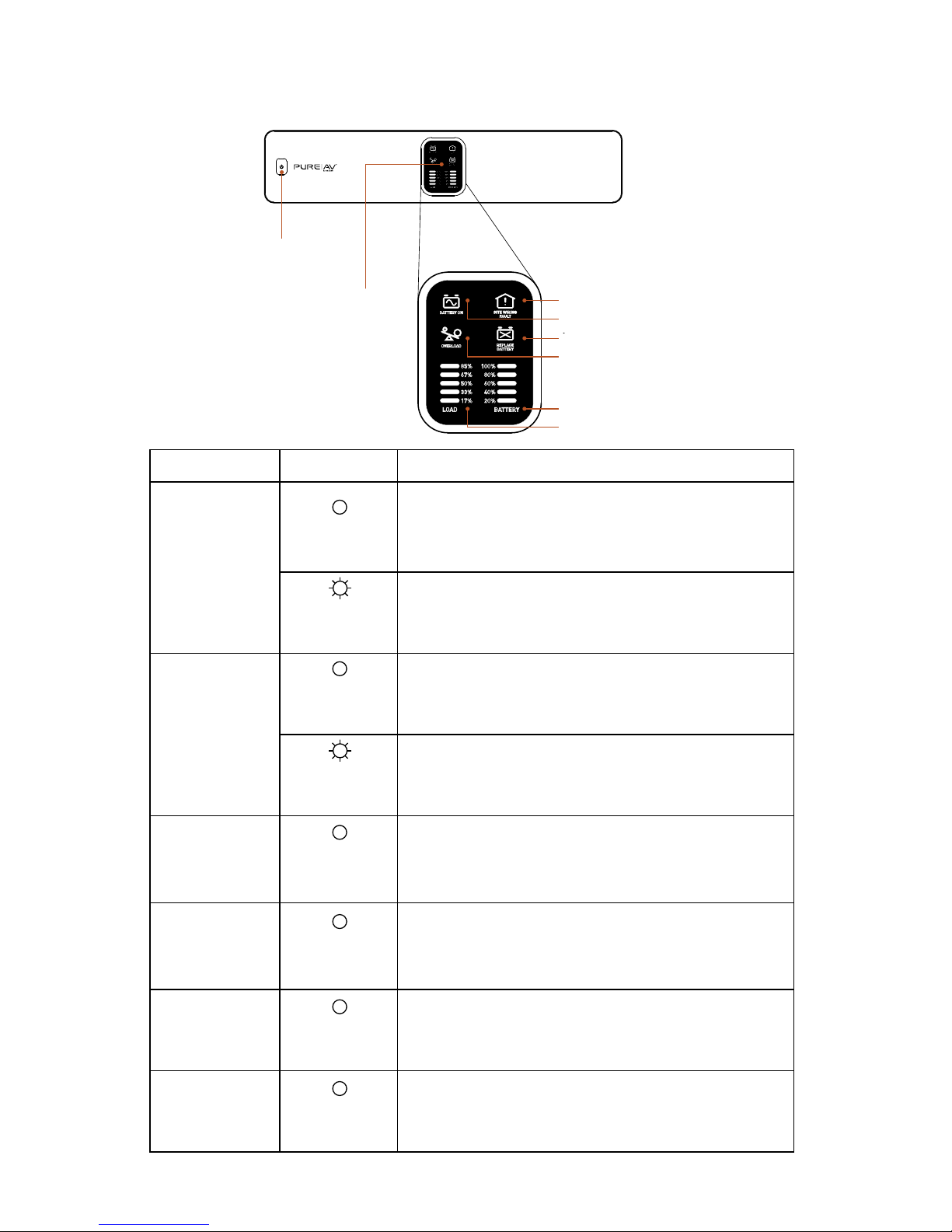

PureAV Battery Backup Features and Functions

Indicator Condition Meaning

BATTERY ON

(Green LED)

Solid

Green

The PureAV Battery Backup is on battery

back-up mode and an Intermittent audible

alarm is on. The Battery Backup will begin

shutdown procedure.

Flashing

Green

Battery is low. The PureAV Battery Backup

will start shutdown. The buzzer sounds an

audible alarm.

OVERLOAD

(Yellow LED)

Solid

Yellow

The PureAV Battery Backup shutdown due to an

overload or short-circuit condition.

Flashing

Yellow

Battery output is drawing more power than the

Battery Backup can provide.

REPLACE

BATTERY

(Red LED) Solid

Red

Battery is weak or bad; the battery needs

to be replaced.

SITE WIRING

FAULT

(Red LED) Solid

Red

There is either no ground circuit or a

reversed polarity in the building wiring.

LOAD

(Yellow LED) Solid

Yellow

This display shows the PureAV Battery Backup

output load percentage level of 17%, 33%,

50%, 67%, and 85%.

BATTERY

(Green LED) Solid

Green

This display shows the battery capacity

percentage level of 20%, 40%, 60%, 80%, and

100%.

On/Off/Test Switch

LEDs Indicator Site Wiring Fault

Battery On

Battery

Load

Replace Battery

Overload

Alarms

Battery Backup (Slow Alarm)

When the PureAV Battery Backup is in battery-backup mode, the “Battery

On” LED (green) illuminates and the PureAV Battery Backup sounds an

audible alarm. The alarm stops when the PureAV Battery Backup returns

to normal online operation.

Low Battery (Rapid Alarm)

When the PureAV Battery Backup is in battery-backup mode and the

battery’s energy begins to run low, the PureAV Battery Backup will beep

rapidly until it shuts down from a depleted battery or returns to online

normal operation.

Overload (Continuous alarm)

When the PureAV Battery Backup is overloaded (the connected loads

exceed the maximum rated capacity), the PureAV Battery Backup

emits a continuous alarm to warn of an overload condition. Disconnect

nonessential equipment from the PureAV Battery Backup to eliminate

the overload.

PureAV Battery Backup

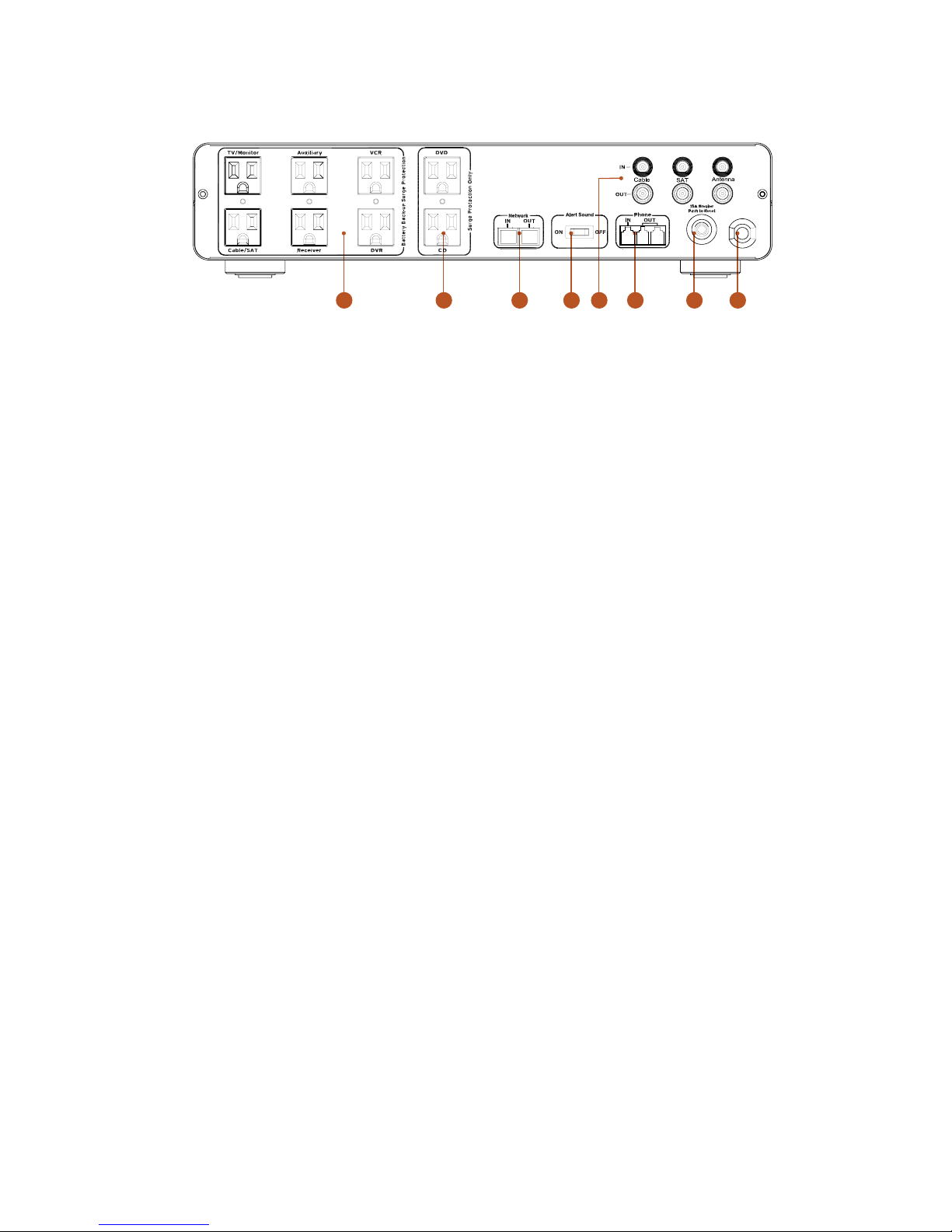

Rear Panel

A. Surge-Protection-Only Outlets

Equipment such as printers, fax machines, scanners, or desk lamps can

be plugged into these outlets. These outlets do not provide power

during a power outage. These outlets are always on (when AC power is

available) and are not controlled by the front-panel switch.

B. Battery-Backup Surge-Protection Outlets

Only critical equipment such as TVs, DVRs, cable/satellite receivers,

VCRs, and other hardware that could potentially lose settings should be

plugged into these outlets. Battery power is automatically provided

in case of a power outage. Power (AC or battery) is not supplied to

these outlets when the PureAV Battery Backup is switched off. (Do not

plug surge protectors or power strips into the battery backup outlets).

Note! During the AVR Mode, the total load that you will be placing

on the battery-backup outlets should not exceed 85% of the

unit’s capacity.

C. Phone Protection

The phone lines are surge protected and provide complete safety for

telephone/Pay-Per-View lines.

D. Network Protection

This connector is used for surge protecting networking lines used for

media streamers, multimedia computers, gaming consoles, or any other

device in need of a network connection.

E. AC Input Breaker (Circuit Breaker)

The circuit breaker button will be triggered if an overload condition

forces the PureAV Battery Backup to disconnect itself from utility

power. If the button sticks out, disconnect nonessential equipment

and depress

breaker to reset.

F. AC Input Power Cord

G. Audio Video Surge Protection Ports

H. Alert Sound ON/OFF Switch

This switch turns the audible alarm ON or OFF.

Product Features

BAC

GEF

Installation

Note!

Before installation, please inspect the PureAV Battery Backup upon receipt

to make sure it is not damaged.

Connect To AC Utility Power

Connect the AC inlet to utility power via the power cord. Check whether

the “Site Wiring Fault” indicator is lit or not. If so, please check the

utility wiring.

Charging The Battery

For best results, charge the battery for eight hours prior to initial use. The

PureAV Battery Backup charges its battery whenever it is connected to the

utility power.

Plug In Power Devices

Plug your devices into the AC outlets on the rear of the PureAV Battery

Backup. To use the PureAV Battery Backup as a master on/off switch, make

sure all of the loads are switched on.

Caution: Never connect a laser printer or scanner to the

battery backup outlets of the PureAV Battery Backup. A laser printer

or scanner draws significantly more power when in use than when idle.

This may overload the PureAV Battery Backup.

Turning On The PureAV Battery Backup

Turn on your PureAV Battery Backup by pressing and holding the

“On/Off/Test” button for approximately two seconds until the green “ON

LINE” light comes on.

Turning Off The PureAV Battery Backup

Turn off the PureAV Battery Backup by pressing and holding the

“On/Off/Test” button for more than two seconds until the “ON LINE” or

“ON BATTERY” light goes off.

To Conduct a Self-test

Use the self-test to verify both the operation of the PureAV Battery Backup

and the condition of the battery. In normal utility power, push the “On/Off/

Test” button less than 1.5 seconds and the PureAV Battery Backup performs

a self-test function. During the self-test, the PureAV Battery Backup

operates in backup mode.

Note! During the self-test, the PureAV Battery Backup briefly

operates on battery-backup power (the “ON BATTERY” LED comes

on). If the PureAV Battery Backup passes the self-test, it returns to

online operation. If the PureAV Battery Backup fails the self-test, it

immediately returns to online operation and lights the “REPLACE

BATTERY” LED. The loads are not affected. Recharge the battery

overnight and perform the self-test again. If the “REPLACE BATTERY”

LED is still on, the battery will need to be replaced. Please contact

Belkin Customer Service for assistance.

Product Features

PureAV Battery Backup

Installation

To Silence Audible Alarm

There are two ways to disable the audible alarm:

1. Set the Alert Sound ON/OFF Switch to the OFF position. When in

the OFF position, the audible alarm will not sound when the PureAV

Battery Backup is in the backup mode.

2. While in battery-backup mode, push the “ON/OFF/TEST” button less

than 1.5 seconds to silence the audible alarm. (This does not work if the

PureAV Battery Backup is under low-battery or overload condition.)

All equipment must be turned off prior to hardware installation.

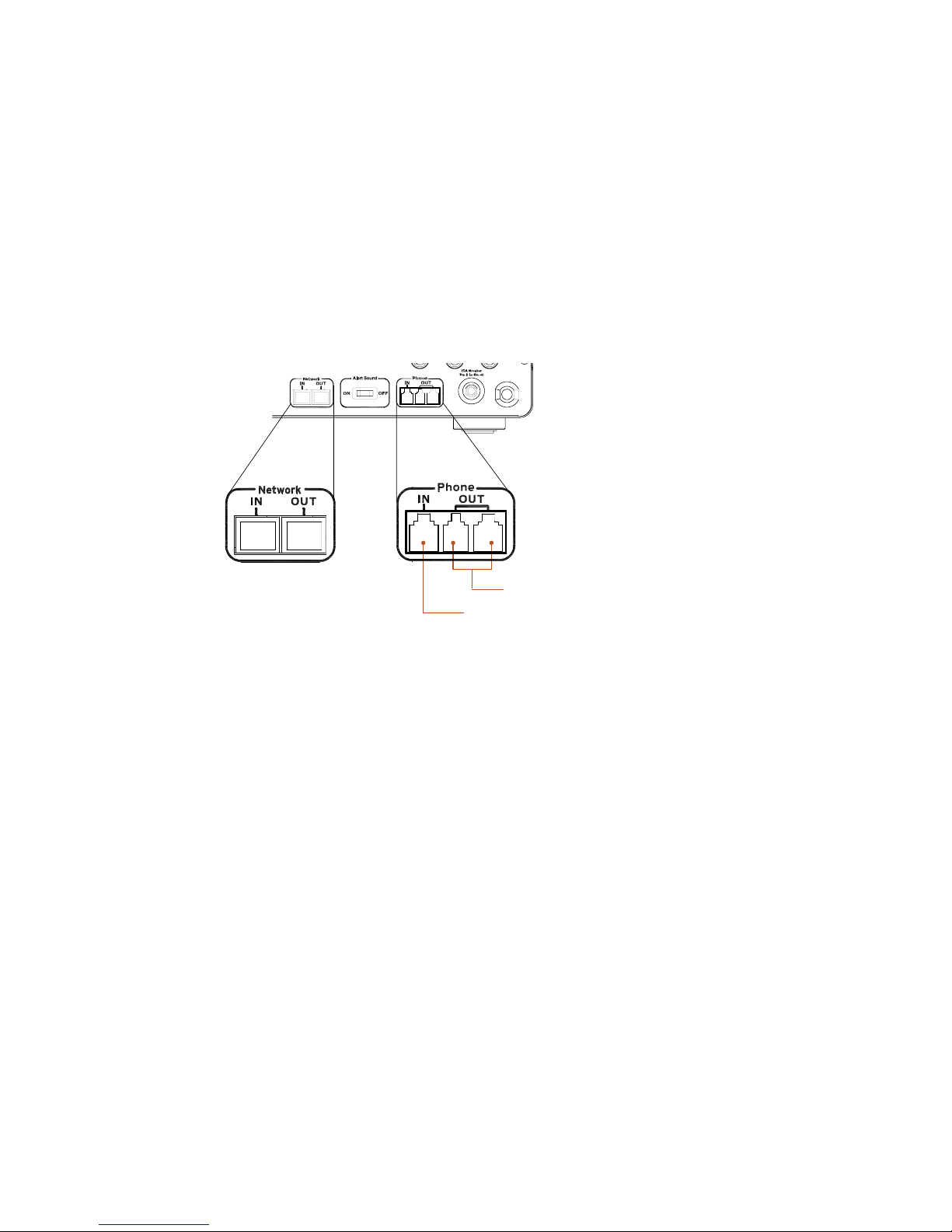

Connect The Phone/Fax/Modem/Lines

Connect a single phone/fax/modem line into the surge-protected sockets

on the back of the PureAV Battery Backup. The RJ11 modular sockets

accept standard single-line telephone connections. The connection will

require another length of telephone cable, which is supplied.

Note! This connection is optional but highly suggested as phone/fax/

modem lines often carry dangerous surges and spikes. The PureAV Battery

Backup works properly without a phone/fax/modem connection.

Caution! The phone/fax/modem protection feature could be rendered

inoperable if improperly installed. Make sure that the telephone line from

the wall is plugged into the connector marked “IN”, and the device to be

protected is plugged into the connector marked “ OUT”.

Connect The Network Line

Connect the network line from the wall to the connector marked “IN”,

then connect the device (Ethernet card) to be protected to the connector

marked “OUT”.

Connect Audio Video Coaxial Cable

Connect a modular coaxial cable between the cable wall outlet and the

surge protector jack marked “IN”. Connect another coaxial cable between

the surge protector jack marked “OUT” and the cable equipment or cable

modem being protected.

*All equipment must be turned off prior to hardware installation.

Telephone Socket

Phone/Fax/Modem

Troubleshooting

PureAV Battery Backup

Problem Possible Cause Solution

PureAV Battery

Backup not on,

LED not lit

On/Off/Test button not

pushed or pushed less

than 2 seconds

Press the On/Off/Test

button for more than 2

seconds

Battery voltage is too

low

Recharge the Battery

Backup at least 8 hours

Battery Backup fault Contact Belkin Customer

Service

PureAV

Battery Backup

always on battery

mode

Power cord loose Re-plug the power cord

AC breaker is burned

out or tripped Replace or reset the breaker

AC utility voltage is too

high or too low, or there

is a blackout

Normal condition

Backup time

too short

Battery not fully

charged

Recharge the Battery

Backup at least 8 hours

Battery Backup is

overloaded

Remove some unnecessary

loads

Charger fault or other

reason

Replace battery.

Contact Belkin Customer

Service or go to belkin.com.

The PureAV

Battery Backup

continuously beeps

Overload Remove the non-critical

loads

Red LED lit Battery failure

Replace battery.

Contact Belkin Customer

Service or go to belkin.com.

PureAV Battery Backup

Technical Specifications

Storage

Storage Conditions

Store the PureAV Battery Backup covered and upright in a cool, dry location

with its battery fully charged. Before storing, charge the PureAV Battery

Backup for at least four hours.

Extended Storage

During extended storage in environments where the ambient temperature is

+5 degrees to +86 degrees F, charge the PureAV Battery Backup’s battery

every six months. During extended storage in environments where the

ambient temperature is +86 degrees F to +113 degrees F, charge the PureAV

Battery Backup’s battery every three months.

Model AP30800-10

INPUT

Capacity 1200VA/640W

Voltage Range 90-136VAC

Frequency 60Hz ( ±3Hz )

OUTPUT

Voltage Simulated sine wave,

120VAC ±8%

Frequency

(On Battery) 60Hz ( ±1Hz )

BATTERY

Backup time

15%-100% load 1.5~40 min.

Typical

Recharge Time

≤ 12 hours recover

85% capacity

ENVIRONMENT Ambient

Operation

0~85% humidity

non-condensing, 0~35°C

CONFORMANCE Surge IEEE C62.41

Category A standard

PHYSICAL

Dimension

(W x H x D) 435mm x 88mm x 330mm

Net Weight 14.5kg.

All specifications are subject to change without prior notice.

Indice

Altri manuali Belkin UPS

Belkin

Belkin F5L005 Manuale utente

Belkin

Belkin F6C.B550.750AVRT Manuale utente

Belkin

Belkin F6C1200-UNV Manuale utente

Belkin

Belkin F6H350ukUNV Manuale utente

Belkin

Belkin F6B750-AVR Manuale utente

Belkin

Belkin F6C1000-TW-RK Manuale utente

Belkin

Belkin F6C700-EUR Manuale utente

Belkin

Belkin F6C350-SER-SB Manuale utente

Belkin

Belkin OmniGuard F6C110-RKM-2U Manuale utente

Belkin

Belkin F6C325 Manuale utente

Belkin

Belkin RS232 Series Manuale utente

Belkin

Belkin F6C700 Manuale utente

Belkin

Belkin Regulator Pro Gold Series Manuale utente

Belkin

Belkin F6HXXX-USB-C Manuale utente

Belkin

Belkin SILVER SERIES F6C350ZSER-SB Manuale utente

Belkin

Belkin F6C350-USB Manuale utente

Belkin

Belkin 600VA Manuale utente

Belkin

Belkin F6CXXX-UNV Manuale utente

Belkin

Belkin F6C900.1100UNVT Manuale utente

Belkin

Belkin 1000VA Manuale utente

Belkin

Belkin F6H350-USB Manuale utente

Belkin

Belkin F6H350-SER Manuale utente

Belkin

Belkin 400va Manuale utente

Belkin

Belkin P73220uk Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

CyberPower

CyberPower CP585LCD Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

CyberPower

CyberPower Office Tower Series UPS 1000 Manuale utente

CyberPower

CyberPower BM100 Manuale utente

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente
