Belkin F9K1107 Manuale utente

User Manual

F9K1107 8820-00920 Rev. A00

WIRELESS DUAL-BAND

Trave l Ro u te r

TABLE OF CONTENTS

Getting Started ........................................... 1

What’s in the Box ............................................1

Initial Setup .................................................1

Getting to Know Your Router ............................... 4

Front Panel .................................................4

Back Panel ..................................................5

Technical Details ......................................... 6

Technical Features ...........................................6

System Requirements ........................................6

Using Your Router ........................................ 7

Troubleshooting, Support, and Warranty ................... 12

Troubleshooting ............................................12

Technical Support ...........................................15

Belkin International, Inc., Limited 2-Year Product Warranty ........16

Regulatory Information .................................. 18

FCC Statement .............................................18

GETTING STARTED

What’s in the Box

Wireless Dual-Band Travel Router

Carrying Case

Ethernet Cable

Power Supply

CD with User Manual

In some regions, the Travel Router includes Plug Adapters

to support the various plug types in your region.

US: No plug adapters included

EMEA: UK, EU adapters included

Initial Setup

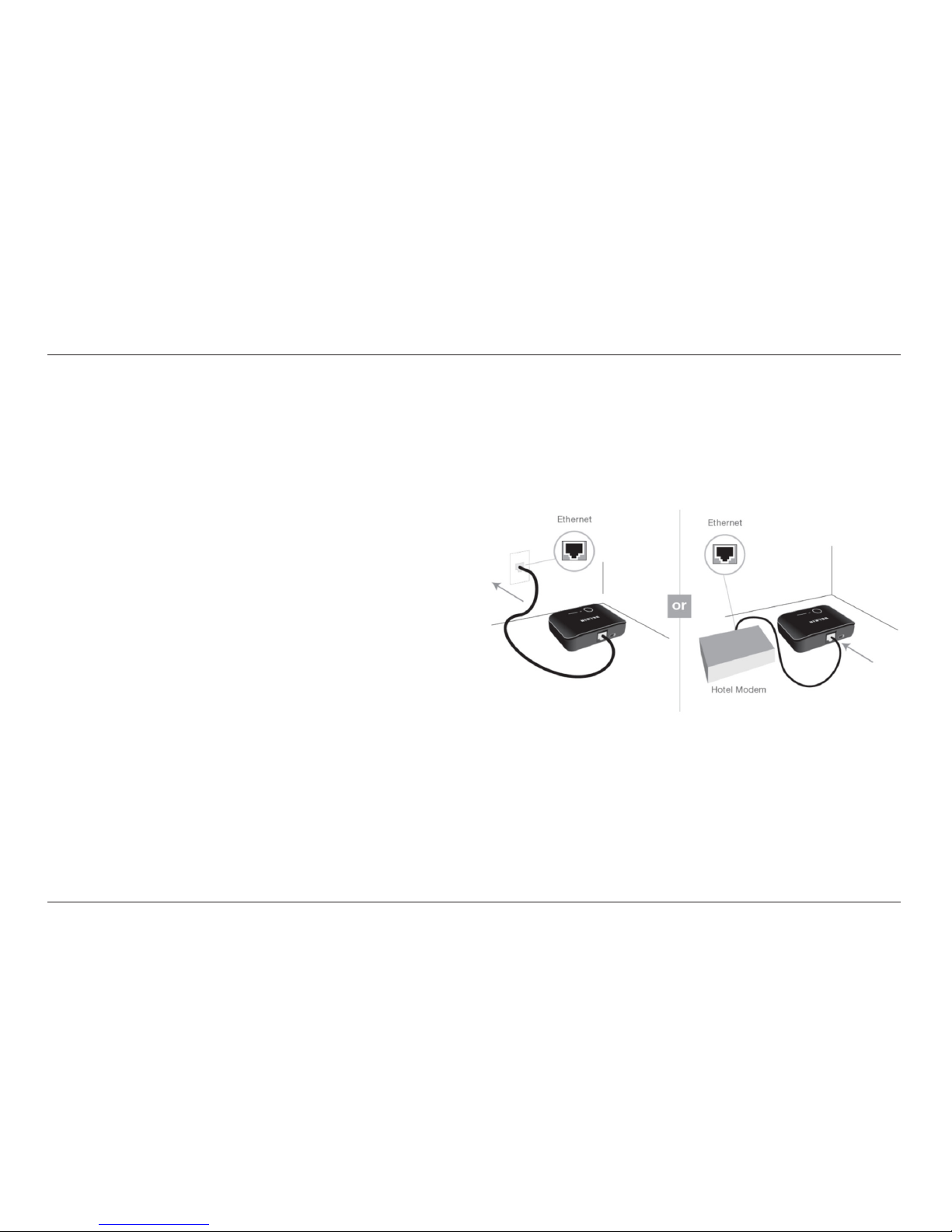

1. Connect your Router to the Ethernet (network) connector in

your hotel room. (You may use either the cable provided by

the hotel or the cable provided with your Travel Router.)

GETTING STARTED

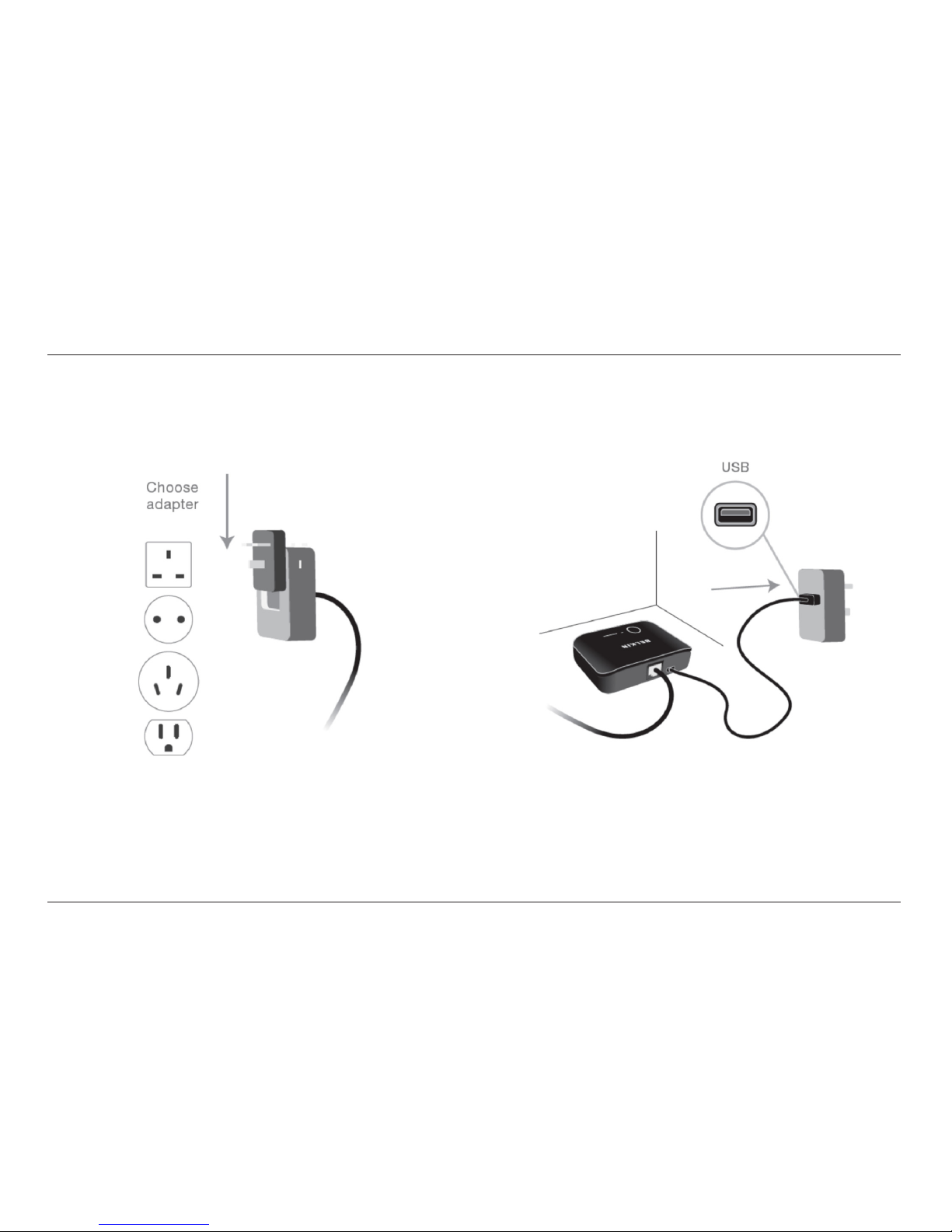

2. If you purchased your Travel Router in Europe or Asia, it shipped

with adapters for the various plug types in your region. Please

attach the appropriate plug type to the power adapter.

3. Connect the power adapter to the Travel

Router using the provided cable.

GETTING STARTED

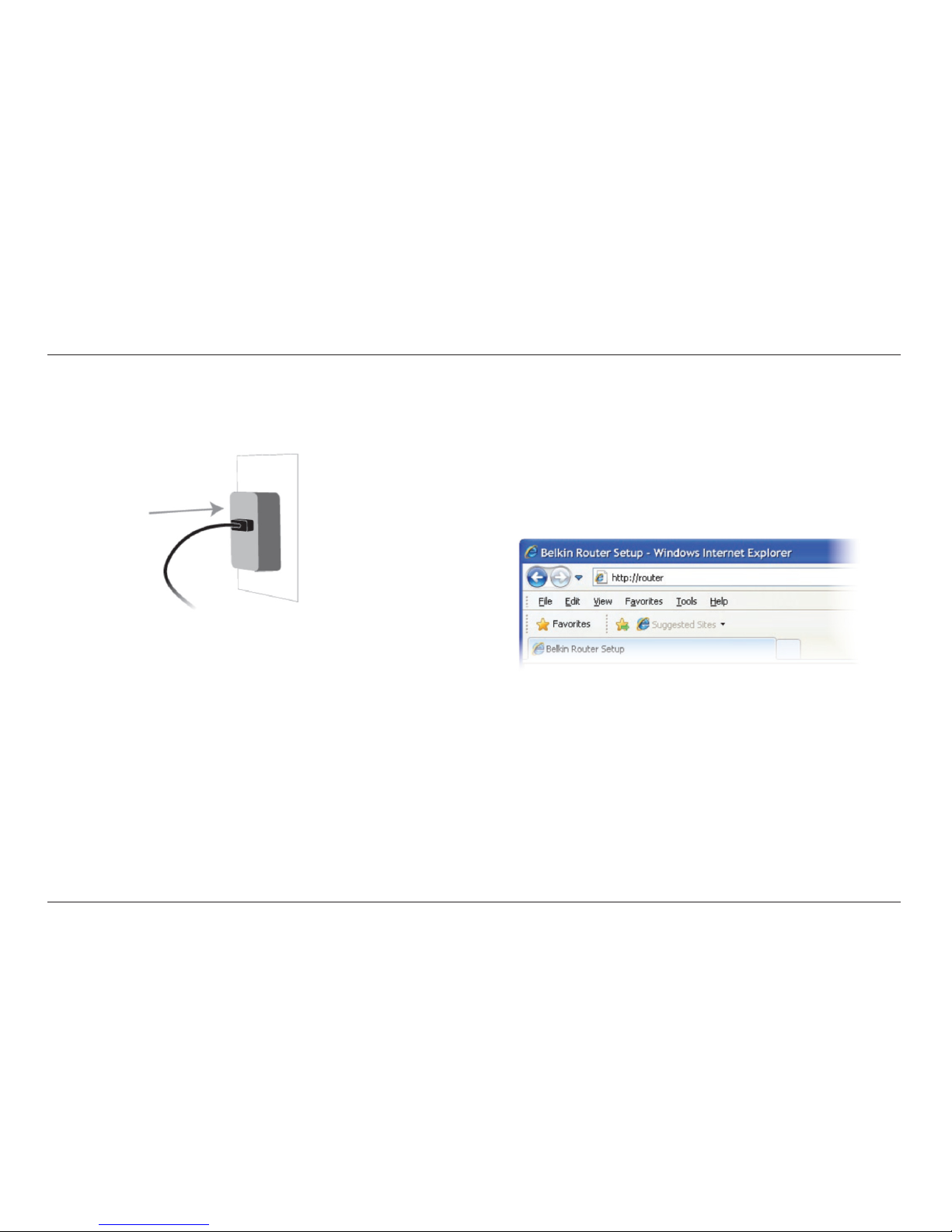

4. Plug the power adapter into the wall to start up your Travel Router.

5. Connect your devices to your Wi-Fi®network. The Travel

Router ships with a predefined network name (SSID)

and password for each band (2.4GHz and 5GHz); this

information is on your Quick Installation Guide.

Manual Setup Using Your Browser

In your browser, type “http://router” (you do not need to type

in anything else such as “www”). Then press the Enter key. If

you’re still having trouble running the manual setup option, type

“192.168.2.1” into your browser (you do not need to type in anything

else such as “http://” or “www”). Then press the Enter key.

GETTING TO KNOW YOUR ROUTER

A) Status Light

Your Router’s status is shown by the light on the front.

Off: The Router is not plugged into a power source.

Blinking Blue: The Router is starting up.

Solid Blue: The Router is connected to the Internet.

Blinking Amber: The Router can’t detect the modem. Either the

modem is off, is not plugged into the Router, or is unresponsive.

Front Panel B) Wi-Fi Protected Setup (WPS) Light and Button

The WPS button on the front of your Router can be used to

help establish a secure connection between your Router and

other WPS-enabled Wi-Fi devices such as computers. To use

the WPS feature on your Router, refer to the Router’s web

interface. The small light near the WPS button shows what is

happening while you are using WPS to establish a connection.

Off: Idle

Blinking Blue: The Router is listening for a WPS-enabled

computer or other device.

Solid Blue: The Router has made a secure connection with

the computer or other device.

Amber: A connection was not created.

GETTING TO KNOW YOUR ROUTER

Reset Button

There is a reset button on the bottom of the Router, which can

be depressed using a paper clip or other small object.

You may use this button if you need to reset the Travel Router for

some reason. See the Troubleshooting section for more details.

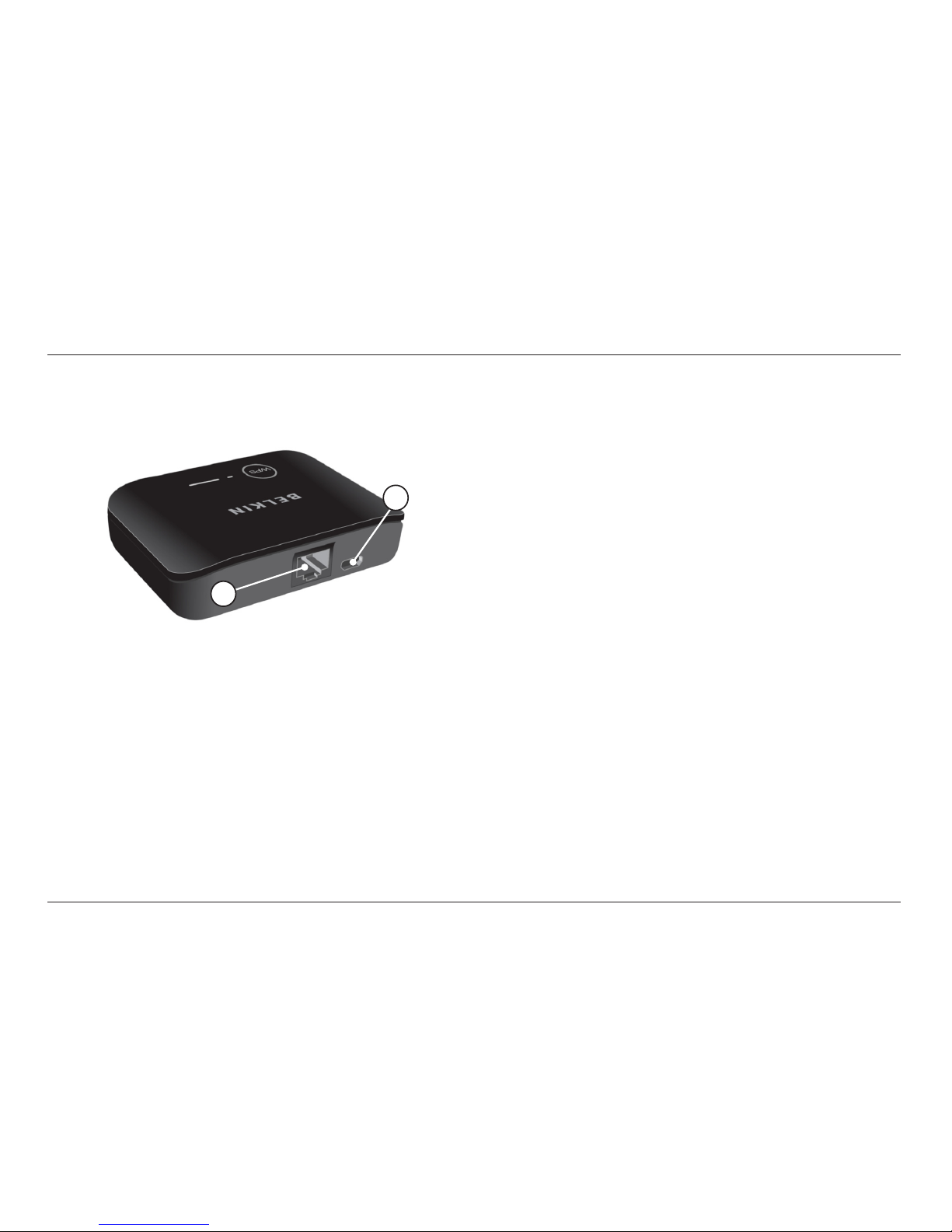

A) WAN Connector

Connect your hotel Internet connection to this port using the Ethernet

cable provided by the hotel or the cable included with your Router.

B) USB Power Port

This port is for the power supply.

Back Panel

TECHNICAL DETAILS

System Requirements

• BroadbandInternetservicewithRJ45Ethernetconnection

• Atleastonecomputerwith:

Installed wireless network interface card and TCP/IP protocol

Windows®XP 32 (SP3 or greater), Windows Vista®32/64,

or Windows 7®32/64; or Mac OS®X v10.5 or v10.6

Internet Explorer®v7 or above, Firefox®,

Google Chrome™, or Safari®

Minimum 1.8GHz processor

Minimum 512MB RAM

Technical Features

Wireless Standards with Link Rate:

• IEEE802.11n(upto300Mbps*)

• IEEE802.11g(upto54Mbps*)

• IEEE802.11a(upto54Mbps*)

• IEEE802.11b(upto11Mbps*)

Wireless Operating Spectrum:

• SimultaneousDual-Band2.4GHzand5GHz

Wireless Security:

• Pre-configuredsecurity

• Wi-FiProtectedSetup™

• 256-bitWPA2®encryption

• 64/128-bitWEPencryption

VPN Support:

• PPTP

• IPSecpass-through

*Thestandardtransmissionrates—150Mbps(for2.4GHz

and5GHz),54Mbps,and11Mbps—arethephysical

data rates. Actual data throughput will be lower and may

depend on the mix of wireless products used.

Updating the Router’s Firmware

via the Web Interface

The following steps show you how to update your Router’s

firmware using its web interface. You do not need to be connected

to the Internet as this interface is built into the Router itself.

Setup steps:

1. Locate and download the firmware file from the Belkin

support site. (Type your part number into the search box in

the top right corner and look for “Firmware” in the title.)

2. Save the file to a location on your computer where

you can get to it easily, such as your desktop.

3. Connect the computer to your Router.

4. Open a web browser on the computer.

5. In the address bar of the web browser, type

“http://192.168.2.1” and press “Enter” on your keyboard.

6. Click “Login” in the upper right-hand corner of the page. The

Router does not ship with a password, so just click “Submit.”

USING YOUR ROUTER

Opening the Router Firmware’s Web Interface

In your browser, type “http://router” (you do not need to type

in anything else such as “www”). Then press the Enter key. If

you’re still having trouble running the manual setup option, type

“192.168.2.1” in your browser (you do not need to type in anything

else such as “http://” or “www”). Then press the Enter key.

USING YOUR ROUTER

9. Select the firmware file by left-clicking on it and then click

the “Open” button in the lower-right corner of the window.

This will take you back into the Router’s interface.

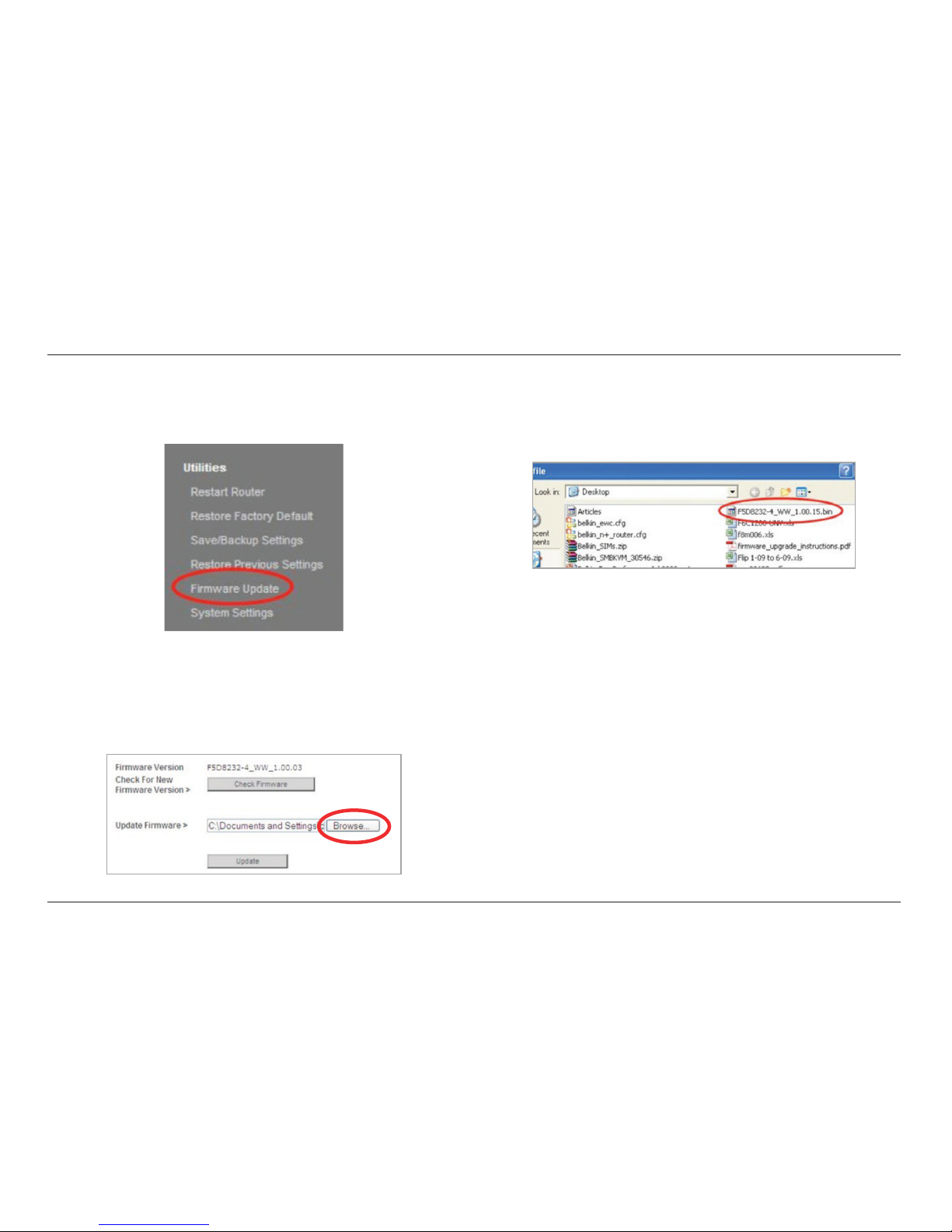

7. Click on “Firmware Update” toward the

bottom of the left-hand menu.

8. Click the “Browse” button toward the middle of the screen to

search for the file you saved previously.

Note: The firmware version in the image

below is depicted as an example.
