BELLAGIO T-OS14 Manuale utente
1
Outdoor Station
7” Touch Panel Outdoor Station T-OS14
User Manual
2
1
Contents
Unit 1 Overview................................................................................................................ 1
1.1 Functions and Characteristics...................................................................................... 1
1.2 Parameters ................................................................................................................. 1
Unit 2 Appearance and Interface ...................................................................................... 2
2.1 Appearance ................................................................................................................ 2
2.2 Dimension .................................................................................................................. 4
2.3 Interface Introduction................................................................................................. 5
Unit 3 Installation ............................................................................................................. 6
3.1 Installation Height....................................................................................................... 6
3.2 Installation Steps......................................................................................................... 7
3.3 System Wiring............................................................................................................. 8
4.1 Call In Push Button Mode............................................................................................ 9
4.2 Call In Keypad Mode ................................................................................................... 9
4.3 Name list In Keypad mode ........................................................................................ 11
4.4 Call Guard Unit ......................................................................................................... 12
4.5 Unlock ...................................................................................................................... 12
5.1 Setting Login Interface .............................................................................................. 13
5.2 Main Setting Interface............................................................................................... 14
6.1 Ringtone Setting ....................................................................................................... 15
6.2 Language Setting ...................................................................................................... 15
6.3 PIN Setting................................................................................................................ 16
6.4 Unlock Time Setting.................................................................................................. 16
6.5 ADD Setting .............................................................................................................. 17
6.6 Card Management.................................................................................................... 17
7.1 Call Mode Setting...................................................................................................... 19
7.2 Alarm Setting............................................................................................................ 19
7.3 Door Status Detection............................................................................................... 20
7.4 Factory Testing.......................................................................................................... 20
7.5 Configuration Password ..................................................Error! Bookmark not defined.
7.6 Device Information .........................................................Error! Bookmark not defined.
1
Unit 1 Overview
This product is an outdoor station of 2 wire analog video door phone system. It is
connected with indoor stations in the system by 2 core wire. And it supports access
control with IC card.
1.1 Functions and Characteristics
Support video intercom and unlocking
Support real-time monitoring
Door status detection, and unlock state timeout alarm
Tamper Alarm
Support IC card
Support external camera
1.2 Parameters
Working Parameters
Working Voltage ：DC
24~32V
Static Current: ≤90mA(DC 30V)
Working Temperature ：
-25℃～55℃
Working Current：≤ 400mA(DC 30V)
Storage Temperature ：
-40℃～70℃
Dimension(W/H/D)：365×125×44.6mm
Camera
Camera Type：CMOS
Pixel：30W
View Angle：Diagonal 70°×50°
Min. Illumination：
0.1 lux
Focal Length：2.5mm
Adjustable Angle：up/down/left/right 10°
Fill-in Light Type：
white
2
Unit 2 Appearance and Interface

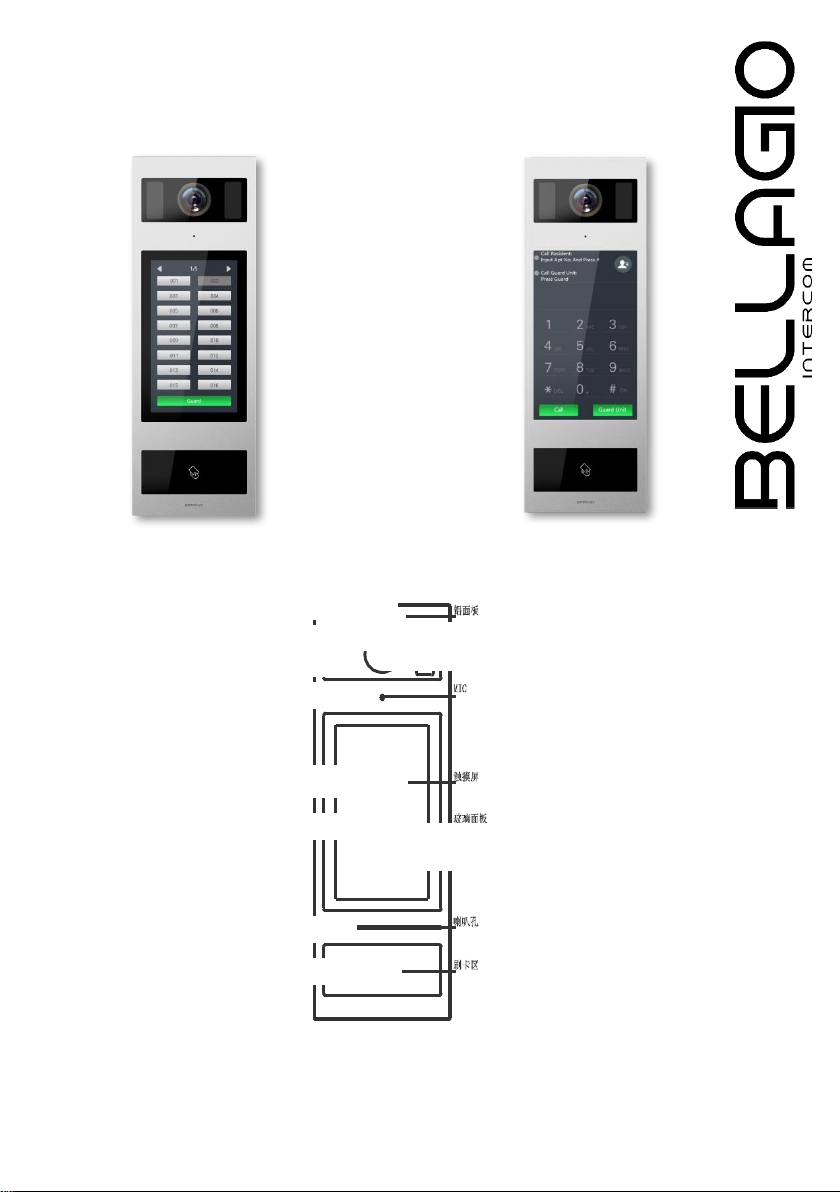

2.1 Appearance
Front View Rear View
Aluminium Panel
Camera
Fill-in Light
MIC
Touch Display Zone
Glass panel
Speaker
Card Reading Area
Angle adjustment
Wire Connecting Area
3
4
2.2 Dimension
5
2.3 Interface Introduction
① Network interface (1：TX+,2：TX-,3：RX+,4：RX-)
② DC+GND：independent power supply input
③ Unlock time adjustment, please check “4.6 unlock time setting”
④ External camera
⑤ Outdoor station address (ADD) setting, please check “4.8 ADD setting”
⑥ BUS-A,BUS-B：BUS interface
NO,COM,NC：normally open pin,common pin,normally closed pin
GS：Door status detection
DOOR SW：door unlock switch inside
GND：common ground
⑦ Lock mode：power supply for external electronic lock
Angle adjustment
Wire Connecting Area
①②③⑤⑥⑦
④
⑤
6
Unit 3 Installation
3.1 Installation Height
Suggested height for installation: camera is 1.6m above the ground
Ground
1.60M（5.25Feet）
7
3.2 Installation Steps
Step 1: put the embedded
box into the preformed
groove inside the wall, make
the installation cables go
through the wires outlet, and
fix the embedded box with
wall nails or cement.
Step 2: After connecting the
cables with the outdoor
station, push the outdoor
station into the embedded
box. After that, push up the
outdoor station to make the
snap slot of outdoor station
and embedded box match
each other.
Step 3: Lock the screws from
the bottom of the outdoor
station, tighten the screws to
finish the installation.
embedded box
wires outlet
preformed groove
Wall
Wall
snap slot
embedded box
outdoor station
outdoor station
Wall
lock the screws
