BDO606BK
6 Function Electric Oven with 90L Capacity
EN - 2
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
FIRE Warning; Risk of re / ammable materials
CAUTION Injury or property damage risk
IMPORTANT / NOTE Operating the system correctly
Thank you for selecting this oven from the Belling Design Collection
This Instruction Manual contains important safety information and instructions on the
operation and maintenance of your appliance.
Please take the time to read this User Manual before using your appliance and keep this
book for future reference.
CONTENTS
1.SAFETY INSTRUCTIONS .................................................................................................4
1.1 General Safety Warnings ...............................................................................................4
1.2 Installation Warnings ......................................................................................................6
1.3 During Use .....................................................................................................................7
1.4 During Cleaning and Maintenance .................................................................................8
2.INSTALLATION AND PREPARATION FOR USE ............................................................10
2.1 Instructions for the Installer ..........................................................................................10
2.2 Installation of the Oven .................................................................................................10
2.3 Electrical Connection and Safety.................................................................................. 11
3.PRODUCT FEATURES ................................................................................................... 13
4.USE OF PRODUCT ........................................................................................................ 14
4.1 Oven Controls...............................................................................................................14
4.2 Cooking Table ...............................................................................................................15
4.3 Use of the Digital Touch Minute Minder Timer ..............................................................15
Time adjustment .................................................................................................................15
4.4 Accessories ..................................................................................................................16
5.CLEANING AND MAINTENANCE...................................................................................17
5.1 Cleaning ...................................................................................................................17
5.2 Maintenance .................................................................................................................18
6.TROUBLESHOOTING&TRANSPORT ............................................................................19
6.1 Troubleshooting ............................................................................................................19
6.2 Transport ...................................................................................................................19
7.WARRANTY
.................................................................................................
20
1.
SAFETY INSTRUCTIONS
•
Carefully read all instructions before using your
appliance and keep them in a convenient place for
reference when necessary.
•
This manual has been prepared for more than one
model therefore your appliance may not have some
of the features described within. For this reason, it
is important to pay particular attention to any figures
whilst reading the operating manual.
1.1
General Safety WarninGS
•
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
WARNING:
The appliance and its accessible parts
become hot during use. Young children should be
kept away.
• Children should be supervised to ensure that they
do not play with the appliance.
WARNING: Danger of fire: Do not store items
on the cooking surfaces.
WARNING:
If the surface is cracked, switch off
the appliance to avoid the possibility of electric shock.
•
Do not operate the appliance with an external timer
or separate remote-control system.
•
During use the appliance will get hot. Care should
be taken to avoid touching heating elements inside
the oven
EN - 4
•
Handles may get hot after a short period during use.
•
Do not use harsh abrasive cleaners or scourers
to clean the oven door glass and other surface.
They can scratch the surfaces which may result in
shattering of the door glass or damage to surfaces.
•
Do not use steam cleaners for cleaning the
appliance.
WARNING:
To avoid the possibility of electric
shock, make sure that the appliance is switched off
before replacing the lamp.
CAUTION:
Accessible parts may be hot when
cooking or grilling. Keep young children away from the
appliance when it is in use.
•
Your appliance is produced in accordance with all
applicable local and international standards and
regulations.
•
Maintenance and repair work should only be carried
out by authorised service technicians. Installation
and repair work that is carried out by unauthorised
technicians may be dangerous. Do not alter or
modify the specifications of the appliance in any
way. Inappropriate hob guards can cause accidents.
•
Before connecting your appliance, make sure
that the local distribution conditions (nature of the
gas and gas pressure or electricity voltage and
frequency) and the specifications of the appliance
are compatible. The specifications for this appliance
are stated on the label.
CAUTION:
This appliance is designed only for
cooking food and is intended for indoor domestic
household use only. It should not be used for any
other purpose or in any other application, such as for
non-domestic use, in a commercial environment or for
EN - 5
heating a room.
•
Do not use the oven door handles to lift or move the
appliance.
•
All possible measures have been taken to ensure
your safety. Since the glass may break, care should
be taken while cleaning to avoid scratching. Avoid
hitting or knocking the glass with accessories.
•
Make sure that the supply cord is not trapped or
damaged during installation. If the supply cord is
damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in
order to prevent a hazard.
•
Do not let children climb on the oven door or sit on it
while it is open.
•
Please keep children and animals away from this
appliance.
1.2
inStallation WarninGS
•
Do not operate the appliance before it is fully
installed.
•
The appliance must be installed by an authorised
technician. The manufacturer is not responsible
for any damage that might be caused by defective
placement and installation by unauthorised people.
•
When the appliance is unpacked, make sure that
it is has not been damaged during transportation.
In case of any defect do not use the appliance
and contact a qualified service agent immediately.
The materials used for packaging (nylon, staplers,
Styrofoam, etc.) may be harmful to children and they
should be collected and removed immediately.
•
Protect your appliance from the atmosphere. Do not
expose it to effects such as sun, rain, snow, dust or
excessive humidity.
EN - 6
EN - 7
• Any materials (i.e. cabinets) around the appliance
must be able to withstand a minimum temperature
of 100°C.
• The appliance must not be installed behind a
decorative door, in order to avoid overheating.
1.3 DurinG uSe
• When you first use your oven you may notice a
slight smell. This is perfectly normal and is caused
by the insulation materials on the heater elements.
We suggest that, before using your oven for the
first time, you leave it empty and set it at maximum
temperature for 45 minutes. Make sure that the
environment in which the product is installed is well
ventilated.
• Take care when opening the oven door during or
after cooking. The hot steam from the oven may
cause burns.
• Do not put flammable or combustible materials in or
near the appliance when it is operating.
• Always use oven gloves to remove and replace food
in the oven.
• Under no circumstances should the oven be lined
with aluminium foil as overheating may occur.
• Do not place dishes or baking trays directly onto the
base of the oven whilst cooking. The base becomes
very hot and damage may be caused to the product.
Do not leave the oven unattended while cooking
with solid or liquid oils. They may catch fire under
extreme heating conditions. Never pour water on to
flames that are caused by oil, instead switch the oven
off and cover the pan with its lid or a fire blanket.
• If the product will not be used for a long period of
time, turn the main control switch off.
EN - 8
• Make sure the appliance control knobs are always
in the “0” (stop) position when it is not in use.
• The trays incline when pulled out. Take care not
to spill or drop hot food while removing it from the
ovens.
• Do not place anything on the oven door when it is
open. This could unbalance the oven or damage the
door.
• Do not hang towels, dishcloths or clothes from the
appliance or its handles.
1.4 DurinG CleaninG anD MaintenanCe
• Make sure that your appliance is turned off at
the mains before carrying out any cleaning or
maintenance operations.
• Do not remove the control knobs to clean the control
panel.
• To maintain the efficiency and safety of your
appliance, we recommend you always use original
spare parts and to call our authorised service agents
in case of need.
EN - 9
waste disposal service or the retailer who you
purchased this product from.
Disposal of your old machine
This symbol on the product or on its packaging
indicates that this product should not be
treated as household waste. Instead it should
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. For more
detailed information about recycling of this product,
please contact your local city office, your household
EN - 10
2. INSTALLATION AND
PREPARATION FOR USE
WARNING : This appliance must be
installed by an authorised service
person or qualified technician, according to
the instructions in this guide and in
compliance with the current local
regulations.
• Incorrect installation may cause harm
and damage, for which the manufacturer
accepts no responsibility and the
warranty will not be valid.
• Prior to installation, ensure that the local
distribution conditions (electricity voltage
and frequency) and the adjustments
of the appliance are compatible. The
adjustment conditions for this appliance
are stated on the label.
• The laws, ordinances, directives and
standards in force in the country of use
are to be followed (safety regulations,
proper recycling in accordance with the
regulations, etc.).
2.1 inStruCtionS for the inStaller
General instructions
• After removing the packaging material
from the appliance and its accessories,
ensure that the appliance is not
damaged. If you suspect any damage,
do not use it and contact an authorised
service person or qualified technician
immediately.
• Make sure that there are no flammable
or combustible materials in the close
vicinity, such as curtains, oil, cloth etc.
which may catch fire.
• The worktop and furniture surrounding
the appliance must be made of
materials resistant to temperatures
above 100°C.
• The appliance should not be installed
directly above a dishwasher, fridge,
freezer, washing machine or clothes
dryer.

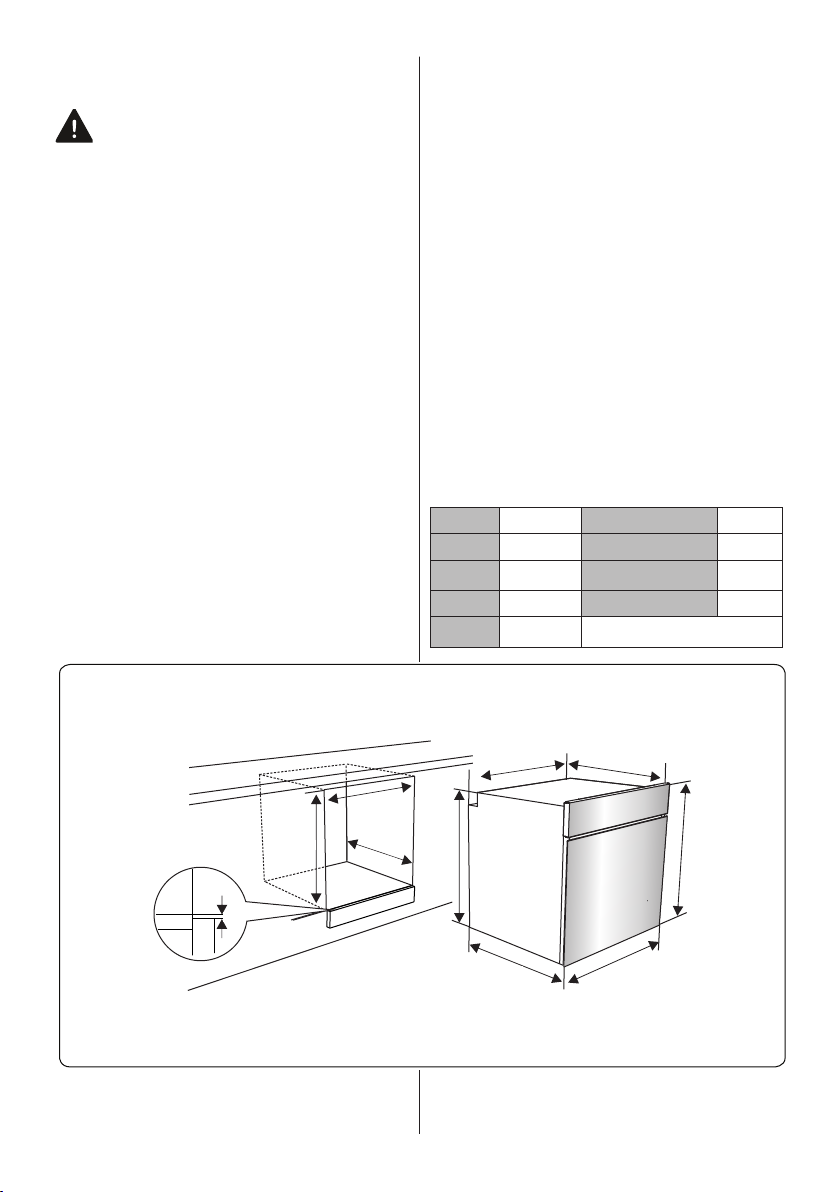

2.2 inStallation of the oven
The appliances are supplied with
installation kits and can be installed in a
worktop with the appropriate dimensions.
The dimensions for hob and oven
installation are given below.
A (mm) 557 min./max. F (mm) 560/580
B (mm) 550 min. G (mm) 555
C (mm) 595 min. H/I (mm) 600/590
D (mm) 575 min. J/K (mm) 5/10
E (mm) 574
F
A B
C
C
D
E
G
H
J
Installation under a worktop
Indice
Altri manuali Belling Forno
Belling
Belling BD45CSBK Manuale utente
Belling
Belling Built-in Electric Induction Aggiornamento firmware
Belling
Belling IB608FPYL Manuale utente
Belling
Belling BEL FS50ES WHI 444443919 Manuale utente
Belling
Belling Mini Richmond BMR60DOINDB Manuale utente
Belling
Belling BFS54DOGG Manuale utente
Belling
Belling BPROC60S Manuale di istruzioni
Belling
Belling BI 90 MF and Manuale di istruzioni
Belling
Belling IB609PYRO Manuale utente
Belling
Belling IB6010FRC Istruzioni per il montaggio
Belling
Belling 864 Guida
Belling
Belling FSE61iS Aggiornamento firmware
Belling
Belling BEL FS50EDOC BLK Manuale utente
Belling
Belling BI 90 M Manuale di istruzioni
Belling
Belling BI 60 F Manuale di istruzioni
Belling
Belling BFS60DOCER Manuale utente
Belling
Belling platinum db3A Istruzioni di montaggio
Belling
Belling Farmhouse 932 Istruzioni di montaggio
Belling
Belling BPROC60 AU STA Manuale utente
Belling
Belling 70cm Manuale utente
