For information on installing a clm?lete BOLT Tiim Thb System, please uisit BennexTiimThbs.com/BOlT:Install
User Quick-start Guide
BCN Control lnstallation Instructions
Refer to the wiring diagram (reuerse side) and installation
template (below).
. Before drilling any holes, read the entire instructions.
. Using the included template (below), mark the locations for
the 7 164" holes and the 2.5" center hole.
. Check carefully ensure there are no obstructions behind the
console beFore drilling.
. Using a 2.5" diameter hole-saw, drill the center hole. Use a
7164" drill for the four mounting stud holes.
. Unsnap the bezel from the control plate.
Remove the four (4) #8 screws from the hardware bag and
insert into the holes on each corner ofthe control plate.
Place the control plate onto the console, feeding the pre-
connected wires through the 2.5" center hole while inserting
the screws into each of the four holes.
Once the control plate is properly seated, screw down the
four (4) #8 screws (do not over-tighten) and snap the bezel
back onto the plate assembly.
The port cable on the rocker switch is marked with a red
band. The starboard cable on the rocker switch is marked
with a green band. Note: After the actuarors are installed, the
port cable (red band) will be connected to the wire harness
coming from the port actuator, conversely the starboard cable
(green band) will be connected to the wire harness coming
from the starboard actuator.
Plug the port yellow/blue 20ft. twisted cable
(PN# BA\V2O)OQ to the port connector on the BRC Rocker
Control.
Plug the starboard yellow/blue 20ft. twisted cable
(PN# BA\720XX) to the starboard connector on the BRC
Rocker Control.
Connect the orange wire from the rocker switch to (+) 12V
(20A) power and black wire to ground.
8<- BRG Control lnstallation Templates
Both control templates below are identical. 7he second has been prouidedfor dual station applicationl Must be copied at 100% if replicated.
AV.rify template dimensions if
printed from the web or copied AVeri$, template dimensions if
printed from the web or copied

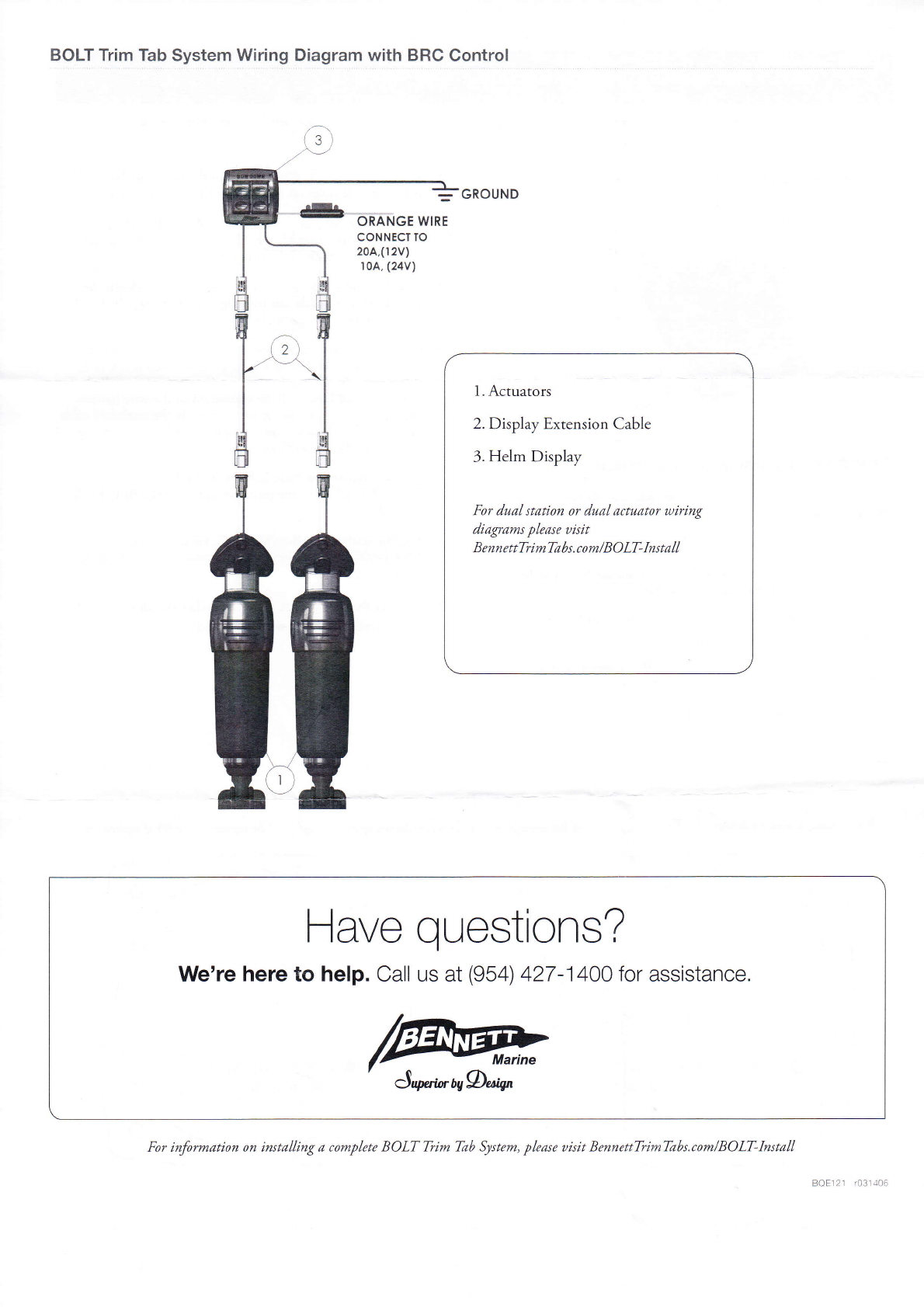

BOLT Trim Tab System Wiring Diagram with BRC Gontrol
1. Actuators
2. Display Extension Cable
3. Helm Display
For dual station or dual actuator wiring
diagrams please uisit
B e nn e ttTii mTh bs. co m /B O LT: Ins ta ll
CONNECT TO
20A,(12V)
r0A, (24v)
[-]ave questions?
We're here to help. Call us at (954) 427-1400 for assistance.
ffi
For information on installing a complete BOLT Tiim Thb System, please uisit BennettTiimTabs.com/BOl7:Install
BQE121 r031406
