Technical Documentation 08/2006
Service Manual
Level 1-2
for
CF61
Release Date Department Notes to change
R 1.0 12.07.2006 BenQ Mobile CC S CES New document
TD_Repair_L1-L2_CF61_R1.0.pdf Page 1 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006
Table of Content
1Key Feature................................................................................................................................3
2Spare Part Overview of CF61 ...................................................................................................4
3Disassembly of CF61 ................................................................................................................6
4Assembly of CF61 ...................................................................................................................16
5BenQ Service Equipment User Manual.................................................................................26
6Setup of the Software..............................................................................................................27
7Software basic settings ..........................................................................................................28
8Software Download procedure...............................................................................................29
9Download PPF (Handset configuration)................................................................................31
10 Backup and Restore of Wap and Network Setting...............................................................32
11 Backup and Restore of Media Center content......................................................................33
12 Unlock Tool..............................................................................................................................34
14 International Mobile Equipment Identity, IMEI......................................................................36
15 General Testing Information...................................................................................................37
TD_Repair_L1-L2_CF61_R1.0.pdf Page 2 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006
1 Key Feature
System •Tri-Band GSM 900/1800/1900
Battery •Li-Ion 750 mAh
Stand – by Time •Up to 225h
Talking Time •Up to 3 h
Antenna •Integrated
Main Display •262, 144 TFT, 128x160 pixels, 1.8 inches
Sub - Display •4,096 CSTN, 96x64 pixels
Storage •1.5 MB
Camera •1.3 megapixel, 4x linear digital zoom
Connectivity •USB 1.1, Bluetooth: Object Push Profile, Object
Exchange, Handsfree Profile, Headset Profile
Memory Slot •MicroSD
Processor •TI
TD_Repair_L1-L2_CF61_R1.0.pdf Page 3 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006
2 Spare Part Overview of CF61

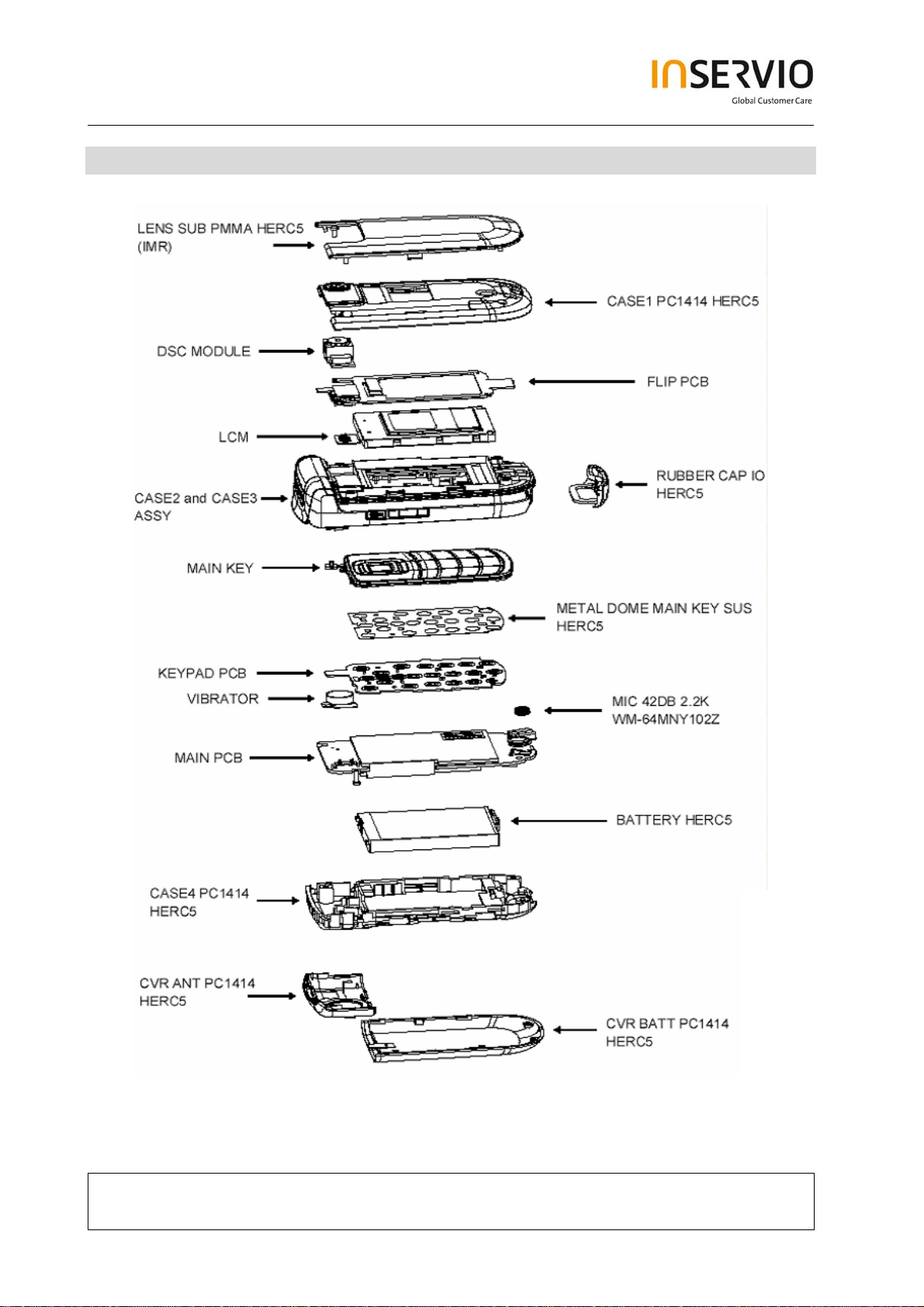

Exploded View
TD_Repair_L1-L2_CF61_R1.0.pdf Page 4 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006
Order Number ( can be different by Variant specific parts)
Location E-commerce number:
BATTERY V30145-K1310-X457
MIC L50654-Z6-C146
VIBRATOR
METAL DOME MAIN KEY L50658-A220-A18-1
CVR BATTERY L50658-A220-A19-1
MAIN KEY L50658-A220-A2-1
RUBBER CAP I/O L50658-A220-A23-1
Flip PCB L50658-A220-A33-1
MAIN PCB S30880-Q3180-A1
KEYPAD PCB S30880-Q3183-A1
LCM L50658-A220-A24-1
DSC Module
Assy. CASE1 L50658-A220-A26-1
Assy. CASE2+3 L50658-A220-A27-1
Assy. CASE4 L50658-A220-A28-1
LENS SUB PMMA L50658-A220-A29-1
CVR ANT L50658-A220-A31-1
TD_Repair_L1-L2_CF61_R1.0.pdf Page 5 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006

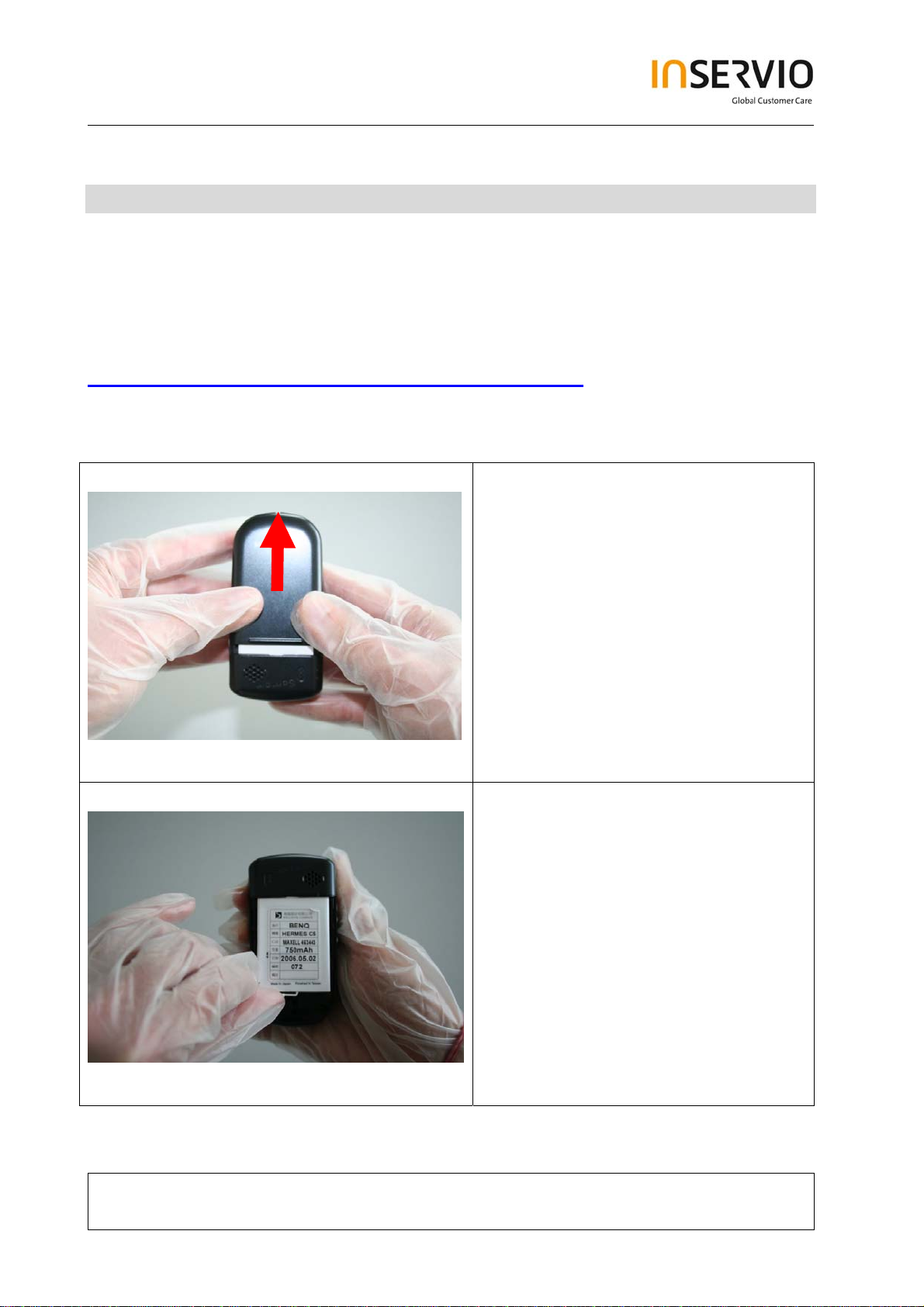

3 Disassembly of CF61
All repairs as well as disassembling and assembling have to be carried out in an ESD
protected environment and with ESD protected equipment/tools. For all activities the
international ESD regulations have to be considered.
For more details please check information in c – market
https://market.benqmobile.com/SO/welcome.lookup.asp
There you can find the document “ESD Guideline”.
Step 1
Remove Battery Cover.
Step 2
Remove Battery.
TD_Repair_L1-L2_CF61_R1.0.pdf Page 6 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006

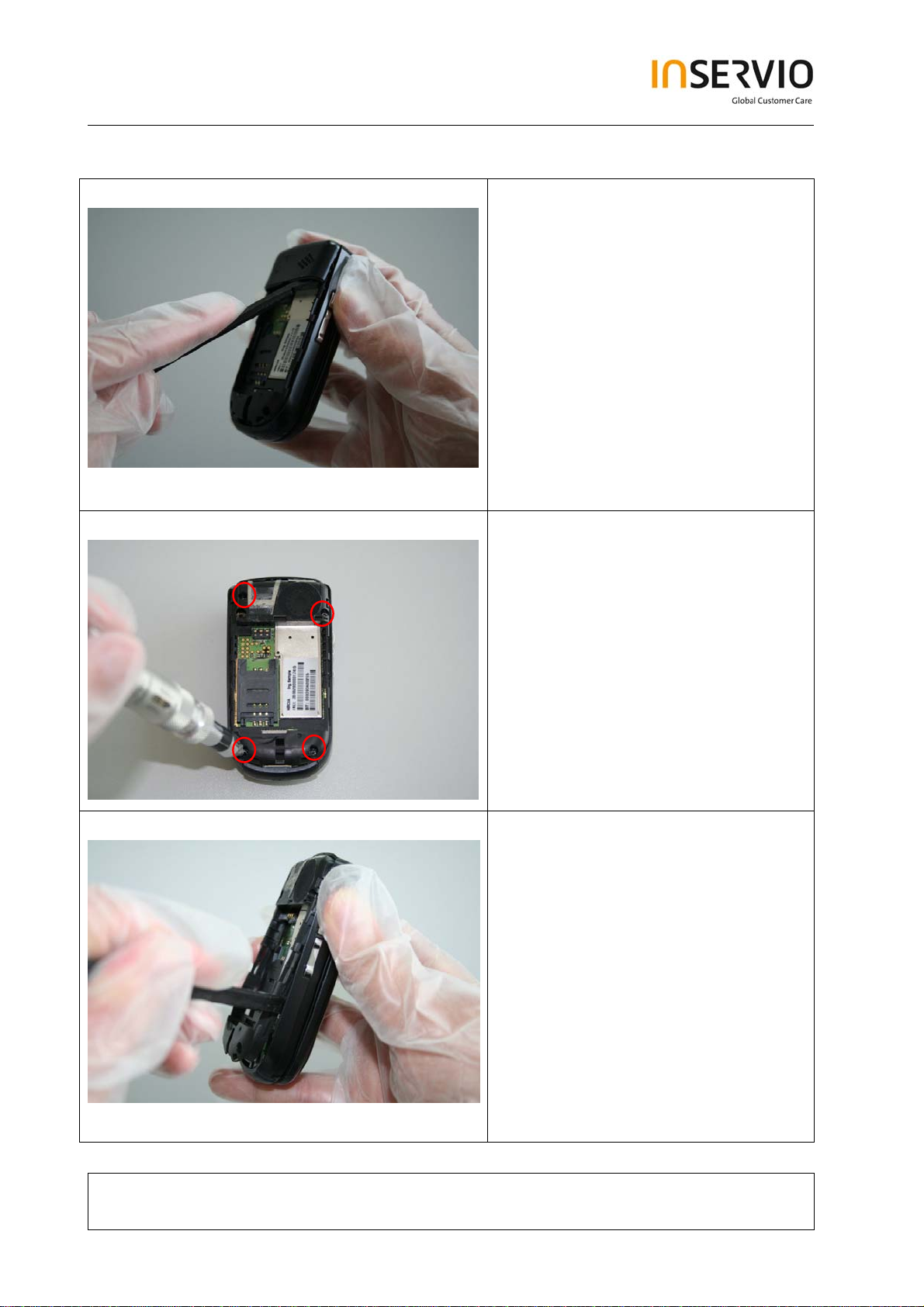

Step 3
Remove Rear Cover by using the
Alternative Opening Tool carefully.
Step 4
Remove screws by using the Torque
– Screwdriver.
T5+.
Step 5
Remove Lower Base Case Shell by
using the Alternative Opening Tool.
TD_Repair_L1-L2_CF61_R1.0.pdf Page 7 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006

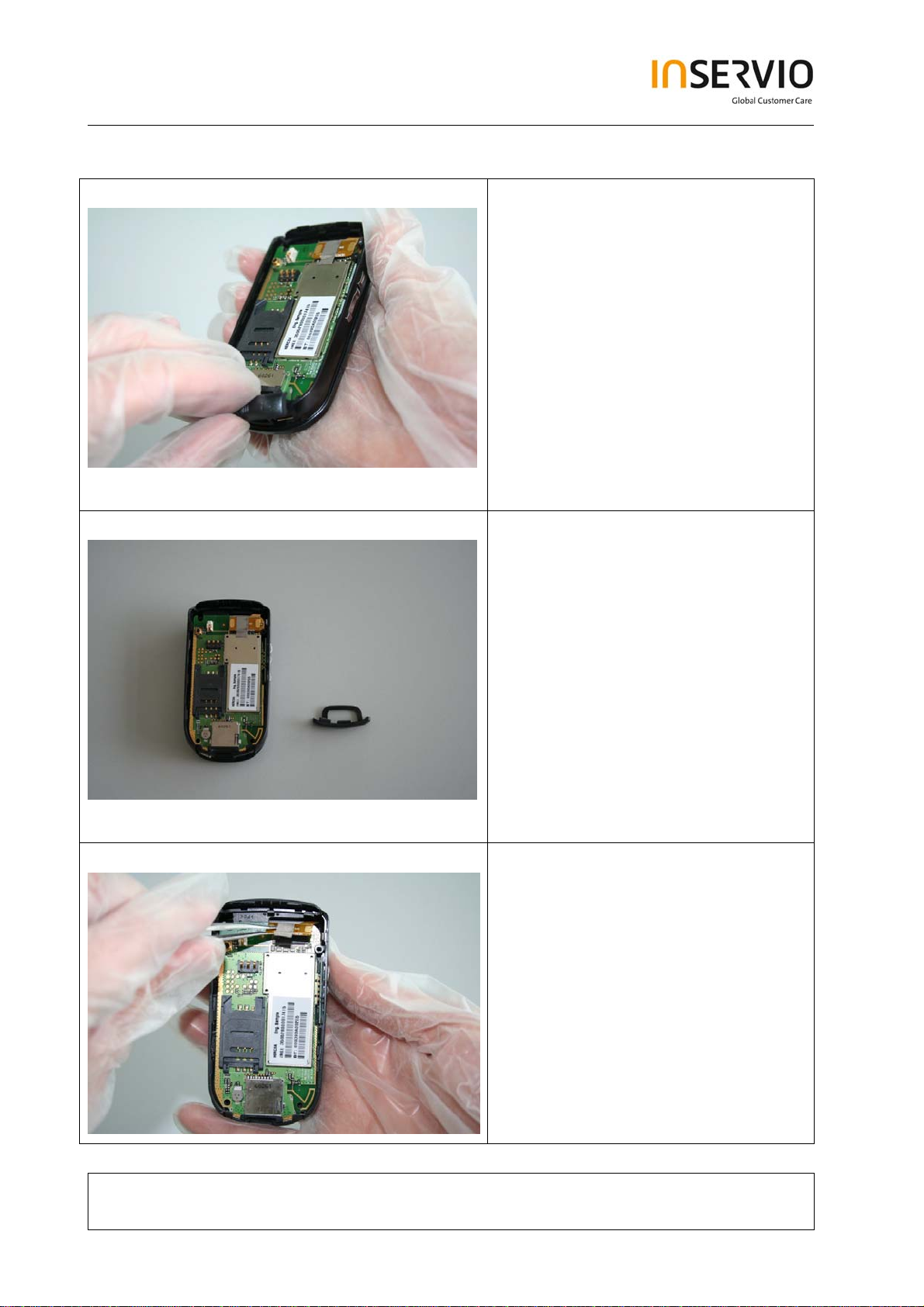

Step 6
Remove MMI Slot Cap.
Step 7
Step 8
Disconnect the Flex Cable by using
Tweezers.
TD_Repair_L1-L2_CF61_R1.0.pdf Page 8 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006

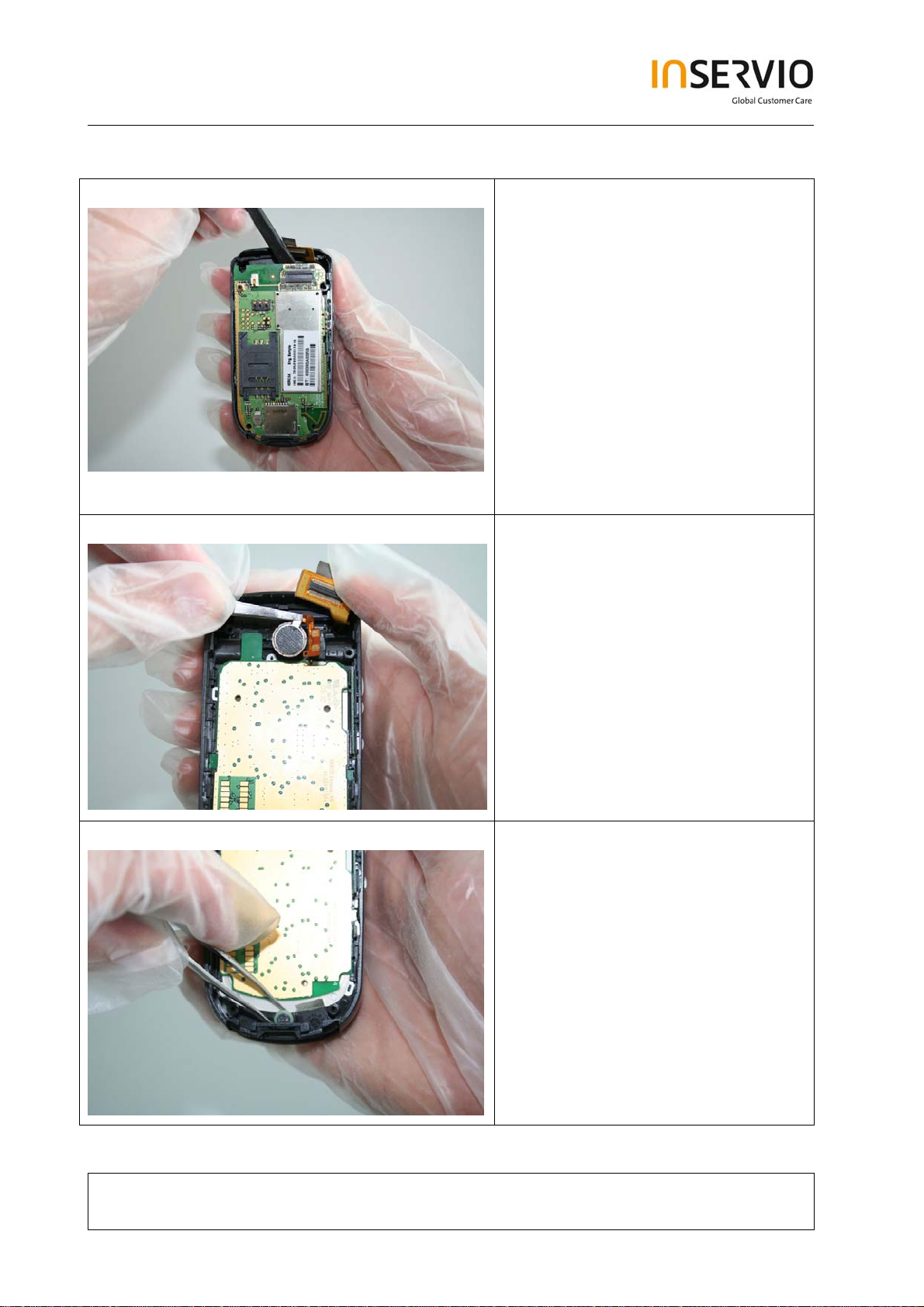

Step 9
Remove the RF Control Board by
using the Alternative Opening Tool
carefully.
Step 10
Remove the Vibra-Alert by using
Tweezers.
Step 11
Remove the Microphone by using
Tweezers. Take care of the spring
contact.
TD_Repair_L1-L2_CF61_R1.0.pdf Page 9 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
Technical Documentation 08/2006

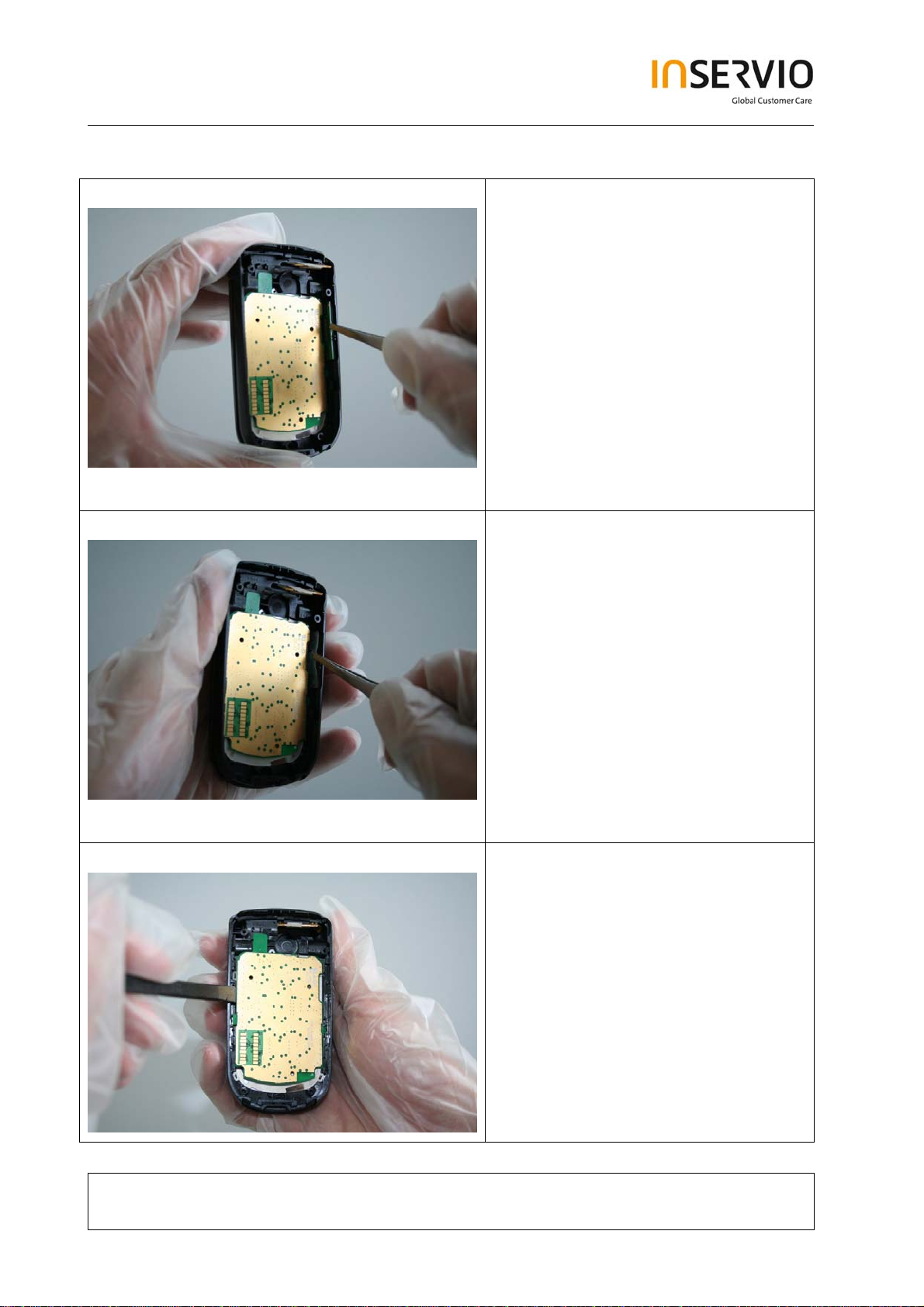

Step 12
Remove the Side Key PCB.
Step 13
Remove the Side Key Left.
Step 14
Remove the Keypad PCB.
TD_Repair_L1-L2_CF61_R1.0.pdf Page 10 of 42
Created by inservio GmbH for BenQ mobile GmbH & Co. OHG - Company Confidential2006©inservio
