Chapter 1

Unpacking the Package

Check following items. If they are missing or damaged, consult your place of purchase

immediately.

Acer 211c color monitor Users manual

Power cord 15-pin D-SUB Macintosh adapter

signal cable (Optional)

Locate the model name and the serial number labeled on the back

of your monitor. Write down the related information of your

monitor and dealer in the space on page iii for future reference.

Unpacking the Package

Features

Super-fine Dot Pitch With 0.26mm super-fine dot pitch and anti-

static coating, Acer 211c color monitors

offer strikingly sharp and high resolution

image up to 1600 x 1200.

Wide Range AutoScan Horizontal frequency ranges from 30KHz to 107

KHz to support 1600 x 1600 @ 90Hz resolution.

Flicker-Free design for vertical frequency of up to

160Hz.

i key Pressing the i key, the monitor will automatically

(Fuzzy Auto calibrating) adjust displays size and position to the optimum.

No re-configuration or adjustment is needed

when a user changes display mode.

Low radiation Acer 211c is not only in compliance with

MPRII, but also meets strictest low radiation

regulations of MPRII and TCO95.

Users and Environment Acer 211c is produced by the ISO 14001

certified manufacturer, and in compliance

with the global environmental labelling

scheme -TCO95 which covers not only

standards regarding emissions,energy

efficiency, electrical and fire safety, but also

ergonomic qualities, and ecological

concerns.

Plug’n Play Compatibility Supporting VESA DDC I and DDC 2B

standards, Acer 211c is compatible with

Plugn Play feature of Window 95®/ 98®.

Chapter 1

Power Management

The Power management of this monitor complies with these

VESA power saving modes:

Mode Power Horizontal Vertical LED

Consumption Syne Sync

On Normal On On Green

Stand-by < 15 W Off On Amber

Suspend < 15 W On Off Amber

Off <5W Off Off Ambe Blinking

Overide Normal Off Off Green

Factory Preset Timings

Resolution Vertical Frequency Horizontal Frequency

(Hz) (KHz)

640 x 400 70 31.47

640 x 480 60 31.47

640 x 480 75 37.50

800 x 600 75 46.88

1024 x 768 75 60.02

1024 x 768 85 68.68

1280 x 1024 75 79.98

1280 x 1024 85 91.15

1600 x 1200 75 93.75

1600 x 1200 85 106

** All above timings are non-Interlace timings.

Unpacking the Package

Chapter 2

Chapter2

Installing the Monitor

This monitor is equipped with an autosensing universal compatible power supply for

voltage ranges 100-120/200-240V AC, 50~60Hz.. Please confirm the line voltage

designation at the rear panel of the monitor before connecting the machine.

Make sure that the system power is turned off.

2) Please refer to the instructions below to connect the signal cable through D-SUB or

BNC.

3) Connect the power cord to the monitor and attach it to power source.

4) Turn on the computer and the monitor.

Connecting the Signal Cable

Your Acer 211c provides both D-SUB and BNC signal connectors. The

D-SUB or BNC signals can automatically be detected by its microprocessor.

✏Connecting through D-SUB signal connector

1) Make sure that the system power is turned off.

2) Connect the computer end of the D-SUB cable to the 15-pin output connector on

the video board of your computer.

3)Connect the monitor end of the D-SUB cable to the D-SUB receptacle on the back

of the monitor.

InstallingtheMonitor

Chapter 2

✏Connecting to An Apple

If you connect the monitor to an Apple Macintosh through a D-Sub cable, you need to

add the Macintosh adapter to connect the video signal port of your computer and the

monitor signal cable. Before connecting the adapter please refer to the user's guide of the

adapter to set the switches of the adapter.

InstallingtheMonitor

✏Connecting through BNC Signal Connector

1) Make sure that the system power is turned off.

2) Connect the computer end of the BNC cable to the output connector on the

video board of your computer.

3) Connect the monitor end of the BNC cable to the BNC receptacle on the

back of the monitor.

Chapter 3

lMenu key : enters or changes Main menus. There are three main menus.

lEnter key : enters sub-menus or selects items.

lExit key : goes back to main menus (auto save), or leaves OSD.

l& key :scrolls the light coloured bar up or down and represents

HOT KEY for brightness adjustment.

l&key : scrolls the light coloured bar left or right and represents

HOT KEY for contrast adjustment.

li key : is used for Fuzzy Automatic calibration adjustment.

Chapter 3

A Look at the Control Panel

Making Adjustments

i key (Fuzzy Auto Calibration )

Just push the i key, then the monitor will automatically adjust display's size

and position to the optimum. No re-configuration or adjustment is needed

when a user changes display mode.

The i key function is different from "Reset" function. "Reset" function for display's

geometry, size and position only works under the factory preset timings (please see

page 3). The i key function will work under "ANY" display timings which Acer

211c can support.

Hot Keys

Press or key to adjust contrast directly.

Press or key to adjust brightness directly.

A Look at the Control Panel

Chapter 3

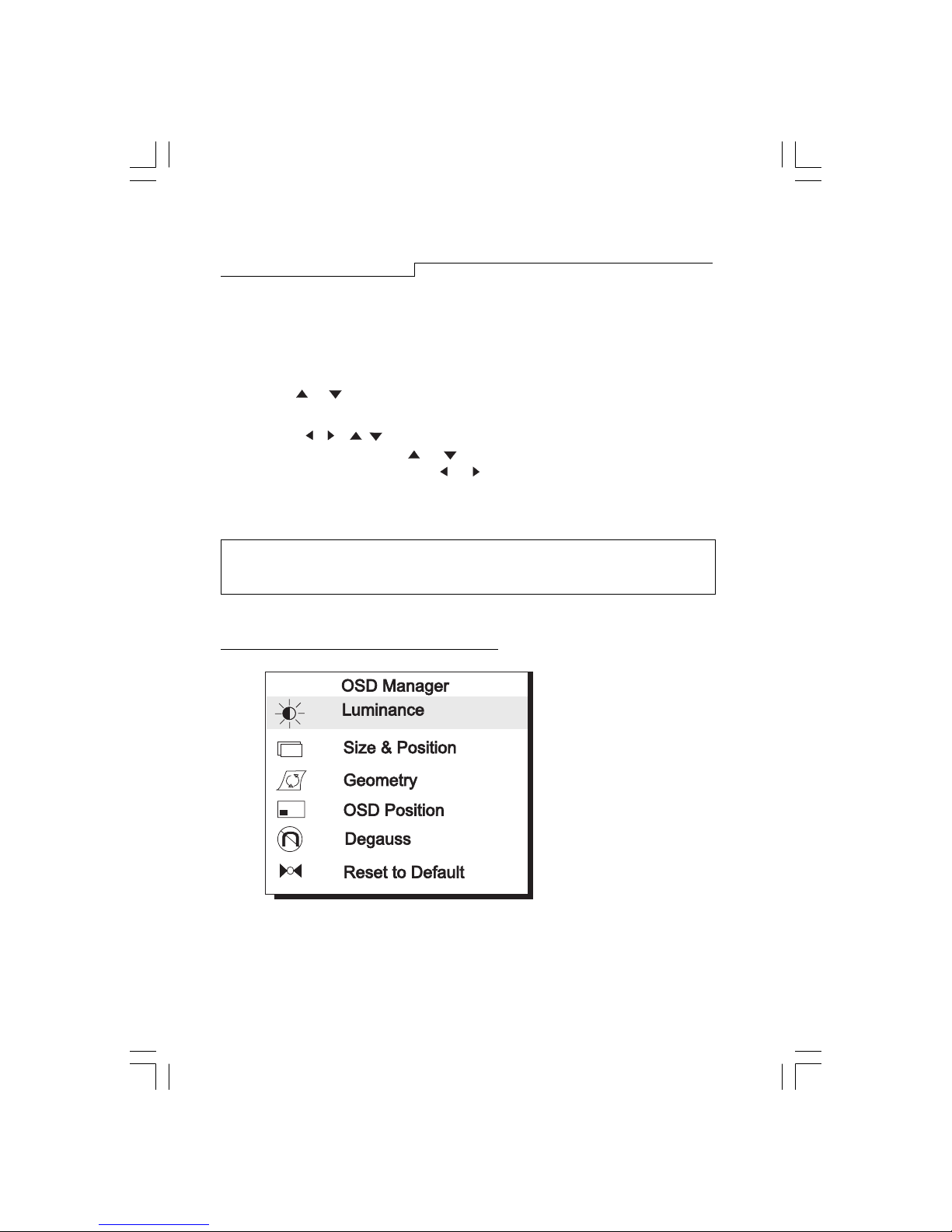

OSD Operation

1) Press Menu key to enter or change Main menus (there are three main menus)

2) Press or keys to scroll light coloured bar to desired items.

3) Press Enter key to enter sub-menus.

4) Press ,(,) key to do the adjustments. If the sub-menu contains

multiple items. Press or keys to scroll light coloured bar to

desired items. Then press or key to adjust as required.

5) Press Exit key to save and return to main menus.

6) Press Exit key to save and leave OSD

Reset to the factory default settings, please see General Settings

Reset and Color Temperature Reset.

Main Menu 1 Display Control

This main menu includes six items. Scroll the light coloured bar to desired items and

press Enter to sub-menus.
