SPECIFICATION SHEET
REFERENCE QTY. REMARKS Project
Location
Architect
Engineer
Contractor
Submitted by Date
70C 99044063A
Specially designed to be installed outdoors in a
covered patio or lanai area over residential
commercial-style cooking surfaces or gas and
electric grills.
This unit is not for use with a charcoal grill.
A complete installation requires several optional
components. Refer to page 2 when planning
your installation.
FEATURES
•Corrosion resistant 316 Stainless Steel construction
•UL Listed for use in damp locations when properly
connected to a GFCI circuit.
•Hood width: 42’’ or 54’’
•Halogen lighting (4 x 50 watt GU10 for 42” hood,
6 x 50 watt GU10 for 54” hood) lamps included
•Switch controls: Lighting, on-off, and infinite speed
•Easily accessible, dishwasher-safe stainless steel
baffle filters
•Heat Sentry turns blower ON to HIGH speed when
excess heat is detected
OPTIONS
•Decorative flue (AEWPD Series): Widths - 42’’ and 54’’
Stainless Steel construction - hides ducting and wipes
clean easily
•Designed for use with interior blower model P12D, in-line
blower model ILB11, or exterior blowers EB12 or EB15.
(All blowers - purchase separately)
SPECIFICATIONS
120 VAC, 60 Hz
Amps for 42” hood (without blower): 1.7 A
Amps for 54” hood (without blower): 2.5 A
WPD29M SERIES
RANGE HOOD
BEST BY BROAN P.O. BOX 140 HARTFORD, WISCONSIN 53027
Decorative flue
AEWPD Series
WPD29M
SERIES HOOD
(Canopy with
blower controls
& lighting.
Required for all
installations.)
OPTIONAL
DECORATIVE FLUE
AEWPD SERIES

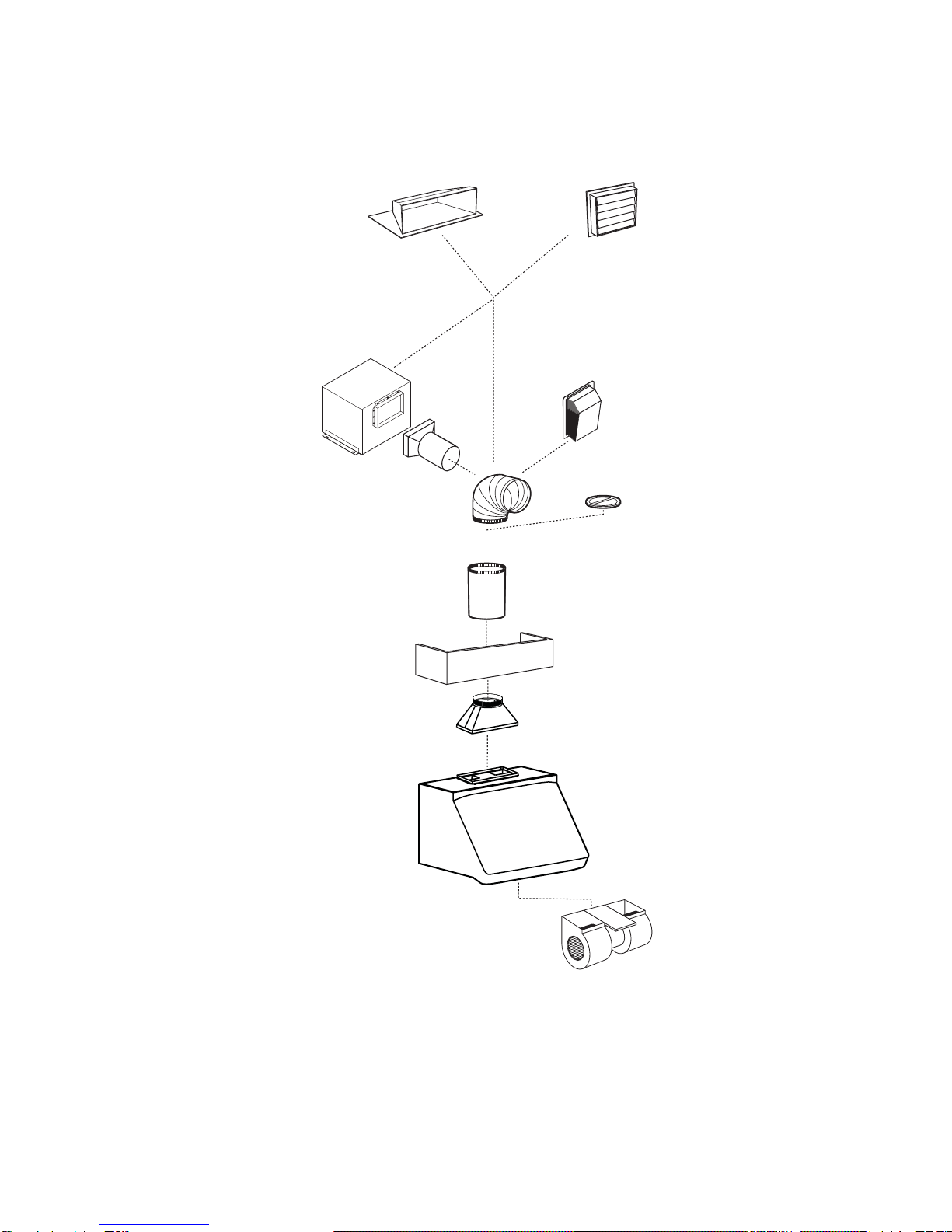

- WPD29M SERIES RANGE HOOD SYSTEM -
Model 410
(10” round duct—2 ft. sections)
MODEL P12D BLOWER
(1200 cfm interior blower,
sold separately.)
Model 418
(10” round adjustable elbow)
Model EB12 (1200 cfm)
or EB15 (1500 cfm)
exterior blower, sold
separately
Model 421
(10” Round vert.
in-line damper)
Recommended
for use with
exterior blowers
Model SV03428 transition
9” x 18” to 10” round
(Included with hood.)
Model ILB11 (1100 cfm)
in-line blower
(includes two 8” x 12” to
10’’ round transitions)
Model 437
(High capacity roof cap)
Model 441
(10” Round wall cap)
OPTIONAL
BACKSPLASH
