USER MANUAL
Version 1.0
2.0 Channels
2.0 34 34 Inches
Oval Model: SG01
BESTISAN
Best Artisan & Better Than Most
convenient
Soundbar
Digital Optical cable 3.5mm to 3.5mm audio cable Power adapter
Remote control
Insert 2pc of AAA batteries before use
User’s guide
Wall mount brackets
Mount screws Wall mount template

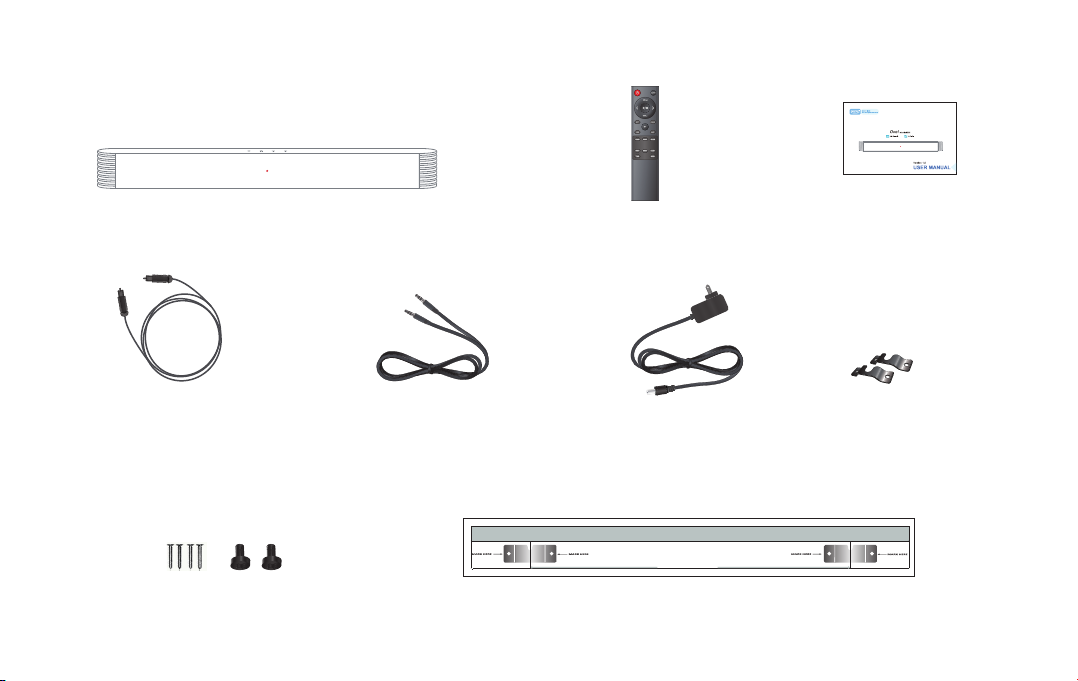

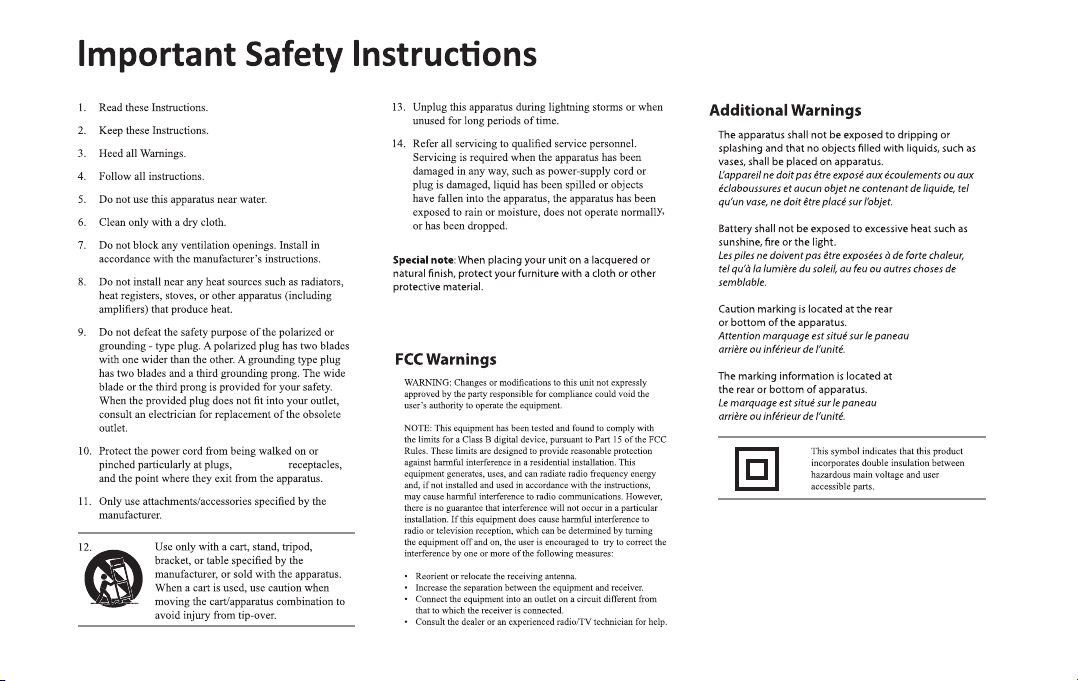

01 Checking the Components
Wall Mount Template
02 Product Overview
Front Panel / Top Side Panel of the Soundbar
Bluetooth Optical AUX Coaxial USB
Turn the power on or press and hold to power o.
Select the source input mode; Press and hold to reset treble and bass to factory settings.
Press to adjust volume up and down, the LED indicator flashes until the volume
to the MAX or MIN.
When you plug in the power cord, the buttons will begin working in 2 to 4 seconds.
If you want to enjoy sound only from the Soundbar, you must turn o the TV’s speakers in Audio Setup menu of your TV.
Refer to the owner’s manual supplied with your TV
LED indicator, display dierent color and current mode.
1
1
Bottom Panel of the Soundbar
OPTICAL Digital Audio In (optical), connect to the digital (optical) output of an external device.
COAX IN Connecting using a Coaxial cable.
SUB OUT Connect the included SUB OUT cable to the Subwoofer +/- (Red & Black) and Sound Bar.
AUX AUX(3.5mm), connect to the Analog output of an external device.
USB USB, connect a USB device here to play music files on the USB device through the Soundbar.
DC DC IN (Power Supply In), connect the AC/DC power adapter.
When disconnecting the power cable of the DC/AC power adapter from a wall outlet, pull the plug. Do not pull the cable.
Do not connect this unit or other components to an AC outlet until all connections between components are completed.
COAX IN SUB OUTAUX INUSBDC OPTICAL
03 Connecting Electrical Power
Make sure to Place the AC/DC adapter flat on a table or the floor. If you place the AC/DC adapter so that it is
hanging with the AC cord input facing upwards, water or other foreign substances could enter the adapter
and cause the adapter to malfunction.
COAX IN SUB OUTAUX INUSBDC OPTICAL
Using the power adapter to connect the unit to electrical outlet in the figure
Bottom Panel of the Soundbar
04 Connecting with a TV
Connecting using an Optical cable
White
color LED
Optical
1. Connect the DIGITAL AUDIO IN(OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV
with a digital optical cable.
2. Press the “OPT” button on the remote, and the LED indicator will be WHITE
3. Set the TV’s audio output to “PCM”. (More information on PCM page)
If TV sound is inaudible, press the “OPT” button on the remote or on the top side of the Soundbar to switch to “OPT”
mode. The LED will be White and TV sound is played.
Optical digital cable (supplied)
TV
OPTICAL OUT
COAX IN SUB OUTAUX INUSBDC OPTICAL
Bottom Panel of the Soundbar
When all cables are connected properly, and LED indicator lights properly(Optical connection),
if there is no sound from tv or Soundbar, please setting your tv as below:
1. Press "Menu" on the tv’s remote control.
2. Press the arrow keys on the remote to scroll to "Audio Settings."
3. Press "OK" on the remote control.
4.
Scroll to "Advanced Audio" and press "OK." Some televisions may not have an"Advanced Audio"
menu and may list various audio settings instead.
5. Scroll to "Audio Output Mode" or "Digital Audio Output Mode" and press "OK."
6. Scroll until "PCM" is displayed as the current audio output.
7. Press "OK" to save the settings.
Some brand TVs maybe dierent in Digital Audio Output Settings, please check your TV’s manual.
05 Setting “PCM” on your TV
subwoofer sold separately.
06 Connect an external speaker (subwoofer)
COAX IN SUB OUTAUX INUSBDC OPTICAL
Bottom Panel of the Soundbar
audio cable (excluded)
Back Panel of the Subwoofer Outlet
07 Connecting an External Device
Connect DIGITAL AUDIO (OPTICAL) on the Soundbar to the OPTICAL OUT jack of the Source Device
using a digital optical cable. Select “WHITE” led indicator by pressing the “OPT” button on the remote.

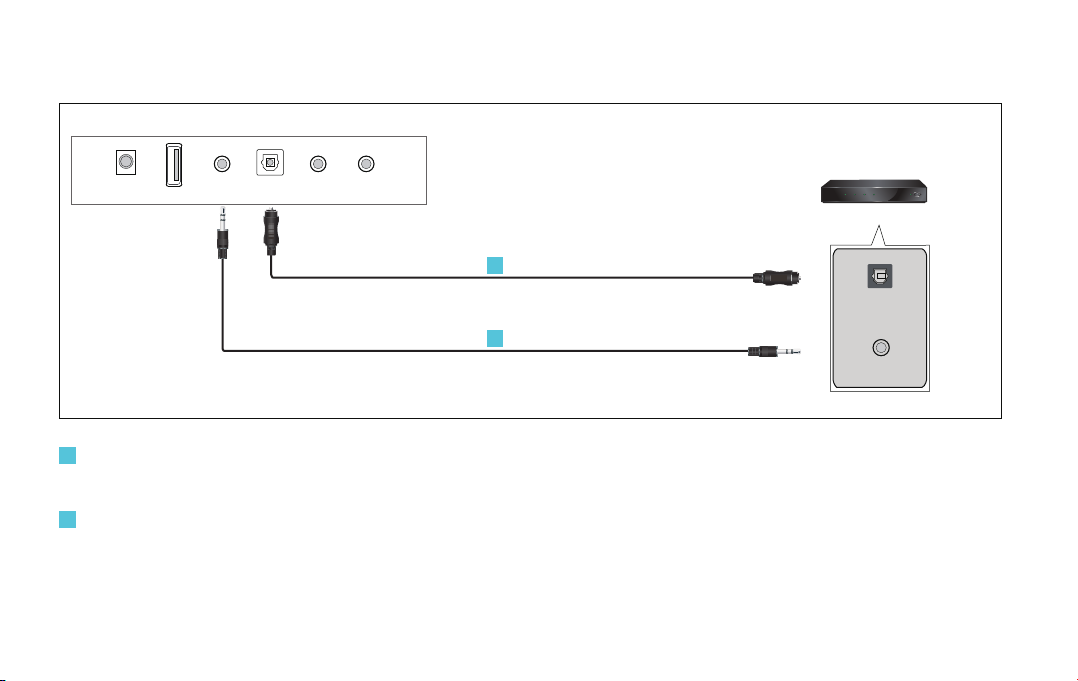

Connect AUX on the Soundbar to the “AUX” jack of the Source Device using an 3.5mm to 3.5mm audio
cable. Select “orange” led indicator by pressing the “AUX” button on the remote.
BD / DVD / Set-top box /
Game console
OPTICAL OUT
AUX
Optical digital cable
3.5mm to 3.5mm audio cable
1
2
1
2
Bottom Panel of the Soundbar
COAX IN SUB OUTAUX INUSBDC OPTICAL
