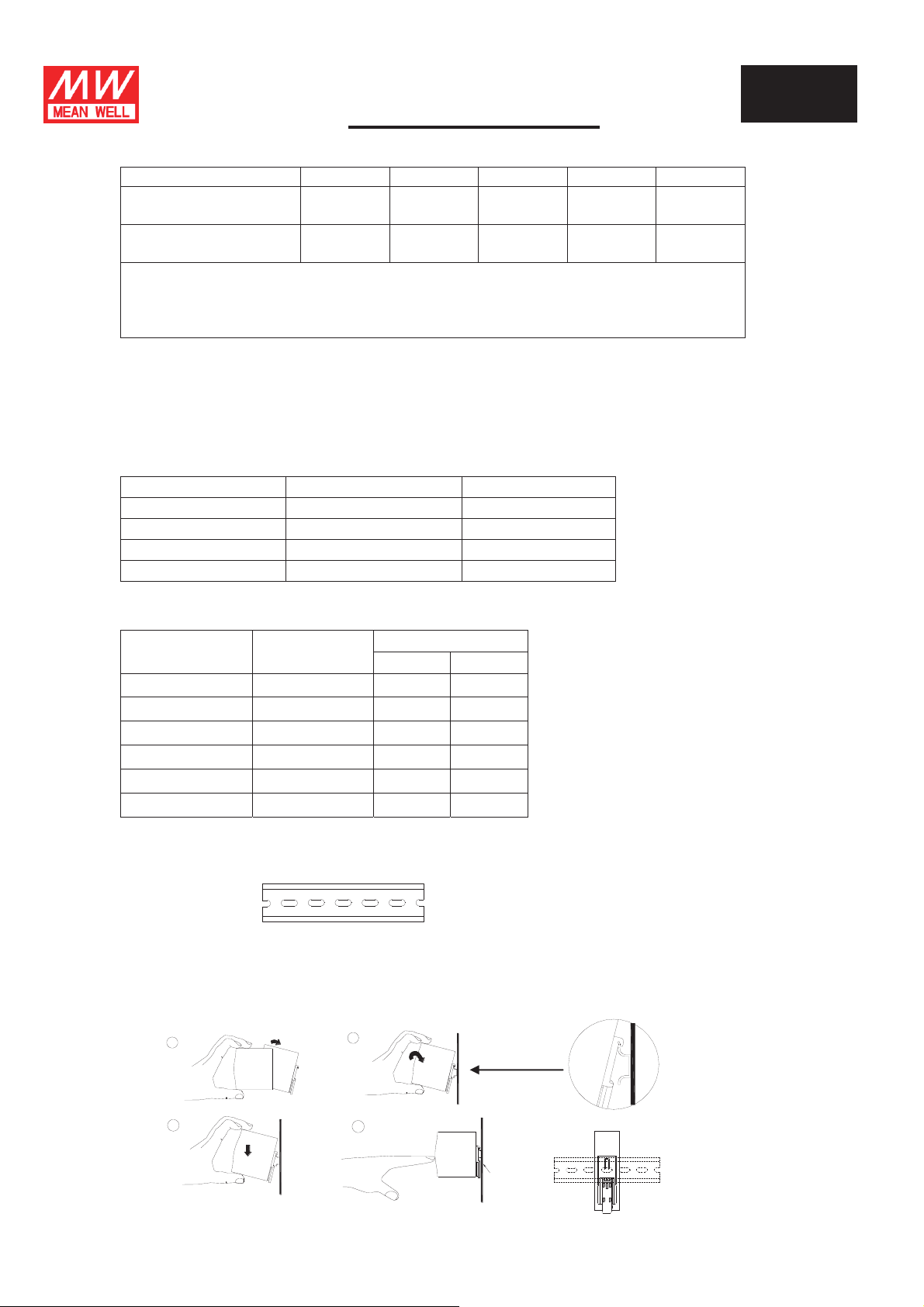

!!!!!!!!!!!!!!!!!!!!!!!!!!!Installation Manual

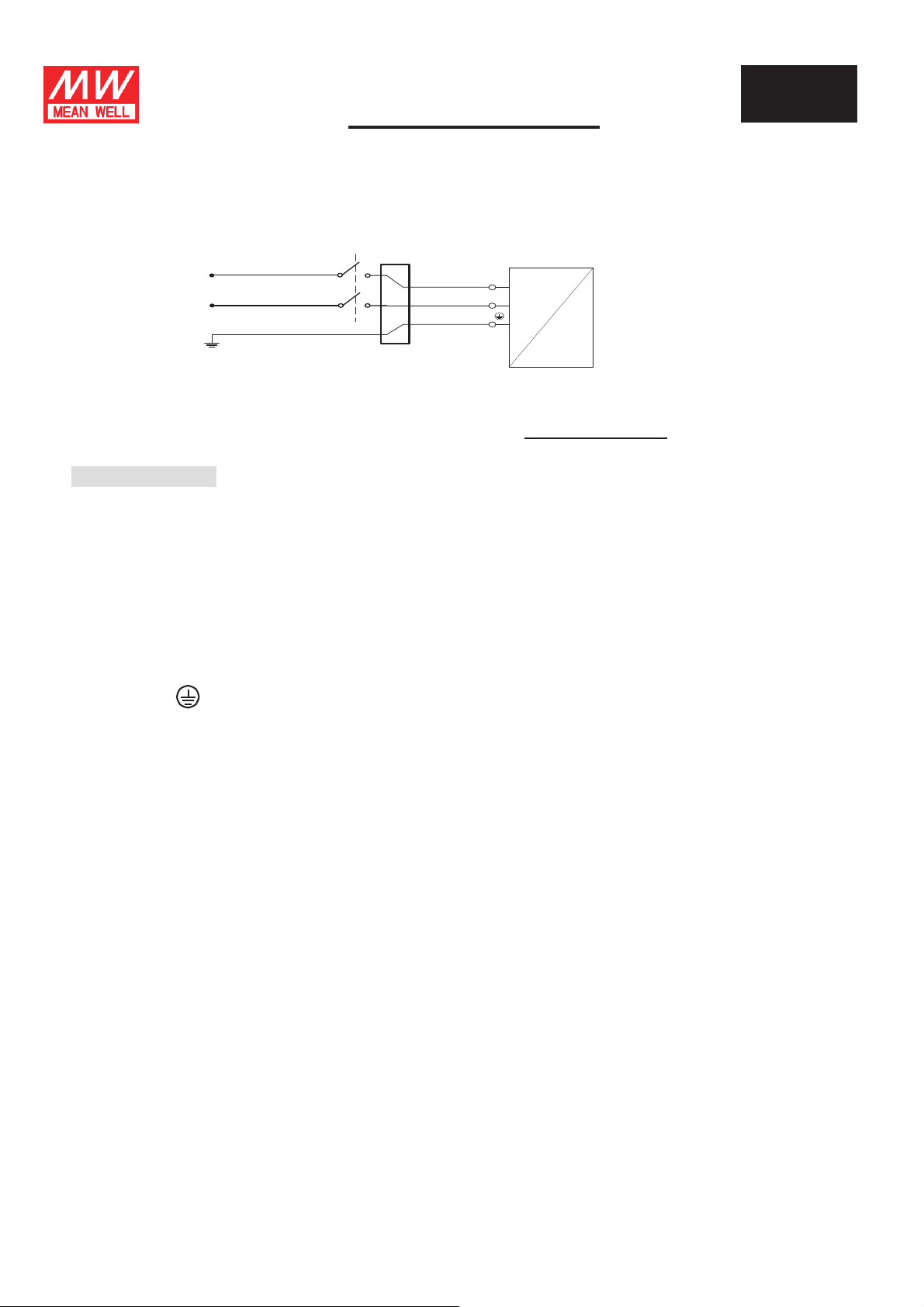

炷10炸For SDR-960, if it is necessary for your system to meet EN61204-3 Radiation class B. Then, attaching a ferrite
core clamp filter to the AC cable, as close as possible to the AC source, can fulfil the radiated emissions
requirements. The wiring is shown below. There are compatible models including ZCAT2235-1030A by TDK,
ZCAT12V-BK by TDK and KCF-130-B by KING CORE.
炷11炸For other information about the products, please refer to www.meanwell.com for details.
zWarning / Caution !!
炷1炸Risk of electrical shock and energy hazard. All failure should be examined by a qualified technician. Please do
not remove the case of the power supply by yourself!
炷2炸Risk of electric arcs and electric shock (danger to life). Connecting both the primary and the secondary sides
together is not allowed.
炷3炸Risk of burn hazard. Do not touch the unit in operation and shortly after disconnection!
炷4炸Risk of fire and short circuit. The openings should be protected from foreign objects or dripping liquids.
炷5炸Only install the unit in a pollution degree 2 environment (Note.1).
炷6炸Please do not install the unit in places with high moisture or near the water.
炷7炸The maximum operating temperature is 50°C for SDR-960 series and 60°C for SDR-75/120/240/480/480P
series, please do not install the unit in places with high ambient temperature or near fire source.
炷8炸The FG ( ) must be connected to PE (Protective Earth).
炷9炸Output current and output wattage must not exceed the rated value on its specification.
炷10炸SDR-960 is a class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
炷11炸Disconnect system from supply voltage:
Before commencing any installation, maintenance or modification work: Disconnect your system from
supply voltage. Make sure that inadvertent connection in circuit will be impossible!
炷12炸For continued protection against risk of fire, replace only with same type and rating of fuse.
Pour ne pas compromettre la protection contre les risqué d’incendie, remplacer par un fusible de même
type et de memes caractéristiques nominales.
Note.1: Pollution Degree 2 applies where there is only non-conductive pollution that might temporarily become
conductive due to occasional condensation. Generally refer to dry, well-ventilated locations, such as
control cabinets.
AC/N
AC/L
FG
AC
DC
CB
LIVE
NEUTRAL
PE
Clamp Filter
