BETCO Pourman 25 Manuale utente

Pourman



25 Gallon Solution Applicator

Operators Manual

Parts Schematic

Item #83008-00

General Safety Information

When using this product, basic precautions should always be followed, read all

instructions before using.

! WARNING! To reduce risk of injury:

xDo not allow to be used as a toy. Close attention is necessary when used

by or near children.

xUse only as described in this manual. Use only manufacturer’s

recommended attachments.

xWear proper anti-slip shoes when operating this machine.

xAlways use safety gloves and glasses when mixing chemicals.

xDo not use with if damaged. If machine is not working as it should return it

to a service center for inspection.

xDo not put any foreign object into openings. Do not use with any opening

blocked; keep free of dust, lint, hair, & anything that may reduce flow.

xTurn off valve for storage.

xDo not use in or around flammable or combustible liquids such as gasoline

or use in areas where they may be present.

Preparation and Operation

Attach front mount solution bracket to base of machine.

Attach stainless steel solution spreader bar to front mount bracket. Make sure

spreader broom is positioned on front of machine.Tighten plastic knobs hand

tight only.

Insert plastic solution hose coupler into plastic solution spreader bar in side

stainless steel solution spreader.

Be sure solution valve is in the off position.

Fill tank with water and appropriate chemical for job.

You are now ready to begin your cleaning task.

Open solution valve to appropriate flow rate.

Pull the machine backwards at a pace that allows solution to spread evenly.

After Use

Drain all left over solution from tank.

Rinse tank with water.

Remove stainless steel solution spreader and rinse with water..

Wipe the entire machine with a clean, damp cloth.

Inspect the machine & all accessories for damage. Perform any required

maintenance or repairs before storage.

Store the machine in a clean, dry place.

















Pourman Solution Applicator

View# Betco SKU Cross Ref. Tanks and Casters Parts

1 NA NA Tank Hole Plate

2 8203400 90021 20 GalMounting Bolt/Front Caster

3 8203500 60123 20 Gal Front Caster

4 8203300 60122 20 Gal Tank

5 8203100 58036 20 Gal Rear Wheel Axle Cap

6 8203000 940042 20 Gal Rear Wheel Hub Cap

7 8330600 940041 20 Gal Rear Wheels

8 8202900 75015/8 20 Gal Axle

NA 8330700 60150 20 Gal Large Tip/Pour Drain Cap

NA 8202700 PL061 Plastic Tank Clamps

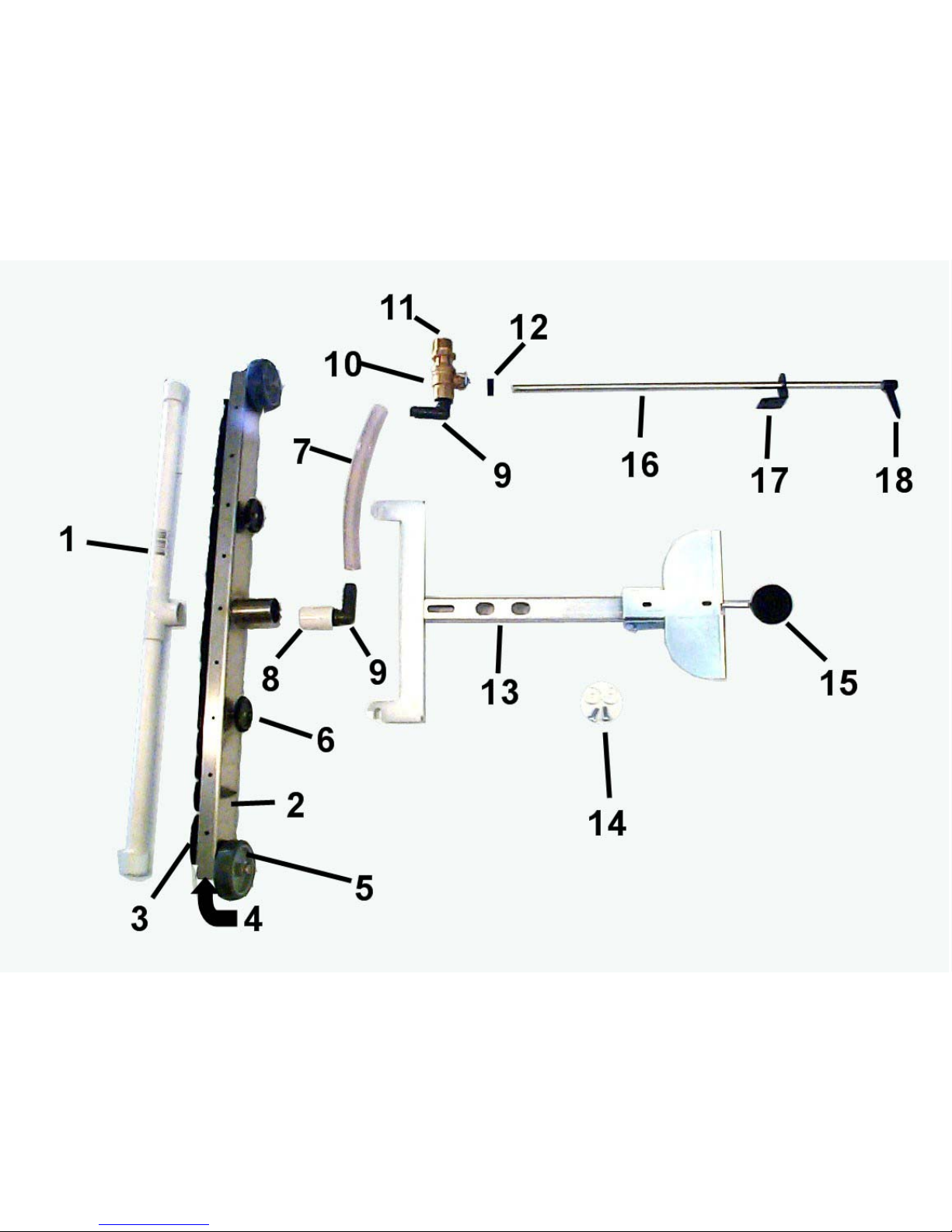

View# Betco SKU Cross Ref. Front Mount Solution Bar

1 4007 Spreader Bar

2 41.004 Stainless Steel Front Mount Channel

3 41.015 Solution Spreader Broom

4 225-L Spreader Bar Clips

5 41.016 Wheel

6 94.0049 Knob

7 6053 Solution Hose

8 D-2466 PVC Fitting

9 D-2609 PVC Elbow

10 PN-40 Ball Valve Brass

11 PN-41 Brass Adapter

12 CLI5015 1/2 Split Collar

13 41.002 Lift Bracket

14 41.001 Mounting Hardware

15 41.006 Rubber Pad

16 DK--1233 Valve Rod

17 DK-1234 Rod Guide

18 DK-1235 Rod Handle

Betco Corporation 1001 Brown Avenue Toledo, Ohio 43607-0127 1-800-777-9343 www.betco.com
