BETTENERGY ELESHELL-6.1 Manuale utente

User Manual ELESHELL

User Manual

Model:

ELESHELL-6.1/9.6/10.2/14.3K

ELESHELL User Manual

Contents

1 General Information............................................................................................................................. 4

1.1 Validity.................................................................................................................................. 3

1.2 Intended Use.......................................................................................................................... 3

1.3 Product Identification.............................................................................................................4

2 Safety Measures.................................................................................................................................. 6

3 Technical Data......................................................................................................................................7

4 Technical Items.................................................................................................................................. 10

5 Product Overview....................................................................................................................... 11

5.1 Product Introduction......................................................................................................... 11

5.2 Interface Introduction........................................................................................................11

5.2.1 "Start" Button..........................................................................................................12

5.2.2......................................................................................................................................12

5.2.3 COM1 port.............................................................................................................. 13

5.2.4 COM2 port................................................................................................................. 14

6 Installation Guide..................................................................................................................... 14

6.1 Inspection before Installation.......................................................................................... 14

6.1.1 Checking Outer Packing.......................................................................................15

6.1.2 Checking Accessories...........................................................................................15

6.2 Tools................................................................................................................................... 18

6.3 Installation Requirements................................................................................................ 19

6.3.1 Installation environment requirements................................................................19

6.3.2 Installation bracket requirements........................................................................ 18

6.4 Installation Instructions.....................................................................................................19

6.4.1 Overall Dimensions............................................................................................... 19

6.5 Cable Connect..................................................................................................................... 22

7 Cleaning & Maintenance..................................................................................................26

7.1 Cleaning................................................................................................................................ 26

7.2 Maintenance.........................................................................................................................26

7.2.1 Recharging requirements during normal storage................................................ 26

7.2.2 Recharging requirements for over discharged.................................................. 27

8 Common Issues & Solutions..................................................................................................28

8.1 Common Issues & Solutions........................................................................................... 28

8.2 Emergency.........................................................................................................................30

8.3 About Battery System......................................................................................................... 30

ELESHELL User Manual

1 General Information

1.1 Validity

This user manual is applicable to ELESHELL6.1/9.6/10.2/14.3K

This manual contains ELESHELL6.1/9.6/10.2/14.3K information, usage, guidance,

safety information, installation guide and details on common operation issues

and subsequent maintenance measures.

1.2 Intended Use

ELESHELL6.1/9.6/10.2/14.3K is an energy storage unit，that is designed

for residential application scenarios with the capability of short-term backup.

Notes:

ELESHELL6.1/9.6/10.2/14.3K is not suitable for supporting life-sustaining

medical devices. This product is intended for used only in accordance with

the information provided in the enclosed documents and applicable local

standards and regulations. Any other use may result in personal injury or

property damage. The illustrations in this manual are only intended to help

explain the concept of the system configuration, including use guidelines,

safety precautions, common operating problems, and subsequent battery

maintenance.

This manual introduces the ELESHELL6.1/9.6/10.2/14.3K battery products.

Please read this manual carefully before using the battery. For any questions,

please contact BSD immediately for advice and clarification.

Alterations to the product, e.g. changes or modifications, are only

permitted with the express written permission of BSD. Unauthorized changes

will not be allowed by warranty claims. BSD shall not be liable for any

damage resulting from such changes. Any use of the product other than

described in the intended use section does not qualify as appropriate. The

enclosed documentation is an integral part of this product. Please keep the

documentation in a safe and convenient place for future reference.

ELESHELL User Manual

Product model labels (see Section 1.3) must be attached to the product.

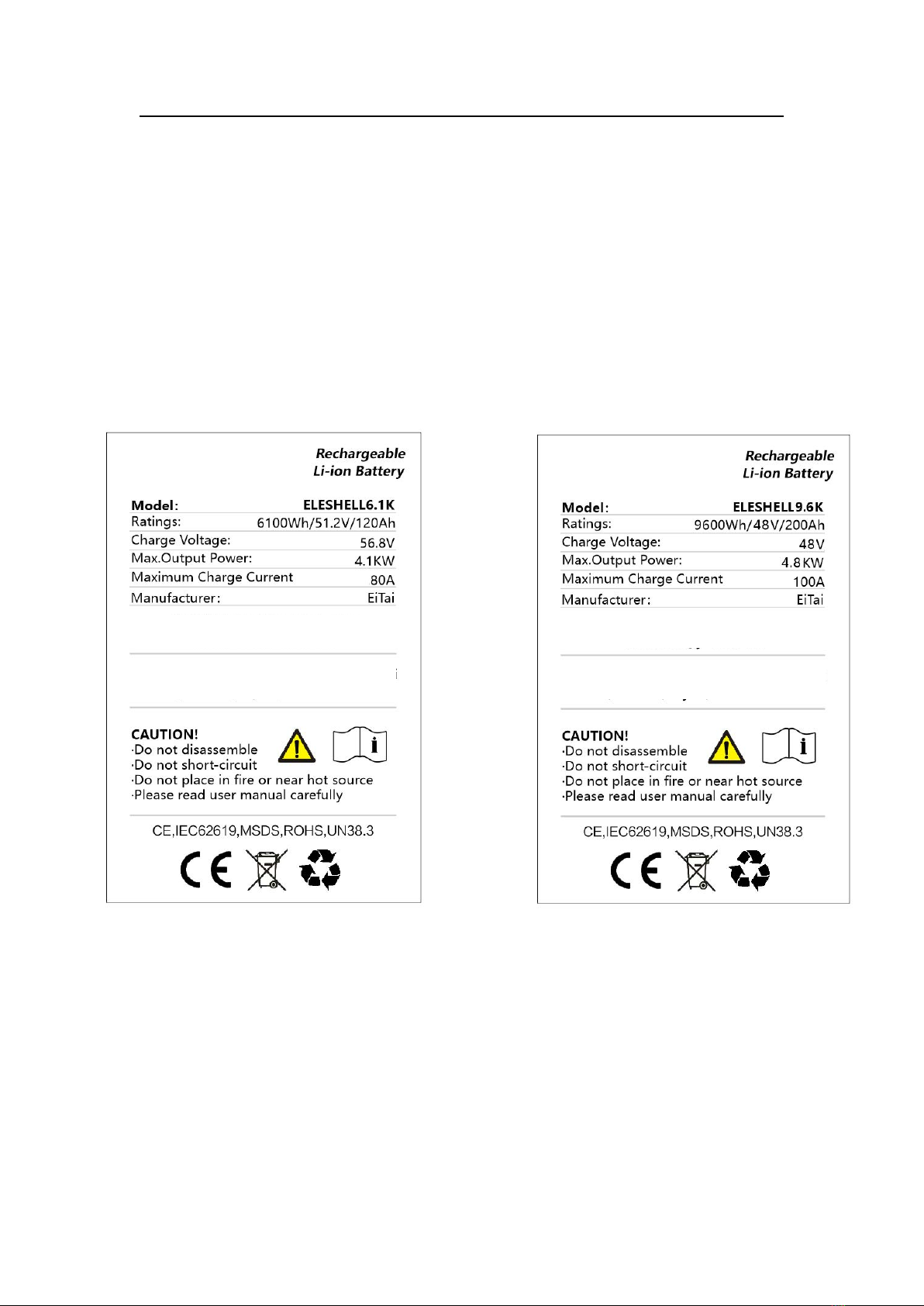

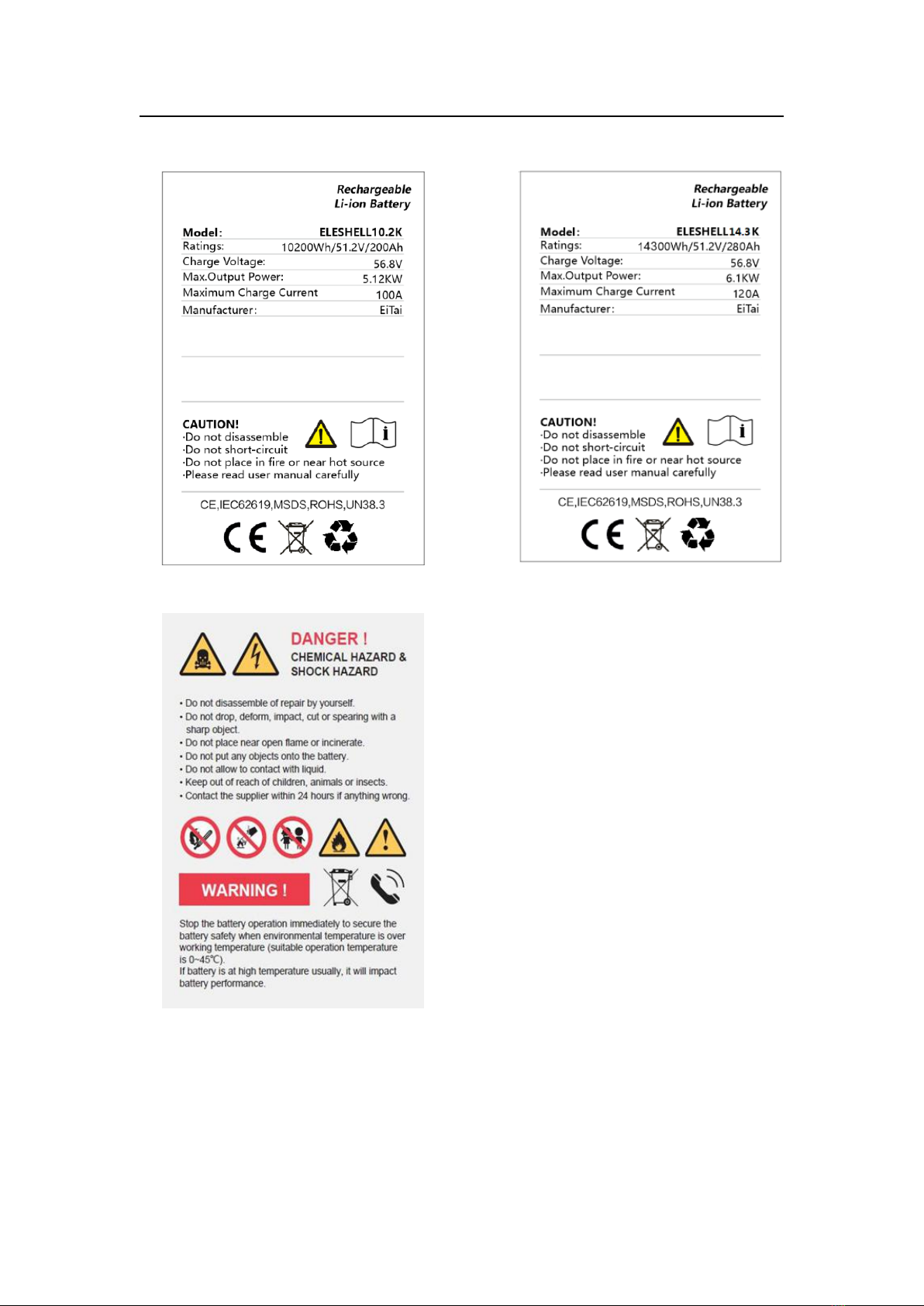

1.3 Product Identification

The type labels were attached on the product, which contain the product

identification information. For safe usage, the user must be well-informed of

the contents in the type labels.

The Labels include:

ELESHELL User Manual

2 Safety Measures

This section contains safety information that must always be observed when

using or installing batteries. To prevent personal injury or property damage and

ensure long-term operation of the batteries, please read this section carefully,

always Watch for warnings from all safety messages.

Environmental requirements:

1. Do not expose the battery to temperature above 50 °C;

2. Do not place the battery near any heat source;

3. Do not expose the battery to moisture or liquid；

4. Do not expose the battery to a corrosive gas or liquid；

5. Do not expose the battery to a combustible gas or liquid；

6. Do not expose the battery to direct sunlight for extended periods of time；

7. Battery power terminals are not allowed to contact conductive objects, such

as electric wires；

8. Place the battery in safe place that away from children and animals；

Operation Precautions:

1. Do not disassemble the battery；

2. Do not touch the battery pack with wet hands；

3. Do not smash, fall, or puncture the battery；

4. Do not reverse the polar series connection battery；

5. Do not short-circuit the terminal, and remove all metal jewelry items that

may produce a short-circuit before installation and repair；

6. Always handle the products in accordance with the local safety regulations；

7. Store and use the battery in the user's manual；

ELESHELL User Manual

8. Ensure reliable grounding；

9. Disconnecting all batteries to the wires before installation and repair；

10. Do not stack batteries outside the protective packaging during storage or

handling；

11. The stacking of packaging batteries shall not exceed the quantity specified

on the packaging；

12. Continued operation of a damaged battery may lead to dangerous situations,

causing serious injuries such as electric shock or combustion；

3 Technical parameters

Basic Parameters Technical Specification

Model ELESHELL

6.1 K

ELESHELL

9.6K

ELESHELL

10.2K

ELESHELL

14.3K

Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4

Nominal Capacity (Ah) 120A.h 200A.h 200A.h 280 A.h

Nominal Voltage (V) 51.2V 48V 51.2V 51.2V

Total Energy 6100W.h 9600W.h 10240W.h 14336W.h

Depth of Discharge

（90%DOD）5490W.h 8640W.h 9216W.h 12902 W.h

Maximum Charging

Voltage (V) 56.8V

53.25V

56.8V 56.8V

End of Voltage (V) 49V

45.94V

49V 49V

Nominal charging

current (A)

80A

100A 100A 120A

Maximum Charging

Current (A)

80A

100A 100A 120A

Maximum

Charging Power

(W)

3072W 4800W 5120W 7168W

Working Humidity ≤95%rh

Store Humidity ≤95%rh

Working Altitude ≤2000m

Maximum number of

Parallel 16 pcs

Protection Level IP65

Net Weight (Kg) 60KG

78KG

80KG 120KG

Dimensions (mm) 422*867.5*118 509*871.7*133 509*871.7*133 412*750*235

Product Certificate CE,ROHS ,UN38.3,MSDS,

Circle Life ≥6000 Times，80%DOD /25℃/0.5C，60%EOL

Communication Port CAN，RS485，RS232

Operating temperature -10℃ ~ 55℃

Storage temperature

≤25℃，12 months；

≤35℃，6 months；

≤45℃，3months

Note: Operating current derating according to the cell voltage and temperature.

ELESHELL User Manual

4 Technical Items

No. Name Comment

1 Discharge Battery output power for load

2 Charge Put the electricity into the battery through the charger

3 Full Charge The battery is fully charged with 100% SOC.

4 Standby Ready for charging or discharging

5 Turn-off Turn-off battery output

6 SOC State of Charging (Useable Capacity)

7 Battery voltage Voltage between the battery B+ /B -

8 Single-string Voltage Single-cell voltage

9 Alarm Indicates that the battery is in an abnormal state

10 Protection Battery stops charging or discharging

11 Fault Battery or BMS is damaged and need to be replaced

12 Over discharged Battery is lack of electricity, and need to be

charged in time

ELESHELL User Manual

Product Overview

5.1 Brief Introduction.

ELESHELL6.1K/9.6K/10.2K/14.3K is a lithium battery energy storage system with an

operating voltage range of between 49V~56.8V, it is used for household energy storage

applications, in cooperation with low voltage inverters to achieve home energy storage purpose.

ELESHELL6.1K/9.6K/10.2K/14.3K has a built-in B M S (Battery Management System)

which can manage and monitor cells information, including voltage, current and the

temperature. In addition, the BMS can balances battery charging to extend lifespan. BMS has

the protections including over-discharge, overcharge, over-current, high / low temperature, etc.

The system can automatically manage the charging status, discharge state, balance state. Multiple

batteries can be connected in parallel to expand storage capacity to meet larger capacity and

continuous power support time,ELESHELL6.1K/9.6K/10.2K/14.3K support up to 16 parallel

operations.

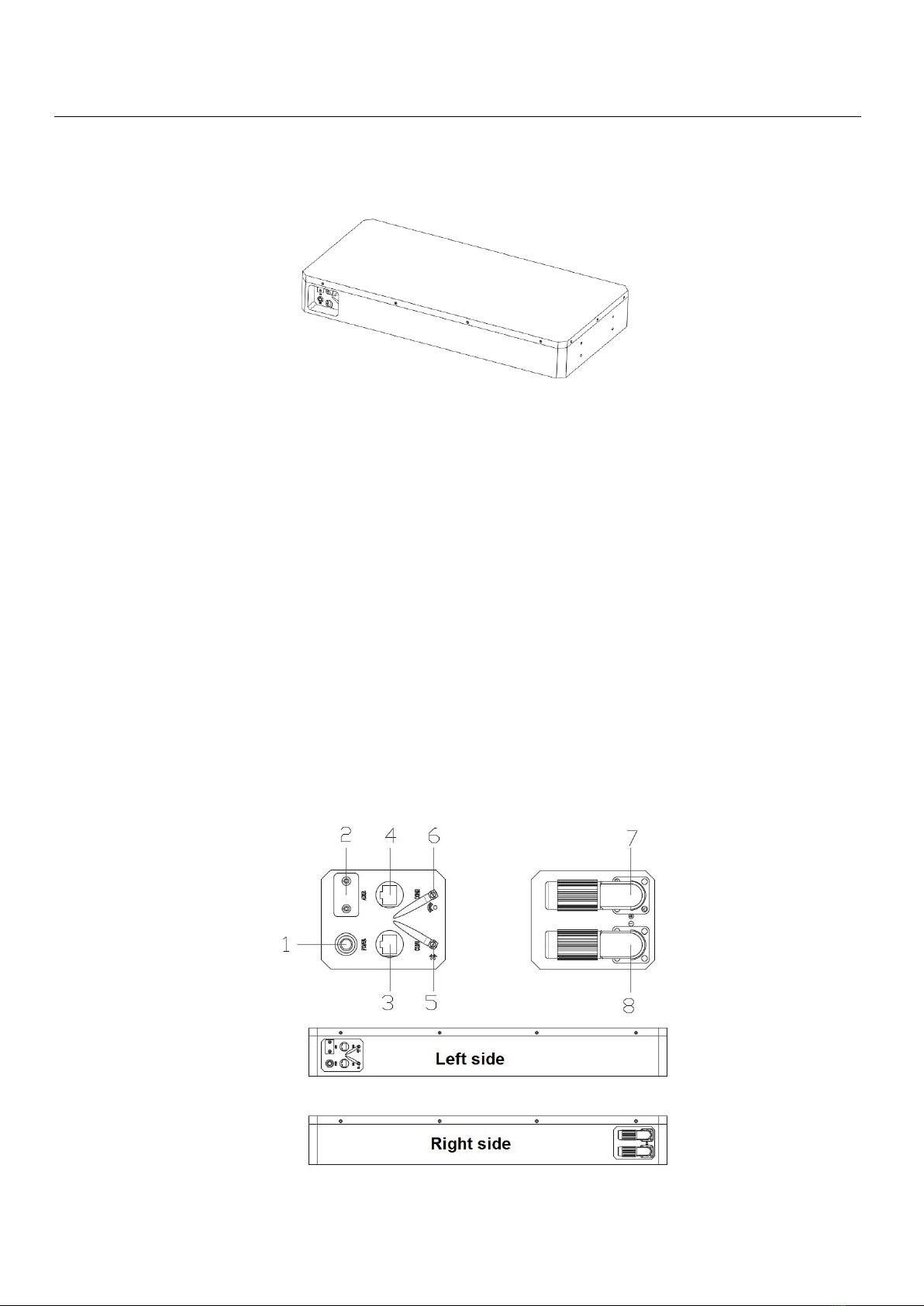

5.2 Interface Introduction
