Better Bathrooms Dune Manuale utente
BeBa_26286 to BeBa_26291 and BeBa_26293
Dune Towel Radiator
Please note: Image is for illustrative purposes only and may differ slightly to the
actual product
•Multi-person assembly
•Tools required
•We always recommend using professional
tradespeople to install your product V1_10.11.20
2
Congratulations on your purchase
And welcome to our growing gang of savvy shoppers
We're on a mission to bring you extraordinary bathroom products, for less. From modern
to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So,
you can fall in love with your space every single day.
As one of the UK's largest independent bathroom stores, we've received countless
awards; including the National Business Awards UK, the Digital Entrepreneur Awards and
being placed on The Sunday Times Fast Track 100.
We hope your new product exceeds your highest expectations. However, if you
experience any problems, please:
•call our friendly UK call centre on 0330 390 3062 (9am-7pm Monday to Friday, or
10am-4pm Saturday and Sunday), or
•send us a message via [email protected]
Important information
•Please read these instructions thoroughly and retain for future reference
•Manufactured to BS EN 442-1 Radiators and convectors
•Please ensure that the product is checked for damage prior to installation, any
damage reported after installation will not be covered.
•The pipework must be flushed out to remove any debris which can affect the
function of this product.
•A corrosion inhibitor should be used in your installation.
BTU & Wattage info-
Product Code
BTU
Wattage
BeBa_26286
735
215
BeBa_26287
1002
294
BeBa_26288
1220
358
BeBa_26289
1002
294
BeBa_26290
1960
574
BeBa_26291
1269
372
BeBa_26293
2476
726
3

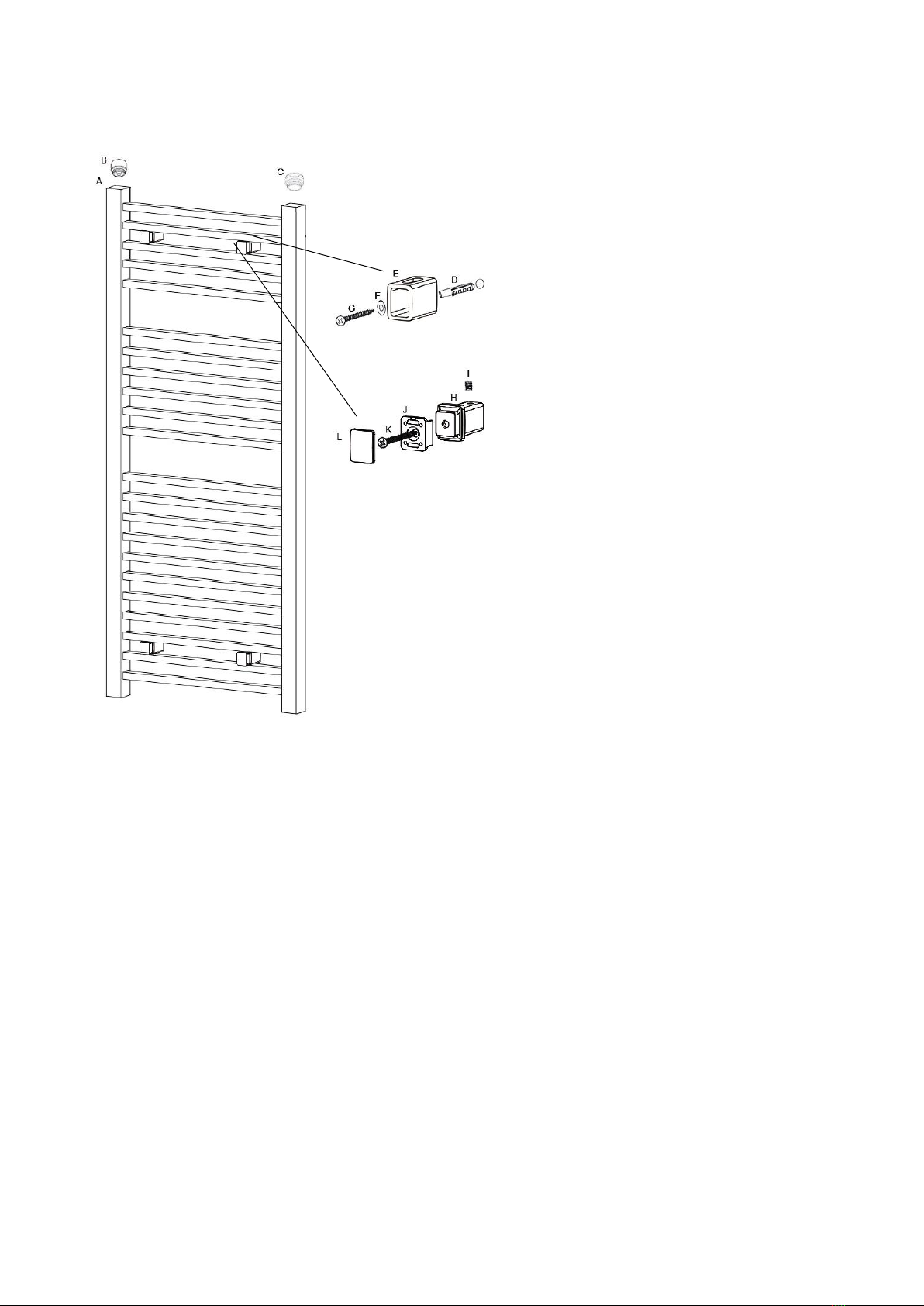

Parts
A. 1 x Radiator
B. 1 x Air Vent
C. 1 x Blanking cap
D. 4 x Wall plug
E. 4 x Wall Bracket
F. 4 x Washer
G. 4 x Wall screw
H. 4 x Adjustable Bracket
I. 4 x Grub Screw
J. 4 x Bracket Cover
K. 4 x Bracket Cover Screw
L. 4 x Cover Cap
Please note that Parts are for illustrative purposes only and may differ slightly to
the actual product
Tools required
Spanner
Allen key
Flathead screwdriver
Philips screwdriver
Tape measure
Drill and 8mm drill bit
Spirit Level
Pencil
Sealing tape
4
Installation
Please note: Before starting any installation, turn off the water supply.
Please note: Before commencing any installation, the desired location should be checked
before drilling, that no pipes or wires can be damaged.
First, prepare the water supply pipes to match up with the towel radiator and valve
dimensions being used. Fit the radiator valve tail and nut into the towel rail (at both sides)
and using sealing tape, tighten into position, then follow the installation below.

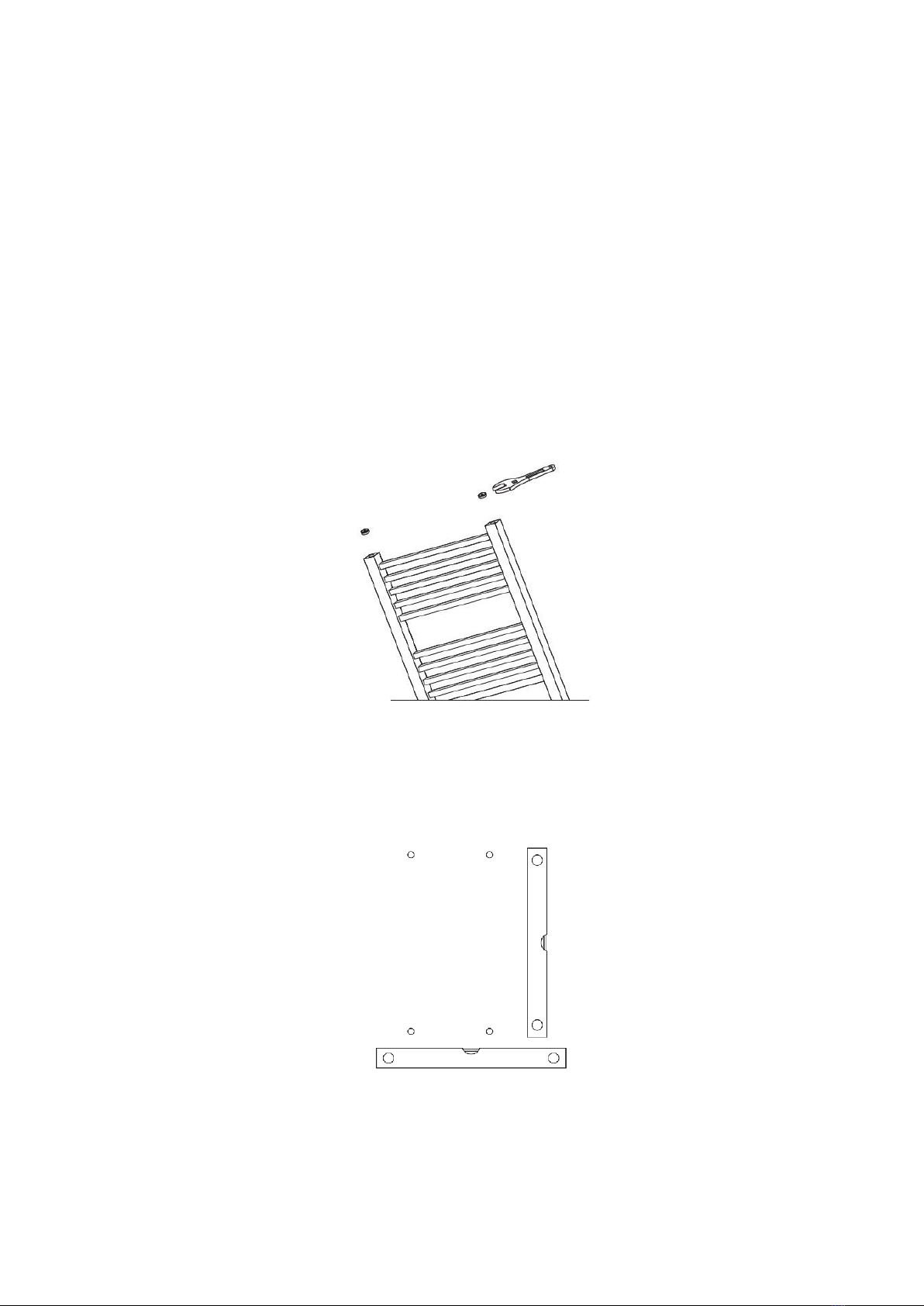

1. Insert the blanking cap and air vent in the top of the rail, (add a little sealer tape to
secure) and tighten using the spanner, be sure not to overtighten.
2. Mark the position of the wall brackets (on the wall) approximately 5cm in from the
inner edge of the towel radiator vertical bar. Use a spirit level to ensure that these
are aligned.
5

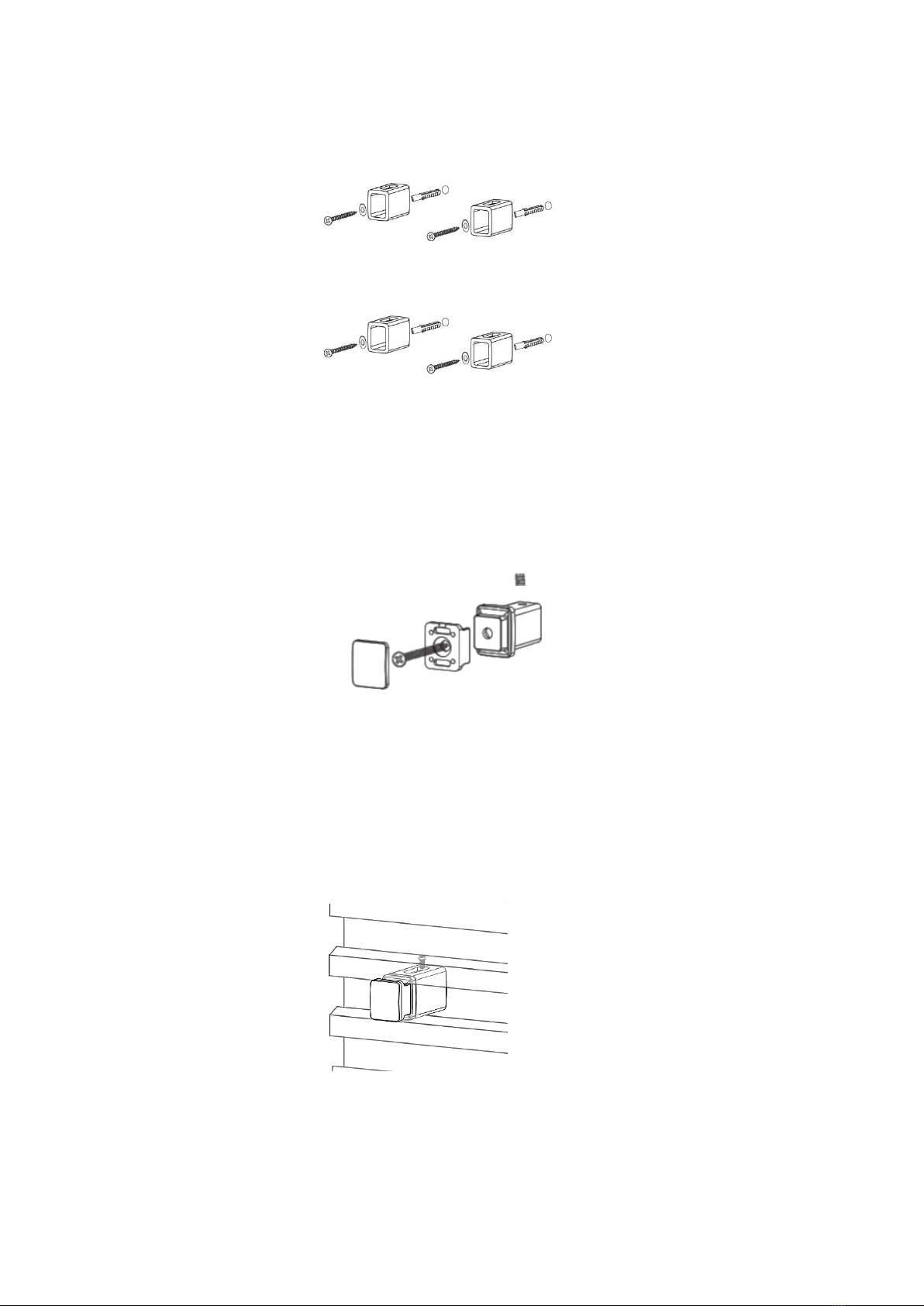

3. Using the drill and 8mm drill bit, drill into the marked positions then insert the wall
plugs and tap flush to the finished wall surface. Next, position the wall brackets and
screw into place using the screws provided (securing each with a washer) with the
Philips screwdriver.
Please note: If drilling into a tile, it is recommended to tape the wall to prevent the drill
from slipping.
4. Insert the adjustable bracket into the wall bracket. Once all brackets are secure,
hang the radiator until fixed firmly into place and adjust so that the rail aligns with
the pipework. Secure each with a grub screw using the Allen key.
Please note: You may need two people to hang the radiator, depending on the model
purchased.
5. Position the bracket cover in front of the towel rail bar and secure into place using
the screws provided with the Philips screwdriver. Finish each bracket by clipping on
the cover caps.
6
6. Finally, fit the radiator valves to the pipework and connect to the radiator valve tail
and tighten all connections.
IMPORTANT! The product is supplied un-filled.
The rail should be filled with a water (80%) and glycol (20%) mixture if NOT being
connected to the central heating system, also allow 5% air gap.
After installation
•After the above installation, turn on the water supply and using the flathead
screwdriver, open the air vent via the central screw, open the inlet valve and let the
water rush into the radiator. Check all connections for leaks.
•Once water overflows from the air vent, this means that there will be no air bubbles
present.
•Use a screwdriver to close the air vent and then the radiator is ready to use.
Cleaning
This radiator is made from steel with a painted finish. To maintain the surface of your
product, wipe with a clean damp cloth and wipe dry.
Do not use abrasive cleaning agents or materials which can strip and scratch the surface;
the use of these agents or materials can invalidate your guarantee.
It is recommended to wipe and dry on a regular basis.
