Better Music Builder VM-92U Manuale utente

Professional UHF Wireless Microphone System

VM-92U

Operating Instructions

Passionate about Music

www.BetterMusicBuilder.com

Thank you for purchasing this unit. To

make full and effective use of this unit,

please read this Owner's Manual

carefully before operating it. Please

retain this manual for future reference.

KARAOKE

POWER

AF RF

CH01:752.20 mh

RE CE IV ER - B L CD

64 SELECTABLE WIRELESS SYSTEM

AF RF

CH01:763.20 mh

DOW N

VOLUME

MIN MAX

DOW N

VOLUME

MIN MAX

Better Music Builder

UHF DUAL CHANNEL RECEIVER VM-92U

RE CE IV ER - B L CDRE CE IV ER - A L CD

UHF

UHF MIC WIRELESS SYSTEM VM-92U

Better Music Builder

8 13.10

CH MHZ

32 CHANNEL SELECTABLE

UHF

Frequency

Selectable

CONTENTS

INTRODUCTION...............................................................................2

RECEIVER SPECIFICATION..................................................................3

THE SYSTEM INCLUDES THE FOLLOWING PARTS................................. 4

SETTING UP YOUR RECEIVER..............................................................4

RECEIVER LCD PANEL DESCRIPTION.................................................... 5

HOW TO SELECT FREQUENCIES?...................................................... 5

HOW TO ADJUST RECEIVER SETTINGS................................................6

HOW TO CONNECT AUDIO OUT.....................................................7

DC-POWER CONNECTION...............................................................8

HANDHELD TRANSMITTER DESCRIPTION............................................. 9

HAND-HELD TRANSMITTER LCD PANEL DESCRIPTION..........................10

HOW TO INSERT HAND-HELD TRANSMITTER’S BATTERIES................... 11

HOW TO SET UP HAND-HELD TRANSMITTER..................................... 12

TECHNICAL SPECIFICATION............................................................ 13

VM-92U FCC FREQUENCY 750 MHz and 800 MHz............... 14

FREQUENCY SCAN GROUPS FOR BAND C & BAND D.......................15

US UHF WIRELESS OPERATING FREQUENCIES............................. 16~17

TROUBLESHOOTING...................................................................... 18

WARRANTY & PRECAUTION............................................................ 19

INTRODUCTION

Professional UHF Wireless Microphone is the third generation of UHF wireless

microphone designed by the engineering team of Better Music Builder.

Better Music Builder VM-92U wireless microphone is a design for high value

with one receiver and two hand-held microphones whose cone was made of

aluminum. Each microphone has 32 built-in UHF frequencies for selection. The

receiver has a LCD screen in the panel, so you can look up the detailed

information from it. The audio out has a XLR balanced for each channel and also

has unbalanced mixed channels out.

SYSTEM CHARACTERISTICS

1. Equipped with the latest wireless technology and UHF dual-channel with one

receiver to picks up weak signals and prevents signal interference.

2. Clear LCD screen that can allow you to check AF (Audio Frequency) and RF

(Radio Frequency) signal levels.

3. One receiver has two built-in units (Receiver A and Receiver B).

4. Easy to select channels with pre-set frequencies.

5. Each microphone has 32 channels. There are a total of 64 frequencies in

two microphones.

6. Easy and convenient mounting for portable rack.

7. Adjustable antennas for different angles to receive better signals.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Taking apart or modifying the

receiver may lead to electric shock,

fire, or damage to the receiver and

will void your warranty.

DC-POWER

DC 14~16V 600mA

UNBALANCED

Receiver A & B

MIXED OUTPUT

36120071023-92

ANTENNA-B ANTENNA-A

Model No. VM-92U (UHF Microphone)

CALIFORNIA, UNITED STATES OF AMERICA

COMMENTS? E-MAIL: [email protected]

www.BetterMusicBuilder.com

ENGINEERED AND DESIGN IN U.S.A.

FCC: 74.861

SERIAL NO.

Better Music Builder

Channel B Channel A

UHF

POWER

Better Music Builder

64 SELECTABLE WIRELESS SYSTEM

DOW N

AF RF

CH01:763.20 mhz

DUAL CHANNEL RECEIVER VM-92U

DOW N

AF RF

CH01:752.20 mhz

RECEIVER - A LCD VOLUME

MIN MAX

RECEIVER - B LCD VOLUME

MIN MAXMIN MAX

21 43

13121110 14 15

5 6 87 9

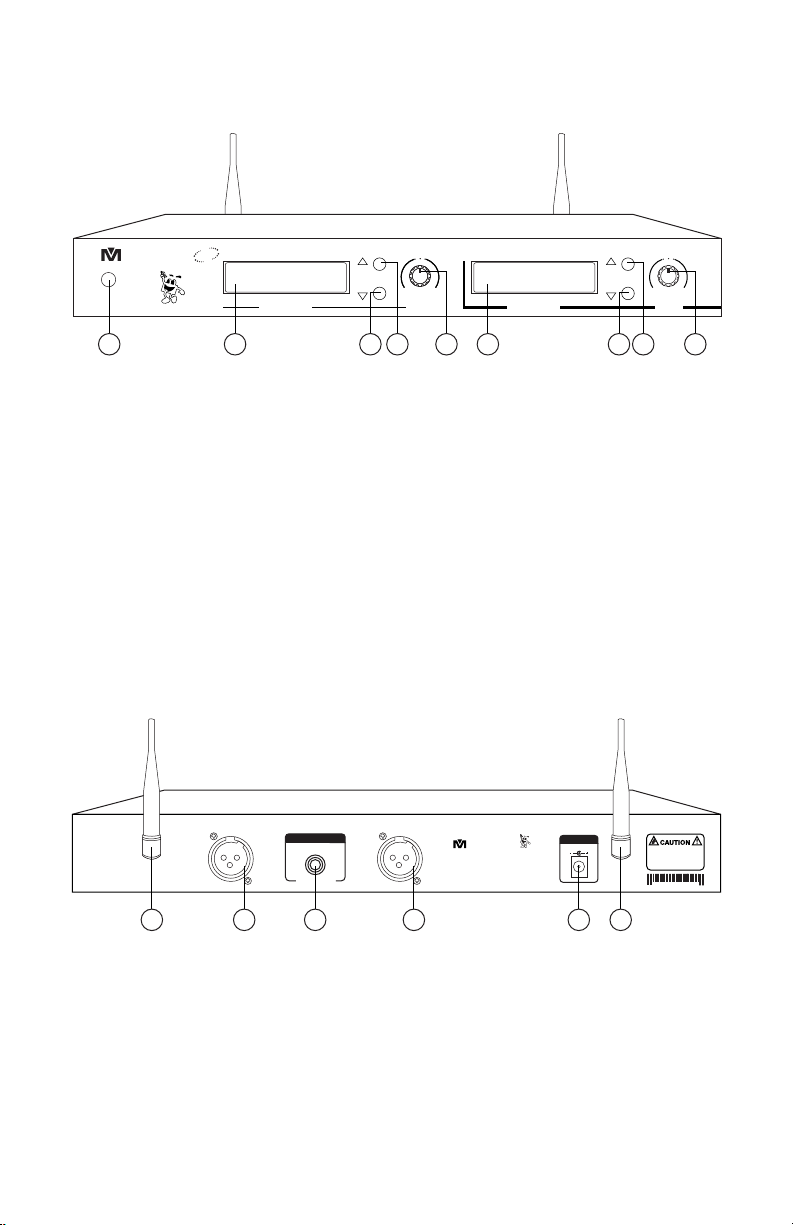

RECEIVER SPECIFICATION

A. NAMES & FUNCTION:

Front Panel:

1. Power button On/Off.

2. Receiver A LCD screen: Channel A with 32 Built-In Channels with

different UHF frequencies.

3. “

▼

” DOWN button selects different frequency & model settings (Receiver A)

4. “

▲

” UP button selects different frequency & model settings (Receiver A)

5. Volume control (Receiver A)

6. Receiver B LCD screen: Channel A with 32 Built-In Channels with

different UHF frequencies.

7. “

▼

” DOWN button selects different frequency & model settings (Receiver B)

8. “

▲

” UP button selects different frequency & model settings (Receiver B)

9. Volume control (Receiver B)

Rear Panel:

10. Receiver Antenna Input-B. (Receiver B) BNC Socket.

11. Channel B XLR 3M socket balanced audio output 50Hz~15kHz +/-3dB.

12. Receiver A & B 1/4-inch (6.3 mm) jack socket unbalanced audio output,

mixed channel A & B.

13. Channel A XLR balanced audio output 50Hz~15kHz +/-3dB.

14. Power supply dock with removable IEC cable 14~16V 600mA.

15. Receiver Antenna Input-A. (Receiver A) BNC Socket.

ANTENNA-B

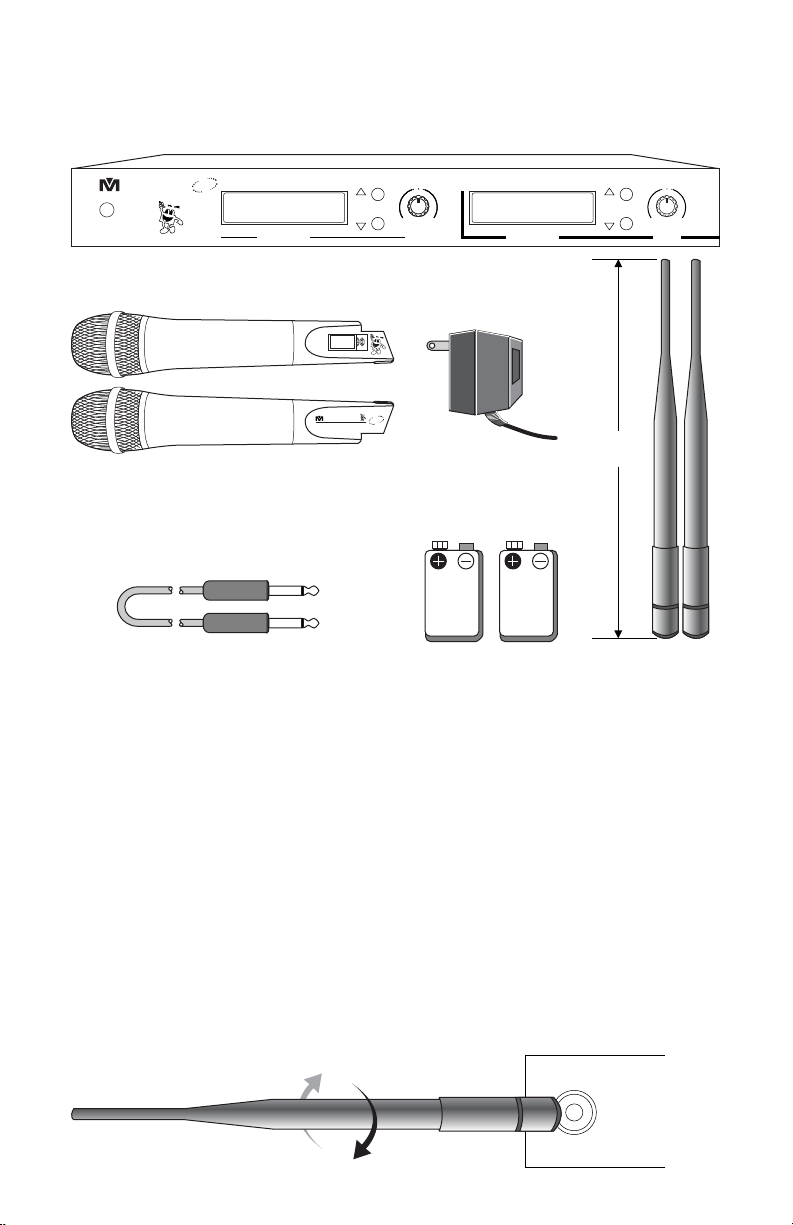

THE SYSTEM INCLUDES THE FOLLOWING PARTS

The package comes with one receiver, two transmitters, one DC power adaptor,

one audio cable, two 9V batteries, and two antennas.

SETTING UP YOUR RECEIVER

1.Screw the antennas (BNC socket) into the rear panel of the receiver in a

vertical 90° angle and turn it in clockwise to lock it.

You can adjust the antennas to angle differently for adjusting signal strengths.

2.Insert the DC adaptor into the power socket of the rear panel the power supply

must comply the requirement of the system.

3.To turn on, turn Volume to the minimum. After turning on the “POWER” button,

“PRO-MIC” would immediately appear in the LCD screen. Then, it takes about

five seconds for ready to use.

4.Adjust the settings to your liking (See the description for the LCD or control

panel).

5.To turn off, press and hold the power button until the power light turn off. Then

power will automatically shut off.

DC Power

Adaptor: 1 Unit

Audio Cable (for mixed out): 1 Unit 9V Battery: 2 Units

9 V

ALKALINE

BATTERY

9 V

ALKALINE

BATTERY

UHF

POWER

Better Music Builder

64 SELECTABLE WIRELESS SYSTEM

DOW N

AF RF

CH01:763.20 mhz

DUAL CHANNEL RECEIVER VM-92U

DOW N

AF RF

CH01:752.20 mhz

RECEIVER - A LCD VOLUME

MIN MAX

RECEIVER - B LCD VOLUME

MIN MAXMIN MAX

Receiver: 1 Set

Receiving

Antenna:

2 Units

8.43 inches

21.4 cm

Hand-held Transmitter: 2 Set

32 CHANNEL SELECTABLE

UHF

UHF MIC WIRELESS SYSTEM VM-92U

Better Music Builder

RECEIVER LCD PANEL DESCRIPTION

After turning on the “POWER” button, LCD screen will light up as below:

1. RF (radio frequency) Indicator

2. AF (audio frequency) Indicator

3. Current Channel/Frequency Display: current value depends on your setting.

If there is static or no sound coming out of your speakers, than

there may be a frequency interruption from another system, change your

frequency to match your transmitter’s (microphone) frequency.

HOW TO SELECT FREQUENCIES?

The manufacturer has already pre-set a particular frequency for each channel.

To select the frequency, you can use either Receiver A or Receiver B and press

the upper button for selection. Selection for frequency at either Receiver A or

Receiver B will work.

NOTE

AF RF

CH01:752.20 mh

AF RF

CH01:763.20 mh

RECEIVER - B LCD

AF RF

CH01:752.20 mh

RECEIVER - A LCD

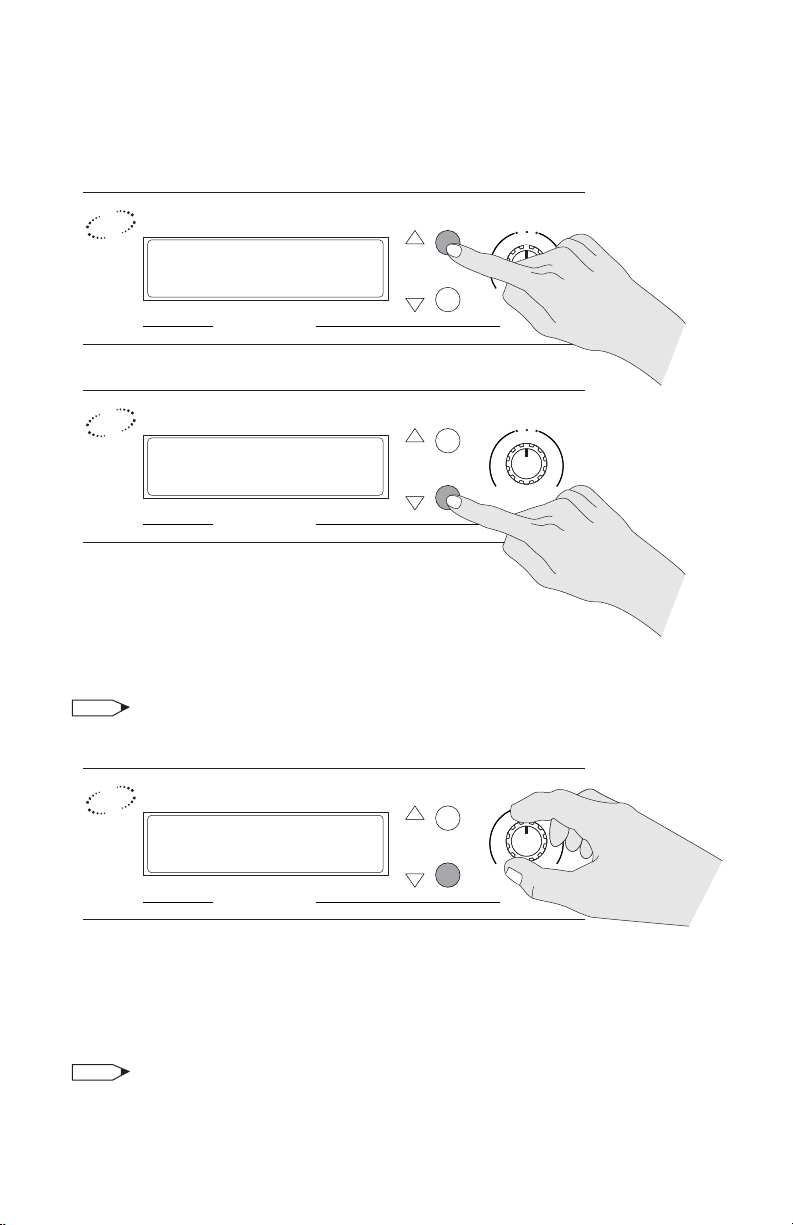

HOW TO ADJUST RECEIVER SETTINGS

To adjust your receiver’s channel/frequency by pressing the “

▲

” UP or “

▼

” DOWN button to select your frequency.

Turn “VOLUME” button to adjust your vocal volume.

We recommend setting the volume to the maximum, then control it from

the mixer.

If you or anyone do any damage on any part of the receiver either

accidentally or intentionally, we have the right to void your warranty.

NOTE

UHF DUAL CHANNEL RECEIVER VM-92U

DOWN

AF RF

CH08:758.30 mh

RECEIVER - A LCD VOLUME

MIN MAXMIN MAX

UHF DUAL CHANNEL RECEIVER VM-92U

DOWN

AF RF

CH08:758.30 mh

RECEIVER - A LCD VOLUME

MIN MAXMIN MAX

UHF DUAL CHANNEL RECEIVER VM-92U

DOWN

AF RF

CH08:758.30 mh

RECEIVER - A LCD VOLUME

MIN MAXMIN MAX

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Taking apart or modifying the

receiver may lead to electric shock,

fire, or damage to the receiver and

will void your warranty.

DC-POWER

DC 14~16V 600mA

UNBALANCED

Receiver A & B

MIXED OUTPUT

36120071023-92

Model No. VM-92U (UHF Microphone)

CALIFORNIA, UNITED STATES OF AMERICA

COMMENTS? E-MAIL: [email protected]

www.BetterMusicBuilder.com

ENGINEERED AND DESIGN IN U.S.A.

FCC: 74.861

SERIAL NO.

Better Music Builder

Channel B Channel A

ANTENNA-B ANTENNA-A

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Taking apart or modifying the

receiver may lead to electric shock,

fire, or damage to the receiver and

will void your warranty.

DC-POWER

DC 14~16V 600mA

UNBALANCED

Receiver A & B

MIXED OUTPUT

36120071023-92

Model No. VM-92U (UHF Microphone)

CALIFORNIA, UNITED STATES OF AMERICA

COMMENTS? E-MAIL: [email protected]

www.BetterMusicBuilder.com

ENGINEERED AND DESIGN IN U.S.A.

FCC: 74.861

SERIAL NO.

Better Music Builder

Channel B Channel A

ANTENNA-B ANTENNA-A

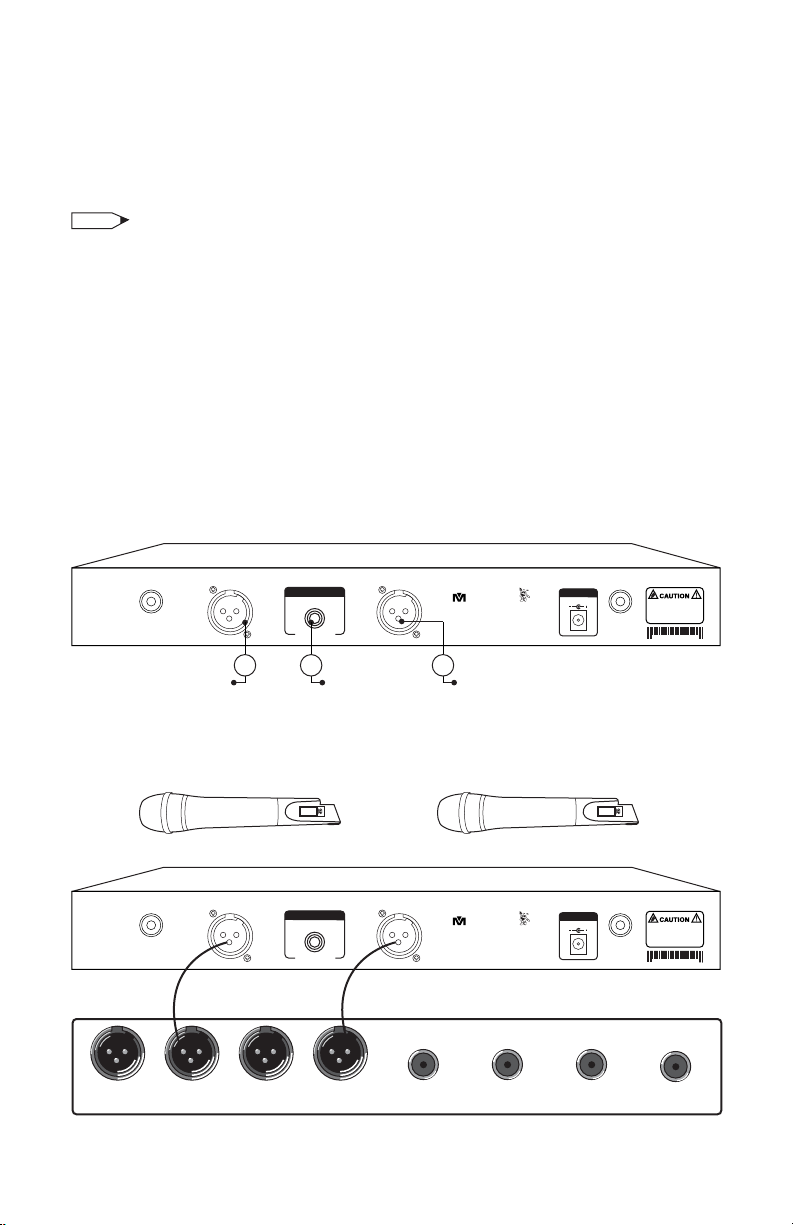

HOW TO CONNECT AUDIO OUT

There are three different connectors as shown in the following diagram:

• Connector 1 is a channel B XLR-balanced audio out

• Connector 2 is a mixed audio output (Channel A and Channel B)

• Connector 3 is a channel A XLR-balanced audio out

Connector 1 (Channel B) is a balanced XLR audio signal. If you connect B to the

mixer or amplifier, then you can control the microphone effect on MIC. B only.

Connector 2 is an unbalanced 1/4 audio signal. If you connect to Connect 2

(1/4), both MIC. A and MIC. B will mix together to produce the same signal. If

you want to produce different effects on MIC. A and MIC. B, you need to

connect to XLR (Connector 1), which is equivalent to channel B, and XLR

(Connector 3), which is equivalent to channel A. You can also adjust different

echo or mic. tone effects on each microphone (i.e. MIC. A and MIC. B).

Connector 3 (Channel A) is a balanced XLR audio signal. If you connect A to the

mixer or amplifier, then you can control the microphone effect on MIC. A only.

UHF WIRELESS SYSTEM DIAGRAM

Audio Mixer Amplifier or a Karaoke Unit Input terminal

XLR

Balance Input

XLR

Balance Input

XLR

Balance Input

XLR

Balance Input

1/4"

Unbalance Input

1/4"

Unbalance Input

1/4"

Unbalance Input 1/4"

Unbalance Input

Rear View

NOTE

Channel A Hand-held Transmitter

32 CHANNEL SELECTABLE

Channel B Hand-held Transmitter

32 CHANNEL SELECTABLE

Connector 1

(XLR Balanced)

1Connector 2

(Mixed A & B)

2Connector 3

(XLR Balanced)

Balance Connection

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Taking apart or modifying the

receiver may lead to electric shock,

fire, or damage to the receiver and

will void your warranty.

DC-POWER

DC 14~16V 600mA

UNBALANCED

Receiver A & B

MIXED OUTPUT

36120071023-92

Model No. VM-92U (UHF Microphone)

CALIFORNIA, UNITED STATES OF AMERICA

COMMENTS? E-MAIL: [email protected]

www.BetterMusicBuilder.com

ENGINEERED AND DESIGN IN U.S.A.

FCC: 74.861

SERIAL NO.

Better Music Builder

Channel B Channel A

ANTENNA-B ANTENNA-A

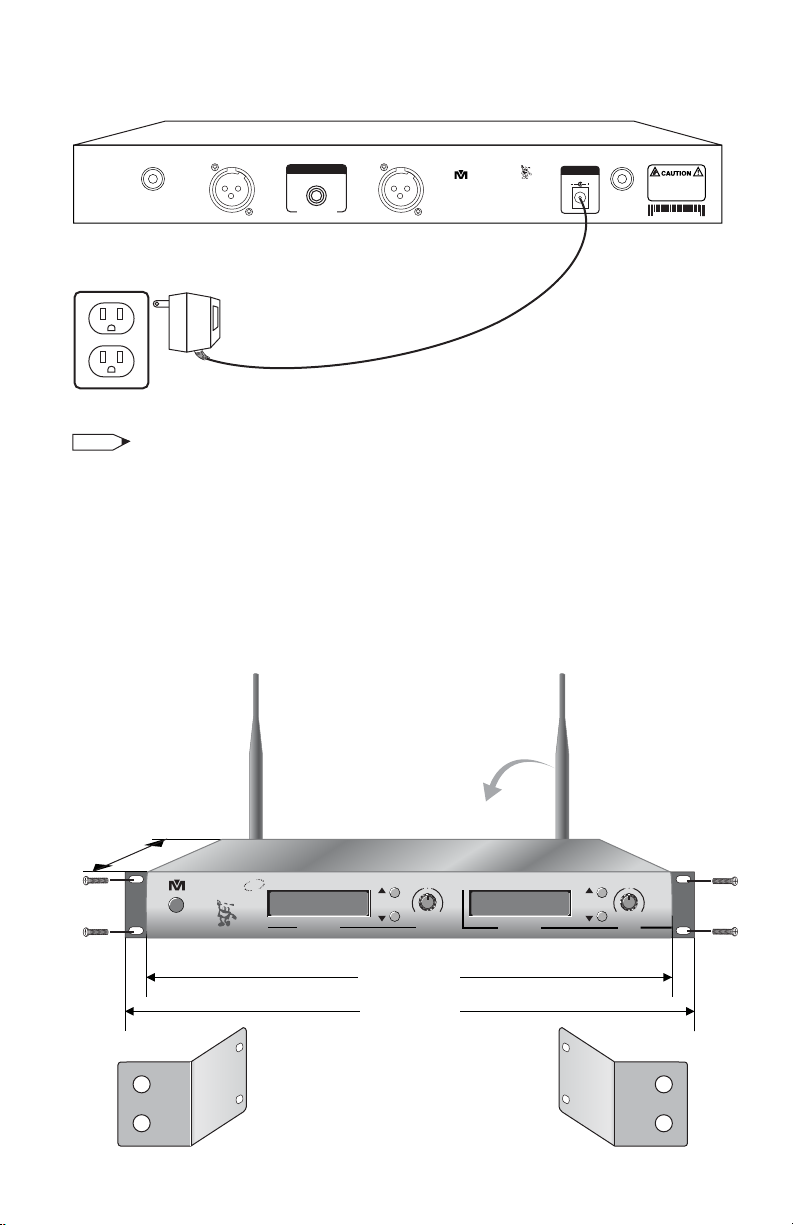

DC-POWER CONNECTION

If you use 220V to 240V, you must make sure to use a right adaptor,

otherwise, it would damage your system. Our warranty does not cover this.

OPTIONAL: 19” RACK MOUNT KIT

If you want to put the system onto a mount-kit, please follow the below

diagram. Our design has this special feature to allow it to mount on a DJ rack.

It is removable.

Rear View

120V DC 14~16V 600mA adaptor

NOTE

19 inches

7 inches

13.8 inches

Antenna is adjustable.

POWER

AF RF

CH01:752.20 mh

REC EI VE R - B LCD

64 SELECTABLE WIRELESS SYSTEM

AF RF

CH01:763.20 mh

DOWN

VOLUME

MIN M AX

DOWN

VOLUME

MIN M AX

Better Music Builder

UHF DUAL CHANNEL RECEIVER VM-92U

REC EI VE R - B LCDREC EI VE R - A LCD

Rack mount kit is not included.

32 CHANNEL SELECTABLE

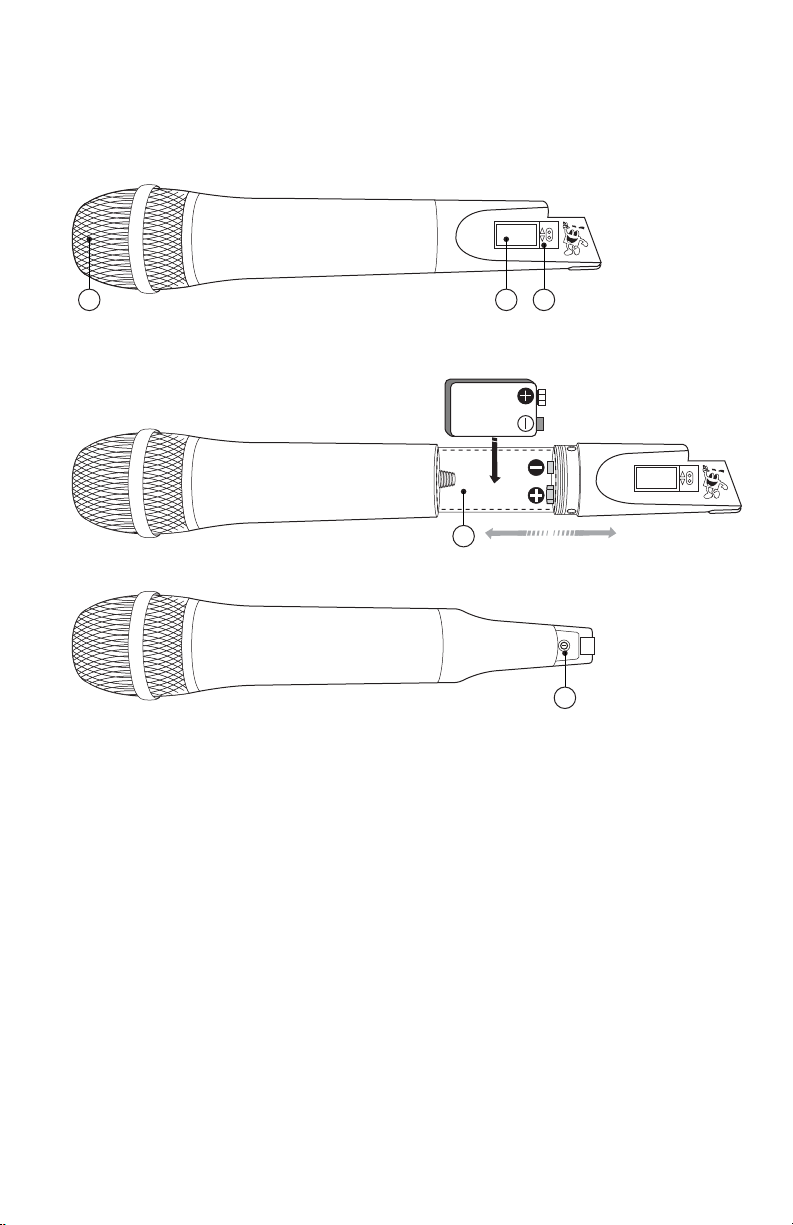

HAND-HELD TRANSMITTER (Wireless Mic.) DESCRIPTION

NAMES & FUNCTION:

Uncover Looking of the Handheld Transmitter:

1. Condenser and grille.

2. LCD digital display.

3. “

▲

” or “

▼

” buttons: Adjustment buttons to select Channel/Frequency.

4. Battery dock: insert 1x9V battery or rechargeable battery into the battery slot,

putting battery’s polarity on different ends may damage system and your

warranty may be terminated if damage does occur because of it.

5. Power switch: To turn on press and hold the power button located on the

bottom cap of the transmitter for 2-3 seconds, until the LCD screen is on. To

turn off press and hold the power button until LCD screen is off.

POWER

9 V

ALKALINE

BATTERY

321

32 CHANNEL SELECTABLE

806.20

CH MHZ

HAND-HELD TRANSMITTER LCD PANEL DESCRIPTION

After turning on the “POWER” button, LCD screen will light up as below:

1. Display Channel/Frequency: Current value depends on your setting.

2. “

▲

” or “

▼

” buttons: Adjustment buttons to select Channel/Frequency.

3. Battery Status: Indicates charge remaining in transmitter batteries.

BATTERY STATUS

INTERCHANGEABLE MICROPHONE HEAD

You can order the replacement parts (such as

the microphone head as shown in the above

figure) from any of our authorized dealers.

NOTE

Interchangeable

microphone head

Indicates a full battery on the transmitter.

Indicates a low battery on the transmitter. When it

shows a low battery as shown on the left, you need

to change the battery or recharge the battery

immediately.

Full Battery

Low Battery

806.20

CH MHZ

806.20

CH MHZ

32 CHANNEL SELECTABLE

Altri manuali per VM-92U

Indice

Altri manuali Better Music Builder Sistema microfonico

Better Music Builder

Better Music Builder VM-28 Manuale utente

Better Music Builder

Better Music Builder VM-82U G3 Manuale utente

Better Music Builder

Better Music Builder Q Series Manuale utente

Better Music Builder

Better Music Builder VM-62U Beta Manuale utente

Better Music Builder

Better Music Builder VM-52U Manuale utente

Better Music Builder

Better Music Builder VM-92U G2 Manuale utente

Better Music Builder

Better Music Builder VM-93C G5 Manuale utente

Better Music Builder

Better Music Builder VM-62U Beta Manuale utente

Better Music Builder

Better Music Builder VM-93C G2 Manuale utente

Better Music Builder

Better Music Builder VM-92U Manuale utente

Better Music Builder

Better Music Builder VM-88 Manuale utente

Better Music Builder

Better Music Builder VM-93C Manuale utente

Better Music Builder

Better Music Builder VM-99U Manuale utente

Better Music Builder

Better Music Builder VM-22 Manuale utente

Better Music Builder

Better Music Builder VM-52U G2 Manuale utente

Better Music Builder

Better Music Builder VM-52U G5 Manuale utente

Better Music Builder

Better Music Builder VM-93C G3 Manuale utente

Manuali Sistema microfonico popolari di altre marche

Paso

Paso R824 Manuale utente

Naxa

Naxa NAM-982 Manuale utente

Motorola

Motorola PMNN4461 Manuale utente

Xvive

Xvive U3 Manuale utente

Tekon

Tekon DUOS Manuale utente

Heyuan Intelligence

Heyuan Intelligence IOT-G2S-01 Manuale utente

Devine

Devine WMD-IE Manuale utente

LG LF-D7150 Manuale utente

GE S768DAV Manuale utente

LD U305 HBH 2 Manuale utente

Chainway

Chainway URA8 Manuale utente

ORATOR

ORATOR D860TD Manuale utente

Sennheiser

Sennheiser Evolution Wireless Digital EW-DX EM 2 Manuale utente

Alpha Technologies

Alpha Technologies RBMS Manuale utente

SWIT Electronics Co.,LTD.

SWIT Electronics Co.,LTD. CW-S150 Manuale utente

Shure

Shure UA844 Manuale utente

Panasonic

Panasonic SHFX70 - DVD HOME THEATER WIRELESS SYSTEM Manuale utente

Pyle

Pyle PDWM5000 Manuale utente
