Electric Micromotor System (Built-in)
Instruction for Use
Maxso®E600B
2
Maxso E600B is designed to be built into the dentist delivery system and op-
erate as a seamlessly integrated electric motor system. The integrated motor
has an intuitive touchpad interface and is engineered to reduce complexity
and provide increased efciency for optimal treatment results.
For your safety, before operating this product for the rst time, please
read through this manual thoroughly.
1.1 Package includes
• instruction for use –this manual
• user control panel
• control board
• cable
• o-ring
• mounting rack
• screws, 2-pin terminal and 3-way air connector
• motor with seal blocker and cap
• jumper connector
1. Introduction
Content
1. Introduction................................................P2-3
2. Safety and warning....................................P3
3. Installation requirement .............................P4-6
4. Operation...................................................P6-7
5. Maintenance..............................................P8
6. Technical specication ..............................P9
7. Beyes limited warranty statement..............P10-11
3
1.2 Symbol
Following sign may appear in this manual, before or attached les. Some
signs stand for this product’s standard and conformity.
Conformity to Medical Device Directive 93/42/EEC.
Date of manufacturing
Manufacturer
Serial number
Type B
Do not trash
Consult instruction for use
Classication: Class II, Type B
2. Safety and warning
SN
This product should be used for dental operation and to be operated only by
dentist or dental related professional
Warning
• Install this product by authorized third party technician
• Follow the instruction for installation
• Clean and maintain this product following this manual
• Do not drop or crash this product.
• Do not spray oil into this motor.
• Do not use chemical disinfection on motor
• Do not trash this product. Check local available rubbish classied collection
for disposal
Safety
• Do not operate this product in environment mix with air, oxygen and nitric
oxide, ammable anesthetic.
• Do stop the motor before detaching motor or cable
4
Warning
• This module should be installed inside the dental delivery unit by autho-
rized third party technician
• This module requirement AC24V/DC36V power, water and air from the
delivery unit

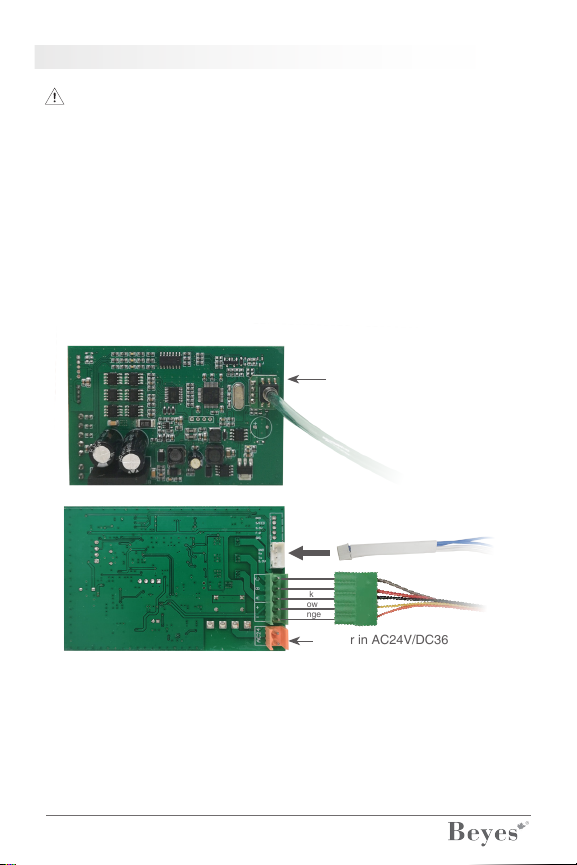

3.1 Connection inside delivery unit
a. Board to air supply, control panel cable, motor cable and power
cable
3. Installation requirement
Air Control
Power in AC24V/DC36
Control pannel connect
Grey
Red
Black
Yellow
Orange
5
System connect
Unplug the cap
b. Base, air and water tubing connection
a. Control panel
b.Motor
3.2 Connection outside delivery unit
Air in from pedal
Clear: water
Blue: Cooling air
Green: spray air
6
4. Operation
Speed display
Speed rate
REV
Program 1
Lower speed Increase speed
Program 2
Keep press REV
3 seconds to
open or stop
c. Control panel mounting
• Screw panel on the holder
• Install the plastic cap in the left or right side of the delivery unit
• Adjust angle and tighten the holder and cap
7
4.1 Start Motor
• Select the gear ratio 16:1, 1:1 or 1:5 to match the handpiece
Gear ratio Speed range
16:1 100-2,500 RPM
1:1 2,000-40,000 RPM
1:5 10,000-200,000 RPM
• Press REV to select motor direction – green for clockwise, yellow for
counter clockwise
• Press +/- to adjust the speed – the higher number indicate higher speed
• Step on foot paddle to start the motor
• During motor running, light is on and speed can be adjusted
4.2 Stop Motor
To stop the motor, release the foot paddle
Warning
• Do not press REV while motor is running.
• To reverse direction, rst stop the motor.
• Shut down power before detaching motor
4.3 Program Preset
• Select the gear ratio
• Set the speed
• Press and hold P1 or P2 key 3 seconds or more until a beep
• Press P1 or P2 to restore setting when needed
Note: motor direction is not stored
8
5. Maintenance
5.1 Control Panel
Wipe control panel with ethyl alcohol
5.2 Motor
Wipe surface with ethyl alcohol
Caution
• Do not use strong oxidant water or chemical disinfectants to clean motor
• Do not dip or wash motor
• Inspect o-ring – replace if worn or broken
5.3 Sterilization
• Wipe surface with ethyl alcohol
• Put seal blocker and seal cap on the motor
Seal blocker Seal cap
• Put motor in autoclave pouch and seal
• Autoclave 20 min @121°C or 15min @ 132°C
Caution
• Must close the seal blocker and seal cap for autoclave
• Must clean the motor surface before autoclave disinfection
9
Control system: Vector control system
Motor type: DC brushless motor
Speed: 2,000-40,000rpm
Torque: 3.4Ncm
Power input: AC 24V/DC36
Motor size: φ22 x L71mm
Motor weight: 67g
Noise: < 60dB
Light source: LED (white light)
Air supply: ht) >1.5L/min (0.2MPa)
Water supply: >65mL/min (0.2MPa)
Control box size: L130 x W55 x H21mm
Total weight: 632.00g
Environment temperature: -40°C~+70°C
Humidity: 10%~100%
Air pressure: 177~216KPa (1.8~3.0 kgf/cm2)
6. Technical specication
10
7.1 Scope of Warranty
BEYES Dental Canada Inc. (‘BEYES’) warrants to the original retail purchaser
that it will be at BEYES option to repair or replace components of the dental
products manufactured by BEYES (except for components not warranted
under ‘Exclusions’) that are defective in material or workmanship under
normal use and service. BEYES’ obligation under this limited warranty is
limited to the repair or replacement of the applicable components. This limited
warranty shall only apply to defects that are reported to BEYES within the
applicable warranty period and which, upon examination by Beyes, prove
to be defective. This warranty extends only to the rst retail purchaser of a
product and is not transferable or assignable. Replacement components or
products may be used and/or refurbished components or products, provided
they are of like quality and specications as new components or products.
7.2 Applicable Warranty Period
The applicable warranty period, measured from the date of invoice to the
original user, shall be warranted for a period of 25 months.
7.3 Exclusions
This limited warranty does not cover and BEYES shall not be liable for the
following;
1) Defects, damage or other conditions caused, in whole or in part, by misuse,
abuse, negligence, alteration, accident, freight damage, negligent storage,
tampering or failure to seek and obtain repair or replacement in a timely
manner;
2) Products which are not installed, used, and properly cleaned and
maintained as required or recommended in the BEYES ‘Installation’ and/or
‘Installation/User’s Manual’ for the applicable product, including the specied
structural and operational environment conditions and electrical power
requirements;
3) Products considered to be of a consumable or sterile nature;
4) Accessories or parts not manufactured by BEYES;
5) Charges by anyone for adjustments, repairs, replacement parts, installation
or other work performed upon or in connection with such products which are
not expressly authorized in writing in advance by BEYES;
6) Costs and expenses of routine maintenance and cleaning;
7) Representations and warranties made by any person or entity other than
BEYES;
7. Beyes limited warranty statement
