Bi-Bright iRed+ Manuale utente
INTERACTIVE WHITE BOARD
MANUAL
iRed
Thank you for your purchase of a
Bi-Bright Interactive Whiteboard.
Visite us at www.bibright.com
Bi-Bright S.A.
Rua Cais da Estação, 3885-528 Esmoriz
P.O. BOX 43, 3886 - 909 Esmoriz · Portugal
T: +351 256 750 120 M: [email protected]
www.bibright.com
Bi-Bright S.A. is a company of the Bi-silque SGPS Group.
REV02
Declaration of Comformity
This device is in conformance with Part of the FCC Rules and Regulations for Information
Technology Equipment. Operation of this product is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Responsible Party Adress
Bi-Bright COMUNICAÇÃO VISUAL
INTERACTIVA S.A.
Rua Cais de Estação nº 340, P.O. Box 43,
3885-528 Esmoriz, Portugal
What’s in the Accessories Box
System Requirements
Recommended Software System
Introduction
How to Install Hardware
Set-up
How to use Annotation Software
Troubleshooting Guide
Specifications
Table of Contents
5
6
6
7
9
15
16
16
17
Thank you for your purchase of the Interactive whiteboard (IWB). If any items are
missing or damaged, please contact the authorized reseller immediately.
CONTENTS:
What’s in the Accessories Box
P1 : 1 pc P2 : 1 pc P3 : 1 pc P4 : 1 pc
P5 : 4 pc
P9 : 2 pc
P6 : 4 pc P7 : 4 pc P8 : 1 pc
5
What’s in the Accessories Box
● Operating Systems: Windows® (XP or later) Mac® and Linux®
● Interface: USB 2.0
● Pentium III 800 1GHZ processor (or higher)
Minimum requirements - Windows®:
● XP Service Pack 3
● 1GHz Processor
● 512 MB RAM
● 400 MB free space
Minimum requirements - MAC®:
● Version 10.4 (Intel®)
● 512 MB RAM
● 500 MB free space
● 128 MB graphics memory
Minimum requirements – Linux® Ubuntu:
● Version 10.4
● 800 MHz Processor
● 512 MB RAM
● 500 MB free space
● 128 MB graphics memory
● Desktop effects enabled
System Requirements
Recommended Software System Requirements
6System Requirements / Recommended Software System Requirements
Recommended Software System Requirements
The Interactive whiteboard uses infrared technology. Working seamlessly with a projector
and computer, the Interactive whiteboard provides more convenient, interactive and effective
presentations. Perfect for school auditoriums, conference rooms, trade shows, symposiums and
lecture halls. Users can write on the screen using the included pen, stylus or the user’s finger.
● Writing: Write, draw and perform mouse functions with your finger. The whiteboard displays
your penmanship instantaneously.
● Interacting: In video conferencing, both parties can share data and write in real time just
like a standard conference room. Once integrated with Polycom or other video conferencing
systems, using Interactive whiteboard can improve video conference results and efficiency.
● Touch Recognition: Can recognize multi touch gestures, finger touch, right-click, left-click,
double click and more.
Introduction
7
Introduction
How to Install Hardware
1. Wall Mount:
01.
Additional Tips:
• plastic covered gutter to hide electrical cables
• choose a solid location for the anchors/screws, like concrete block, wood stud, etc.
• use the wall anchors according to the wall construction material
We recommend the usage of the additional following tools:
Note:
Do not set up and use your interactive whiteboard in an area with direct sunlight,
excessive levels of dust or humidity.
8How to Install Hardware

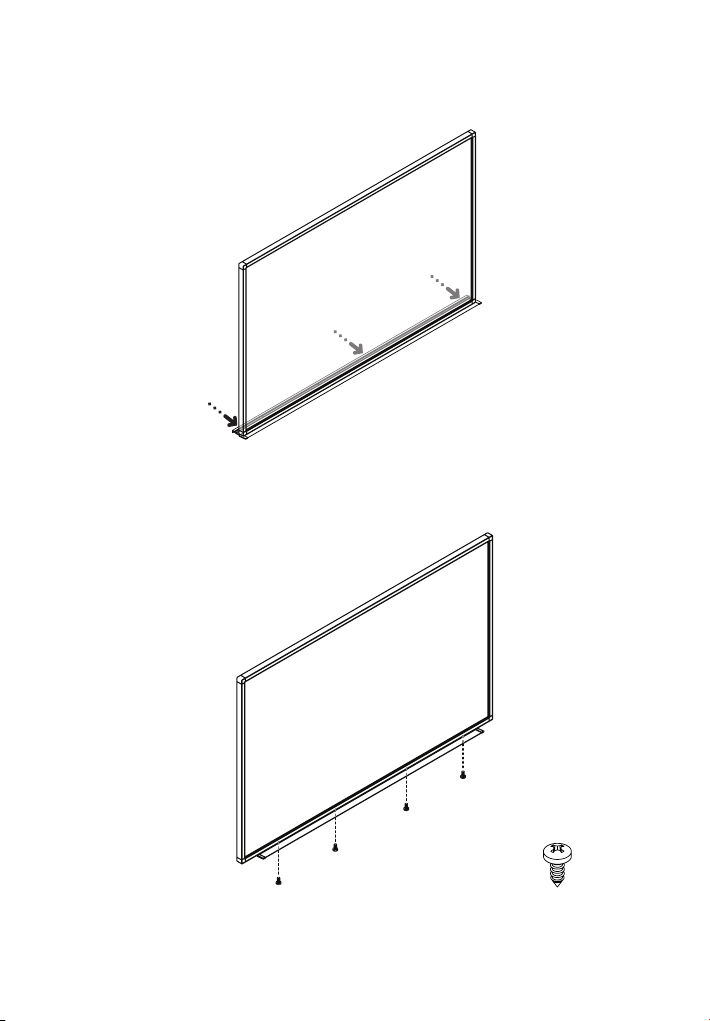

03.
02.
P6 : 4 pc
9
How to Install Hardware
05.
04.
800mm
board height
2000mm
100mm 100mm
10 How to Install Hardware
