N 100™
NETWORK EXPANDER
FOR BIAMP USB DEVICES
PARLÉ™
INSTALLATION AND SETUP GUIDE
INSTALLATION CONSIDERATIONS
• The N 100 is designed to be installed behind a display or close to the in-room display.
• The device can also be securely mounted in various locations using the provided mounting plate,
including desktops, walls, and more. The plate has a built-in cable management retainer cord
organization and security.
• Do not exceed the maximum ambient operating temperature of 32-104° F (0-40° C). Be aware
of conditions in an enclosed rack that may cause the temperature to exceed ambient room
conditions.
Warning: the N 100 power supply MUST NOT be connected to a VBC 2500 or ABC 2500
conference bar. the unit will be damaged.
3
2
Installation & Setup Guide N 100
IN THE BOX
• N 100
• Cable management cover
• Mounting plate
• Wall screws (4)
• Wall anchors (4)
• Mounting-plate screws (4)
• Cover screw (1)
• USB 3.0 3’ (1m) Type A to B (1)
• Power supply
• QR-code sheet & safety manual (not shown)
INCLUDED IN THE BOX
3
Installation & Setup Guide
3
N 100
34 5
16
DEVICE LAYOUT
FRONT PANEL
FRONT PANEL INDICATORS
O:
The device is
not powered
Green:
The device is
powered
Red:
The device is
booting.
UC / LAPTOP
1. USB Input Type-B
REAR PANEL PORTS/TERMINALS/INDICATORS
REAR PANEL
ROOM AV
2. USB 3.0 Type-A
3. USB 3.0 Type-C
ADDITIONAL
4. RJ45 Network Gigabit Ethernet (LAN)
5. Pinhole Reset
6. Power port 24V/3.75A with lock
connector
2
5
4
Installation & Setup Guide N 100
INSTALLATION
REMOVEABLE MOUNTING PLATE
The N 100 may be installed in almost any location that works for the room design, requirements,
etc. This includes installation on a wall behind a typical conference room display or under a table. Be
sure to allow for adequate airow on the ventilation grilles.
For installation on a wall, behind a conference room display, or under a table use the provided
mounting plate. Alternatively, place the device on a at surface, with or without the mounting plate,
and the rubber feet will keep the device in place.
1. The mounting plate comes installed on the device and is easily removed.
2. Unscrew the four screws attaching the bracket to the bottom of the device.
3. Place the device on any at surface that does not risk the power cord and connections being
snagged, yanked, or crushed.
4. The four rubber feet at the bottom will prevent the device from slipping on the surface.
5
Installation & Setup Guide
5
N 100
INSTALLATION
MOUNT THE DEVICE

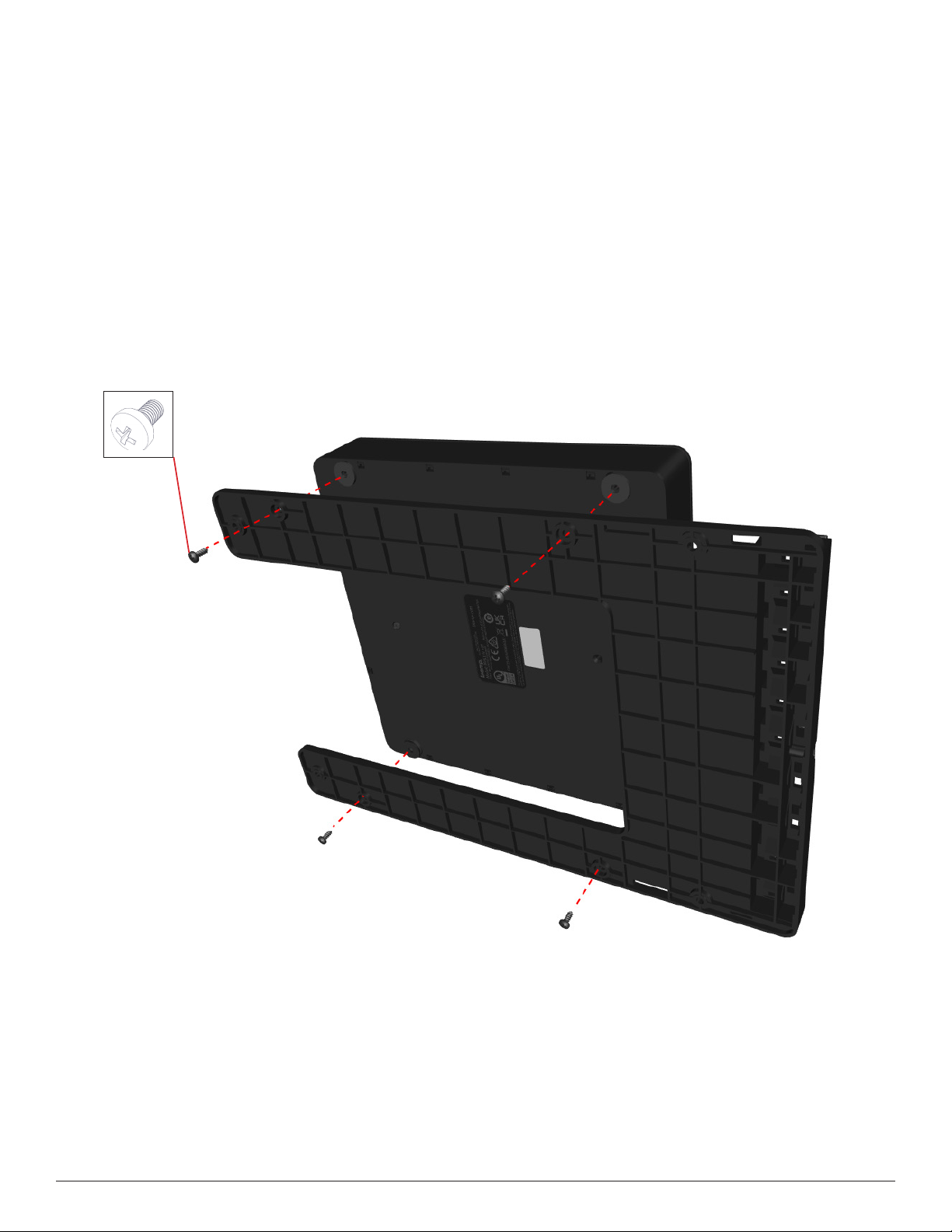

1. The N 100 comes attached to the mounting plate via four mounting screws. If the bracket has
been removed, attach it before attempting to mount the device.
2. Locate a at place to mount the device using the attached mounting plate.

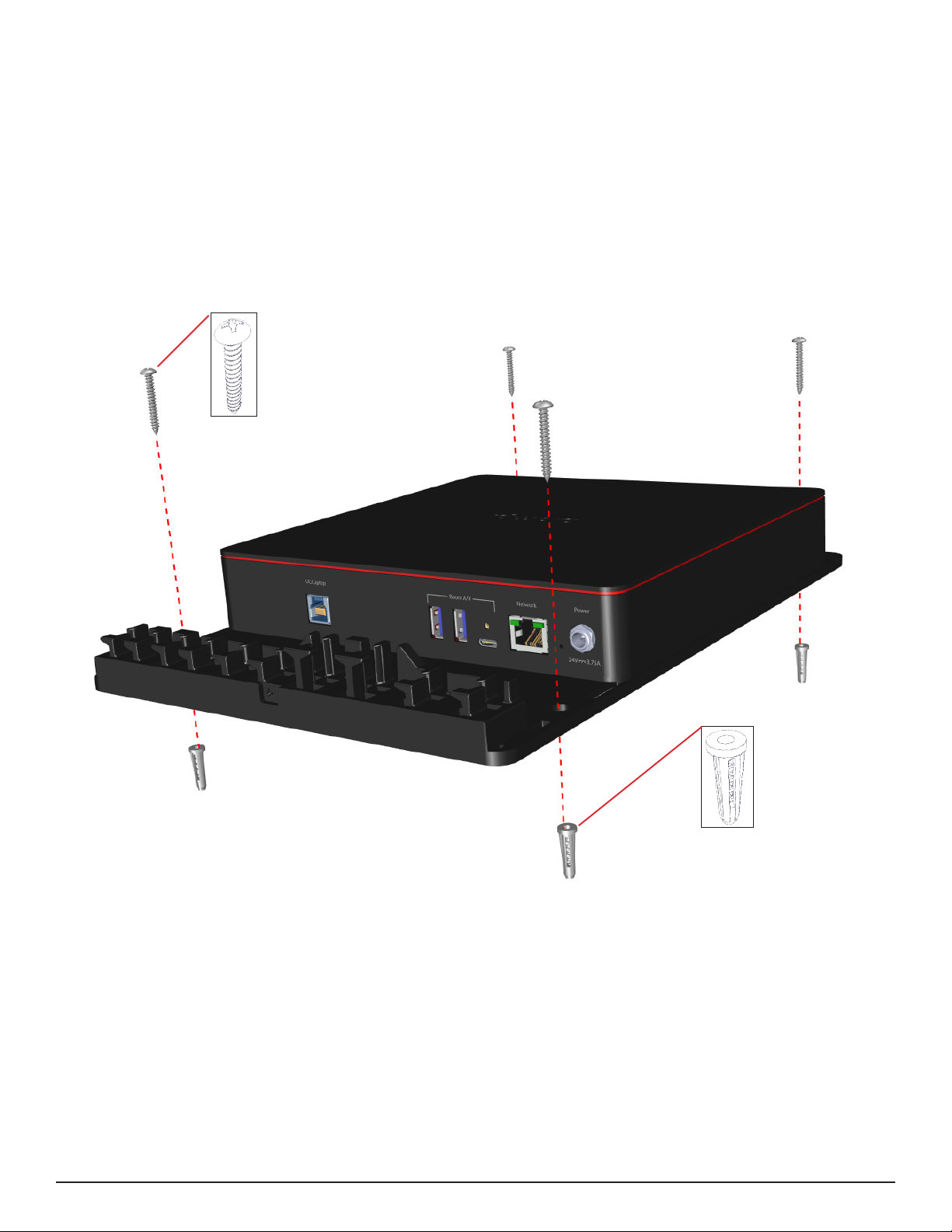

3. Use the four holes on the mounting plate to mark the locations for the wall anchors and screws.
4. Use the provided screws and /or wall anchors to mount the device to the desired location.
7
6
Installation & Setup Guide N 100
INSTALLATION
CABLE MANGEMENT

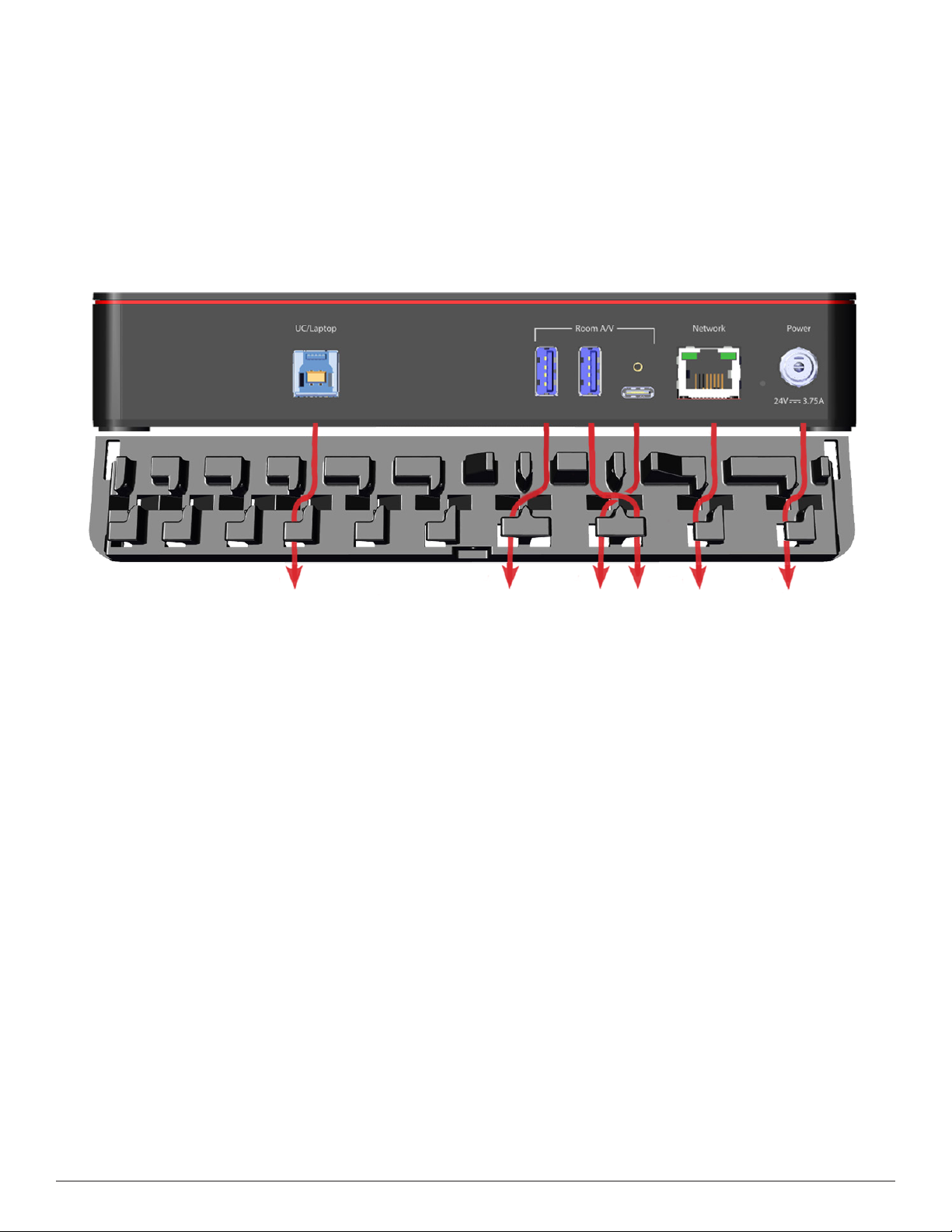

5. Once the device is in place, use the built-in cable management retainer to keep cables organized
and protected from accidental damage.
7
Installation & Setup Guide
7
N 100

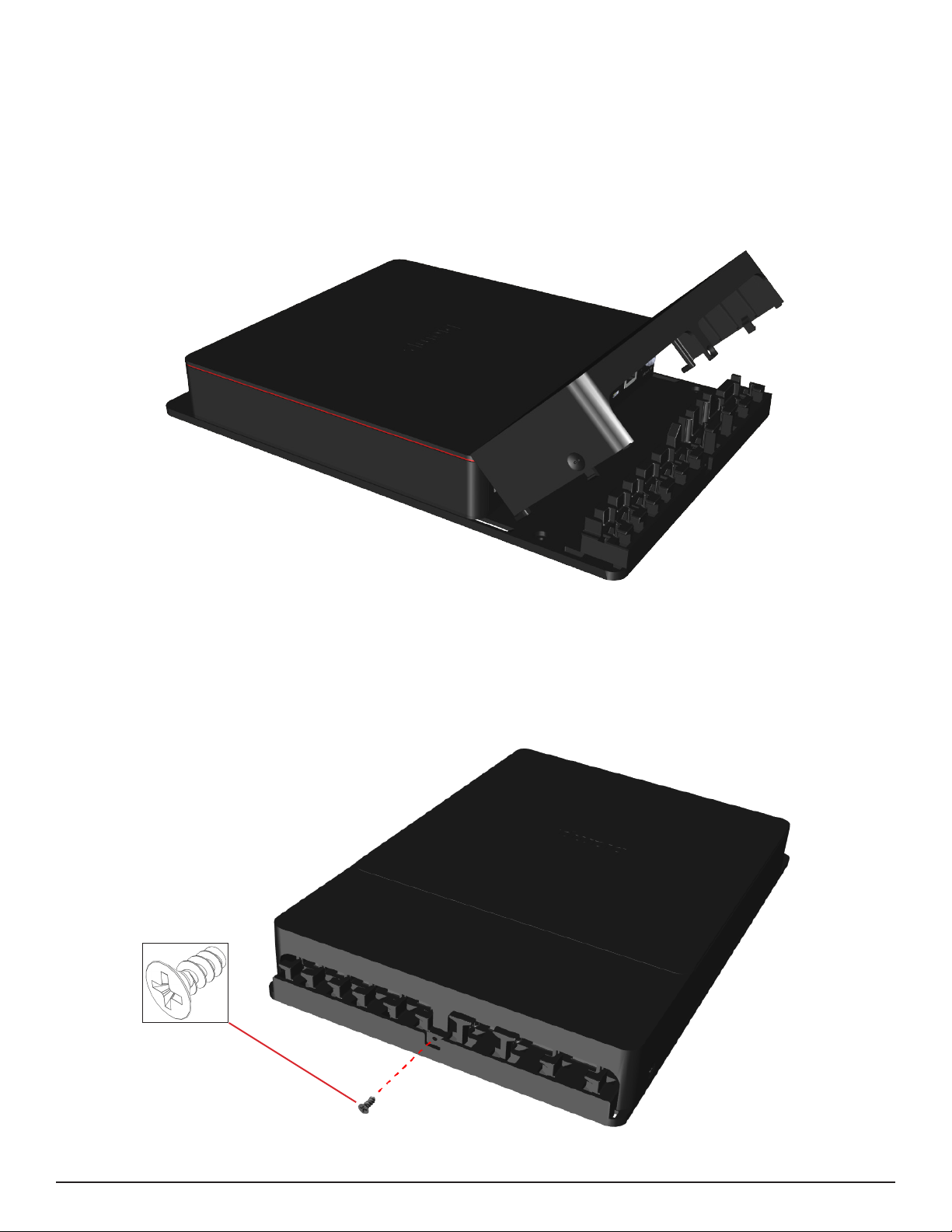

6. Once the device is in the desired location, and the cables are connected and secure within the
cable management retainer, attach the protective cover.
INSTALLATION
CABLE MANGEMENT
7. The cover will snap into place. Secure the cover using the provided cover screw.
8
Installation & Setup Guide N 100
Network
Loudspeakers / Mics
Laptop or
UC Compute
Parlé VBC 2500
TesiraFORTÉ X
Provided Cables
Accessory Cables
CONNECTIONS
COMPLETE SYSTEM DEPLOYMENT
Warning: The Parlé N 100 power supply MUST NOT be connected to a
VBC 2500 or ABC 2500 conference bar as the unit will be damaged. See
the Parlé N 100 PSU warning label.
Note: To manage the parameters and settings of the N 100 device
via web browsers, access the Web Administrator Console here.
[email protected] www.biamp.com
CONTACT US
Web: support.biamp.com
Email: [email protected]
Warranty: biamp.com/legal/warranty-information
Safety & Compliance: biamp.com/compliance biamp.com/legal/warranty-information
