INSTALLATION AND OPERATING INSTRUCTIONS

STONEYBROOK LODGE PLAY SYSTEM – F23100

10 - 14 Hrs

To reduce the risk of serious injury or death, you must read and

follow these instructions. Keep and refer to these instructions

often and give them to any future owner of this play system. Manufacturer contact information provided below.

OBSTACLE FREE SAFETY ZONE - 32’3” x 28’ (9.8 x 8.5 m) area requires Protective Surfacing. See page 3.

MAXIMUM VERTICAL FALL HEIGHT - 7’6” ft. (2.3 m)

CAPACITY - 12 Users Maximum, Ages 3to 10; Weight Limit 110 lbs. (49.9 kg) per child.

RESIDENTIAL HOME USE ONLY. Not intended for public areas such as schools, churches, nurseries,

day cares or parks

Rev 12/29/2010

3403100

Two person

assembly

Table of Contents

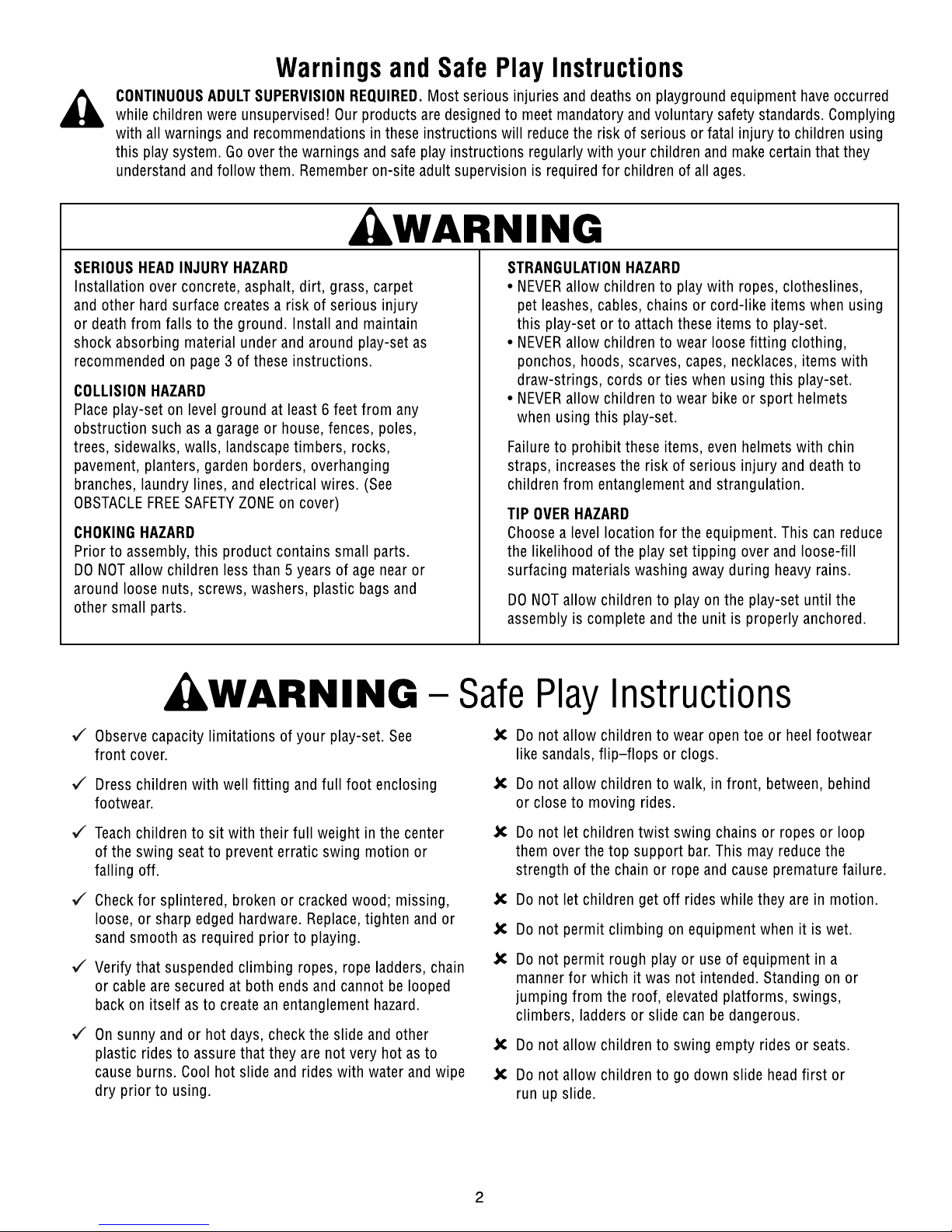

Warnings and Safe Play Instructions .......... pg. 2

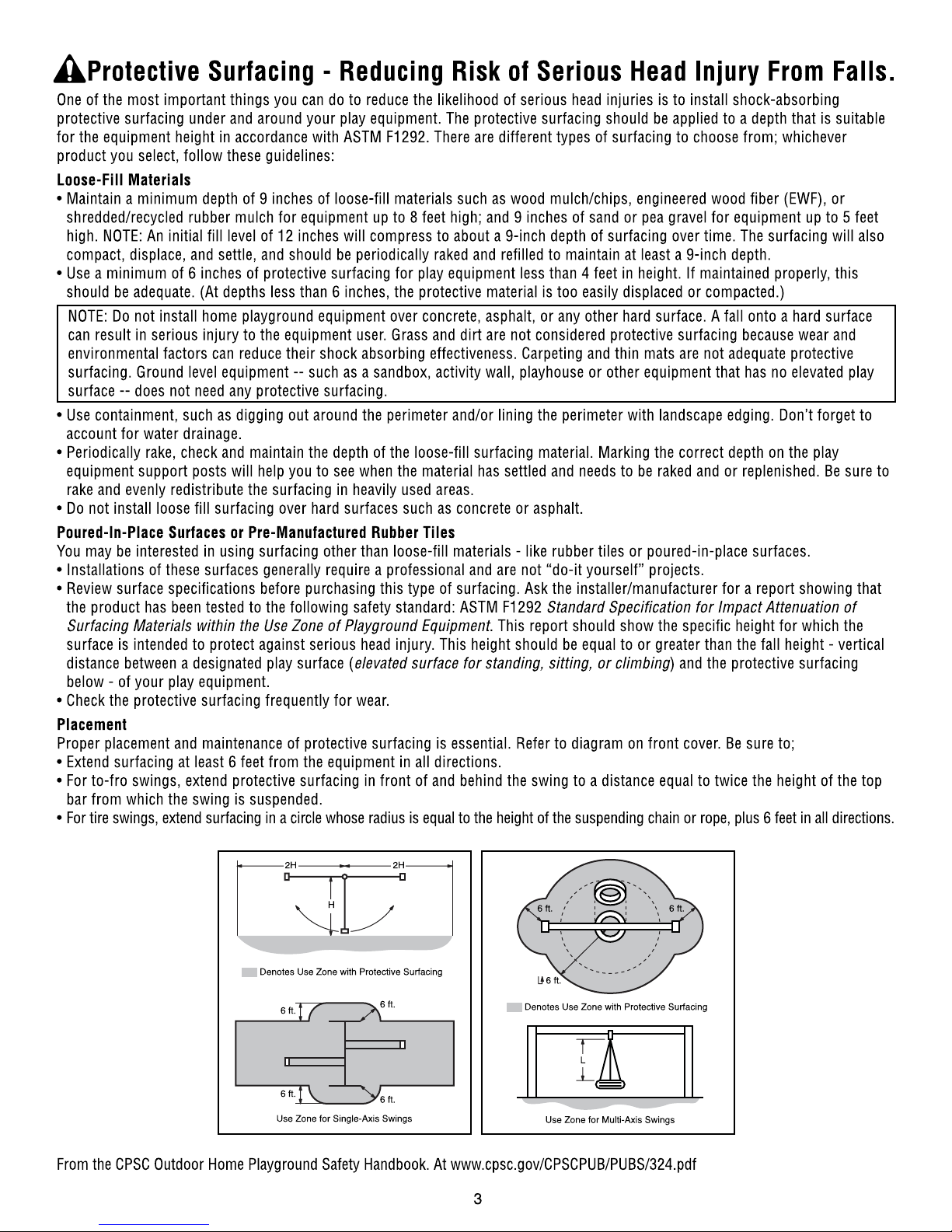

Protective Surfacing Guidelines .............. pg. 3

Instructions for Proper Maintenance .......... pg. 4

About Our Wood – Limited Warranty.......... pg. 5

Keys to Assembly Success.................. pg. 6

Part ID .................................. pg. 7

Installation of I.D./Warning Plaque........ Final Step

WARNING

18’ 8” (5.7 m)

14’ 5” (4.4 m)

Solowave Design

375 Sligo Rd. West, PO Box 10

Mount Forest, ON Canada N0G 2L1

General Inquiries:

8:00am - 4:30pm EST

Toll Free: 1-877-966-3738

[email protected]

Square

Assembly

3650318 Box 1

A14

(6) Ground Stake 1-1/4 x 1-1/2 x 14" (2) Dormer Side Burst 1 x 3 x 6-3/4"

B12 3638072 Box 2

(2) Dormer Side 1 x 3 x 13-5/8"

B10 3638070 Box 2

3641414 Box 1

A11

(1) Table Top 5/4 x 6 x 45-1/2"

3631482 Box 2

(18) Siding 3/8 x 3-1/2 x 42-5/8"

(2) Gable Board B 1 x 2 x 14"

B8 3631433 Box 2

(2) Gable Board A 1 x 2 x 17"

B7 3631432 Box 2

3631431 Box 2

(1) Centre Gable Board 1 x 2 x 23"

3631415 Box 2

(2) Lower Trim 1 x 2 x 19-5/8"

3631411 Box 2

(4) Wall Trim 1 x 2 x 31-7/8"

(1) Dormer Centre 1 x 3 x 10-3/4"

B11 3638071 Box 2

(1) Dormer Bottom 1 x 2 x 22"

B13 3638073 Box 2

(4) Window Divider 1 x 2 x 10-3/4"

3631419 Box 2

3630839 Box 2

(21) CE Gap Board 1 x 4 x 38-3/4"

3638068 Box 1

3641247 Box 1

(1) SL Support 5/4 x 4 x 47"

A10

(1) Short Upright 2 x 3 x 44-3/4"

3640826 Box 1

3640825 Box 1

(1) SL Upright 2 x 3 x 55"

(1) Roof Side 2 x 6 x 49-1/2"

A12 3641434 Box 1

3681858 Box 1

A15

(4) Dowel Tennon 1 1/8 x 18-5/8"

(4) Wiggle Board A 1 x 6 x 24"

3631454 Box 1

(2) Mid Wall Board 1 x 6 x 48-1/2"

3631422 Box 1

3631457 Box 1

(1) Wiggle Bottom 1 x 3 x 19-7/8"

(1) Wiggle Board C 1 x 6 x 25-9/16"

3631456 Box 1

(1) Dormer Roof Set (Left/Right Dormer)

3631430 Box 1

(1) Sunburst 5/4 x 5 x 13"

(7) Wiggle Board B 1 x 6 x 25-9/16"

3631455 Box 1

(2) SW Block 5/4 x 4 x 3-1/2"

A13 3644909 Box 1

3630705 Box 2

(2) Cedar Wall 1 x 4 x 23-1/2"

1" x 2"

1" x 4"

1" x 5"

1" x 6"

5/4" x 6"

5/4" x 5"

5/4" x 4"

2" x 2"

2" x 3"

2" x 4"

2" x 6"

Nominal Size Actual Size

1½" x 5⅜"

1⅜" x 3⅜"

1⅜" x 2½"

1½" x 1½"

1" x 3½"

1" x 4½"

1" x 5½"

⅝" x 5⅜"

⅝" x 4½"

⅝" x 3⅜"

⅝" x 1⅜"

Part Identification (Reduced Part Size) A1 - B13

3641420 Box 2

B23

(2) Mid Wall Roof Support 1 x 3 x 10-7/8"

3641417 Box 2

B22

(4) Window Brace 2 x 2 x 38"

(2) Wiggle Joist 2 x 6 x 65-27/32"

B29

3641453 Box 2

3641406 Box 2

(1) Ground SL Side 1 x 5 x 41-1/2"

B17

3641405 Box 2

(2) Ground Front and Back 1 x 5 x 77"

B16

3641407 Box 2

(1) Ground SW Side 1 x 5 x 77-1/2"

B18

3641408 Box 2

B19

(1) Floor Joist 5/4 x 4 x 78"

3641409 Box 2

B20

(2) Floor Front Back 2 x 4 x 77-7/8"

3641413 Box 2

B21

(1) Table Support 2 x 2 x 45-1/2"

B15

(1) Ladder Bottom 5/4 x 4 x 20"

3640822 Box 2

3640369 Box 2

B14

(2) Lower Diagonal 2 x 3 x 37"

3641423 Box 2

B24

(6) Picket 5/4 x 3 x 32"

3641424 Box 2

B25

(4) Roof Support 2 x 3 x 40"

3641425 Box 2

B26

(2) Roof Joist 2 x 2 x 38-3/4"

3641428 Box 2

B27

(1) Left Access 2 x 4 x 62-7/8"

3641429 Box 2

B28

(1) Right Access 2 x 4 x 62-7/8"

3644921 Box 2

B30

(1) SW Support 5/4 x 4 x 48-1/2"

Part Identification (Reduced Part Size) B14 - B30

1" x 4½"

1" x 5½"

⅝" x 5⅜"

⅝" x 4½"

⅝" x 3⅜"

⅝" x 1⅜"

Actual Size

1½" x 5⅜"

1⅜" x 3⅜"

1⅜" x 2½"

1½" x 1½"

1" x 3½"

Nominal Size

2" x 6"

2" x 4"

2" x 3"

2" x 2"

5/4" x 4"

5/4" x 5"

5/4" x 6"

1" x 6"

1" x 5"

1" x 4"

1" x 2"

3638002 Box 3

(1) Gable Block B 1 x 6 x 13-1/2"

(1) SL Floor 2 x 4 x 41-1/2"

3640834 Box 3

C12

3635155 Box 3

(24) Cedar Roofing 3/8 x 3-1/2 x 47-1/2"

(1) Dormer Burst 1 x 4 x 5-1/2"

C8 3638074 Box 3

3641400 Box 3

C13

(4) Post 2 x 4 x 92-1/2"

3641401 Box 3

C14

(4) Lower Post 2 x 4 x 54"

3641402 Box 3

C15

(2) Mid Post 2 x 3 x 92-1/2"

3641404 Box 3

C17

(2) Roof Block 2 x 4 x 5-3/8"

3641412 Box 3

C19

(4) Window Sill 1 x 4 x 42-5/8"

3641416 Box 3

C20

(2) SL Roof Support 1 x 4 x 39-7/8"

3644922 Box 3

C27

(2) SW Post 2 x 4 x 92-1/2"

(2) Floor Gap 2 x 3 x 39-5/8"

3641418 Box 3

C21

(2) Wall Brace 2 x 4 x 7-3/8"

3641421 Box 3

C22

3641426 Box 3

C23

(2) Roof End 2 x 6 x 11"

3644919 Box 3

C25

(1) SW Rail Block 2 x 4 x 5-3/8"

3641410 Box 3

C18

(2) Top Back Front 5/4 x 6 x 77-1/2"

3641403 Box 3

C16

(2) Mid Roof Block 2 x 3 x 5-3/8"

3641427 Box 3

C24

(1) Wall Mount 2 x 4 x 38"

3644920 Box 3

C26

(1) SW Upright 2 x 4 x 50-1/2"

Part Identification (Reduced Part Size) C1 - C27

3631248 Box 3

(1) Front Beam 2 x 6 x 94"

3631249 Box 3

(1) Back Beam 2 x 6 x 94"

3638001 Box 3

(1) Gable Block A 1 x 6 x 24"

3630840 Box 3

(1) CE Gap Board 1 x 6 x 38-3/4"

(1) Dormer Cleat 2 x 4 x 10"

C7 3638069 Box 3

(2) Gusset 5/4 x 4 x 18-1/2"

C9 3640403 Box 3

3640436 Box 3

C10

(1) SW Top 5/4 x 6 x 41-1/2"

3640437 Box 3

C11

(1) SW Floor 5/4 x 6 x 41-1/2"
