BigDog BD50 Series Manuale utente

BIG DOG

SURVEILLANCE SYSTEMS

A DIVISION OF R.F. TECHNOLOGIES, INC.

USER MANUAL

BD510 SERIES

USER MANUAL / GUIDES / SOFTWARE

INSTALLATION / WARRANTY

CONTENTS DVR Warranty

DVR Software DVD

Camera Installation

DVR Installation

DVR User Manual

DVR Drivers / Microsoft Windows XP Home Edition

Big Dog Surveillance Window Clings

Extended Warranty / Virus Protection / Support

Big Dog Surveillance Systems Are Made With the Latest In

Surveillance Technology

In 1989, using the forefront of technology, R.F. Technologies, Inc. began its mission to provide hi-tech communicattion

equipment. In 2002, R.F. Technologies, Inc. integrated digital surveillance, expanding on the mission and creating Big

Dog Surveillance Systems.

By keeping the customers’ needs and securities rst and foremost, R.F. Technologies, Inc. has rapidly grown into an

industry leader by oering the most advanced technology available.

A Surveillance System Built For Any Environment

From alarms and notications to motion detection and video archiving, Big Dog Surveillance Systems cover every

possible need.

Whether you’re a novice or a veteran to surveillance systems, it doesn’t take long to see how easy the Big Dog

Surveillance System is to install, congure, and operate. Built from the ground up, the interface has been designed

for easy navigation and maximum eciency.

Manufacturer's employees’ or representatives' oral or other written statements do not constitute a

warranty, shall not be relied upon by the Buyer, and are not a part of the contract for sale or this warranty.

7/11

With Power Protection: 12 months from date of purchase on DVR unit and 90 days on other major component

(cameras, power supply, monitor) parts. Excludes cables and connectors.

BD510 & BD1000 SERIES

Repair or replacement is at RFT’s discretion (free shipping to RFT using our prepaid labels; customer pays return

shipping). Warranty is non-transferable.

TECHNICAL /INFORMATION SUPPORT: Complimentary

DVR ADVANCE EXCHANGE POLICY: A defective DVR may be exchanged for a new unit

within 15 days of purchase (not installation) date; free ground shipping using RFT prepaid labels.

Customer will be invoiced at cost of new unit and credited upon receipt of defective unit.

R.F. TECHNOLOGIES, INC.

DIGITAL SURVEILLANCE SYSTEM (DSS)

WARRANTY / EXCHANGE / REPAIR POLICY

www.bigdogsurveillance.com

DSS OEM WARRANTY

Additional extended & expanded warranty available within 30 days of purchase. Extended and expanded warranty

provides 100% coverage of DVR unit and other major component parts to 2 years.

4 & 6 Cam Systems - $500 Parts & Repair Labor; $325 Repair Labor (Excludes Parts)

8 - Cam System - $525 Parts & Repair Labor; $350 Repair Labor (Excludes Parts)

16 - Cam System - $575 Parts & Repair Labor; $400 Repair Labor (Excludes Parts)

32 - Cam System - $675 Parts & Repair Labor; $500 Repair Labor (Excludes Parts)

• Damage related to customer misuse, abuse, or alteration.

• Damage due to fire, wind, water, storm, riot, vandalism, war, act of God,

burglary, power line fluctuations (increase or decrease), accident, or negligence.

• Damages or defects arising out of improper or abnormal product handling.

• Damages or defects arising from improper installation (where installation is by

persons other than Manufacturer).

• Damage resulting from the failure to render routine attention to equipment such

as: maintaining at least three inches of unrestricted space around the equipment

to provide for proper air circulation and keeping all equipment free from

harmful materials.

• Power damage without RFT approved power protection. Power protection sold

separately for an additional $350.

• Heat and / or environmental related damage.

RFT reserves the right to determine if damage was caused by customer’s failure to provide a suitable environment or

sufficient coverage for power related issues.

Additional Extended & Expanded Warranty

Can be provided if available; customer pays $125 per week plus shipping (invoiced at cost of new unit and credit memo

issued upon receipt).

DVR Rental

542 South Prairie Street • Bethalto, IL 62010 • Office: 618.377.2654 Fax: 618.377-1320

Manufacturer does not warrant against:

Warranty Disclaimer

Manufacturer is not responsible for remote connection port forwarding or server accessibility. Server configurations are

the sole responsiblity of the customer.

Remote Access Disclaimer

8/08

542 South Prairie Street • Bethalto, IL 62010 • Office: 618.377.2654 Fax: 618.377-1320

R.F. TECHNOLOGIES, INC.

DIGITAL SURVEILLANCE SYSTEM (DSS)

LEGAL DISCLAIMER

United States Codes, Title 18, Section 2510 (2) states: “Oral communication means

any “oral communication” uttered by a person exhibiting an expectation that such

communication is not subject to interception under circumstances justifying such

expectation.” By definition of the code section, a person cannot have an expectation of

privacy, nor can he or she expect that communication will not be intercepted, if there are

public signs posted, indicating that the communication is being monitored. The First

Amendment of the Constitution provides that any conversation between individuals is

private, unless otherwise notified.

In simple terms, this means that ANY overhearing or recording of a conversation is

illegal ... unless both parties are aware that it is being done. In order to comply with

the law, R.F. Technologies, Inc. notifies all customers that a disclaimer stating, “AUDIO

MONITORING ON THESE PREMISES.” MUST be affixed, IN PLAIN VIEW, to all

entrances where microphones are installed. It is suggested that you notify your customer

at the time that you install (or sell) the equipment that DISCLAIMERS MUST BE IN PLAIN

VIEW AT ALL ENTRANCES AND EXITS.

In that some state laws may vary, it is further suggested that you consult with your

local attorney, and become fully aware of the local laws in this regard. R.F. Technologies,

Inc. will not be held responsible for any illegal actions committed by illegitimate use of

audio/video recording equipment.

LEGAL ISSUES: Regarding Audio Surveillance

In general, most video recordings are legal in the U.S. with or without consent.

Laws do exist regarding “Invasion of Privacy” which deal with the area of expected

privacy. These include areas such as bathrooms, locker rooms, changing/dressing

rooms, adult bedrooms, and other areas where a person should expect a high level of

personal privacy. While the majority of laws dealing with video recording privacy issues

tend to allow surreptitious recording and monitoring of video activity under most

circumstances without notification of any of the parties involved, it is highly

recommended that you consult with your local or state law enforcement or an

attorney who specializes in this area to comply with all local laws and regulations

prior to utilization of video surveillance and monitoring. It is also advised that

notice/disclaimer of “Video Surveillance on These Premises,” be prominently displayed in

public areas.

LEGAL OVERVIEW: Surveillance & Recording

www.bigdogsurveillance.com

1. Be careful and avoid leaking water into the camera

2. Please do not shake or drop the camera

3. Please do not handle the surface of the lens

4. Power supply input should be correct

5. Avoid using the camera under the following conditons:

• Do not focus directly on sun

• Environment temp. higher than +50º C, or lower

than -10º C

• Humidity is higher than 90RH% or dewing condition

COLOR CCD DOME CAMERA

INSTRUCTION MANUAL

1. Window for cover

2. Lens of camera

3. Camera

4. Cover

5. Bottom Base

6. Screw hole for xation *4

7. Cable

8. DC JACK (ø2.0) for Power In

9. BNC(/F) JACK for Video Out

PRECAUTION PARTS

1. Instruction Manual *1

2. Screws *4

ACCESSORIES

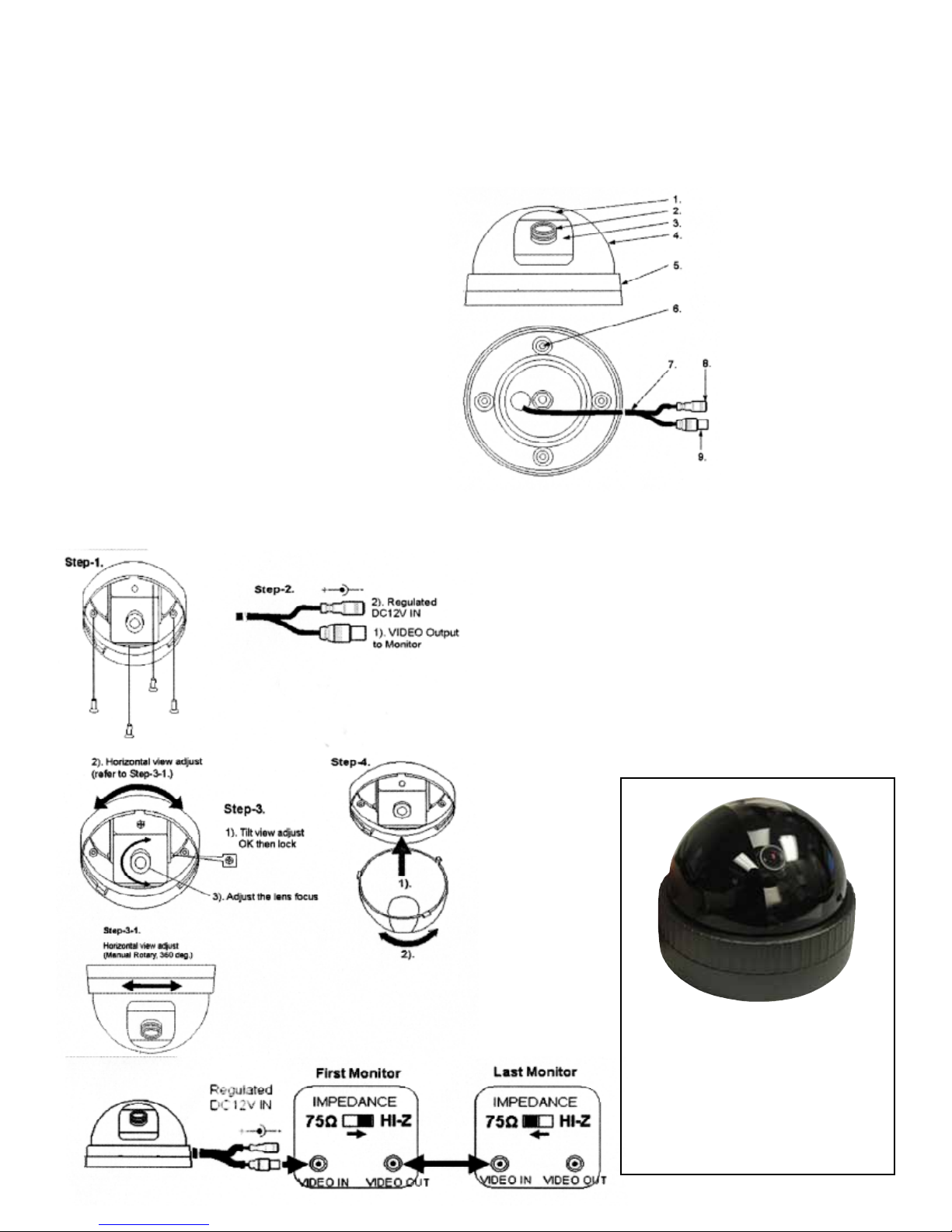

Step-1: Using the screw to x the bottom base on the ceiling.

Step-2: VIDEO Out and Power in.

Step-3: Adjust the position of Camera as you need.

Step-4: Install the cover, the transparent window in the front of the cam-

era. Adjust for proper positioning.

INSTALLING & CONNECTING

CONNECTIONS

• Is the system power on?

• Is the cable connected properly?

• Is the lens clear?

• Is the lens properly focused?

• Is the monitor properly adjusted?

• Is the montiro terminated properly?

TROUBLESHOOTING

POWER REQUIREMENTS

Never attach power leads to a POWER SUPPLY box while 120V AC power is active. Always turn o or unplug

the power source prior to any work being done. Failure to do so may result in damage to your euqipment

and cause bodily harm.

The following is a list of equipment and the voltage reuqirements:

RFT P/N Description Voltage

120LED Heavy duty indoor / outdoor LED camera 24VAC

24LED Indoor / outdoor infrared LED camera 12VDC

CAMSMKNW Smoke detector camera 12VDC

DOME Indoor dome camera 12VDC

DOME5500 Vandal proof indoor / outdoor dome camera 12VDC / 24VAC

LTC045520 Indoor box camera 12VDC / 24VAC

MIC Microphone 12VDC

VC-KIT-H26HB Heated, metal, outdoor housing 24VAC

For items not listed, please check packaging and documentation for voltage requirements.

Connecting equipment to incorrect power can result in damage and void warranty.

If you have any questions or concerns, please contact technical support before continuing.

POWER SUPPLY WARNING

Never attach power leads to a POWER SUPPLY box while 120V AC power is active. Always turn o or unpllug

the power source prior to any work being done. Failure to do so ma result in damage to your equipment and

cause bodily harm.

Before attaching any equipment to the power supply, make sure you are aware of each individual hardware’s

power requirement. Each power supply is clearly marked inside of the housing unit with specic voltage.

Incorrectly attaching equipment to the wrong power source can result in damage and will not be covered

under warranty.

POWERVAR LINE CONDITIONERS

What is the difference between a surge protector and power conditioner?

SURGE PROTECTORS

• Clamping voltage - this tells you what voltage will cause the MOVs to conduct electricity to the ground line.

Generally, a clamping voltage more than 400V is too high.

• Energy absorbtion - This rating, given in joules, tells you how much energy the surge

protector can absorb before it fails.

• Response time - Surge protectors don’t kick in immediately; there is a very slight

delay as they respond to the power surge. A longer response time tells you that

your computer (or other equipment) will be exposed to the surge for a grater

amount of time. All MOVs will burn out after repeated power surges, but the

protector will still function as a power strip. Without an indicator light, you have no

way of knowing if your protector is still functioning properly.

POWER CONDITIONERS

Ground Guard power conditioners are isolation transformer based, and are not rated in

joules like a surge protector product. All products are injected with a 6000-volt, 1000k Hz, 500 amp ring-wave with a

Key-Tek surge generator, simulating a lightning strike. To pass this testing the unit must withstand this test with a let

thru voltage of less than 10 volts on normal mode (between hot and neutral) and less than on common mode (ground).

The power conditioners response time is instantaneous, and they do not degrade the burn out over time like an MOV

based surge protector.

Surveillance 1 Year Extended & Expanded Warranty

1-year extended & expanded warranty available within 30 days, of purchase. Extended and expanded warranty

provides 100% coverage of DVR unit and other major component parts to 2 years. Call for details.

YES. I would like to purchase the following extended warranty:

4 - Camera System - Parts & Labor $500.00

4 - Camera System - Labor (Excludes Parts) $325.00

8 - Camera System - Parts & Labor $525.00

8 - Camera System - Labor (Excludes Parts) $350.00

16 - Camera System - Labor & Parts $575.00

16 - Camera System - Labor (Excludes Parts) $400.00

Purchase Date _____________

Tracking # ________________

Serial #’s __________________

_________________________

Store Name _______________

Contact __________________

Address __________________

City _____________________

State ____ Zip _____________

Phone ____________________

FAX OR MAIL TO:

Big Dog Surveillance Systems • 542 South Prairie Street | Bethalto, IL 62010

Fax: (618) 377.1320 / Phone: (618) 377.2654

COMPLETE PROTECTION FOR YOUR

BIG DOG SYSTEM IS ONLY

$25

AntiVirus and AntiSpyware to new and existing

Windows based Big Dog Surveillance Systems

For assistance downloading your software, please call

technical support at 1-800-598-2370.

ANTI-VIRUS / SPYWARE PROTECTION

MAY BE PURCHASED WITH YOUR BIG DOG SURVEILLANCE SYSTEM

SECURE. PROTECT. DEFEND.

TECHNICAL SUPPORT

1.800.598.2370

Please refer to your manual

for instructions on burning a

CD / DVD, searching through

video or audio, adjusting

camera settings, adding

users, and system setup.

INSTRUCTIONS,

MANUALS, AND ONLINE

SUPPORT FILES FOR

YOUR BIG DOG SYSTEM

ARE ALSO

AVAILABLE ONLINE

www.rftechno.com

THANK YOU FOR CHOOSING BIG DOG SURVEILLANCE SYSTEMS

www.bigdogsurveillance.com

BIG DOG

SURVEILLANCE SYSTEMS

A DIVISION OF R.F. TECHNOLOGIES, INC.

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
