1. SCOPE
This document defines the performance requirements for a 15.3-inch TFT LCD color monitor with touch
screen for medical use. This product is controlled by model name; any change will be recorded in the list
and confirmed by customer.
This high-resolution color display is specifically designed to meet the rigorous performance standards
needed for surgery. To guarantee image integrity, features include accurate signal conversion.
Last change:
2013-3-20 Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd HL1530 Page 5 of 23
Abbreviations
The following abbreviations are used in this document:
Acronym Definition
AC Alternating Current
AI Assembly Instruction
ATE Automated Test Equipment
BIST Built In Self Test
BLS Backlight Stabilization
CCC China Compulsory Certification
CR Contrast Ratio
DC Direct Current
DDC Display Data Channel
EDID Extended Display Identification Data
EEPROM Electrically Erasable Programmable Read only Memory
ESD Electric Static Discharge
GND Ground
HDMI High Definition Multimedia Interface
I2C IC to IC Communication
LCD Liquid Crystal Display
LED Light Emitting Diode
MTBF Mean Time Between Failures
PCAP Projective Capacitive
P/N Part Number
USB Universal Serial Bus
VESA Video Electronics Standards Association
WXGA Wide Extended Graphics Array, a standard resolution
Last change:
2013-3-20 Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd HL1530 Page 6 of 23
2. ELECTRICAL PERFORMANCE
2.1 Power Supply
Tab. 2.1
-Input Voltage : DC12V ± 10%
- Current (max) : 3.0 A
- Frequency : 50/60Hz ± 3Hz
- Power Consumption : <30W
2.2 Power Management
The following table shows the power consumption feature:
Tab. 2.2
VESA Modes Horizontal
Sync Vertical Sync Video Power
Indicator Power Consumption
Normal operation Active Active Active Green Less than 30 W
Active-off mode Inactive Inactive Blanked
Green
blinking Less than 15W
While there is no sync the monitor power indicator LED will be in green blinking status.

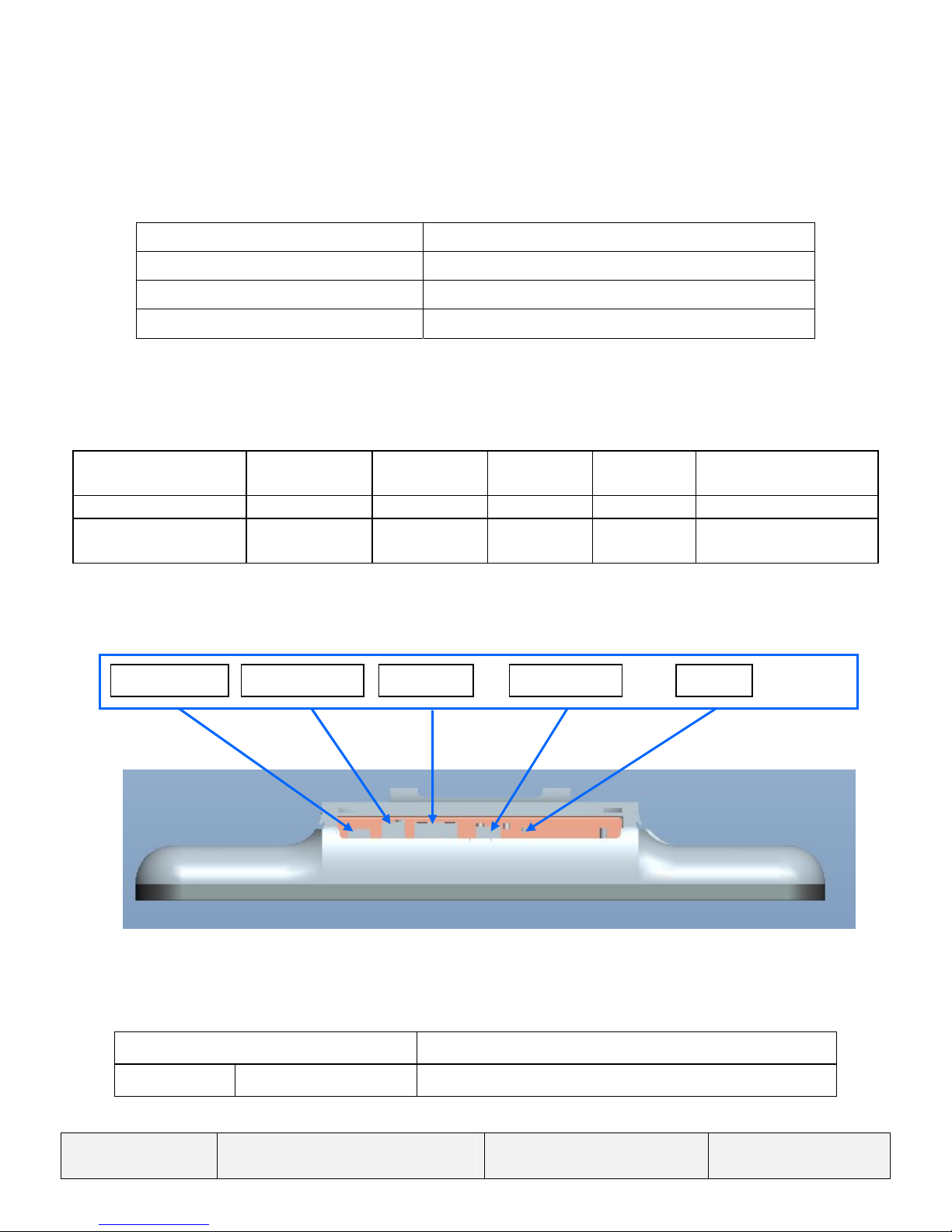

2.3 Interface
Fig. 2.1
2.3.1 Signal Specifications
Tab. 2.3
Item SPEC
HDMI Port HDMI single link Input Impedance: 50 ohm
PE
USB (Type A) USB (Type B) HDMI DC Power LED
Last change:
2013-3-20 Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd HL1530 Page 7 of 23
HDMI EDID datum EDID via HDMI I²C bus
DigitaL (HDMI) EDID
00 FF FF FF FF FF FF 00 0A 84 16 19 01 00 00 00
32 13 01 03 81 26 1E 78 2E AE A5 A6 54 4C 99 26
14 50 54 BF EF 80 81 80 01 01 01 01 01 01 01 01
01 01 01 01 01 01 30 2A 00 98 51 00 2A 40 30 70
13 00 78 2C 11 00 00 1E 00 00 00 FD 00 38 4B 1E
51 0E 00 0A 20 20 20 20 20 20 00 00 00 FC 00 48
4c 31 39 31 36 56 0a 20 20 20 20 20 00 00 00 10
00 00 3D 40 00 C0 03 00 78 2C 11 00 00 1E 00 F6
Note: the datum above for reference only. Serial number, week and year will be changed according to
manufacture order.
Manufacture Serial Number
Serial Number
The manufacture serial number consists of 14 characters (majuscule and numbers), format as below:
10287 12 9 1 10 001
Serial number
Top Version
Pilot Number
Month （1,2,3,4,5,6,7,8,9,A,B,C）
Year
The last figure of production number.
Notes: Month using hexadecimal, A, B, C substitute for October, November, December.
Example: HL1530 products machine Part Number301010287, TOP version 1.0, in March 2013, the
first batch , the serial number of the first production is 10287133110001.
Serial number
Week, year
Last change:
2013-3-20 Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd HL1530 Page 8 of 23

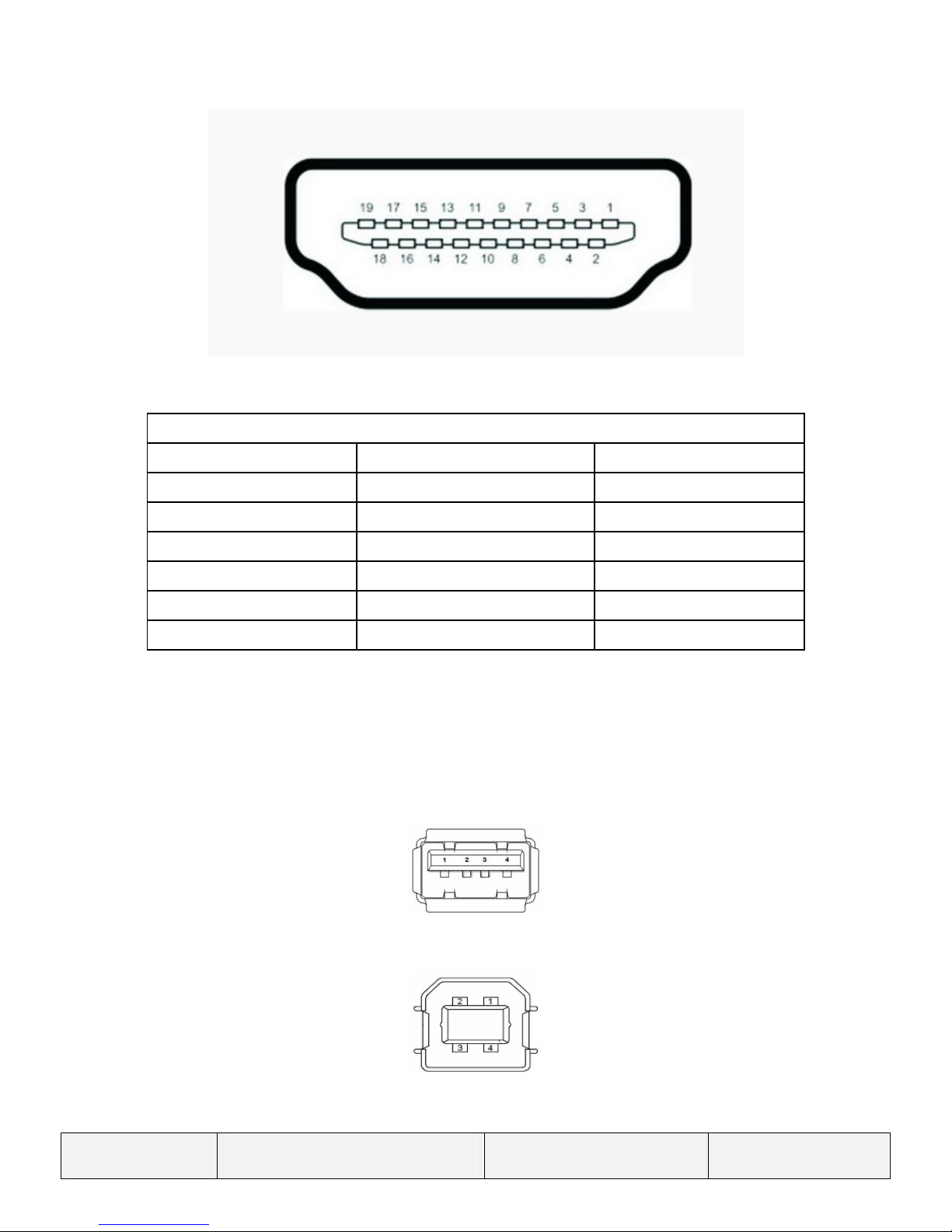

2.3.2 HDMI connector
Fig. 2.2 HDMI connector
Tab. 2.4
Pin - Assignment of 19-pin HDMI Female Connector
Pin 1 - TMDS Data2+ Pin 8 - TMDS Data0 Shield Pin 15 - SCL
Pin 2 - TMDS Data2 Shield Pin 9 - TMDS Data0– Pin 16 - SDA
Pin 3 - TMDS Data2– Pin 10 - TMDS Clock+ Pin 17 - DDC/CEC Ground
Pin 4 - TMDS Data1+ Pin 11 – TMDS Clock Shield Pin 18 - +5V Power
Pin 5 - TMDS Data1 Shield Pin 12 - TMDS Clock– Pin 19 - Hot Plug Detect
Pin 6 - TMDS Data1– Pin 13 - CEC
Pin 7 - TMDS Data0+ Pin 14 - Reserved (N.C. on device)
2.3.3 USB Interface
The monitor supports touch function, the touch screen can be used in the Microsoft® Windows 7.
Fig.2.3 USB-Aconnector
Fig.2.4 USB-B connector
Last change:
2013-3-20 Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd HL1530 Page 9 of 23
Tab. 2.5
Pin Signal
1 VBUS
2 D-
3 D+
4 GND
USB A-Type
Used for external USB function, such as a USB mouse, flash disk.
USB B-Type
Used for Touch panel control.
2.4 Panel Features
Tab. 2.6
Panel Module NLT12876BC26-32D
Size 15.3” (39 cm diagonal)
Aspect Ratio 15:9(W:H)
Active Display Area 334.08 (H) x 200.45 (V) mm
Resolution 1280(H)x 768 (V)pixels
Pixel Pitch 0.261(H) x 0.261(V) mm
Color Depth 16.7M (At 8-bit input, FRC terminal =Low or Open)
Back Light LED
Surface treatment Anti-Glare treatment
2.5 Display Performance
2.5.1 Standard Testing Conditions
Tab. 2.7
- Warm up time ＞20 minutes.
- DC supply voltage 12V DC, 60Hz
- Ambient temperature 20°C -25°C
- Relative Humidity 30% --80%
- Video signal 1280 x 768 @ 60Hz; HDMI
- Ambient Environment Dark
- LUT Setting TBD
- Luminance meter Minolta CA-210 or equivalent
Last change:
2013-3-20 Copyright @ Shenyang
Torch-Bigtide Digital Tech.,Co.,Ltd HL1530 Page 10 of 23
2.5.2 Brightness (TBD)
2.5.3 View angle
Left/Right: 88/88 degree (Typ.); 80/80 degree (Min.) (CR≥10) (Note 2)
Up/Down: 88/88 degree (Typ.)/; 80/80 degree (Min.) (CR≥10) (Note 2)
2.5.4 Brightness Uniformity
Deviation less than 30% (Note 5)
2.5.5 Contrast ratio
700:1 (Typ.) (note 3)
500:1 (Min.)
2.5.6 White Color Coordinates (TBD)
2.5.7 Response Time
Typical (Tr+Td): 14+11ms (Note 6)
Max. (Tr+Td): 20+15ms (Note 6)
2.5.8 Color Gray
64 gray level should seen clearly
256 gray levels should be seen smoothly
2.6 Touch screen Performance
2.6.1 Features
Tab. 2.8
Item Specification
Type P-CAP
Input Mode Finger
Cable FCC
2.6.2 General Specification
Tab. 2.9
Indice
