Billion BiPAC 7404VNOX Manuale utente

BiPAC 7404VNOX

BiPAC 7404VNPX

3G/ VoIP/ 802.11n ADSL2+

(VPN) Firewall Router

Quick Start Guide

Billion BiPAC 7404VNOX/7404VNPX 3G/VoIP/802.11n ADSL2+ (VPN) Firewall Router

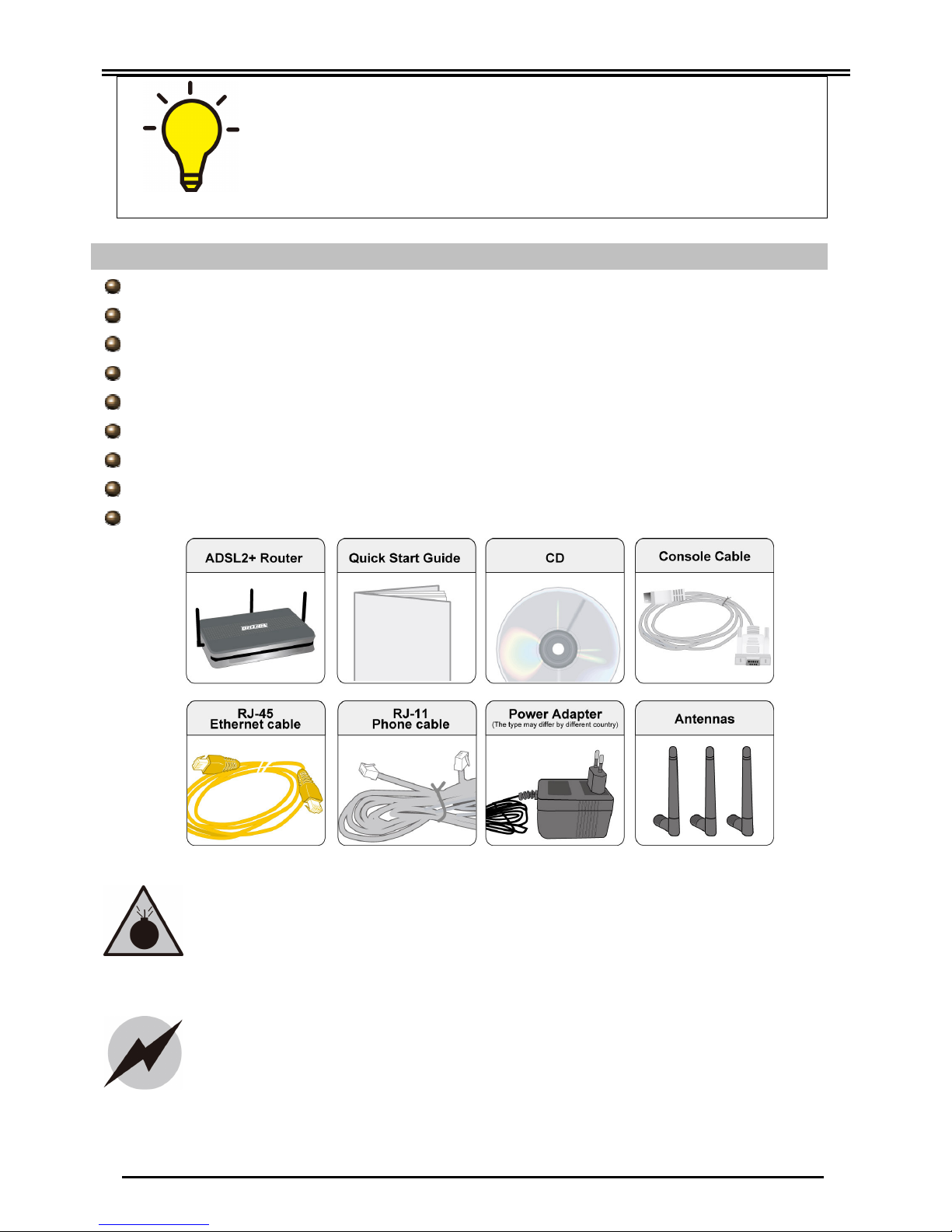

Package Contents

BiPAC 7404VNOX/7404VNPX ADSL2+ Router

CD containing the on-line manual

RJ-11 ADSL/telephone cable

Ethernet (RJ-45) cable

Three 2dBi detachable antennas

Power adapter

PS2-RS 232 console cable

This Quick Start Guide

Splitter/ Micro-filter (Option)

Warning

PLEASE READ THE QUICK START GUIDE AND FOLLOW THE

STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU

INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE.

IF YOU NEED MORE INFORMATION ON THIS SOFTWARE

CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON

CD-ROM.

Do not use the router in high humidity or high temperatures.

Do not use the same power source for the router as other

equipment.

Do not open or repair the case yourself. If the router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.



Avoid using this

product

and all

accessories

outdoors.

Place the router on a stable surface.

Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Attention

Quick Start Guide

Hardware Overview

The Front LEDs

The Rear Ports

Connect

it with

the

supplied power

adapter.

Connect

to the

ADSL

telephone network with

RJ-11 cable (telephone).

Press

the RESET

button for 6

seconds and

above to restore

the factory

default settings.

onnect

to a PC or an

office/home network

of 10/100/1000Mbps

with UTP Ethernet

cable.

Connect

with

the detachable

antenna

Connect

to the

telephone jack on the

wall with RJ-11 cable.

Connect

to an

analog phone set

with RJ-11 cable.

Lit when connected to an

Ethernet device.

Lit Green for 1000Mbps;

Orange for 100Mbps; but

no light for 10Mbps.

Blink when data is being

Transmitted / Received.

t green

when the

phone is

off hook

Lit Green when

successfully

connected to an

ADSL DSLAM,

(“line sync”).

Lit green when a

wireless connection is

established. Flash green

when the device is

sending/receiving data.

Lit

green when the

USB device is ready.

Flash when data is

being transmitted /

received.

Power

ON/OFF

switch

Lit red when WAN port fails to

get IP address. Lit green when

WAN port gets IP address

successfully. Lit off when device

in bridged mode or WAN

connection not present.

Lit

green

when the

inbound and outbound

calls are transmitted

through PSTN.

Lit green when SIP

registration is ok for phone

1 or orange for phone 2.

When registration for both

phone 1 & 2 are ok, both

green and orange light will

lit together.

Push

to trigger Wi

Protected Setup

function.

3G/ HSDPA USB

modem backup for

Internet access

Lit

orange red

when

power is ON. Lit red

means system is fail.

Lit green when the

system is ready.

Billion BiPAC 7404VNOX/7404VNPX 3G/VoIP/802.11n ADSL2+ (VPN) Firewall Router

Hardware Connection

Hardware Installation

1. Power Connection

Plug the supplied power adapter to the wall jack and the other side t

o the router.

Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to one of the Ethernet ports, and the

other side to the PC’s Ethernet interface.

Quick Start Guide

3. USB Connection

The USB 2.0 port supports 3G/HSDPA modem connectivity: users can

conveniently access Internet via 3G, eliminating the limitations of the wired

network. This solution also employs an auto fail-over feature to ensure always-on

connectivity for SOHO users.

4. Phone Connection

Connect RJ-11 cable to the router’s “Phone 1” or “Phone 2” when connecting to an

analog phone set. Both ports (“Phone 1” and “Phone 2”) can make VoIP calls

simultaneously. But only one phone is allowed to make PSTN call at the same

time

Billion BiPAC 7404VNOX/7404VNPX 3G/VoIP/802.11n ADSL2+ (VPN) Firewall Router

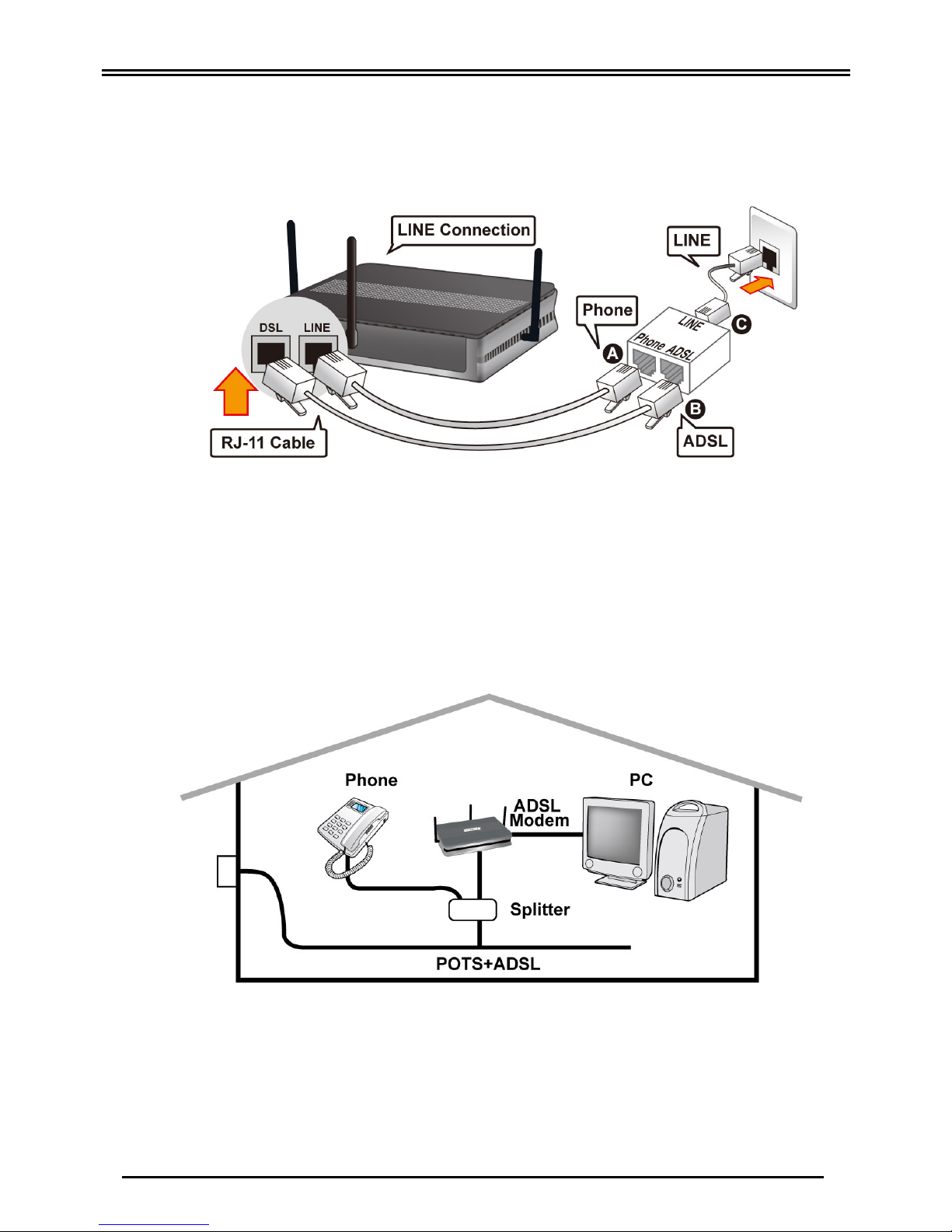

5. Line Connection

a) Connect RJ-11 cable to the router DSL port and the splitter ADSL port.

b) Connect RJ-11 cable to the router Line port and the splitter phone port.

c) Connect RJ-11 cable to the splitter Line port and the phone jack on the wall.

6. Splitter/ Micro-filter Connection

The Splitter / Micro-filter are important for ADSL installation, they help direct

high-frequency signals to the ADSL modem & low frequency signals to the

telephone or other analogue device to prevent inter-modulation distortion & get

good speed/stable ADSL sync rate.

a) Splitter connection

If the installation has only a single telephone and a single ADSL modem, then a

splitter can be employed.

Quick Start Guide

b) Micro-filter connection

If the installation has several telephones or other analog devices, then an internal

micro-filter can be employed at each analog device.

Setup Utility

After you complete the hardware installation insert CD into the CD Drive to run the setup utility.

The setup utility will auto-run. Follow the step-by-step configuration wizard & it will guide you to

setting up the basic network configuration.

Troubleshooting

1. None of the LEDs are on when you turn on the router.

Check the connection between the adapter and the router. If the error persists, you may have

a hardware problem. In this case you should contact technical support.

2. You have forgotten your router login and/or password.

Try the default login and password, please refer to Chapter 3. If this fails, you can restore

your router to its factory settings by holding the Reset button on the back of your router for 6

seconds or more.

3. Can’t ping any PCs on the LAN.

Check the Ethernet LEDs on the front panel. The LED should be on for a port that has a PC

connected. If it is off, check the cables between your router and the PC. Make sure you have

uninstalled any software firewall for troubleshooting. Verify that the IP address and the subnet

mask are consistent between the router and the workstations.

4. Frequent loss of ADSL line sync (disconnections).

Ensure that all other devices connected to the same telephone line as your router (e.g.

telephones, fax machines, analogue modems) have a line filter connected between them and

the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified

and licensed electrician), and ensure that all line filters are correctly installed and the right

way around. Missing line filters or line filters installed the wrong way around can cause

problems with your ADSL connection, including causing frequent disconnections. If you have

a back-to-base alarm system you should contact your security provider for a technician to

make any necessary changes.

Billion BiPAC 7404VNOX/7404VNPX 3G/VoIP/802.11n ADSL2+ (VPN) Firewall Router

Product Support and Contact Information

Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.

If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Contact Billion

WORLDWIDE

http://www.billion.com

Billion Product Registration

Billion is committed to before and after sales customer services. You will get the most out of your Billion's products

after registration. Please register online at www.billion.com/register to receive valuable services and support from

us.

7404V

OX/V

V1.00EN
