Instruction Manual

Maple 7/7 Pump

Model 10 40 40

Instruction Manual

Page 2 of 16 Issue: 1.0

Instruction Manual

Page 3 of 16 Issue: 1.0

Specification

Pump Ratio 7:1

Max. Air Pressure Inlet 7 Bar

Max. Flui Pressure 49 Bar

Nominal Flow Volume / Cycle 0.166 Litres

0.044 US Gall

Flui Output @ 60 cycles/min 10.0 Litres / min

2.6 US Gall / min

Maximum Recommen e Continuous Cycle Rate

Maximum Recommen e Intermittent Cycle Rate

20 Cycles /min

40 Cycles /min

Flui Connections

Inlet

Outlet

1” Sanitary

½” NPT Female

Compresse Air Inlet 3/8” BSPP / NPSM

Air Volume / cycle

0.17 SCFM (4.8 L/m) @ 45PSI (3.1 Bar)

0.33 SCFM (9.3 L/m) @ 90 PSI (6.2 Bar)

Air Flow @ 15 cycles/min 6 bar

Air Flow @ 30 cycles/min 6 bar

5 CFM (142 L/min)

10 CFM (283 L/min)

Max. Pump Inlet Pressure 2 Bar (30 PSI)

Air Quality ISO 8573.1 Class 3.3.2 # (See Note)

Dirt 5 microns

Water -20ºC@7bar (940ppm)

Oil 0.1mg/m³

Total Weight of Pump 20 Kg / 44 lbs

# Note: Class 3.4.2 Air Quality (Refrigerant rie - water +3ºC@7bar) may be use ,

however, above 15 cycles/min optional heavy uty mufflers 192821 or pipe exhaust

system shoul be use , if use continuously.

Instruction Manual

Page 4 of 16 Issue: 1.0

Instruction Manual

Page 5 of 16 Issue: 1.0

Instruction Manual

Page 6 of 16 Issue: 1.0

KEY

= GREASE (AGMD

010)

= LOCTITE

= TORQUE

= GREASE INTERNAL (AGMD-010)

= MAINTENANCE ORDER

(REVERSE FOR ASSY)

TEM

DETAIL

Instruction Manual

Page 7 of 16 Issue: 1.0

Parts List – 104040

ITEM PART No DESCRIPTION QTY REMARKS

0115-010037 POPPET ASSEMBLY 2

#

0115-010102 AIR VALVE ASSEMBLY 1

161993 Ø20.35 x 1.78 VITON O-RING 2



161994 Ø4.47 x 1.78 O'RING 4



161995 Ø19.5 x 3.00 O-RING 2



161998 Ø125 x 2 O-RING 2



162703 S AFT SEAL 2



162746 Ø25 X 1.6 O'RING PTFE 2



162833 S AFT BEARING 2



163920 M6 x 30 CAP D SCREW (ST ST) 4

164838 No 2 x 4.75 RIVET 2

165044 M12 SPRING WAS ER STST 16

165123 M10 SPRING WAS ER (STST) 8

165528 M4 x 16 CAP D SCREW (STST) 4

165948 M10 x 40 CAP D SCREW (ST ST) 8

165960 M12 x 40 CAP D SCREW (ST ST) 8

165970 M4 PLAIN WAS ER (STST) 4

165971 M4 SPRING WAS ER (STST) 4

171714 3/4 BALL 440C 2



177009 M12 X 35 CAP EAD SCREW 8

177038 M10 x 12 BUTTON D CAP SCREW (STST) 4

192009 1 & 1 1/2 SANITARY CLAMP 2

192206 1 SANITARY GASKET PTFE 2



192374 RETAINING NUT 2

192579 KNIFED BELLOWS 2

#

192763 BELLOWS SPACER 2

192764 PUMP BRACKET 2

192777 1" MUFFLER 2

192799 VENT PLUG 2

192812 EX AUST ADAPTER 1

192814 BELLOWS LEAK OSE 1



192815 1/8R - 6MM PUS IN ELBOW 2



192831 AIR CYLINDER 1

193190 OUTLET SEAT 2

193195 FLUID PISTON SEAL 2

#

193225 OUTLET CYLINDER 2

193357 PISTON ASSEMBLY 2

193360 INLET MANIFOLD 1

193367 OUTLET C ECK 2

193419 OUTLET MANIFOLD ASSEMBLY 1

193775 NAMEPLATE 1

193861 ENDCAP 2

193862 INLET CYLINDER 2

Detail A AIR MOTOR PISTON ASSEMBLY 1

Instruction Manual

Page 8 of 16 Issue: 1.0

Item 4 – Detail A

ITEM PART No DESCRIPTION QTY REMARKS

50 162707 PISTON SEAL 1



51 165973 M12 x 45 GRUBSCREW (ST ST) 1

52 192759 PISTON S AFT 2

53 192832 PISTON 1

= GREASE (AGMD-010)

= LOCTITE

= TORQUE

= GREASE INTERNAL

(AGMD-010)

= MAINTENANCE ORDER

(REVERSE FOR ASSY)

KEY

Instruction Manual

Page 9 of 16 Issue: 1.0

Item 42 - 193357 Piston Assembly

ITEM PART No DESCRIPTION QTY REMARKS

60 160526 CONICAL SPRING 1



61 162743 Ø33 X 2 'O' RING PTFE 1



62 162744 Ø23.52 X 1.78 ORING PTFE 1



63 162745 Ø29.9 X 1.78 O'RING PTFE 1



64 193181 0.875 BALL 1



65 193188 INLET SPRING KEEP 1



66 193189 PISTON SEAT 1

67 193358 Ø46 PISTON 1

68 193359 PISTON KEEP 1

= GREASE (AGMD-010)

= LOCTITE

= TORQUE

= GREASE INTERNAL (AGMD-010)

= MAINTENANCE ORDER

(REVERSE FOR ASSY)

KEY

Instruction Manual

Page 10 of 16 Issue: 1.0

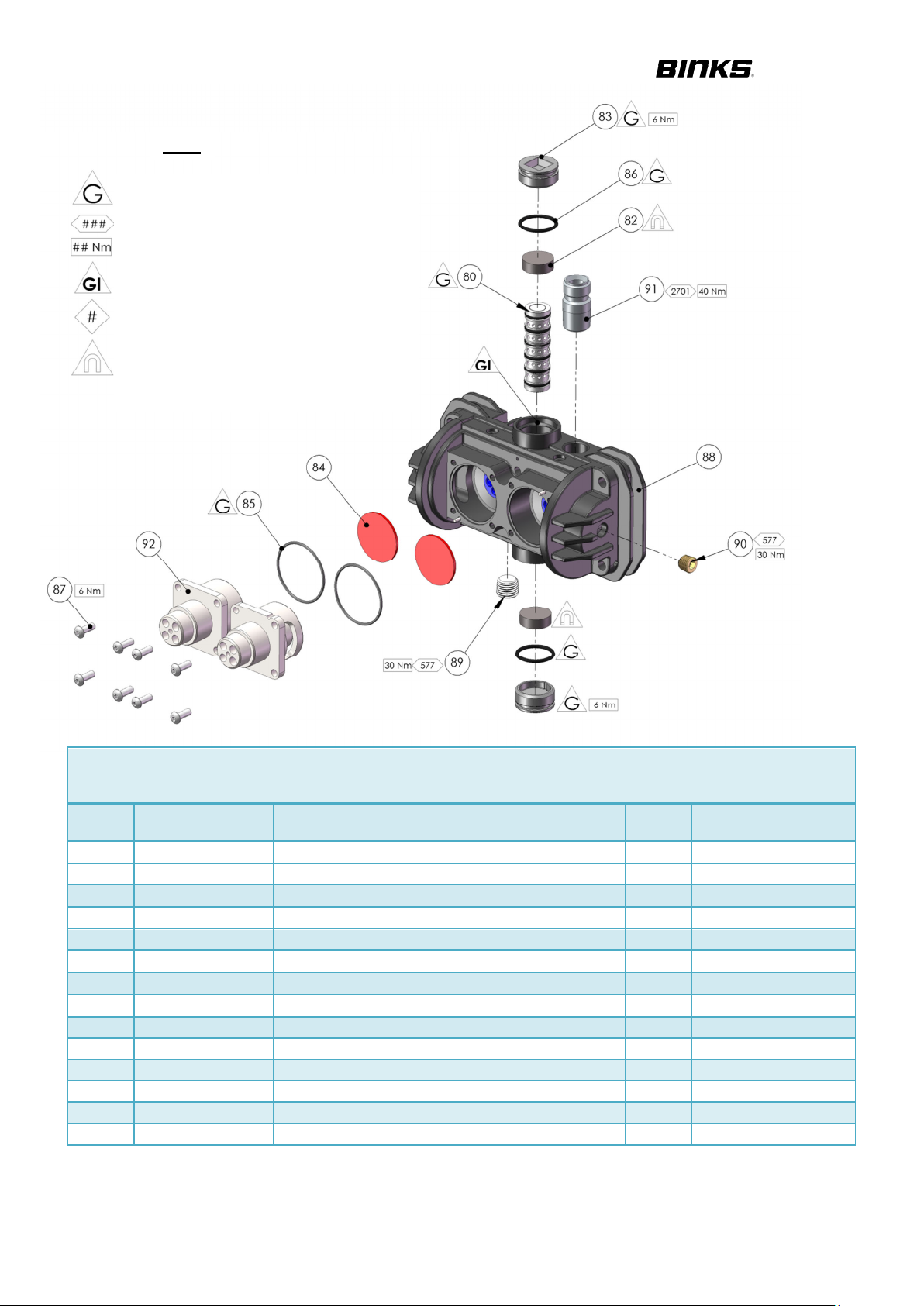

Item 1 - 0115-010102 Valve Assembly

ITEM PART No DESCRIPTION QTY REMARKS

80 0115-010015 SPOOL AND SLEEVE ASSEMBLY 1



162789 SPOOL AND SLEEVE O’RING 6

Not Shown

81 0115-010016 BUMPER 2



82 0115-010017 MAGNET 2



83 0115-010018 VALVE BLOCK END CAP 2

84 0115-010020 DIAP RAGM 2



85 0115-010021 O-RING 1.5 X 36 2



86 0115-010049 O-RING 2 x 20 2



87 0115-010073 M4 x 12 S CS 8

88 0115-010097 VALVE BLOCK 1

89 0115-010103 1/4 BSPT PIPE PLUG 1

90 0115-010107 1/8 BSPT PIPE PLUG 1

91 180584 3/8 UNIVERSAL FITTING 1

92 192813 QUICK EX AUST VALVE CAGE 2

= GREASE (AGMD-010)

= LOCTITE

= TORQUE

= GREASE INTERNAL (AGMD-010)

= MAINTENANCE ORDER

(REVERSE FOR ASSY)

= MAGNET HAZARD

KEY
