A229-2 MASSAGE CHAIR
01
Before use
14-20
20
Maintain
21
22
23
Operation Instructions
Massage close
Cleaning and Maintenance
Troubleshooting
Product Specifications
Safety Precautions
Installation parts
Place massage chair
Before use

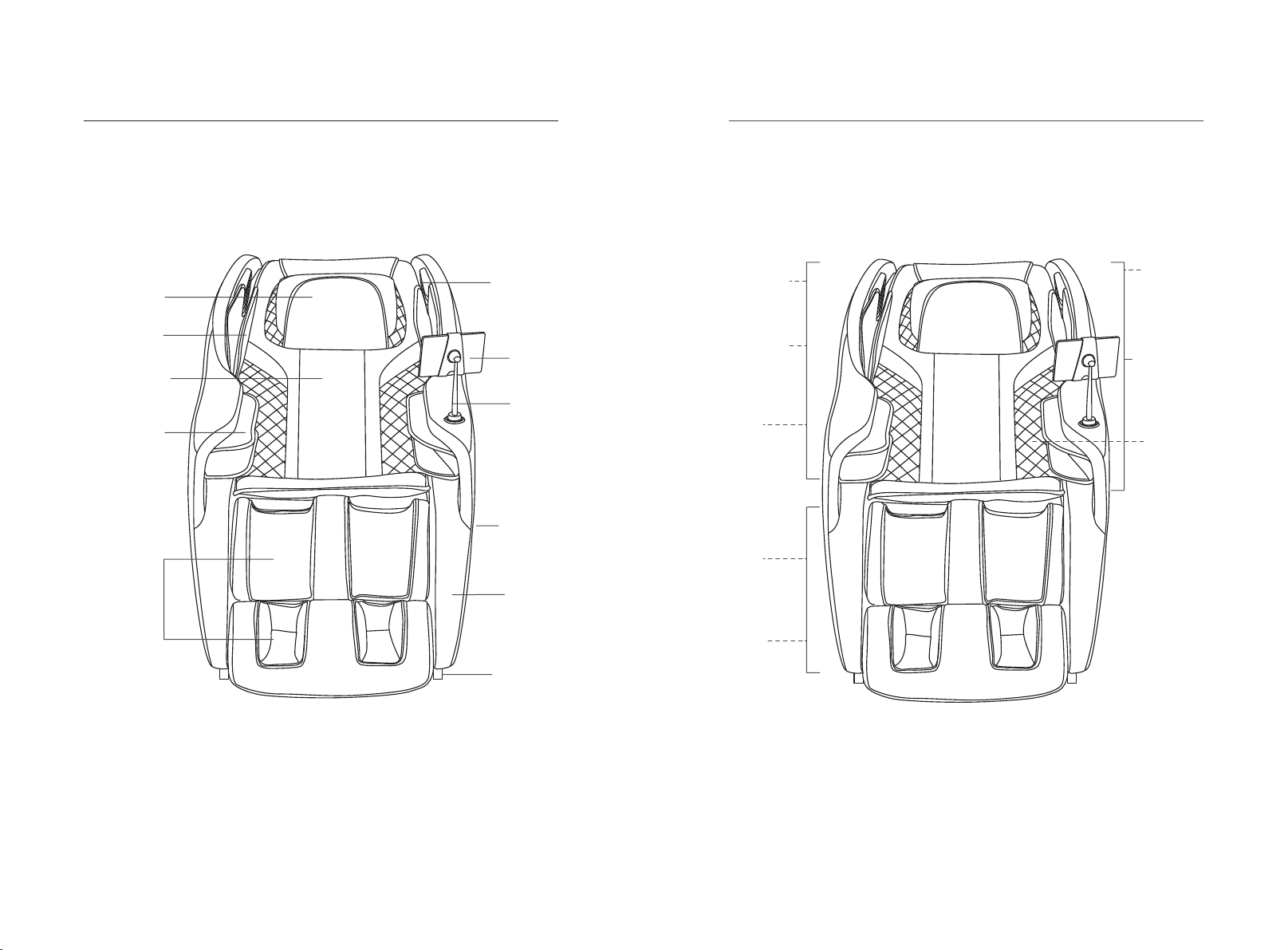

Product structure
02-04
05
06-07
08-09
10-13
TABLE OF CONTENTS
Usage method
Important
Thanks for purchasing this product. Please read this manual instruction carefully in
order to know how to use this product correctly before operation. Please pay more
attention to some important safety warning and keep this manual book properly for
future use.
Note: Our company reserves the right to change and explain the design of the
product. If there is some difference between the product function in market
circulation and the description in the manual, it is a normal update of the product,
and our company will not inform you otherwise. The specific product function and
color shall prevail in kind.
03
Safety Precautions must be observed
02
Safety Precautions must be observed
Warning Indicates that serious injury or death may result from
improper use.
■Please pay attention to the symbol before each safety item.
Forbidden
■Please read all relevant instructions carefully before use.
■The notes marked here will help you to use the product safely and correctly.
■In order to clearly indicate the extent of harm and damage, precautions are
divided into "Warning" and "Caution" that may be caused by incorrect use.
Both of them are important for safety and must be followed.
Caution
■The device is not intended for use by persons (including children)
with physical disabilities, sensory or neurological impairments or
who lack experience and common sense, unless they are
supervised and instructed in the use of the device by those
responsible for their safety. Children must be supervised to ensure
they do not play with instruments.
■Patients with osteoporosis.
■Patients with heart disease or wearing electronic medical devices
such as a pacemaker.
■People who have a fever.
■Pregnant women or women on their menstrual period.
■Patients who are injured or have a skin disease.
■When unsupervised, any children are under the age of 14 and
those unconscious are not allowed to use this product.
■People who are told by their physicians to have rest or who feel
unwell.
■People whose bodies are wet are forbidden to use this product.
■This product has a hot surface. Persons insensitive to heat must
pay attention when using this product.
■If the supply cord is damaged, to avoid danger, it must be replaced
by a professional from the manufacturer, its maintenance
department or similar department
Indicates that misuse may cause minor injury or property
damage.
Absolute prohibition
The following populations should not use this product
Important safety warnings
■Do not allow children to touch any movable part of this product.
■Use the well-grounded power supply unit suitable for this product.
■Pull out the plug after use or before cleaning to avoid any physical
injury or damage to the product.
■Operate this product as instructed in this manual.
■Do not use any parts or accessories which are not recommended.
■Do not use this product outdoors.
■Please read the Operation Instructions carefully before operation.
■Never use this product for any other purpose not listed herein.
■20 minutes of usage each time is recommended.
■Do not use this product if the cover or leather is broken or
damaged.
■Do not drop anything into this product.
■Never fall asleep while using this product.
■Do not use this product if you are drunk or feel unwell.
■Do not use this product within one hour after a meal.
■Do not use this product with excessive force to avoid any injury.
Storage conditions
■Storage room temperature: 5 °C to 40 °C.
■Relative humidity (RH) between 20% and 80%; free of corrosive
gases, and a well-ventilated room.
Forbidden
Warnings
■Check whether voltage is consistent with the specification of this
product.
■Never insert or pull out the plug with a wet hand.
■Do not let water flow into this product to avoid electric shock or
cause damage to this product.
■Do not pull the power cord when plugging or unplugging it. Rough
handling is forbidden.
■Do not damage the wire or modify the circuit of this product.
■Do not clean live parts of this product with a wet cloth such as a
power switch and plug.
■Be away from this product in case of power failure to avoid any
injury if power is restored suddenly.
■Stop using this product at once while it works abnormal, and
consult your local supplier.
■Stop using this product if you feel unwell, and consult your health
care practitioner .
Safety precautions
Caution
Caution
04 05
Installation PartsSafety Precautions must be observed

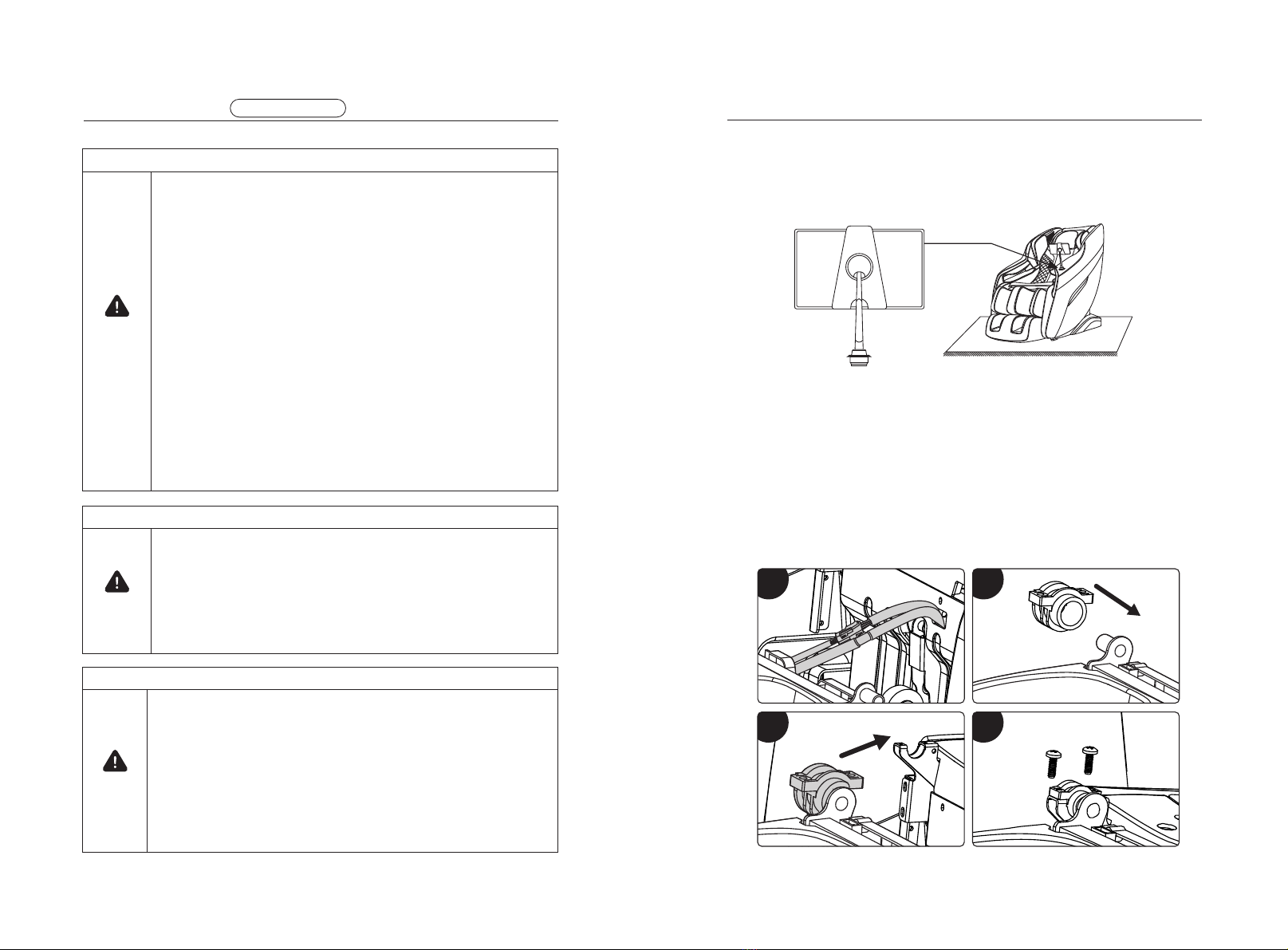

Calf installation instructions
■This product should be maintained by the service center designated
by the manufacturer only. No user should disassemble or maintain it
without permission.
■Do not forget to turn off the main power switch after usage.
■Do not use this product if the power socket becomes loose.
■If this product will be left unused for a long period of time, it is
necessary to roll up the power cord of this product and store this
product in a dry and dust-free environment.
■Do not store this product at a high temperature or near open flame.
Avoid prolonged exposure to direct sunshine.
■Please clean this product with dry cloth. Never use thinner, benzene
or alcohol.
■The mechanical components of this product are specially designed
and manufactured, so no special maintenance is needed.
■Do not use a sharp object to stab at this product.
■Do not roll or pull this product on any uneven ground. Instead, it
should be lifted before moving.
■Please use this product intermittently. Do not keep it working
continuously for a long period of time.
Product service and maintenance
Operating environment
■Do not use this product in a very moist environment such as the
bathroom.
■Stop using this product immediately when the ambient temperature
changes sharply.
■Do not use this product in any heavily-dusty or caustic environment.
■Do not use this product in a small space or a place without good
ventilation.
■If the motor sounds during operation of this product, this is the
normal operation sound.
■If the controller cannot work normally, check whether the plug and
the power socket are connected reliably, and whether the power
switch is turned on.
■If the rated working time is over, this product will automatically
activate the power-off button; If this product keeps operating for a
long period of time, the temperature protector will stop this product
automatically. The product can be used again after half an hour.
Solutions to ordinary malfunctions
Caution
Caution
Caution
Controller bracket installation instructions
After the screw thread on the support knob of the controller rest assembly aligns to
the screw thread position of the support mounting seat on the armrest of the
massage chair, just turn clockwise and screw tightly for fixation.
1.After connecting the lower leg and the air tube on the massage chair with the wire
harness, untie the fixed pipeline belt and insert the connecting part into the seat
frame (Fig. 1).
2.Sleeve the lower leg fixing block on the round tubes on the left and right sides of
the lower leg (Fig. 2).
3.Hang the lower leg sleeved with the fixing block on the hook of the massage chair
seat frame (Fig. 3).
4.Fasten the lower leg on the massage chair with 4 M4 screws (2 on the left and 2
on the right). Check whether there is any abnormality in the up-and-down turning
and whethe(Fig. 4).
Figure 1 Figure 2
Figure 3 Figure 4

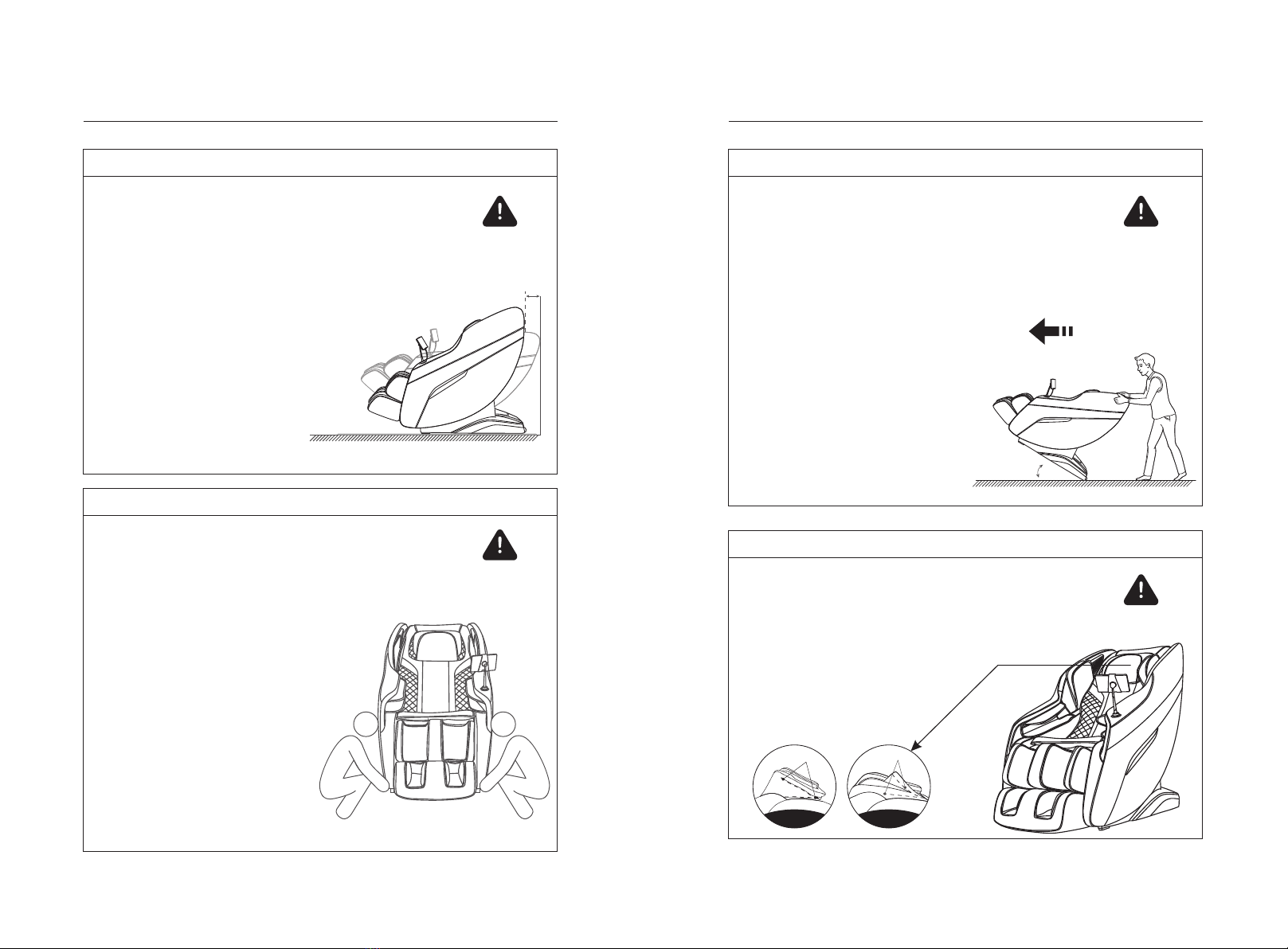

Place Massage Chair
06 07
Place Massage Chair
Make sure there is enough
space for the massage chair can
be tilted at least 20 cm.
Do not expose the massage chair
directly to high temperature
environment due to sunlight(such
as: in front of heating equipment),
and place it to where can avoid
high temperature and direct
sunlight. It is recommended to lay
a soft cushion for long-term use in
a designated location. When laying
the cushion, the size of the
cushion should be enough to cover
Keep the range where the machine
touches the floor and the range
where your feet touch the floor.
Installation placement
CAUTION
CAUTION
Require team work to lift and move
the chair to avoid injury.
1. Please lift the massage chair to
move it on vulnerable ground such as
wooden floor.
2. When moving on a similar wooden
floor, it is recommended to lift it.
Avoid damage to the casters. When
the floor is lifted and moved to the
designated position, be careful to
keep your hands out of the way to
avoid injury, and be careful of your
feet being crushed. Do not let go of
the unit until the unit is completely
flat, the floor may be damaged,
therefore, it is recommended to place
mats, etc. on the floor.
Product lift instruction
How to disassemble and use headrest cushion and backrest cushion
Move method
Using a headrest cushion can reduce
the intensity of kneading massage on
the neck and shoulders, and you can
decide whether to use a headrest
cushion according to your needs
(recommended to use a headrest
cushion). The backrest cushion and the
backrest are connected by a zipper (1),
and the headrest cushion and the
backrest cushion are connected by a
zipper (2).
12
Zipper Zipper
CAUTION
CAUTION
Use the rear casters to move the
massage chair.Move the chair by tilting it
down and backward about 45° as shown
in the diagram.
NOTE: Excessive force to title will cause
the chair to tip over completely and
product damage.
1.Before moving, please shut down the
machine properly to reset the whole
machine, and then cut off the power.
2.Please keep the chair vacant when
moving. (People, pets or clutter will not be
able to stay on the chair.)
3.When moving, do not cross a drop
barrier higher than 2mm or a gap greater
than 5mm.
4.When using casters to move this
product, single continuous movement is
not supported; if the distance exceeds 50
meters, please make this product move
slowly and evenly.
45°
20cm
0809
Before Use
Turn on the power
Caution
Plug in power cord Schematic diagram
of power on
Turn on the power
switch ("I" position)
Before Use
CAUTION
Check around
Make sure there are no foreign objects in the
gaps of the machine
Make sure that there are no people, pets and
other objects around the unit.
CAUTION
Before massaging, make sure that
no foreign objects are caught in the
legs, feet, etc.
Under no circumstances allow
hands, feet, and head to penetrate
into the area between the lower leg
mechanism and main body, or the
area between the armrest and the
capsule.
Under no circumstances should
hands, feet, or head sink under the
fabric or leather covering of the
massage area.
Warn
■Please check the power cord and plug for damage before use.
■Please supply power to this product in accordance with the working
power requirements of this product's calibration.
■It is strictly forbidden to use a power supply other than the nominal
power supply of this product.
■It is strictly forbidden to connect various power conversion devices
without authorization to supply power to this product.
10 11
Product Structure
Parts description Function distribution
Product Structure
Head cushion
Horn cover
Calf massage
Mechanism
Shoulder air
Bag assembly
Back cushion
Arm air bag
Assembly
Armrest
Assembly
Side cover
Voice control
Built-in voice
control Microphone
Shoulder
Hand
Airbag massage
Calf
Airbag massage
Sole
Roller massage
Both sides
Of the head
3d digital audio
Music playback
Head
Neck to seat
Back roller massage
Waist heating
Heating function
Manual
controller
Bracket
holder
assembly
Armrest
decoration
Airbag massage
1213
Ⅰ、Introduction to the remote controller
Product Structure Product Structure
1. LCD: display all massage functions.
2. Foot roller:
·Turn on or off the foot roller massage function, with a total of 3 levels that can be
adjusted.
3. Heating: Turn the heating function on or off.
4. Massage Method:
·There are five simulated massage method: Knead, Shiatsu, Tap, Knock, and
Knead and Knock.
5. Massage position: There are five massage positions: Spot, Partial, Full, Upper
and Lower.
6. Massage speed: Speed adjustment in manual mode. There are five levels.
7. Massage width:
·Manual mode, there are three modes: Knead, Shiatsu and Tap. A total of three
width options can be adjusted.
8. Memory:
·Long press to store the currently running massage program, including massage
technique, air mode and strength, position angle of calf frame and backrest frame,
and other massage functions. One function can be stored.
·Short press to call the previously saved massage program.
9. Timing:
·Timing adjustment: 5 minutes to be added for each press, with the maximum 40
minutes. If 40 minutes are exceeded, it will return to the lowest time value.
10. Massage hand adjustment:
·The upper and lower positions of massage hands can be adjusted in case of Spot
and Partial.
11. Power key: Turn the massage chair on or off.
12. Pause: Pause or start the massage function.
13. Zero-gravity:
·There are two zero-gravity modes and zero-gravity off, which can be cycled and
switched as needed.
14. One-click Start: Return the massage chair to the sitting angle.
15. Seat-down: Adjust the backrest frame down and the calf frame up.
16. Seat-up: Adjust the backrest frame up and the calf frame down.
17. Calf-up: adjust the calf frame up.
18. Calf-down: adjust the calf frame down.
19. Voice control:
·Short press: wake up voice control; long press for 3 seconds: turn on or off the
voice control function.
20. Bluetooth: Turn Bluetooth on or off.
21. Shoulder position adjustment:
·Manually adjust the position of human shoulder and massage the Shiatsu point.
22. Air position:There are three massage positions: Full, Upper and Lower.
23. Air intensity: the function of adjusting air intensity, the air intensity is adjustable
with 5 levels.
24. Automatic mode: fast massage, comfort massage, relax massage, full body
massage, neck and shoulder massage, back and waist massage, stretch massage
and sport recovery.
12 3
45
98 10
11 12
13
15 16
17 18
19 20
24
14
6
7
22 23
21
1415
Operation Instructions

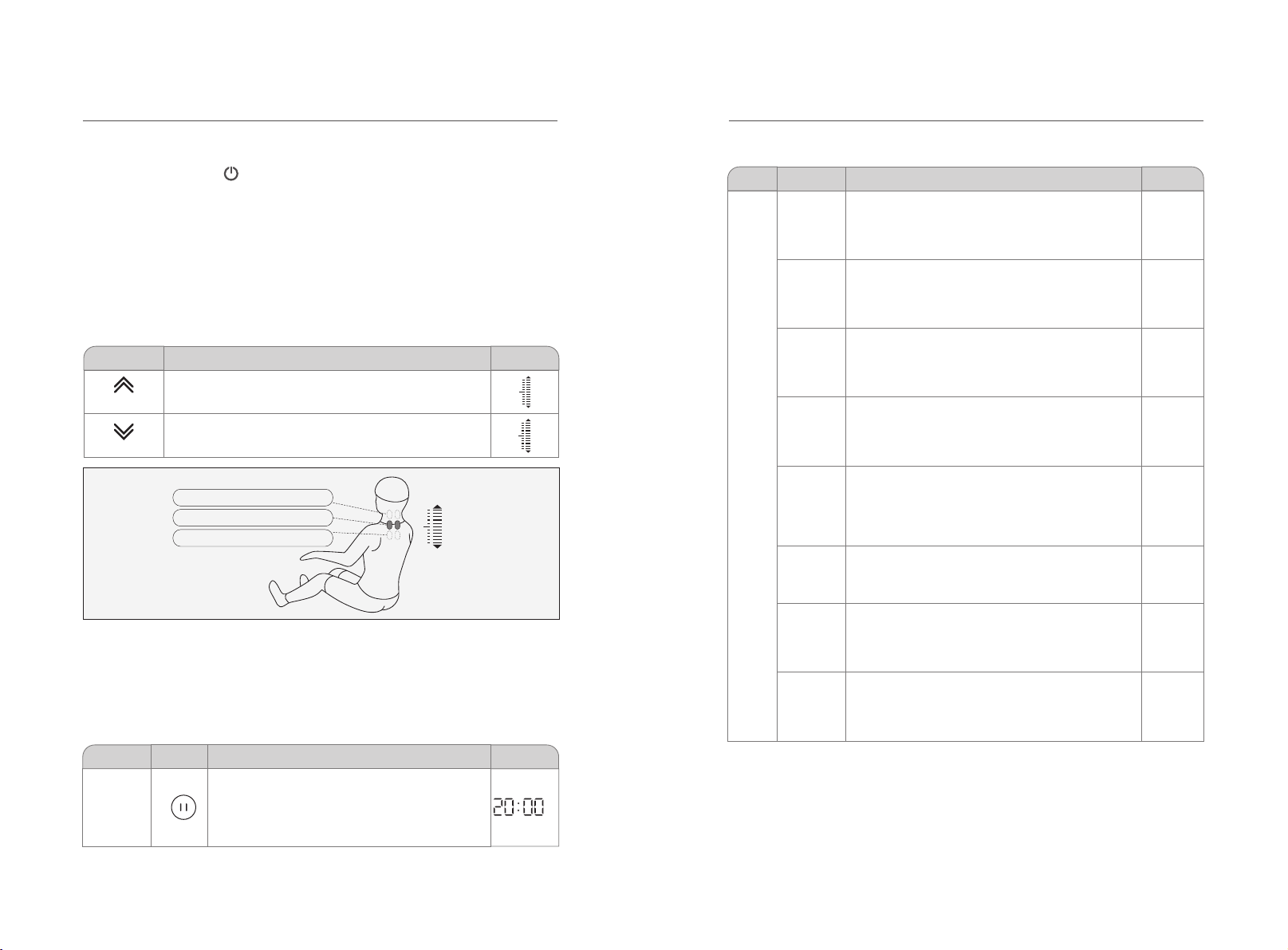

II、Start massage
Operation Instructions
①.Press the power key to start the massage.
②.Automatically adjust the angle.
③.Automatically detect human shoulder position, keep sitting posture fit with
massage chair.
④.Conduct fine adjustment of shoulder position. If the detected position deviates
from the actual shoulder position, adjust to the proper position by Up and Down
keys for shoulder position. Shoulder position is adjustable of 10 gears. If no
shoulder position adjustment within 10 seconds, the massage function will be
started.
Note: The Auto function can be selected during the boot-up process and the
massage can be directly started.
Button Display
Description
Shoulder position
adjustment (Up key)
Shoulder position
adjustment (Down key)
Adjust the massage ball position upward so that it
reaches the proper shoulder position.
Adjust the massage ball position downward so that it
reaches the proper shoulder position.
High shoulder position
suitable shoulder position
Low shoulder position
In the process of shoulder position detection, the shoulder position adjustment icon
is displayed on the screen of the manual controller and the "beep" sound of the
manual controller is heard. At the same time, press the up and down keys of the
shoulder position to adjust the shoulder position. At this time, you can also press 8
automatic massage function keys to enter this mode for massage (Step 4 can be
skipped directly).
Auto 01
·Auto Massage
Button Display
Description
Function
Auto Massage
Fast
Massage
Comfort
Massage
Relax
Massage
Full body
Massage
Neck&
shoulder
Massage
Back&
Waist
Massage
Quickly experience all massage effects.
The most comfortable massage experience.
Gentle and comfortable deep massage, which can
relieve body fatigue and relax the body.
Deep massage, which can revive body vitality.
According to the unique neck and shoulder
massage method, through effective massage of
cervical spine and scapula, neck and shoulder pain
can be relieved and neck and shoulder fatigue can
be improved.
Focus on the back and waist to relieve back and
waist soreness.
The lower leg frame and the backrest frame are
lifted and lowered for stretching and traction of the
leg and waist, effectively relieving tiredness,
relieving joint soreness and restoring vitality.
Quick recovery of body fatigue after exercising.
Stretch
Massage
Sport
Recovery
Auto 02
Auto 03
Auto 04
Auto 05
Auto 06
Auto 07
Auto 08
Pause
·Pause
Min
Button Display
Description
Function
When the massage function is running, press
the "Pause" key to temporarily stop all massage
functions; press the "Pause" key again to
continue the massage function before the
pause.
1617
Operation InstructionsOperation Instructions
Width
Speed
H0
H1
H2
H3
H4

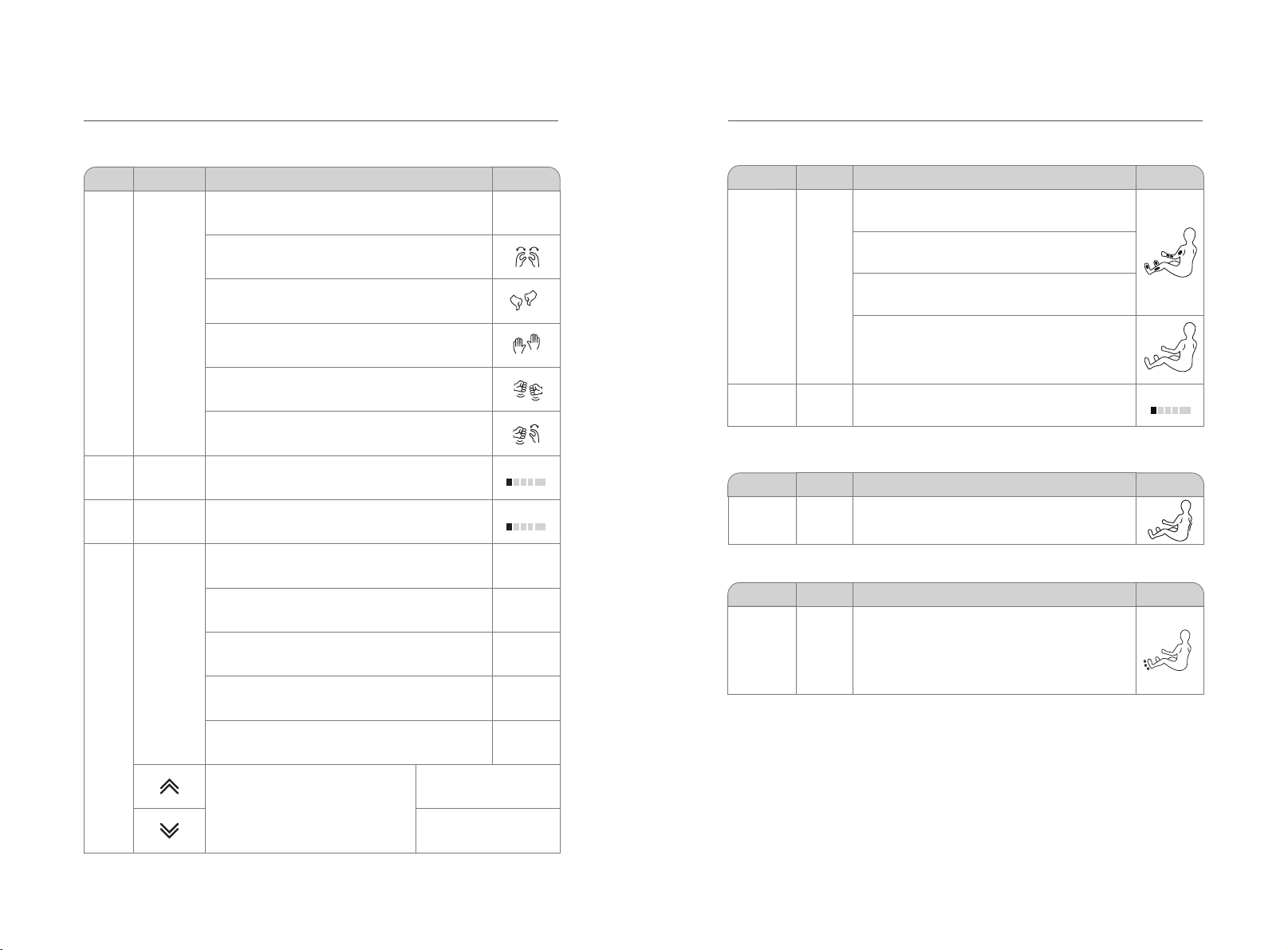

·Manual massage
Button Display
Adjustment of massage ball
Function
Stop: Width.
Shiatsu: speed and width
Tap: speed and width.
Knock: speed and width.
Adjustable 5 gears in speed.
Adjustable 3 gears in width.
Fixed point: Massage in a fixed position.
Partial: Massage in a small area forth and back.
Full: massage the full body forth and back.
Upper back: Massage the upper back forth and
back.
Lower back: Massage the lower back forth and
back.
Speed
Width
Speed
Width
Massage position adjustment (in
Fixed-Point and Partial mode,
massage position can be adjusted).
Robot Up
Robot Down
1 2
1 2
/
Airbag
Airbag
Intensity
Air Strength
·Heat massage
·Foot roller massage
·Pneumatic massage
Button Display
Description
Function
Airbag
Airbag
Intensity
Full-body pneumatic massage: Massage the
arms, upper arms, legs and feet with air pressure.
Upper body pneumatic massage: Massage the
arms and upper arms with air pressure.
Lower body pneumatic massage: Massage the
legs and feet with air pressure.
Adjustable of 5 gears.
Button Display
Description
Function
Press this key to turn on or off the heating
function
Heat Heat
Button Display
Description
Function
Foot Roller
Foot
Roller
Press this key to turn on / off sole roller massage
and it is adjustable of three gears in intensity,
namely weak, medium and strong, it can be
switched cyclically among three gears and off
states.
Turn off air massage
Knead: speed; 1 is clockwise knead and 2 is
counterclockwise knead.
Knead&Knock: speed; 1 is clockwise Knead&
Knock and 2 is counterclockwise Knead&Knock.
Massage
Method
Massage
Area
Massage
Method
Massage
Area
Indice
Altri manuali BionWell Massaggiatore
