DIMENSIONS
Length: 130 mm (5.12 in)
Width: 50 mm (1.97 in)
Depth: 63.5 mm (2.5 in)
COMMUNICATIONS:
Pigtail wire connections for RS-232 and RS-485
Wiegand IN/OUT
USB Aux port
VERIFICATION (1:1):
Enrollment time: < 3 seconds
Verification time: < 1 second
False Acceptance Rate (FAR): Adjustable
False Rejection Rate (FRR): Adjustable
Equal Error Rate (EER) (FAR=FRR): 0.1%
Number of templates: ~ 4000 per unit
Template size: ~ 350 bytes
IDENTIFICATION (1:N):
Enrollment time: < 3 seconds
Verification time: < 2 seconds
FAR: 0.2%
FRR: 1.0%
Number of templates: 500 per reader in 1:500 mode; 200 per
reader in 1:200 mode
Template size: ~ 2500 bytes
VOLTAGE:
9-24 VDC
CURRENT DRAW:
Idle: 0.20 amps @ 12 VDC
Max: 0.40 amps @ 12 VDC
MOUNTING:
Flat surface, single-gang, or mullion mountable
Wall mount plate accepts #6 screws or bolts
Clearance hole diameter is 3.94 mm (0.155 in)
Trim plate included to cover single-gang box.
OPERATING TEMPERATURE:
0° - 60°C
CERTIFICATIONS:
FCC, CE, UL294, cUL, RoHS
By default, the Bioscrypt V-Pass FX is set to 1:500 mode. The reader must
be configured manually to run in 1:200 or 1:1 modes.
V-PASS-FX-A,R:
Finger-scan reader (using customer-supplied external Wiegand device)
DESKTOP-VS-FX-A,R:
V-PASS-FX-A,R reader mounted on a plastic stand,with power supply
DEMO-VS-FX-A,R:
V-PASS-FX-A,R reader mounted on stand,with power supply and case
BIO-SDK:
Development software CD (supports all Bioscrypt products)
OUTDOOR ENCLOSURE:
The Bioscrypt V-Pass FX is compatible with the Bioscrypt V-Cerco or
V-Cerco-HT protective enclosures. Contact Bioscrypt for more
information.
TECHNICAL INFORMATION ORDERING INFORMATION

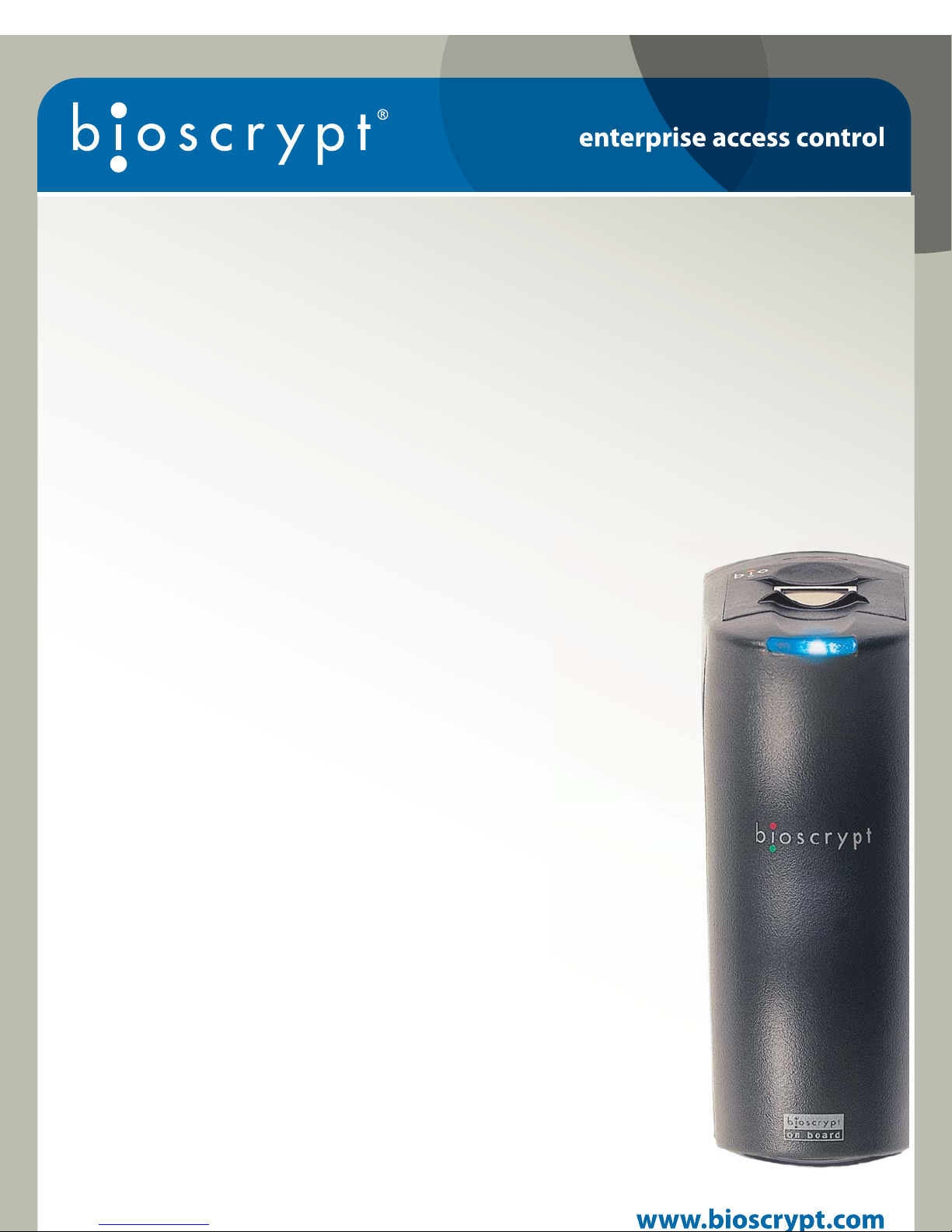

Bioscrypt®V-Pass FX™
