Bircher Reglomat RFGate 2.2.A Manuale utente

Safety instructions





Transmitter Receiver

2032

















Transmitter

PCB Transmitter

Terminals

Battery 1 CR2032

Battery 2 CR2032

LED (activation)

DIP - Switch

Push button

Antenna

Receiver

Receiver printed circuit board

Terminals

LED 1 (system readiness,

channel ➔Sender 1)

LED 2 (system readiness,

channel ➔Sender 2)

Key

DIP switch

LED 3 (programming mode)

Buzzer

Antenna



1

arning: Switch off the operating voltage before working on the system. Only trained, qualified personnel may perform installation and startup.

The unit may only be opened and repaired by Bircher Reglomat employees. The switching unit may only be used to protect against dangers at crushing

and automatic industrial doors (designated use). Applicable regulations on industrial door safety must be complied with. Always consider the safety

functions of your application as a whole, never just in relation to one individual section of the system. The installer is responsible for carrying out a

risk assessment and installing the industrial door system correctly. Notice: It’s recommended to change the battery every year.

Startup

Installing the transmitter (cable outlet at bottom)

2.1

Recommendedstart-upsequence:Mountingsensor/Initialisation/Connectsensor

Notice:

For technical reasons relating to radio trans-

mission, the transmitter and receiver should

not be installed on the same surface if possi-

ble.

The distance between transmitter and receiver

as well as between the transmitters among

themselves has to be at least 1m.

Tip:

If the distance between the transmitter and

receiver is relatively large, we recommend

programming the transmitters on the receiver

before installation.Transmitters can be learned

in with or without a connected detector /

switch.

175 mm

Transmitter: insert batteries

2.2

1. Remove the PCB from the housing.

2. Insert the enclosed batteries (type CR2032).

Important:

Insert battery 1first and then battery 2.

Unless this order is observed, correct function

is not guaranteed.

Installing the receiver (cable outlet at bottom)

2.3

Cable diameter:

3 – 6.5 mm

Connecting the receiver

2.4

1See 3.1 See 3.1

1: Wire up the power supply to the controller 2: Wire up the output to the controller

Note correct polarity for DC! Input type

sensor/safety edge

Input type

Contact NC

Input type

Contact NO

The system is not

fused.We recommend

protecting the supply

with a fuse of min.

100 mA, max. 250 mA.

Controller Input

Sensor 8.2 kOhm

Input

see 3.3

Drilling template

2 2

2032

RFGate 2.2.A

Trans ation of the origina instructions

Quality

international

level

EN ISO

9001

Radio transmission system

for safety edges

ENGLISH

308077A

02/13

Genera

162 mm

Initialisation2.5

Programming a transmitter to output 1

2.5.1

Notice:

The distance between the transmitter and receiver must be at least 1 m.

Up to 7 transmitters can be programmed for each output. Transmitters can be learned in with or without a connected detector / switch.For reasons of

safety, memory mode is exited automatically 10 seconds after the last key press.

Enter the memory function.

1. Press the key of the receiver until a signal sounds.

LED3 lights up red for maximum 10 seconds (display memory readiness output 1).

The transmitter must be activated within these 10 seconds:

2. Press the key of the transmitter until a signal sounds on the receiver.

Other transmitters can now also be programmed by pressing their keys

Programming a transmitter to output 2

2.5.2

Enter the memory function.

1. Press the key of the receiver until a signal sounds. LED3 lights up red.

2. Press the key again until a signal sounds.

LED3 flashes red for maximum 10 seconds. (Display memory readiness output 2).

The transmitter must be activated within these 10 seconds:

3. Press the key of the transmitter until a signal sounds on the receiver.

Other transmitters can now also be programmed by pressing their keys.

Finishing programming: Wait 10 seconds until two signals sound.

Tip:

The transmitters for output 1 and the transmitters for output 2 can also be learned in without an interruption. After step 2.5.1 (programming the

transmitters for output 1, LED3 is permanently lit), the key of the receiver must be pressed within 10 seconds until a signal sounds. This means the

memory function goes directly to step 2.5.2 (LED3 flashes). Now the transmitters for output 2 can be learned by pressing the key (transmitter).

Reset: Delete transmitter memory

2.5.3

Enter the memory function

1. Press the key of the receiver until a long signal sounds. Signal sequence:

The transmitter memory is now deleted. After 10 seconds, two signals sound and memory mode is exited automatically.

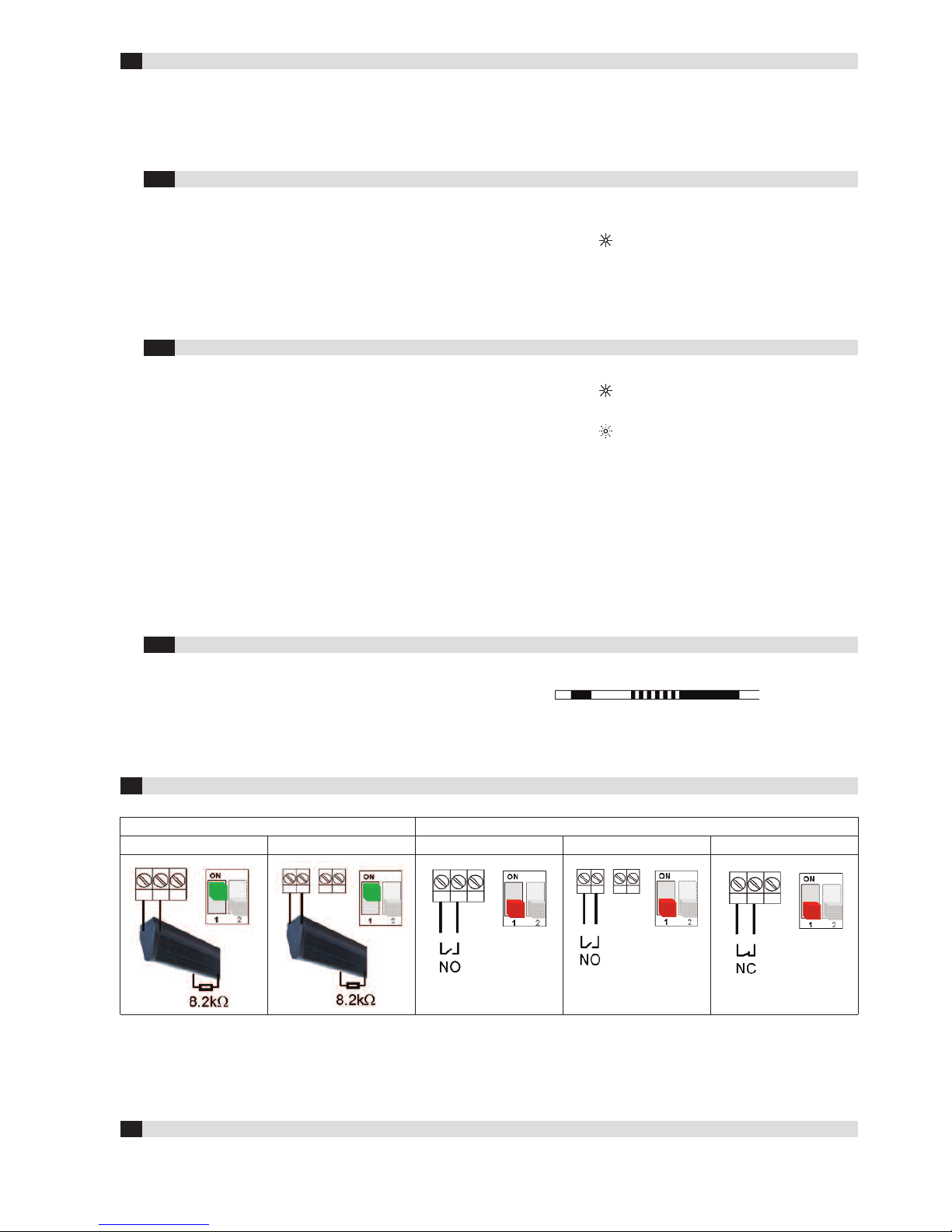

Connecting the detector2.6

ire up the transmitter with a safety edge 8.2 kohm ire up the transmitter with contact (e.g. wicket door)

RF ate 2.1.S / 2.1.S.NC RF ate 2.1.2.F with NO contact, RF ate 2.1.S with NO contact, RF ate 2.1.S.F with NC contact, onlyRF ate2.1.S.NC

Function test2.7

Connect the system to power. Press all safety edges one after another and check the behaviour of the receiver and/or controller is as required.

Cable diameter:

RF ate 2.1.S / RF ate 2.1.S.NC: 3 … 6,5mm;

RF ate 2.1.S.F: 3.5 … 5 mm

Extended configurations, factory settings

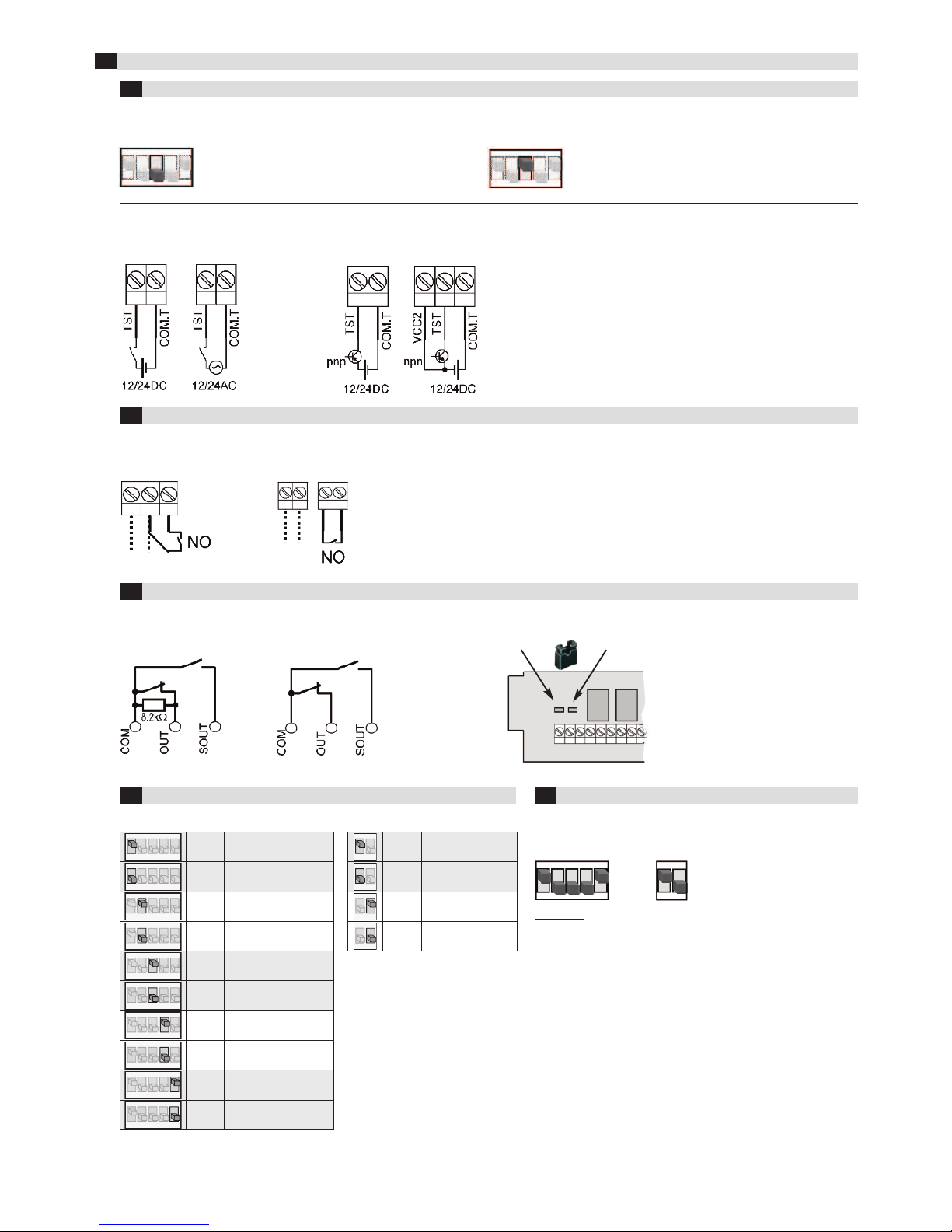

Operation with testing (cat. 2 acc. to EN ISO 13849-1)3.1

DIP switch setting:

Test NO contact (test activated = contact closed) Test NC contact (test activated = contact open)

Factory settings

Connection possibilities:

On controller: contact PNP- or NPN-transistor

Applications with limit switch (bridges the safety edge!)3.2

ire up transmitter to limit switch

RF ate 2.1.S RF ate 2.1.S.F

Output NO instead of 8.2 kohm resistor3.3

On both relay outputs, the 8.2 kohm resistor can be disconnected if required by removing a jumper.

with Jumper: without Jumper: Jumper output 1: Jumper output 2:

Overview tables for DIP switches3.4

Receiver: Transmitter:

1133224455

ONON

1 ON Default setting

5511332244

ONON

1 OFF No safety operation!

5522331144

ONON

2 ON 869.85 MHz

5522331144

ONON

2 OFF 868.95 MHz

112244

ONON

3 ON Test input NC

112244

ONON

3 OFF Test input NO

112233

ONON

4 ON Frequency adaptation on

112233

ONON

4 OFF Frequency adaptation off

11223355

ONON

5 ON Default setting

4455

112233

ONON

5 OFF No function!

ONON

1 ON Safety edge

with 8.2 kOhm

ONON

1 OFF Contact NO (s. 2.6)

ONON

2 ON 869.85 MHz

ONON

2 OFF 868.95 MHz

Factory settings3.5

For safety operation

Receiver: Transmitter:

Important:

Receiver switches 1 and 5 always in ON position.Correct

operation is not guaranteed if OFF!

Factory settings

Disp aying / Troub e shooting

Event / display Reason Solution

Memorise on transmitter:

Signal sounds for 10 seconds

Transmitter memory full.

The maximum number of

7 transmitters per output

has been exceeded

Delete memory

Memorise on transmitter:

No signal after transmitter

key press

No radio connection.

Frequencies of transmitter

and receiver must match

Set DIP switch correctly:

Frequency 1 (869.85 MHz)

Frequency 2 (868.95 MHz)

(Factory setting)

In operation:

Malfunctions (e.g. close

to a construction crane)

Highly disrupted radio

connection

Switch on automatic

frequency adaptation

On every actuation:

Signal sounds 2-4 times Batteries soon depleted Change batteries

Technica data

System (RF ate 2.2.A)

Frequency bands 868.95 MHz & 869.85 Mhz

Range 25 m, under optimum conditions up to 75 m

Protection class (IEC 60529) IP 55

Pollution degree 2

Ball pressure test (IEC 695-10-2) PCB: 125°; housing: 75°

Software Class A

Working temperature -20°C to +55°C

Receiver (RF ate 2.2.R.A)

Transmitter memory

7+7

Output Relay

, 24 V, 0,5 A;

micro disconnection

Supply voltage

12 / 24 VACDC

Power consumption

0.5 W @ 12 V, 1.2 W @ 24 V

Rated surge voltage (acc. to EN 60730-1) 300 V

Test signal input 12 / 24 VACDC

Dimensions 178 x 80 x 45 mm

Transmitter (RF ate 2.1.S, RF ate 2.1.S.NC) (RF ate 2.1.S.F)

Supply voltage 3 VDC (2 x Lithium CR2032)

Power consumption When transmitting: 17 mA

In sleep mode: 16 µA

Dimensions 190 x 51 x 36 mm 190 x 51 x 22 mm

Dec aration of conformity

Bircher Reg omat AG, Wiesengasse 20, CH-8222 Beringen, Switzer and, www.bircher-reg omat.com

7Contact data

Manufacturer: Bircher Reglomat A , Wiesengasse 20, CH-8222 Beringen, Employee responsible for docu.: Bircher Reglomat A , Wiesengasse 20, CH-8222 Beringen

Product: Switching device with radio transmission system, Models: RF ate 2.1, RF ate 2.2, Serial numbers: WWYY000000 - WWYY999999, Notified Body: Suva certificate

authority, division: technics, EU-ID-number 1246, EC-type-examination certificates: E 6945, Following directives have been observed: Machinery directive 2006/42/E ,
