BKR0204 Radio Speaker Microphone
PN 7001-31187-800 REV. 05-22
Page 1
CONNECTING THE RSM TO THE RADIO:
User Instructions
1. Insert the ‘tab’ feature of the
connector with the ‘tab’ slot on
the radio. Connector should
make tight, precise t with the
radio.
AUDIO JACK
[CONTACT CUSTOMER SERVICE
OR LOCAL DEALER
FOR LIST OF COMPATIBLE
EARPHONE ACCESSORIES]
RADIO
CABLE
PUSH
TO TALK
EMERGENCY
BUTTON*
HIGH/LOW
VOLUME TOGGLE*
[DEFAULT: UNPROGRAMMED]
*Button functions can be customized in the Radio Editing Software (RES).
See page 2 for details.
SWIVEL CLIP
Tab
Feature
Tab
Slot
Apply pressure to bottom
when tightening
2. While applying pressure to the bottom
of the connector, the locking screw should align
and easily tighten against the radio. Make sure
the seal does not get pinched on the edges dur-
ing attachment. (The use of a screwdriver or coin
during tightening is discouraged. Over-tightening
could possibly damage the side connector.)
MICROPHONE
[TALK IN A NORMAL VOICE 1-2
INCHES AWAY FROM MIC]
SPEAKER
®
BK Technologies
7100 Technology Drive
West Melbourne, FL 32904
1-800-648-0947
www.bktechnologies.com
©2022 BK Technologies
PN 7001-31187-800 REV. 05-22
Page 2

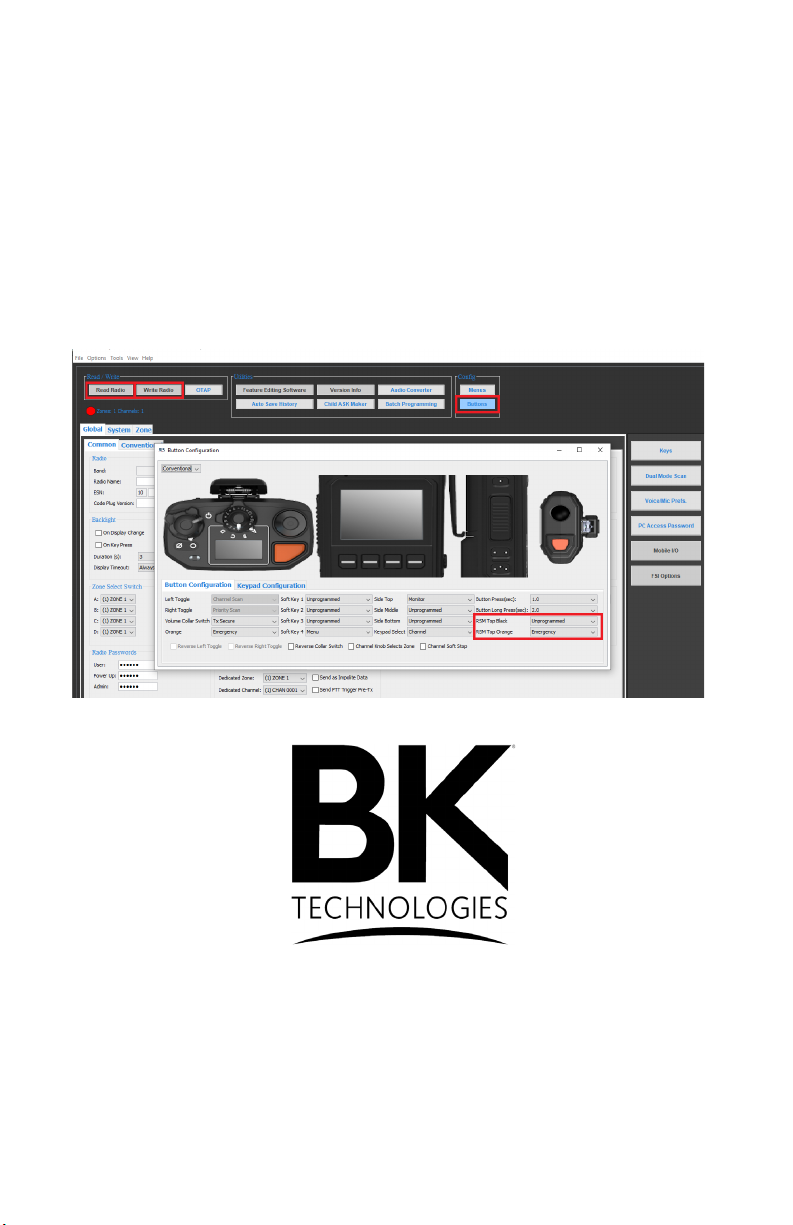

CUSTOMIZING BUTTON FUNCTIONS:
1. With the radio connected to the PC, open BKR0733 Radio Editing
Software (RES).
2. Select ‘Read Radio’ from the ‘Read / Write’ menu.
3. Select ‘Buttons’ from the ‘Cong’ menu.
4. Locate the ‘RSM Top Black’ and ‘RSM Top Orange’ button selections.
5. Using the drop-down menus, select the intended function for each
button.
6. After the selections are nal, select ‘Write Radio’ from the ‘Read /
Write’ menu.
®
