Black & Decker FP1600B Istruzioni per l'installazione

MODELS/MODELOS

❍ FP1600B

❍ FP1700B

8-CUP Food Processor

Procesador de alimentos DE 8 TAZAS

Servicio para el cliente:

México 01-800 714-2503

Accesorios/Partes (EE.UU)

1-800-738-0245

Para servicio al cliente y para

registrar su garantía, visite

www.prodprotect.com/applica

Customer Care Line:

USA 1-800-231-9786

Accessories/Parts (USA)

1-800-738-0245

For online customer service

and to register your product, go to

www.prodprotect.com/applica

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

❍ Read all instructions.

❍ To protect against risk of electrical shock do not immerse cord, plugs

or appliance in water or other liquid.

❍ Close supervision is necessary when any appliance is used by or near

children.

❍ Unplug from outlet when not in use, before putting on or taking off

parts and before cleaning.

❍ Avoid contacting moving parts.

❍ Do not operate any appliance with a damaged cord or plug or after

the appliance malfunctions, or is dropped damaged in any manner.

Return appliance to the nearest authorized service facility for

examination, repair or electrical or mechanical adjustment. Or, call

the appropriate toll-free number on the cover of this manual.

❍ The use of attachments not recommended or sold by the

manufacturer may cause fire, electric shock or injury.

❍ Do not use outdoors.

❍ Do not let cord hang over edge of table or counter.

❍ Keep hands and utensils away from moving blade or disc while

processing food to reduce the risk of severe injury to persons or

damage to the food processor. A scraper may be used, but must be

used only when the food processor is not running.

❍ Blade is sharp. Handle carefully.

❍ To reduce the risk of injury, never place cutting blade or discs on

base without first putting bowl properly in place.

❍ Be certain cover is securely locked in place before operating

appliance.

❍ Never feed food by hand. Always use food pusher.

❍ Do not attempt to defeat the cover interlock mechanism.

❍ This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety.

❍ Children should be supervised to ensure that they do not play with the

appliance.

ENGLISH

SAVE THESE INSTRUCTIONS.

This product is for household use only.

Note: The maximum rating is based on the chopping blade. Other

attachments may draw signiﬁcantly less power.

POLARIZED PLUG

This appliance has a polarized plug (one blade is wider than the other). To reduce

the risk of electric shock, this plug is intended to fit into a polarized outlet only one

way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit,

contact a qualified electrician. Do not attempt to modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: this appliance is equipped with a tamper-resistant screw

to prevent removal of the outer cover. to reduce the risk of fire or

electric shock, do not attempt to remove the outer cover. there are no user-

serviceable parts inside. Repair should be done only by authorized service

personnel.

ELECTRICAL CORD

The cord of this appliance was selected to reduce the possibility of tangling in or

tripping over a longer cord. If more length is needed, use an extension cord rated

no less than 15 amperes. (For 220 volts rated products, use an extension cord

rated no less than 6 amperes.) When using an extension cord, do not let it drape

over the working area or dangle where someone could accidentally trip over it.

Handle cord carefully for longer life; avoid jerking or straining it at outlet and

appliance connections.

Note: If the power supply cord is damaged, it should be replaced by qualified

personnel; in Latin America, by an authorized service center.

† 1. Food pusher

Model FP1600B (Part # 07255EZB)

Model FP1700B (Part # 07255EZH)

† 2. 8-cup processing workbowl cover (Part # 77916)

† 3. Stainless steel slicing and shredding disk (Part #77919)

† 4. Disk stem (Part # 77917)

† 5. Stainless steel chopping blade (Part # 77920)

† 6. 8-cup processing workbowl

Model FP1600B (Part # 77915)

Model FP1700B (Part # 77988)

7. Base

8. Cord wrap (under base)

† 9. Non-skid suction feet (Part # 09183-1)

10. Control panel

11. Center post

12. Feed chute

† 13. Workbowl coupling (Part # 77918 )

Note: † indicates consumer replaceable/removable parts

Product may vary slightly from what is illustrated.

























CONTROL PANEL

The controls are located on the front of the base (B).

Press OFF/PULSE or ON to select a function (see

directions below).

OFF/PULSE CONTROL

• Processor should be stored in OFF position and

unplugged when not in use.

• Use PULSE for short processing tasks. This lets you

control the size and uniformity of foods being chopped.

• The OFF/PULSE button must be pressed and held for the appliance to

operate in PULSE mode. When released, the appliance will stop.

• The motor of the processor will run as long as the OFF/PULSE button is

held down. Press the button and then release to allow the blade to stop

running and the food to fall to the bottom of the workbowl.

• Pulsing gives better control when chopping, mincing, mixing and blending

foods. You can control the size of the foods, from coarse to fine.

ON CONTROL

When the ON control is selected, the processor will run continuously until

the OFF/PULSE button is pressed.

How to Use

This product is for household use only.

GETTING STARTED

• Please go to www.prodprotect.com/applica to register your warranty.

Important: Handle chopping blade and slicing and shredding disk carefully.

They are very sharp.

• Wash all removable parts as instructed in CARE AND CLEANING section

of this manual.

• Select a level, dry countertop where the appliance is to be used, allowing

air space on all sides to provide proper ventilation for the motor.

ASSEMBLING THE PROCESSOR

How to Insert and Remove the Center Post

The center post is removable:

1. Turn the bowl upside down.

2. Grasp the clear outer tabs and turn the center post

clockwise until the lower tabs are free. Lift the post

out (C).

3. To return to its original position, place center post

into smaller opening in bottom of workbowl and turn

counterclockwise until tabs snap into place.

ENGLISH

HOW TO LOCK THE PROCESSOR WORKBOWL IN POSITION

IMPORTANT: Press the OFF/PULSE button before placing the workbowl on the

base of the processor.

1. Attach center post to workbowl. Place the workbowl on

the base with handle turned to the right of the locking

mechanism (D) over the unlock symbol .

2. Hold handle and rotate workbowl clockwise toward the

lock symbol until it clicks firmly into place (E).

Note: Be sure to lock the workbowl in place before attaching

the chopping blade or the slicing and shredding disk and the

cover.

HOW TO CHOP IN THE PROCESSING WORKBOWL

The chopping blade is used to coarsely or finely chop, mince, mix, and puree

foods to a smooth consistency.

1. Lock workbowl into position (see Illustrations D and E).

2. Hold chopping blade by center shaft and insert onto center

post (F).

Caution: The chopping blade is very sharp. Use caution

when handling and storing.

3. Place food in workbowl.

4. Place cover on workbowl and lock into place by rotating

clockwise (see Illustration J).

5. Place the food pusher in place.

Important: Never use your fingers to direct food through the feed chute.

6. Select your desired speed (PULSE or ON).

Note: Process foods for no more than a few seconds at a time. Pulsing produces

excellent results and offers greater control.

Important: Make sure the chopping blade has completely stopped spinning

before removing cover from processing bowl.

7. Press the OFF/PULSE button and allow the chopping blade to stop revolving

before removing cover. Twist cover toward (counterclockwise) to remove.

Important: Unlock lid first before removing workbowl.

8. Unlock workbowl by turning it counterclockwise and lift off base.

Note: Remove workbowl from appliance before removing the chopping blade to

prevent food from leaking through the center opening of the workbowl.

9. Carefully remove the chopping blade.

10. Unplug appliance when not in use.

Helpful Tips for Chopping

• Watch carefully to avoid over-processing foods.

• The PULSE button offers the best control.

• For best results, process foods that are about the same size.

• Do not overload the workbowl.

• Never walk away from the processor while it is on.

• You may use hot but not boiling liquids.

• Do not process more 3 cups of liquid in the workbowl at any given time.

• To process meat, use no more than 2 cups of ¾-inch cubes. Process using

PULSE in 5 second intervals.

• Insert a funnel into the feed chute when adding ingredients such as, oil,

flour and sugar.

HOW TO SLICE OR SHRED IN THE WORKBOWL

1. Lock workbowl into position (see Illustrations D and E).

2. Place disk stem onto center post in workbowl.

3. Carefully place slicing and shredding disk on top of

disk stem with appropriate side up (depending on work

to be done) (G).

Caution: The slicing and shredding disk is very sharp.

Use caution when handling and storing.

4. Place cover on workbowl and lock into place by

rotating cover clockwise (see Illustration J).

5. Fill feed chute with food. Position food pusher over

food (H).

6. Select the PULSE or ON control; press firmly on food

pusher to guide food through feed chute, but do not

force it.

Note: Heavy pressure on the pusher does not speed the

work; use the pusher only as a guide. Let the processor

do the work.

7. When finished, press OFF/PULSE and wait for disk to stop rotating before

removing cover. Twist cover toward counterclockwise to remove.

Important: Make sure the slicing and shredding disk has completely

stopped spinning before removing cover from processing bowl.

Important: Unlock lid first before removing workbowl.

8. Carefully remove the slicing and shredding disk. Unlock workbowl by

turning it counterclockwise and lifting it off the base.

ENGLISH

9. Unplug appliance when not in use.

Helpful Tips When Slicing and Shredding

• Before slicing fruits and vegetables in the processor, cut a thin slice from the

bottom of the food to make it flat.

• Place the food cut side down in feed chute.

• Remove seeds and pits before processing.

• Select foods that are firm and not overripe.

• Remove the core from hard vegetables such as cabbage.

• When slicing thinner vegetables, cut them just short of the length of the feed

chute and stand them vertically in feed chute so they are solidly packed and

cannot turn or tilt.

• Shred hard cheeses at room temperature.

• Chill soft and semi-hard cheeses before shredding.

• After food has been processed, remove the cover and invert on countertop.

Remove the slicing and shredding disc before removing the workbowl from

the processor. Place the disk on top of the inverted workbowl cover.

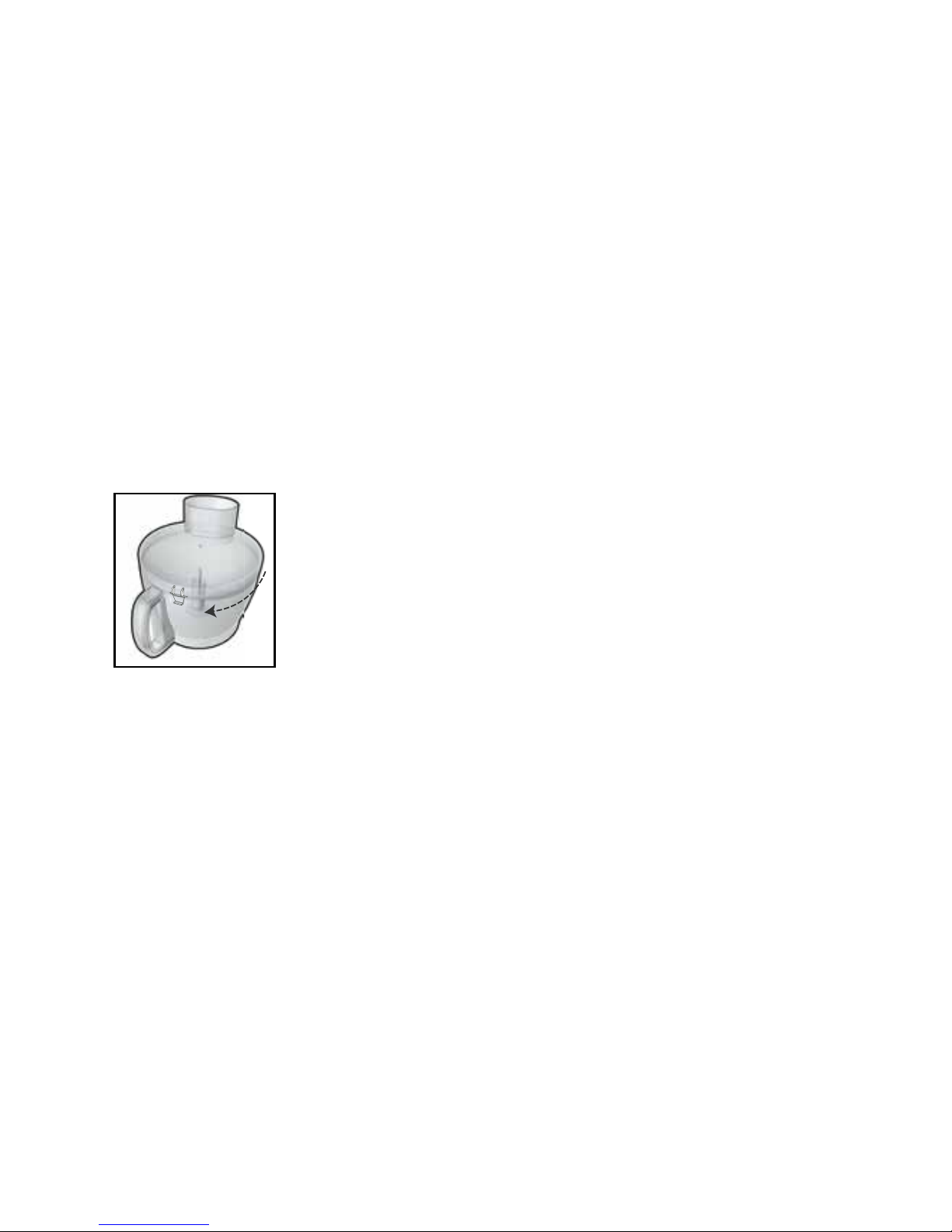

HOW TO LOCK THE COVER

1. Place cover over workbowl with the small latch to the

right of the workbowl’s handle (J).

2. Hold feed chute of workbowl cover and rotate cover

clockwise until cover locks into place.

Important: For your protection this appliance has an

interlock system. The processor will not operate unless

the processing workbowl and cover are properly locked

in place.

3. Insert the food pusher into the feed chute.

Note: The food pusher is used to guide foods through the feed chute and can be

removed when adding liquid or additional foods while the processor is running.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified

service personnel.

Note: Do not attempt to sharpen the cutting edges of the chopping blade or

slicing and shredding disk. They are permanently sharpened at the factory

and will be ruined if sharpened.

CLEANING

Note: Before cleaning, be sure unit is turned off and cord is unplugged.

• Completely disassemble processor parts before washing.

• Rinse parts immediately after processing for easy cleanup.

Caution: The slicing and shredding disk is very sharp. Use caution when

handling and storing.

• Wipe base and feet with a damp cloth and dry thoroughly. Stubborn spots

can be removed by rubbing with a damp cloth and a mild, nonabrasive

cleaner. Do not immerse base in liquid.

• All removable parts can be washed by hand or in a dishwasher. Hand

washing of plastic parts will help to maintain the food processor’s

appearance.

• If washing by hand, fill workbowl with hot, soapy water and rapidly raise

and lower the chopping blade or slicing and shredding disk up and down on

the center shaft.

Caution: The slicing and shredding disk is very sharp. Use caution when

handling and storing.

• If washing in a dishwasher, place removable parts on top rack only—not in

or near utensil basket.

• Some staining of parts may occur. If so, make a paste of 2 tablespoons

of baking soda and 1 tablespoon of water. Apply to stains and let stand

overnight. Rinse and dry.

• Do not use rough scouring pads or cleansers on any plastic or metal parts

to clean.

• Do not allow chopping blade or slicing and shredding disk to soak in water

for long periods of time.

• Remember to clean the internal shaft of the chopping blade; use a baby

bottle brush to remove any clogged food particles.

• If you are having trouble closing the cover over the workbowl, apply a small

amount of vegetable oil to the rim of the cover and workbowl. This should

make the pieces work smoother when attaching the cover to the workbowl.

ENGLISH

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate

800 number on cover of this book. Please DO NOT return the product to the place

of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it

to a service center. You may also want to consult the website listed on the cover of

this manual.

TWO-YEAR LIMITED WARRANTY

(Applies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Applica’s liability

will not exceed the purchase price of product.

For how long?

• Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new

or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.

• Visit the online service website at www.prodprotect.com/applica, or call toll-

free 1-800-231-9786, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modiﬁed in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some

states do not allow the exclusion or limitation of consequential or incidental

damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you speciﬁc legal rights. You may also have other rights

that vary from state to state or province to province.

is a registered trademark of The Black & Decker Corporation,

Towson, Maryland, USA

Made and Printed in People’s Republic of China

Altri manuali per FP1600B

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Black & Decker Robot da cucina

Black & Decker

Black & Decker FX1000 Manuale utente

Black & Decker

Black & Decker Spacemaker CG800 Istruzioni per l'installazione

Black & Decker

Black & Decker MiniPro MFP100 Series Istruzioni per l'installazione

Black & Decker

Black & Decker FP700 Manuale utente

Black & Decker

Black & Decker SC300 Manuale utente

Black & Decker

Black & Decker QUICK 'N EASY FP1336 Istruzioni per l'installazione

Black & Decker

Black & Decker FP2500B Manuale utente

Black & Decker

Black & Decker hc 300 Istruzioni per l'installazione

Black & Decker

Black & Decker FP4150 Manuale utente

Black & Decker

Black & Decker HANDY SHORTCUT II HMP60 Series Istruzioni per l'installazione

Black & Decker

Black & Decker SL1050 Manuale utente

Black & Decker

Black & Decker FP5050SC Istruzioni per l'installazione

Black & Decker

Black & Decker FX1200 Manuale utente

Black & Decker

Black & Decker FP1445 Manuale utente

Black & Decker

Black & Decker Ergo EHC650 Manuale utente

Black & Decker

Black & Decker FP1510 Manuale utente

Black & Decker

Black & Decker SC350 Manuale utente

Black & Decker

Black & Decker Power Pro FP2650S Istruzioni per l'installazione

Black & Decker

Black & Decker FP2510SKT Istruzioni per l'installazione

Black & Decker

Black & Decker HandyChopper HC20 Istruzioni per l'installazione

Black & Decker

Black & Decker FX400 Manuale utente

Black & Decker

Black & Decker HC3000 Istruzioni per l'installazione

Black & Decker

Black & Decker Spacemaker CG800C Istruzioni per l'installazione

Black & Decker

Black & Decker EHC500 Series Istruzioni per l'installazione

Manuali Robot da cucina popolari di altre marche

INNOLIVING

INNOLIVING INN-727 Manuale utente

Berkel

Berkel C32 Manuale utente

Beko

Beko CHP5554W Manuale utente

KitchenAid

KitchenAid 5KFP0719 Manuale utente

QUIGG

QUIGG KM 2017Wi.20 Manuale utente

Lakeland

Lakeland PRESS AND CHOP 31557 Manuale utente

Bosch

Bosch MMR08 GB Series Manuale utente

HOFFEN

HOFFEN Chef Express T9532 Manuale utente

Garland

Garland 852 ZG Manuale utente

Robot Coupe

Robot Coupe CL50 Gourmet Manuale utente

SAPIRHOME

SAPIRHOME SP-1111-K Manuale utente

Moulinex

Moulinex DJ3051 Manuale utente

Bosch

Bosch MUM5 Manuale utente

cecotec

cecotec Mambo Touch Manuale utente

KitchenAid

KitchenAid 9KFC0516 Manuale utente

Gorenje

Gorenje SBR 1000 DV Manuale utente

Arzum

Arzum AR 1128 Manuale utente

KitchenAid

KitchenAid 5KFP0719A Manuale utente
