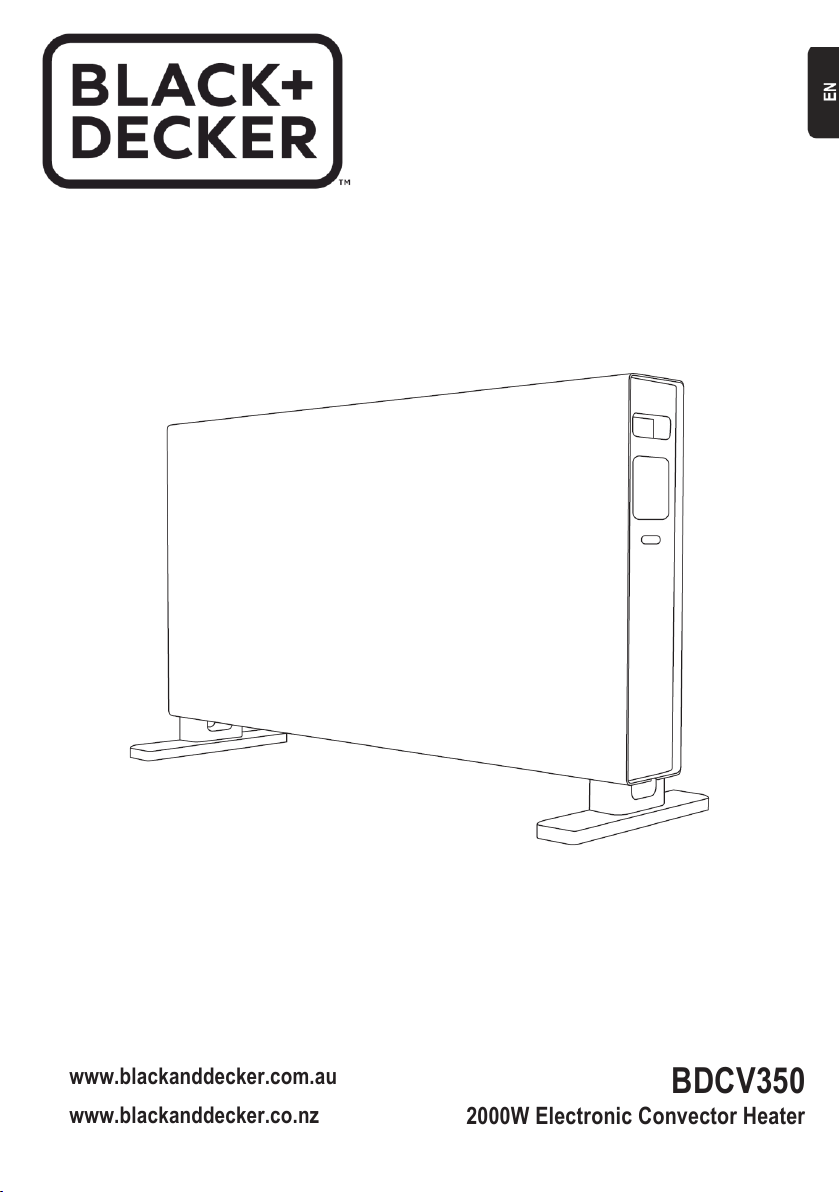

Black & Decker BDCV350 Manuale utente

BDCV350

2000W Electronic Convector Heater

www.blackanddecker.co.nz

www.blackanddecker.com.au

All manuals and user guides at all-guides.com

THIS PAGE IS INTENTIONALLY BLANK

All manuals and user guides at all-guides.com

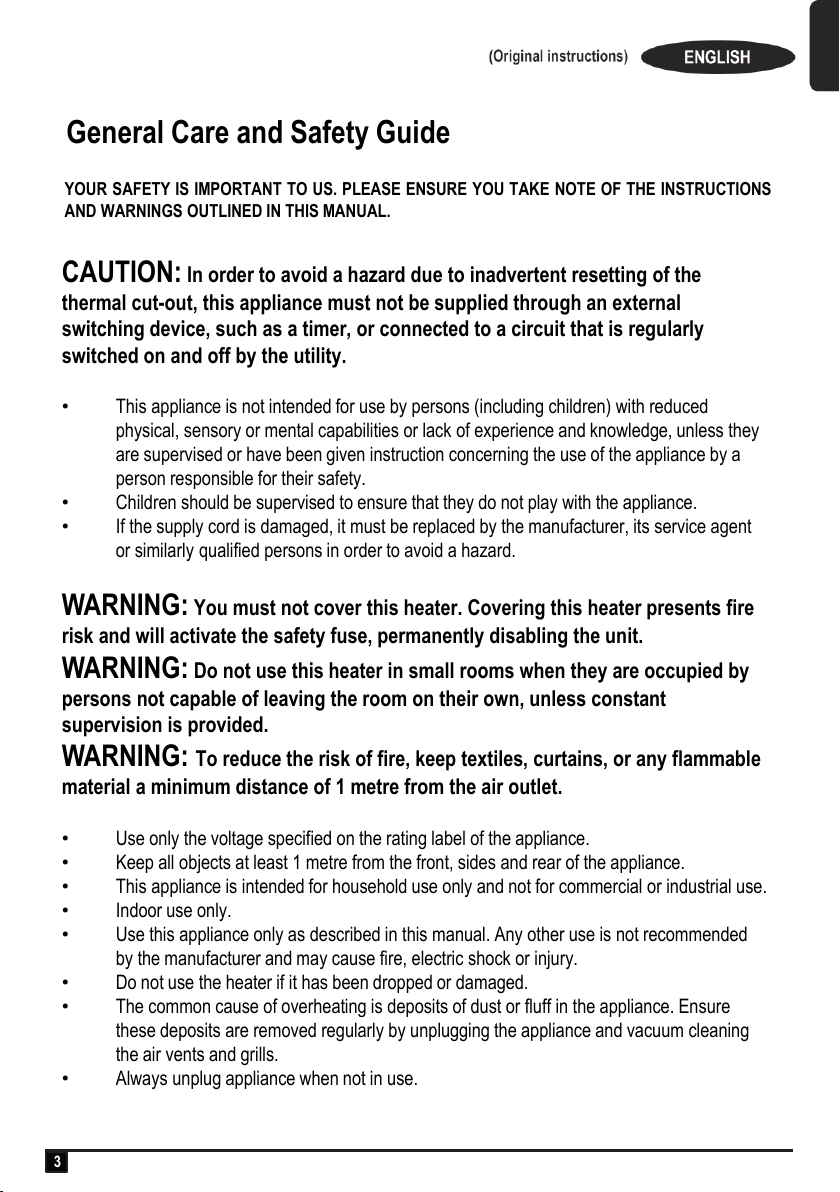

YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE INSTRUCTIONS

AND WARNINGS OUTLINED IN THIS MANUAL.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the

thermal cut-out, this appliance must not be supplied through an external

switching device, such as a timer, or connected to a circuit that is regularly

switched on and off by the utility.

•This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities or lack of experience and knowledge, unless they

are supervised or have been given instruction concerning the use of the appliance by a

person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

WARNING: You must not cover this heater. Covering this heater presents fire

risk and will activate the safety fuse, permanently disabling the unit.

WARNING: Do not use this heater in small rooms when they are occupied by

persons not capable of leaving the room on their own, unless constant

supervision is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any flammable

material a minimum distance of 1 metre from the air outlet.

•Use only the voltage specified on the rating label of the appliance.

•Keep all objects at least 1 metre from the front, sides and rear of the appliance.

•This appliance is intended for household use only and not for commercial or industrial use.

•Indoor use only.

•Use this appliance only as described in this manual. Any other use is not recommended

by the manufacturer and may cause fire, electric shock or injury.

•Do not use the heater if it has been dropped or damaged.

•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure

these deposits are removed regularly by unplugging the appliance and vacuum cleaning

the air vents and grills.

•Always unplug appliance when not in use.

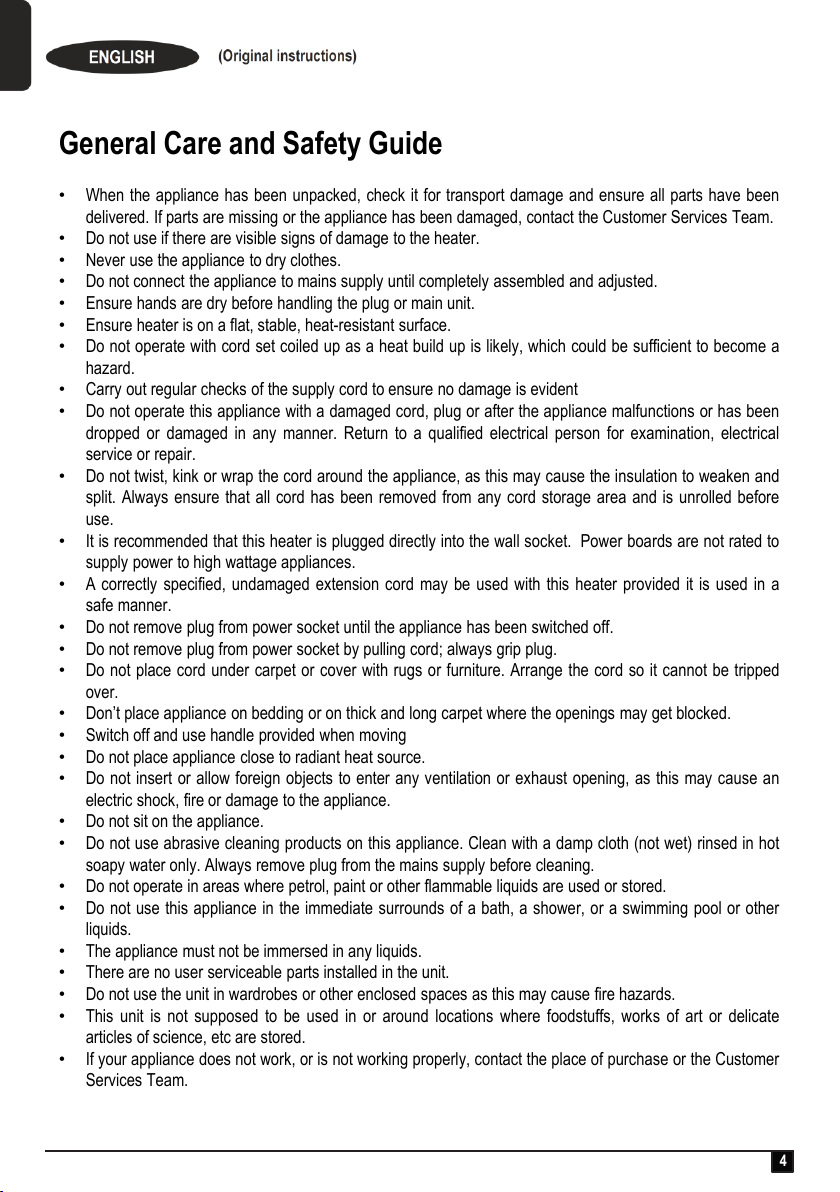

General Care and Safety Guide

All manuals and user guides at all-guides.com

•When the appliance has been unpacked, check it for transport damage and ensure all parts have been

delivered. If parts are missing or the appliance has been damaged, contact the Customer Services Team.

•Do not use if there are visible signs of damage to the heater.

•Never use the appliance to dry clothes.

•Do not connect the appliance to mains supply until completely assembled and adjusted.

•Ensure hands are dry before handling the plug or main unit.

•Ensure heater is on a flat, stable, heat-resistant surface.

•Do not operate with cord set coiled up as a heat build up is likely, which could be sufficient to become a

hazard.

•Carry out regular checks of the supply cord to ensure no damage is evident

•Do not operate this appliance with a damaged cord, plug or after the appliance malfunctions or has been

dropped or damaged in any manner. Return to a qualified electrical person for examination, electrical

service or repair.

•Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and

split. Always ensure that all cord has been removed from any cord storage area and is unrolled before

use.

•It is recommended that this heater is plugged directly into the wall socket. Power boards are not rated to

supply power to high wattage appliances.

•A correctly specified, undamaged extension cord may be used with this heater provided it is used in a

safe manner.

•Do not remove plug from power socket until the appliance has been switched off.

•Do not remove plug from power socket by pulling cord; always grip plug.

•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord so it cannot be tripped

over.

•Don’t place appliance on bedding or on thick and long carpet where the openings may get blocked.

•Switch off and use handle provided when moving

•Do not place appliance close to radiant heat source.

•Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an

electric shock, fire or damage to the appliance.

•Do not sit on the appliance.

•Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot

soapy water only. Always remove plug from the mains supply before cleaning.

•Do not operate in areas where petrol, paint or other flammable liquids are used or stored.

•Do not use this appliance in the immediate surrounds of a bath, a shower, or a swimming pool or other

liquids.

•The appliance must not be immersed in any liquids.

•There are no user serviceable parts installed in the unit.

•Do not use the unit in wardrobes or other enclosed spaces as this may cause fire hazards.

•This unit is not supposed to be used in or around locations where foodstuffs, works of art or delicate

articles of science, etc are stored.

•If your appliance does not work, or is not working properly, contact the place of purchase or the Customer

Services Team.

General Care and Safety Guide

All manuals and user guides at all-guides.com

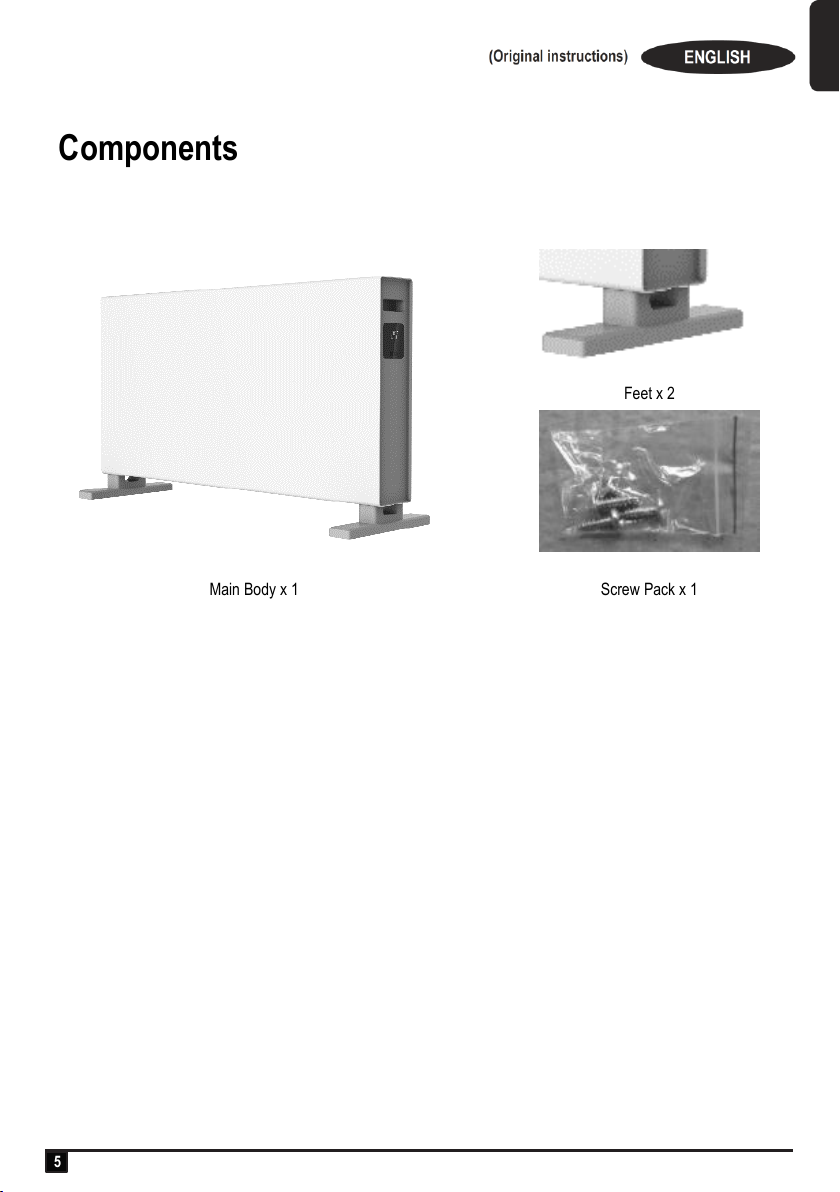

Main Body x 1

Components

Screw Pack x 1

Feet x 2

All manuals and user guides at all-guides.com

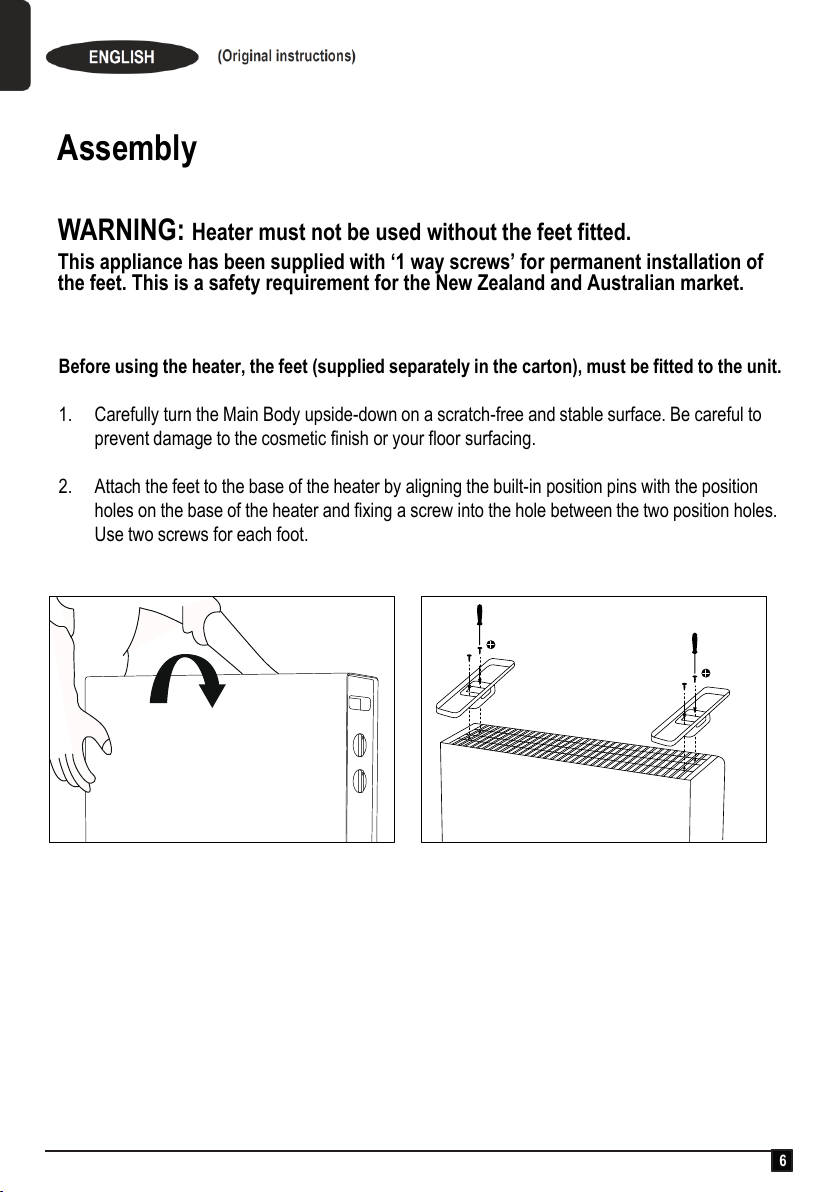

Assembly

Before using the heater, the feet (supplied separately in the carton), must be fitted to the unit.

1. Carefully turn the Main Body upside-down on a scratch-free and stable surface. Be careful to

prevent damage to the cosmetic finish or your floor surfacing.

2. Attach the feet to the base of the heater by aligning the built-in position pins with the position

holes on the base of the heater and fixing a screw into the hole between the two position holes.

Use two screws for each foot.

WARNING: Heater must not be used without the feet fitted.

This appliance has been supplied with ‘1 way screws’ for permanent installation of

the feet. This is a safety requirement for the New Zealand and Australian market.

All manuals and user guides at all-guides.com

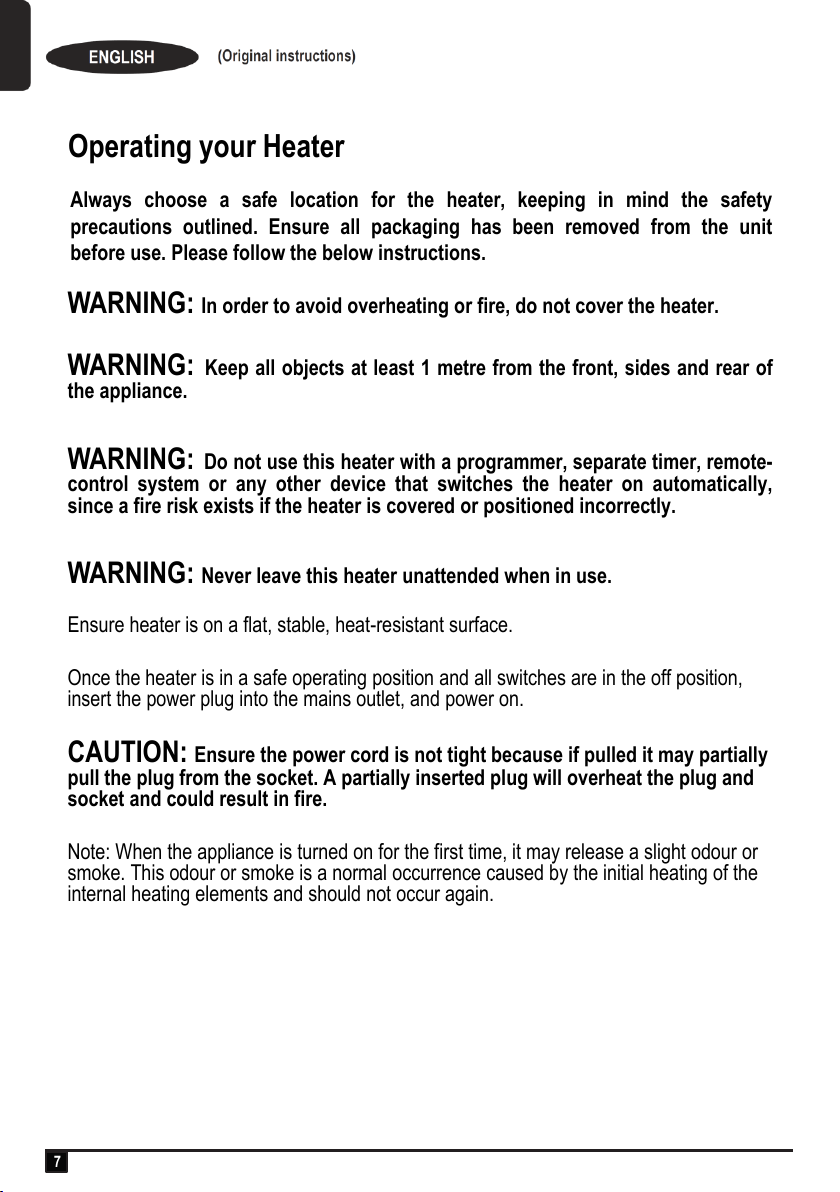

Operating your Heater

Always choose a safe location for the heater, keeping in mind the safety

precautions outlined. Ensure all packaging has been removed from the unit

before use. Please follow the below instructions.

WARNING: In order to avoid overheating or fire, do not cover the heater.

WARNING: Keep all objects at least 1 metre from the front, sides and rear of

the appliance.

WARNING: Do not use this heater with a programmer, separate timer, remote-

control system or any other device that switches the heater on automatically,

since a fire risk exists if the heater is covered or positioned incorrectly.

WARNING: Never leave this heater unattended when in use.

Ensure heater is on a flat, stable, heat-resistant surface.

Once the heater is in a safe operating position and all switches are in the off position,

insert the power plug into the mains outlet, and power on.

CAUTION: Ensure the power cord is not tight because if pulled it may partially

pull the plug from the socket. A partially inserted plug will overheat the plug and

socket and could result in fire.

Note: When the appliance is turned on for the first time, it may release a slight odour or

smoke. This odour or smoke is a normal occurrence caused by the initial heating of the

internal heating elements and should not occur again.

All manuals and user guides at all-guides.com

Operating your Heater

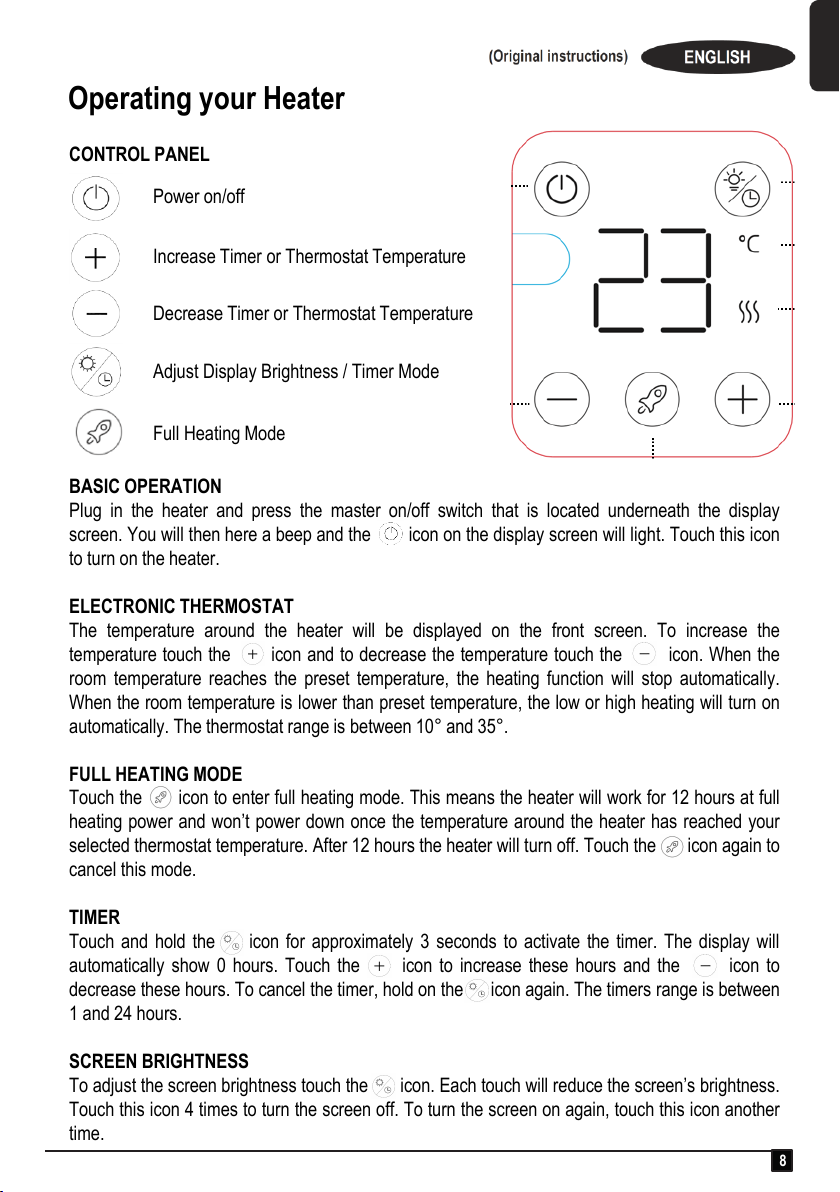

CONTROL PANEL

Power on/off

Increase Timer or Thermostat Temperature

Decrease Timer or Thermostat Temperature

Adjust Display Brightness / Timer Mode

Full Heating Mode

BASIC OPERATION

Plug in the heater and press the master on/off switch that is located underneath the display

screen. You will then here a beep and the icon on the display screen will light. Touch this icon

to turn on the heater.

ELECTRONIC THERMOSTAT

The temperature around the heater will be displayed on the front screen. To increase the

temperature touch the icon and to decrease the temperature touch the icon. When the

room temperature reaches the preset temperature, the heating function will stop automatically.

When the room temperature is lower than preset temperature, the low or high heating will turn on

automatically. The thermostat range is between 10°and 35°.

FULL HEATING MODE

Touch the icon to enter full heating mode. This means the heater will work for 12 hours at full

heating power and won’t power down once the temperature around the heater has reached your

selected thermostat temperature. After 12 hours the heater will turn off. Touch the icon again to

cancel this mode.

TIMER

Touch and hold the icon for approximately 3 seconds to activate the timer. The display will

automatically show 0 hours. Touch the icon to increase these hours and the icon to

decrease these hours. To cancel the timer, hold on the icon again. The timers range is between

1and 24 hours.

SCREEN BRIGHTNESS

To adjust the screen brightness touch the icon. Each touch will reduce the screen’s brightness.

Touch this icon 4 times to turn the screen off. To turn the screen on again, touch this icon another

time.

All manuals and user guides at all-guides.com

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase.

Operating your Heater

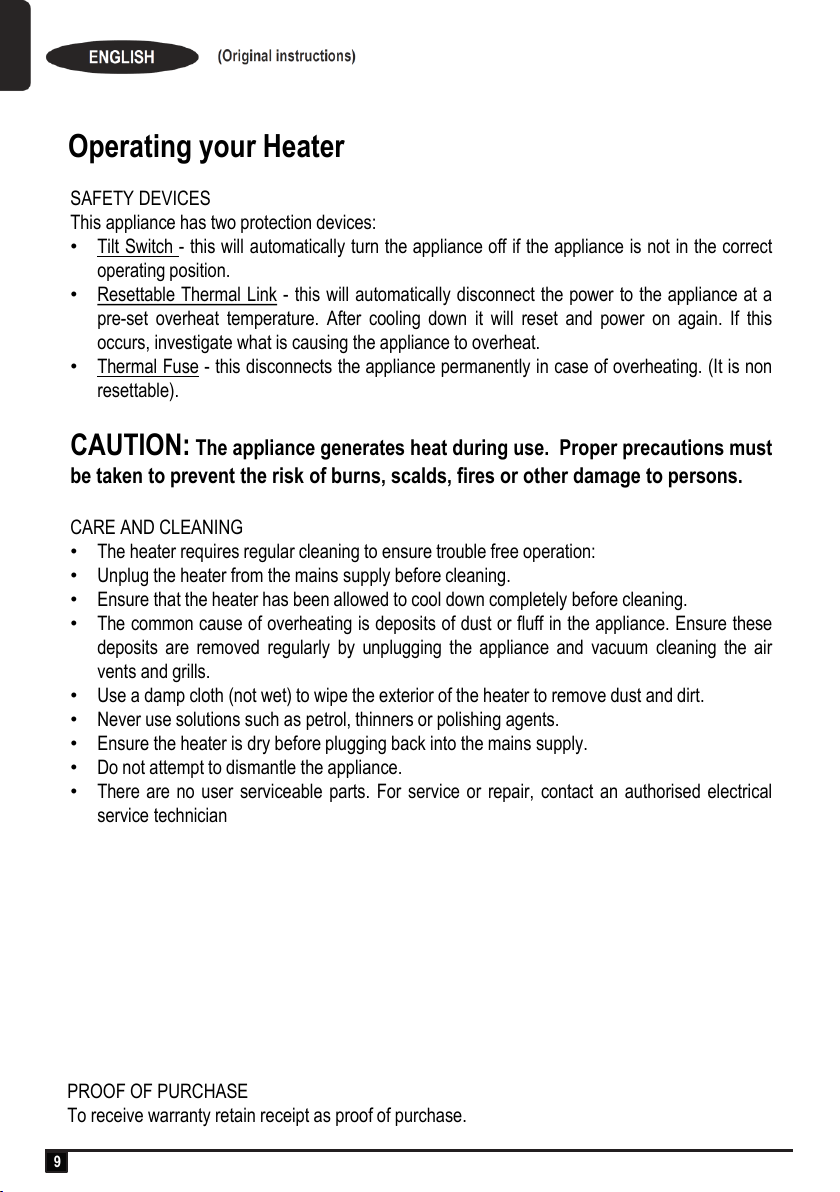

SAFETY DEVICES

This appliance has two protection devices:

•Tilt Switch - this will automatically turn the appliance off if the appliance is not in the correct

operating position.

•Resettable Thermal Link - this will automatically disconnect the power to the appliance at a

pre-set overheat temperature. After cooling down it will reset and power on again. If this

occurs, investigate what is causing the appliance to overheat.

•Thermal Fuse - this disconnects the appliance permanently in case of overheating. (It is non

resettable).

CAUTION: The appliance generates heat during use. Proper precautions must

be taken to prevent the risk of burns, scalds, fires or other damage to persons.

CARE AND CLEANING

•The heater requires regular cleaning to ensure trouble free operation:

•Unplug the heater from the mains supply before cleaning.

•Ensure that the heater has been allowed to cool down completely before cleaning.

•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these

deposits are removed regularly by unplugging the appliance and vacuum cleaning the air

vents and grills.

•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and dirt.

•Never use solutions such as petrol, thinners or polishing agents.

•Ensure the heater is dry before plugging back into the mains supply.

•Do not attempt to dismantle the appliance.

•There are no user serviceable parts. For service or repair, contact an authorised electrical

service technician

All manuals and user guides at all-guides.com

Thank you for purchasing this Black + Decker product. Your product is warranted against faults and manufacture when used in normal

domestic use for a period of two years.In non-domestic use Black + Decker limits the voluntary warranty to three months.

Black + Decker undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the

warranty period.

This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone other

than a qualified electrical service technician.

PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.

The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in relation to the goods

or services to which this warranty relates.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a

replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to

have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

Due to continual design improvements, the product illustrated in this User Manual may differ slightly from the actual product.

New Zealand

CDB

PO Box 100-707

N.S.M.C

Auckland , 0745

Phone +64 (0)9 917 4000

Phone 0800 232 633

Australia

CDB Goldair Australia Pty

PO Box 574

South Morang

Victoria, 3752

Phone +61 (0)3 9365 5100

Phone 1300 465 324

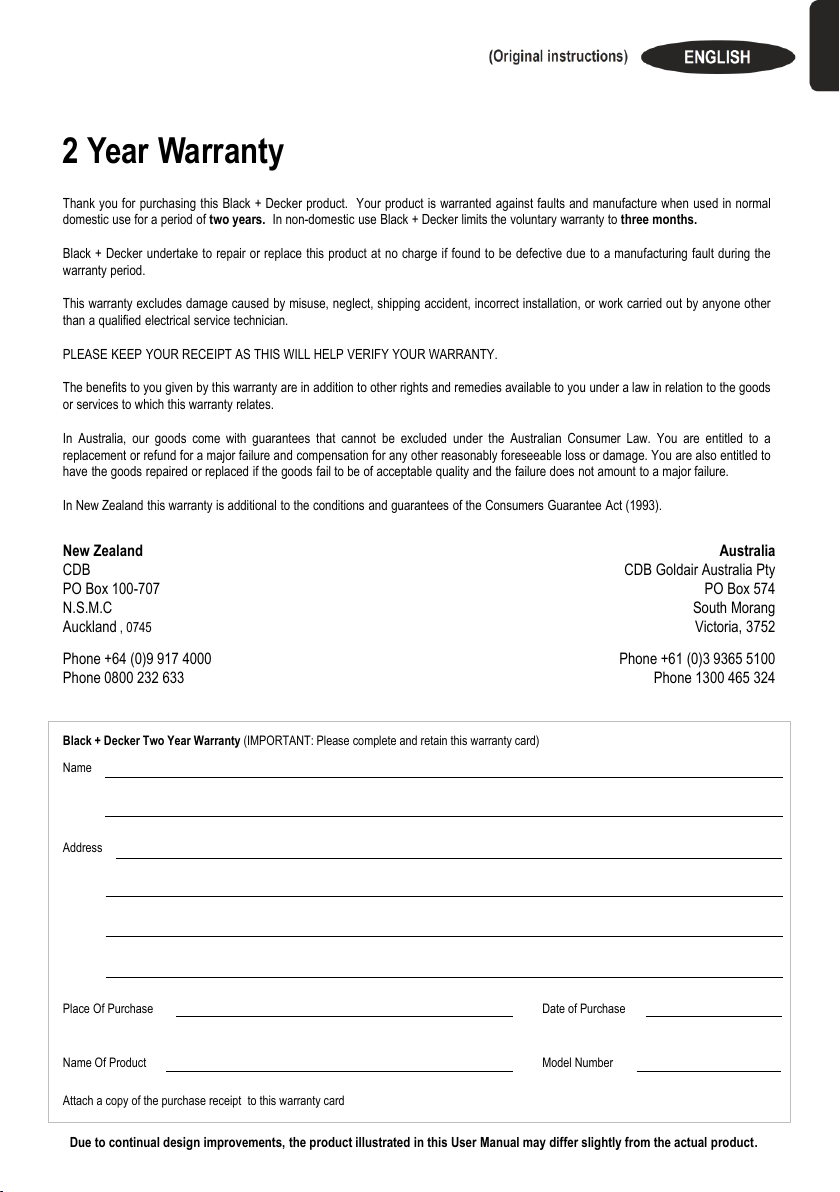

2 Year Warranty

Black + Decker Two Year Warranty (IMPORTANT: Please complete and retain this warranty card)

Name

Address

Place Of Purchase Date of Purchase

Name Of Product Model Number

Attach a copy of the purchase receipt to this warranty card

All manuals and user guides at all-guides.com

Indice

Altri manuali Black & Decker Stufa

Black & Decker

Black & Decker BDH-D16 Manuale utente

Black & Decker

Black & Decker BXSH37001GB Manuale utente

Black & Decker

Black & Decker BHDS156 Manuale utente

Black & Decker

Black & Decker BXSH2003E Manuale utente

Black & Decker

Black & Decker BDHF501 Istruzioni per l'installazione

Black & Decker

Black & Decker 100UH series Istruzioni per l'installazione

Black & Decker

Black & Decker BDTH600 Istruzioni per l'installazione

Black & Decker

Black & Decker BDCV200 Istruzioni per l'installazione

Black & Decker

Black & Decker BHTC3AR Manuale utente

Black & Decker

Black & Decker BXRA43006GB Manuale utente

Black & Decker

Black & Decker BDHF70 Series Istruzioni per l'installazione

Black & Decker

Black & Decker 7BDQ1000 Manuale utente

Black & Decker

Black & Decker HX210-B5 Manuale utente

Black & Decker

Black & Decker BXRA1500E Manuale utente

Black & Decker

Black & Decker BXSH37010GB Manuale utente

Black & Decker

Black & Decker BDCH350 Manuale utente

Black & Decker

Black & Decker BXCSH2001E Manuale utente

Black & Decker

Black & Decker BDCH400 Istruzioni per l'installazione

Black & Decker

Black & Decker BHTC571 Manuale utente

Black & Decker

Black & Decker Chill Buster 100HF Series Istruzioni per l'installazione

Black & Decker

Black & Decker HX325 Manuale utente

Black & Decker

Black & Decker BDHF70 series Istruzioni per l'installazione

Black & Decker

Black & Decker BHRO608 Manuale utente

Black & Decker

Black & Decker Heat Xtreme BDCH100 Istruzioni per l'installazione

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
