ENGLISH
Intended use
Your Black & Decker compact screw driver has been designed for screwdriving applications.
This tool is intended for consumer use only.
General safety rules
Warning! Read all instructions. Failure to follow all instructions listed below may result in
electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed
below refers to your mains operated (corded) power tool or battery operated (cordless)
power tool.
SAVE THESE INSTRUCTIONS.
1. Work area
a. Keep work area clean and well lit.
Cluttered and dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators,
ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor
use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
4
ENGLISH
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication.
A moment of inattention while operating power tools may result in serious personal injury.
b. Use safety equipment. Always wear eye protection.
Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c. Avoid accidental starting. Ensure the switch is in the off position before plugging in.
Carrying power tools with your finger on the switch or plugging in power tools that have
the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in personal
injury.
e. Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection
facilities, ensure these are connected and properly used.
Use of these devices can reduce dust related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application.
The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source before making any adjustments,
changing accessories, or storing power tools.
Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons
unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use.
5
ENGLISH
Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are
easier to control.
g. Use the power tool, accessories and tool bits etc., in accordance with these
instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.
Use of the power tool for operations different from those intended could result in a
hazardous situation.
5. Battery tool use and care
a. Ensure the switch is in the off position before inserting battery pack.
Inserting the battery pack into power tools that have the switch on invites accidents.
b. Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may create a risk of fire when used
with another battery pack.
c. Use power tools only with specifically designated battery packs.
Use of any other battery packs may create a risk of injury and fire.
d. When battery pack is not in use, keep it away from other metal objects like paper
clips, coins, keys, nails, screws, or other small metal objects that can make a
connection from one terminal to another.
Shorting the battery terminals together may cause burns or a fire.
e. Under abusive conditions, liquid may be ejected from the battery; avoid contact.
If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally
seek medical help.
Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts.
This will ensure that the safety of the power tool is maintained.
Additional safety instructions for batteries and chargers
Batteries
Never attempt to open for any reason.
Do not expose the battery to water.
6
ENGLISH
Do not store in locations where the temperature may exceed 40 °C.
Charge only at ambient temperatures between 4 °C and 40 °C.
Charge only using the charger provided with the tool.
When disposing of batteries, follow the instructions given in the section "Protecting the
environment".
Do not incinerate the battery.
Do not attempt to charge damaged batteries.
Chargers
Use your Black & Decker charger only to charge the battery in the tool with which it was
supplied. Other batteries could burst, causing personal injury and damage.
Never attempt to charge non-rechargeable batteries.
Have defective cords replaced immediately.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.
The charger is intended for indoor use only.
Read the instruction manual before use.
Fail safe isolating transformer. The mains supply is electrically separated from the
transformer output.
The charger automatically shuts off if the ambient temperature becomes too high.
As a consequence the charger will be inoperable. The charger must be
disconnected from the mains supply and taken to an authorised service centre for
repair.
Electrical safety
Your charger is double insulated; therefore no earth wire is required. Always check
that the mains voltage corresponds to the voltage on the rating plate.
Never attempt to replace the charger unit with a regular mains plug.
7
ENGLISH
This appliance is not intended for use by young or infirm persons without supervision.
Children must be supervised to ensure they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised
Black & Decker Service Centre in order to avoid a hazard.
Overview
1. On/off switch
2. Forward/reverse slider
3. Bit holder

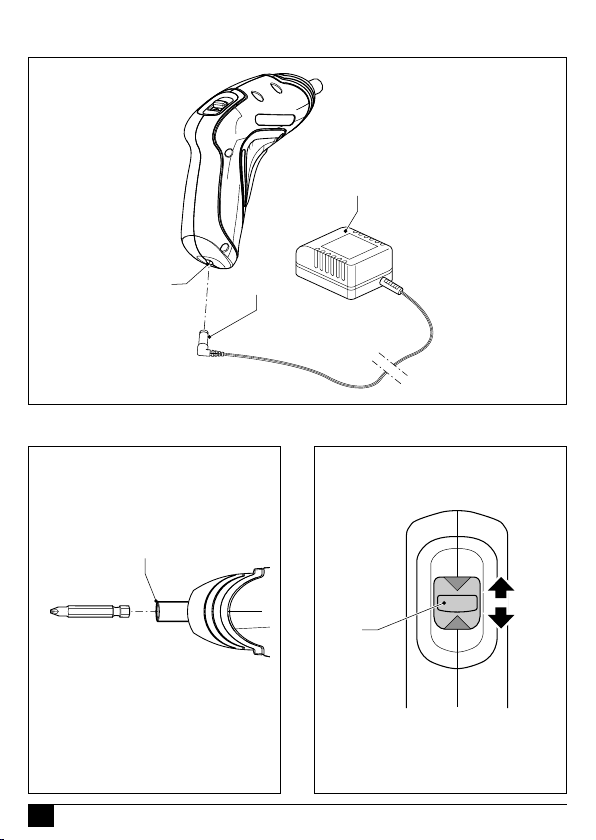

Fig. A
4. Charger
5. Charger plug
6. Charger connector
Assembly
Fitting and removing a screwdriver bit (fig. B)
This tool uses screwdriver bits with a 6.35 mm (1/4") hexagonal shank.
To fit a bit, insert the bit shaft into the bit holder (3).
To remove a bit, pull the bit shaft out of the bit holder (3).
Use
Before first use, the battery must be charged for at least 16 hours.
Charging the battery (fig. A)
To charge the battery, insert the charger plug (5) into the connector (6).
Plug in the charger (4).
Switch on at the mains.
Leave the tool connected to the charger for 6 - 8 hours.
The charger may hum and become warm while charging; this is normal and does not
indicate a problem.
Generally, a charging time of 6 hours will enable the tool to operate at an effective power
level for most tasks. However, further charging for up to 8 hours could significantly increase
the run time, depending on the battery and charging conditions.
Before using the tool, unplug the charger and disconnect the tool from the charger.
8
ENGLISH
Warning! Do not use the tool while it is connected to the charger.
Warning! Do not charge the battery at ambient temperatures below 4 °C or above 40 °C.
Selecting the direction of rotation (fig. C)
For tightening screws, use forward (clockwise) rotation. For loosening screws use reverse
(counterclockwise) rotation.
To select forward rotation, push the forward/reverse slider (2) to the forward position.
To select reverse rotation, push the forward/reverse slider (2) to the rearward position.
To lock the tool, set the forward/reverse slider into the centre position.
Screwdriving (fig. C)
Select forward or reverse rotation using the forward/reverse slider (2).
To switch the tool on, press the on/off switch (1).
To switch the tool off, release the on/off switch (1).
Spindle lock
This tool is fitted with an automatic spindle lock so that it can be used as a normal
screwdriver. Use the tool this way to loosen very tight screws or to firmly tighten screws.
Hints for optimum use
Always use the correct type and size of screwdriver bit.
If screws are difficult to tighten, try applying a small amount of washing liquid or soap as
a lubricant.
Use the spindle lock to loosen very tight screws or to firmly tighten screws.
Always hold the tool and screwdriver bit in a straight line with the screw.
When screwing in wood, it is recommended to drill a pilot hole with a depth equal to the
length of the screw. A pilot hole guides the screw and prevents splintering or distortion of
the wood. For the optimum size of the pilot hole, refer to the table below.
When screwing in hardwood, also drill a clearance hole with a depth equal to half the
length of the screw. For the optimum size of the clearance hole, refer to the table below.
Screw size Pilot hole ø (softwood) Pilot hole ø (hardwood) Clearance hole
No. 6 (3.5 mm) 2.0 mm 2.5 mm 3.6 mm
No. 8 (4 mm) 2.5 mm 3.0 mm 4.5 mm
No. 10 (5 mm) 3.0 mm 3.5 mm 5.0 mm
9
ENGLISH
Accessories
The performance of your tool depends on the accessory used. Black & Decker and Piranha
accessories are engineered to high quality standards and designed to enhance the performance
of your tool. By using these accessories you will get the very best from your tool.
This tool uses screwdriver bits with a 1/4" (6.35 mm) hexagonal shank. Piranha Super-lok
accessories are designed for use with this tool.
Maintenance
Your Black & Decker tool has been designed to operate over a long period of time with a
minimum of maintenance. Continuous satisfactory operation depends upon proper tool care
and regular cleaning.
Your charger does not require any maintenance apart from regular cleaning.
Warning! Before performing any maintenance on the tool, remove the battery from the tool.
Unplug the charger before cleaning it.
Regularly clean the ventilation slots in your tool and charger using a soft brush or dry
cloth.
Regularly clean the motor housing using a damp cloth. Do not use any abrasive or
solvent-based cleaner.
Protecting the environment
Separate collection. This product must not be disposed of with normal household
waste.
Should you find one day that your Black & Decker product needs replacement, or if it is of no
further use to you, do not dispose of it with household waste. Make this product available for
separate collection.
Separate collection of used products and packaging allows materials to be
recycled and used again. Re-use of recycled materials helps prevent
environmental pollution and reduces the demand for raw materials.
Local regulations may provide for separate collection of electrical products from the
household, at municipal waste sites or by the retailer when you purchase a new product.
10
ENGLISH
Black & Decker provides a facility for the collection and recycling of Black & Decker products
once they have reached the end of their working life. To take advantage of this service
please return your product to any authorised repair agent who will collect them on our behalf.
You can check the location of your nearest authorised repair agent by contacting your local
Black & Decker office at the address indicated in this manual. Alternatively, a list of
authorised Black & Decker repair agents and full details of our after-sales service and
contacts are available on the Internet at: www.2helpU.com
Batteries
Black & Decker batteries can be recharged many times. At the end of their useful
life, discard batteries with due care for our environment:
Run the battery down completely, then remove it from the tool.
Lithium Ion batteries are recyclable. Take them to any authorised repair agent or a local
recycling station.
Technical data
KC360LN
Voltage VDC 3.6
No-load speed min-1 180
Max. torque Nm 5.0
Bit holder mm 6.35 (1/4")
Battery capacity Ah 1.1
Weight kg 0.4
Charger
Input voltage VAC 230
Approx. charging time h 6-8
Weight kg 0.2
Indice
Lingue:
Altri manuali Black & Decker Cacciavite elettrico
Black & Decker
Black & Decker BDCD12BC Manuale utente
Black & Decker
Black & Decker 5147205-00 Manuale utente
Black & Decker
Black & Decker BDCDD220C-CA Manuale utente
Black & Decker
Black & Decker BCD002 Manuale utente
Black & Decker
Black & Decker BCF601 Manuale utente
Black & Decker
Black & Decker Pivot Driver PP360LN-XE Manuale utente
Black & Decker
Black & Decker HP96K Manuale utente
Black & Decker
Black & Decker KC460LN H1 Manuale utente
Black & Decker
Black & Decker HP126F2K Manuale utente
Black & Decker
Black & Decker EGBHP188 Istruzioni operative
Black & Decker
Black & Decker 9071 Manuale utente
Black & Decker
Black & Decker KC4815 Manuale utente
Black & Decker
Black & Decker BDSG500 Linea PRO Manuale utente
Black & Decker
Black & Decker EGBHP146 Manuale utente
Black & Decker
Black & Decker HPD1802 Manuale utente
Black & Decker
Black & Decker BDCSFL20 Manuale utente
Black & Decker
Black & Decker 90521837 Manuale utente
Black & Decker
Black & Decker Scrugun 2020-10 Manuale utente
Black & Decker
Black & Decker Scrugun 2035-740-2 Manuale utente
Black & Decker
Black & Decker 9078 Manuale utente
