Black Box USB Director II Manuale utente

CUSTOMER

SUPPORT

INFORMATION

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: www.blackbox.com • E-mail: [email protected]

DECEMBER 2000

IC139A-R2

IC139AE-R2

USB Director II

DC5V

USB DIRECTOR II

FEDERAL COMMUNICATIONS COMMISSION

and CANADIAN DEPARTMENT OF COMMUNICATIONS

RADIO FREQUENCY INTERFERENCE STATEMENT

Class B Digital Device. This equipment has been tested and found to comply with

the limits for a Class B computing device pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. However, there is no guarantee that

interference will not occur in a particular installation. This equipment generates,

uses, and can radiate radio frequency energy, and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio

communications. If this equipment does cause harmful interference to radio or

telephone reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult an experienced radio/TV technician for help.

Caution:

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate

the equipment.

To meet FCC requirements, shielded cables and power cords are required to

connect this device to a personal computer or other Class B certified device.

This digital apparatus does not exceed the Class B limits for radio noise emission from digital

apparatus set out in the Radio Interference Regulation of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de classe B prescrites dans le Règlement sur le brouillage

radioélectrique publié par Industrie Canada.

USB DIRECTOR II

NORMAS OFICIALES MEXICANAS (NOM)

ELECTRICAL SAFETY STATEMENT

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de

que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca

de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que

sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe colocar

en libreros o gabinetes que impidan el flujo de aire por los orificios de

ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el aparato.

USB DIRECTOR II

12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización

del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen del

aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas

de energia.

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

USB DIRECTOR II

TRADEMARKS

The trademarks mentioned in this manual are the sole property of their owners.

USB DIRECTOR II

CONTENTS

1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2. Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2 What You Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2.1 What the Package Includes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.2.2 What You Need to Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2 Software Driver Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Step A: Installing the Driver for the Hub Device . . . . . . . . . . . . . . . 9

Step B: Installing the Driver for the RS-232 Serial Port . . . . . . . . . . 14

Step C: Installing the Driver for the Printer Port . . . . . . . . . . . . . . . 20

Step D: Installing the Driver for the COM Port . . . . . . . . . . . . . . . . 25

Step E: Check to Make Sure the USB Devices are

Installed Correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

USB DIRECTOR II

1. Specifications

Data Rate—RS-232 interface: 9600 to 115.2 kbps

Distance—RS-232 interface: 50 ft. (15.2 m)

Agency Compliance—CE; FCC Class B, Part 15; UL #E132137

Temperature—Operating: 32 to 158 °F (0 to 70 °C); Storage: 32 to 185°F (0 to

85 °C)

Indicators—(5) LEDs: (1) Power, (3) USB Port, (1) USB RS-232 Printer

Connectors—Interface A: (1) B Type USB, (3) A Type USB; Interface B: (1) DB25

female parallel; Interface C: (1) DB9 male RS-232

Power—Internal: From the RS-232 interface; External: IC139A-R2: 110 VAC,

IC139AE-R2: 220 VAC

Size—1.5"H x 5.6"W x 3.5"D (3.8 x 14.2 x 8.9 cm)

Weight—2.5 lb. (1.1 kg)

USB DIRECTOR II

2. Introduction

2.1 General

The USB Director II is an intelligent, stackable expansion module that connects to

a PC or server via the Universal Serial Bus (USB) port. It provides one high-speed

RS-232 serial port, one printer port, and three downstream USB ports for

connecting traditional serial devices and other USB devices. Two models are

available: one for 110 VAC and one for 220 VAC.

By simply plugging in a USB Director II, you will:

• Add one high-speed serial port, one printer port, and three downstream USB

ports to your PC or server in seconds.

• Eliminate the difficult configuration issues associated with higher-priced, older

card solutions, which take up valuable slots in your PC.

• Avoid the hassle of removing your PC cover, or rebooting the operating system

during installation.

2.2 What You Need

2.2.1 W

HAT THE

ACKAGE

NCLUDES

• (1) USB Director II (part number IC139A-R2 or IC139AE-R2)

• (1) 6-ft. (1.8-m) USB cable (AB type)

• (1) switching power adapter (110 VAC for IC139A-R2, 220 VAC for

IC139AE-R2)

• (1) Windows 98 driver diskette (NOTE: For Windows 2000 or Windows ME

compatibility questions, please call Black Box Technical Support at 724-746-

5500.)

• (1) user’s manual

2.2.2 W

HAT

EED TO

UPPLY

• (1) Pentium-class CPU with USB port PC

• (1) available USB type A (downstream) port

USB DIRECTOR II

3. Installation

To install the USB Director II, follow these steps:

1. Verify that your system supports USB.

2. If it does not support USB, determine why.

3. Connect the appropriate cables to the connectors on the USB Director II and

to your devices.

4. Install the drivers.

5. Test the USB Director II for related PC platform.

3.1 Hardware Installation

Plug the flat end of the USB cable into the downstream A connector located in the

back of your computer or USB hub port. Plug the upstream B connector into the

USB Director II.

3.2 Software Driver Installation

NOTE

The driver installation is divided into four steps. Make sure you go

through the installation in order from Step A to Step D.

USB DIRECTOR II

Step A: Installing the Driver for the Hub Device

A1. Insert the Windows 98 CD into the CD-ROM drive.

NOTE

For Windows 2000 or Windows ME compatibility questions, please call

Black Box Technical Support at 724-746-5500.

A2. Click “Next” to continue (see Figure 3A-1).

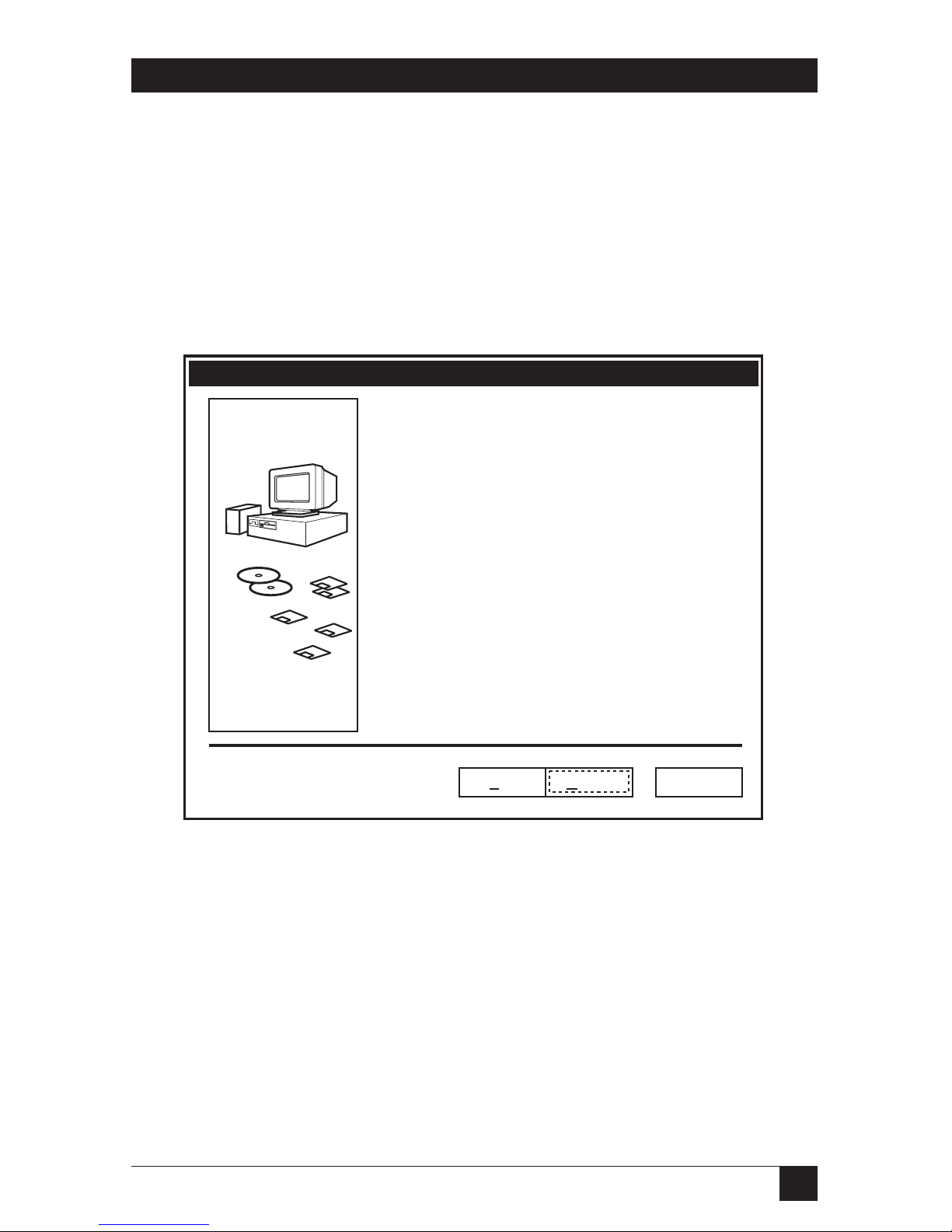

Figure 3A-1. Add New Hardware Wizard screen.

Add New Hardware Wizard

< Back Next > Cancel

Window driver file searches for new drivers for:

Generic USB Hub

A device driver is a software program that makes a

hardware device work.
