BLACK BOX®

Split your PC’s DVI signals to two

or four separate DVI displays.

2- or 4-Channel DVI Splitter/Extender

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

AC1031A-R2-2

AC1031A-R2-4

Page 2 724-746-5500 | blackbox.com

FCC and IC RFI Statements; NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant

les limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

Page 3

724-746-5500 | blackbox.com

NOM Statement

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc.

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

Page 4 724-746-5500 | blackbox.com

NOM Statement

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 5

724-746-5500 | blackbox.com

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

IBM is a registered trademark of International Business Machines Corporation.

SGL is a registered trademark of Silicon Graphics, Inc.

Sun and Sun Microsystems are registered trademarks of Sun Microsystems, Inc. in

the United States and other countries.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Page 6 724-746-5500 | blackbox.com

Table of Contents

1. Specifications ......................................................................................... 7

2. Overview ............................................................................................. 9

2.1 Introduction.................................................................................... 9

2.2 Features .......................................................................................... 9

2.3 What’s Included.............................................................................. 9

2.4 Hardware Description ................................................................... 10

2.4.1 2-Channel DVI Splitter/Extender (AC1031A-R2-2)............... 10

2.4.2 4-Channel DVI Splitter/Extender (AC1031A-R2-4) ...............11

3. Installation ..............................................................................................12

4. Troubleshooting......................................................................................14

4.1 Problem-Solving Frequently-Asked Questions (FAQs) ....................14

4.2 Contacting Black Box.....................................................................14

4.3 Shipping and Packaging ................................................................15

Page 7

724-746-5500 | blackbox.com

Chapter 1: Specifications

1. Specifications

Standards — DVI-I single-link, compliant with DVI 1.0 standard

Resolutions — PC resolutions up to 1920 x 1200 @ 60 Hz and HDTV to 1080i

Temperature Tolerance — Operating: 32 to 122°F (0 to 50°C);

Storage: -40 to +185°F (-40 to +85°C)

Enclosure — Steel

MTBF — 90,000 hours (calculated estimate)

Power — From utility-power (mains) outlet, through included external power

supply;

Output voltage: 12 VDC center-positive at 1 A

Size — AC1031A-R2-2: 1.4"H x 7.8"W x 2.7"D (3.6 x 19.8 x 6.8 cm);

AC1031-R2-4: 1.4"H x 10.6"W x 4"D (3.6 x 26.9 x 10.2 cm)

Weight — AC1031A-R2-2: 1.4 lb. (0.6 kg);

AC1031A-R2-4: 2.2 lb. (1 kg)

Page 8 724-746-5500 | blackbox.com

Chapter 1: Specifications

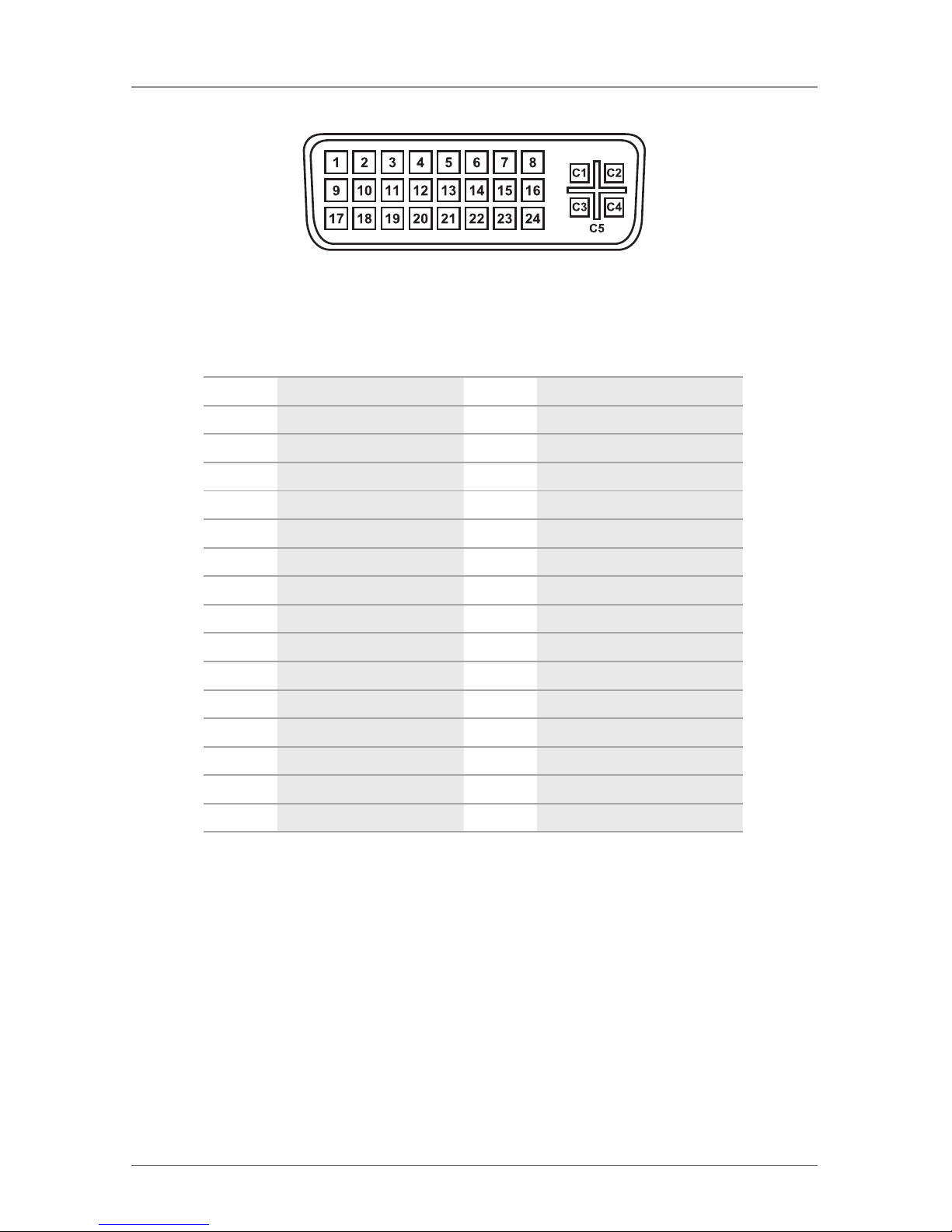

Figure 1-1. DVI connector.

Table 1-1. DVI connector pinout.

Pin Signal name Pin Signal name

1TMDS Data2- 13 TMDS Data3+ (N/U)

2TMDS Data2+ 14 +5V Power

3TMDS Data2/4 Shield 15 Ground for +5V Power

4TMDS Data4- (N/U) 16 Hot Plug Detect

5TMDS Data4- (N/U) 17 TMDS Data0-

6DDC Clock 18 TMDS Data0+

7DDC Data 19 TMDS Data0/5 Shield

8Analog vertical sync 20 TMDS Data5- (N/U)

9TMDS Data1- 21 TMDS Data5+ (N/U)

10 TMDS Data1+ 22 TMDS Clock Shield

11 TMDS Data1/3 Shield 23 TMDS Clock+

12 TMDS Data3- (N/U) 24 TMDS Clock-

C1 Analog red C4 Analog horizontal sync

C2 Analog green C5 Analog ground

C3 Analog blue

NOTE: N/U = Not Used

Page 9

724-746-5500 | blackbox.com

Chapter 2: Overview

2. Overview

2.1 Introduction

The 2- and 4-Channel DVI Splitter/Extenders enable routing of a single DVI

equipped device (such as a PC) to multiple DVI displays (such as plasma or LCD

screens). The splitters support single-link, DVI-I (integrated Analog and/or Digital)

video signals at resolutions of up to 1920 x 1200. They feature a front-panel LED

indicator for power on state, plus they can be used to extend the DVI output to

32 feet (10 meters). A DVI-I input cable is included with the unit.

2.2 Features

• Clear and sharp image at resolutions up to 1920 x 1200 (including 1080i).

• Supports both digital and analog DVI signals (DVI-I), enabling you to connect a

DVI-I equipped PC to monitors that have DVI-I or legacy monitors with VGA

inputs only (in this case, you will need a HD15 to DVI cable or adapter).

• Can be cascaded (2-levels deep) for more outputs.

• Installs in minutes.

• Complies with the DVI 1.0 specification.

• Includes a high-quality DVI-I input cable.

• Includes a universal (110-220 VAC) power supply.

2.3 What’s Included

Your package should include the following items. If anything is missing

or damaged, contact Black Box Technical Support at 724-746-5500

or info@blackbox.com.

• 2- or 4-Channel DVI Splitter/Extender

• (1) DVI-I input cable

• Universal 110-220 VAC, 12 VDC, 1 A power supply and U.S. power cord

• This user’s manual

Page 10 724-746-5500 | blackbox.com

Chapter 2: Overview

2.4 Hardware Description

2.4.1 2-Channel DVI Splitter/Extender (AC1031A-R2-2)

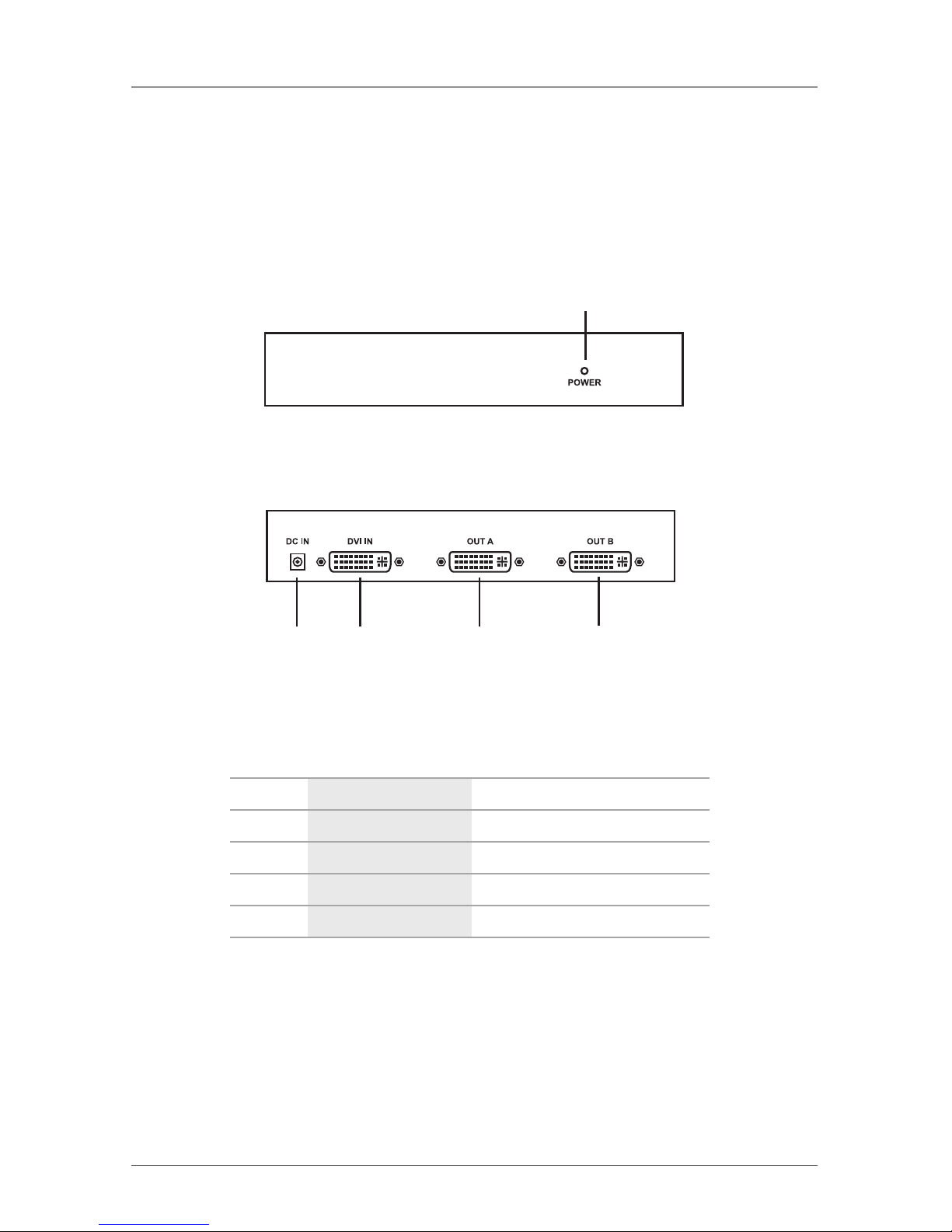

Figures 2-1 and 2-2 show the front and back panels of the AC1031A-R2-2. Table

2-1 describes its components.

Figure 2-1. AC1031A-R2-2 front panel.

2 4 3 4

Figure 2-2. AC1031A-R2-2 back panel.

Table 2-1. AC1031A-R2-2 components.

Number Component Description

1Power LED Lights when power to the unit is on.

2Barrel connector Links to 12 VDC power.

3(1) DVI connector Connects to DVI input.

4(2) DVI connectors Link to DVI outputs.
