Black Box AVS-HDB-WPTX Manuale utente

Order toll-free in the U.S. or for FREE 24/7 technical support: Call 877-877-BBOX

(outside U.S. call 724-746-5500)

www.blackbox.com • info@blackbox.com

Contact

Information

User Manual

Provides a wallplate interface for HDMI/VGA

input sources.

Video Extender - 4K HDMI, VGA, RS-232, Wallplate Transmitter with Audio

AVS-HDB-WPTX

Page 2 877-877-2269 | blackbox.com

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of

BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be

the property of the trademark owners.

Page 3

877-877-2269 | blackbox.com

FCC and IC RFI Statements/NOM Statement

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart B of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Normas Oficiales Mexicanas (NOM)

Electrical Safety Statement

INSTRUCCIONES DE SEGURIDAD

1. Todas las instrucciones de seguridad y operación deberán ser leídas antes

de que el aparato eléctrico sea operado.

2. Las instrucciones de seguridad y operación deberán ser guardadas para

referencia futura.

3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de

operación deben ser respetadas.

4. Todas las instrucciones de operación y uso deben ser seguidas.

Page 4 877-877-2269 | blackbox.com

NOM Statement

4. Todas las instrucciones de operación y uso deben ser seguidas.

5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,

cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,

etc..

6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales

que sean recomendados por el fabricante.

7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea

recomendado por el fabricante.

8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá

lo descrito en las instrucciones de operación. Todo otro servicio deberá ser

referido a personal de servicio calificado.

9. El aparato eléctrico debe ser situado de tal manera que su posición no

interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,

alfombra o superficie similar puede bloquea la ventilación, no se debe

colocar en libreros o gabinetes que impidan el flujo de aire por los orificios

de ventilación.

10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor

como radiadores, registros de calor, estufas u otros aparatos (incluyendo

amplificadores) que producen calor.

11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del

tipo descrito en el instructivo de operación, o como se indique en el

aparato.

12. Precaución debe ser tomada de tal manera que la tierra fisica y la

polarización del equipo no sea eliminada.

13. Los cables de la fuente de poder deben ser guiados de tal manera que no

sean pisados ni pellizcados por objetos colocados sobre o contra ellos,

poniendo particular atención a los contactos y receptáculos donde salen

del aparato.

14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las

recomendaciones del fabricante.

15. En caso de existir, una antena externa deberá ser localizada lejos de las

lineas de energia.

Page 5

877-877-2269 | blackbox.com

NOM Statement

16. El cable de corriente deberá ser desconectado del cuando el equipo no sea

usado por un largo periodo de tiempo.

17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean

derramados sobre la cubierta u orificios de ventilación.

18. Servicio por personal calificado deberá ser provisto cuando:

A: El cable de poder o el contacto ha sido dañado; u

B: Objectos han caído o líquido ha sido derramado dentro del aparato; o

C: El aparato ha sido expuesto a la lluvia; o

D: El aparato parece no operar normalmente o muestra un cambio en su

desempeño; o

E: El aparato ha sido tirado o su cubierta ha sido dañada.

Page 6 877-877-2269 | blackbox.com

Safety Precautions

For reliable operation of the equipment and personnel safety, follow the guidelines

below for installation, use, and maintenance of the device.

1. The system must be grounded properly. Do not use two-blade plugs and ensure the

alternating power supply ranges from 100 to 240 VAC and 50 to 60 Hz.

2. Do not put the control panel in an environment that is not within the its temperature

tolerance.

3. Because the switch’s power generates heat when running, be sure the working

environment is properly ventilated to avoid damage caused by equipment

overheating.

4. Turn off the general power switch in humid weather or when the control panel will

be left unused for long time.

5. Before operating, be sure that the alternating current wire is pulled out of the power

supply.

6. NEVER open the casing of the equipment, DO NOT repair it on your own. This might

be harmful to persons or the equipment.

7. DO NOT splash any liquids on or around the equipment.

Page 7

877-877-2269 | blackbox.com

Table of Contents

1. Specifications ..............................................................................................8

2. Overview .....................................................................................................9

2.1 Introduction .....................................................................................9

2.2 Features ...........................................................................................9

2.3 What's Included..............................................................................10

2.4 Hardware Description .....................................................................10

2.4.1 Front Panel.............................................................................10

2.4.2 Side Panel ..............................................................................12

2.4.3 Back Panel .............................................................................12

3. System Connection ....................................................................................14

3.1 Usage Precautions...........................................................................14

3.2 Connection Procedure ....................................................................14

3.3 Powering On the Unit.....................................................................15

3.4 PoC Solution...................................................................................15

3.5 Application .....................................................................................16

4. Operation................................................................................................... 17

4.1 Front-Panel Buttons ........................................................................ 17

4.2 RS-232 Communications Command............................................... 19

5. Troubleshooting and Maintenance.............................................................23

Page 8 877-877-2269 | blackbox.com

Chapter 1: Specifications

1. Specifications

Video

Input (1) HDMI, (1) VGA

Input Connector (1) 19-pin Type A HDMI F, (1) 15-pin VGA

Output (1) HDBaseT

Output Connector (1) RJ-45

Transmission Mode HDBaseT

Audio

Input (1) synchronous VGA audio

Input Connector (1) 3.5-mm stereo jack

Frequency Response 20 Hz–20 kHz

Impedance >10 ohms, ASNR, >85 dB @ 20 Hz–20 kHz

Control Ports

Control Ports (1) 3-pin RS-232 socket on front panel,

(1) 3-pin RS-232 socket on rear panel (shares the grounding

pole with 12 V output)

General

Resolution VGA: 800 x 600, 1024 x 768, 1280 x 800,1280 x 1024,

1440 x 900,1600 x 1200,

1920 x 1080, 1920 x 1200;

HDMI: 4K x 2K @ 30 Hz, 1080p 3D, 1080P(HD)/1080i/720

P/576P/576i/480P/480i

Transmission Distance 1080P < or = 60 m (PoC)

4K x 2K < or = 40 m (PoC)

Bandwidth 10.2 Gbps

HDMI Standard Support HDMI1.4 and HDCP

Hardware

Chassis Style Decora-style wall-gang

Dimensions 4.1"H x 3.5"W x 1.7"D (10.4 x 8.9 x 4.4 cm)

Weight 0.63 lb. (0.29 kg)

Environmental

Operating Temperature -14 to 104° F (-10 to +40° C)

Operating Humidity 10–90%

Page 9

877-877-2269 | blackbox.com

Chapter 2: Overview

2. Overview

2.1 Introduction

The Video Extender —4K HDMI, VGA, RS-232, Wallplate Transmitter with Audio (AVS-

HDB-WPTX) is a Decora style transmitter that installs in a double-gang wall box to pro-

vide a convenient interface for HDMI/VGA input sources. It has (1) HDMI IN, (1) VGA IN

and (1) HDBaseT OUT with PoC connector. It supports VGA as a full HD scale. HDMI 1.4

with 4k and 3D input signals support auto-switching and manual-switching. The

HDBaseT output supports 60-m UHD video transmission with PoC, and enables bi-direc-

tional RS-232 communication between the AVS-HDB-WPTX and the remote device.

Using PoC, AVS-HDB-WPTX can be powered via a far-end PoC receiver.

2.2 Features

• Selectable HDMI/VGA with audio input

• Supports VGA output resolution up to 1920x1200

• High bandwidth: 10.2 Gbps

• Built-in scaler, scales HDMI/VGA signals to match the native resolution of the display.

• Transmits HDMI signals up to 4K

• Compliant with HDMI 1.4, support 1080p 3D

• HDCP compliance, equipped with HDCP auto-tracking solution

• Provides auto-switching capability

• Supports multiple control methods including front-panel buttons, and RS-232. The

extender supports bi-directional RS-232 passthrough control.

• Supports firmware upgrading via USB.

• Powered by a 12-VDC power output or PoC connection up to 60 m.

• Made of aluminum, so it cools faster.

Page 10 877-877-2269 | blackbox.com

Chapter 2: Overview

2.3 What's Included

Your package should include the following items. If anything is missing or damaged,

contact Black Box Technical Support at 877-877-2269 or info@blackbox.com.

• (1) Video Extender —4K HDMI, VGA, RS-232, Wallplate Transmitter with Audio (AVS-

HDB-WPTX)

• (4) Screws (for AVS-HDB-WPTX)

• (3) Pluggable Terminal Blocks ([1] 2-pin block, [1] 3-pin block, and [1] 4-pin block)

• (1) Faceplate

• (4) Screws (for the faceplate)

• This printed user manual

2.4 Hardware Description

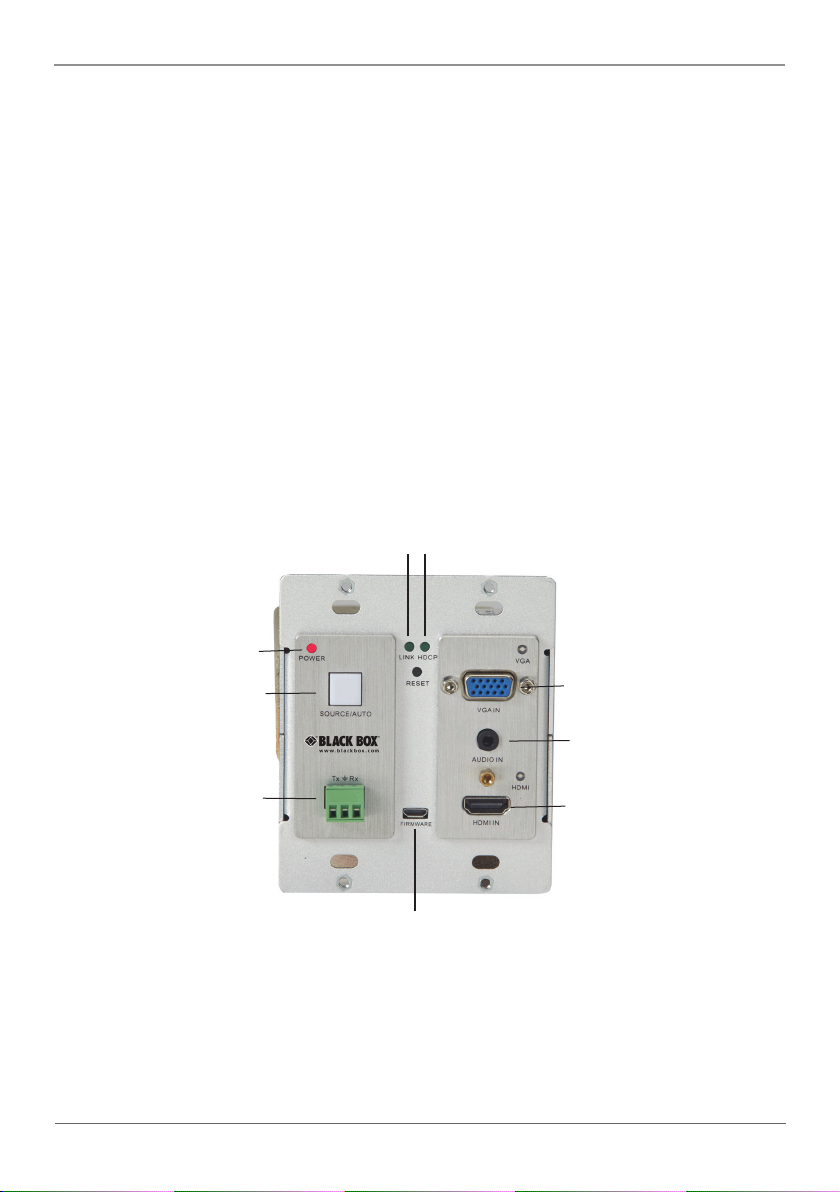

2.4.1 Front Panel

7 8

Figure 2-1. Front panel.

Indice

Altri manuali Black Box Estensione

Black Box

Black Box Abeo G.703 LAN Istruzioni per l'installazione e il funzionamento

Black Box

Black Box LB300A Manuale utente

Black Box

Black Box VX-HDB2-KIT Manuale utente

Black Box

Black Box IC569A Manuale utente

Black Box

Black Box LWE100A Manuale utente

Black Box

Black Box ACS1009A series Scheda tecnica

Black Box

Black Box LB532A-L Manuale utente

Black Box

Black Box MTU9230 Manuale utente

Black Box

Black Box CAT5 ClassWork Plus Multiloop Manuale utente

Black Box

Black Box ACU5050A Manuale utente

Black Box

Black Box LB300A-R3 Istruzioni per l'installazione e il funzionamento

Black Box

Black Box ServSwitch ACU2500A Manuale utente

Black Box

Black Box ServSwitch ACU5122A Manuale utente

Black Box

Black Box ACX1K Manuale utente

Black Box

Black Box ServSwitch ACU3201A Manuale utente

Black Box

Black Box DB25 Manuale utente

Black Box

Black Box AC1070A Manuale utente

Black Box

Black Box ACU1500A Manuale utente

Black Box

Black Box KVX Series Istruzioni per l’uso

Black Box

Black Box LBPD01A-KIT Manuale utente

Black Box

Black Box VX-VGA520-TA Manuale utente

Black Box

Black Box ACS2009A-R2-xx Manuale utente

Black Box

Black Box ACU2500A-R2 Manuale utente

Black Box

Black Box ServSwitch ACU2500A Manuale utente

Manuali Estensione popolari di altre marche

SY HDBT-60T Manuale utente

Appsys ProAudio

Appsys ProAudio ADX-16 Manuale utente

Atlona

Atlona RS232 Manuale utente

IDK

IDK OPF-TH1000-A Manuale utente

Enable-IT

Enable-IT 824WP Manuale utente

Worx

Worx Landroid RadioLink WA0864 Scheda tecnica

TP-Link

TP-Link TL-WA730RE Manuale utente

Camplex

Camplex CMX-HDMI-SFPL Manuale utente

SC&T

SC&T HE03-4K Manuale utente

Marmitek

Marmitek MegaView70 Manuale utente

Samsung

Samsung SCS-26UC4 Manuale utente

Foxun

Foxun SX-GES24 Manuale utente

MuxLab

MuxLab 500771 Manuale utente

foxunhd

foxunhd SX-AEX01 Manuale utente

TERK Technologies

TERK Technologies LFIRX2 Manuale utente

Devolo

Devolo Audio Extender Manuale

Edimax

Edimax EW-7438RPn V2 Manuale utente

Shinybow USA

Shinybow USA SB-6335T5 Manuale utente
