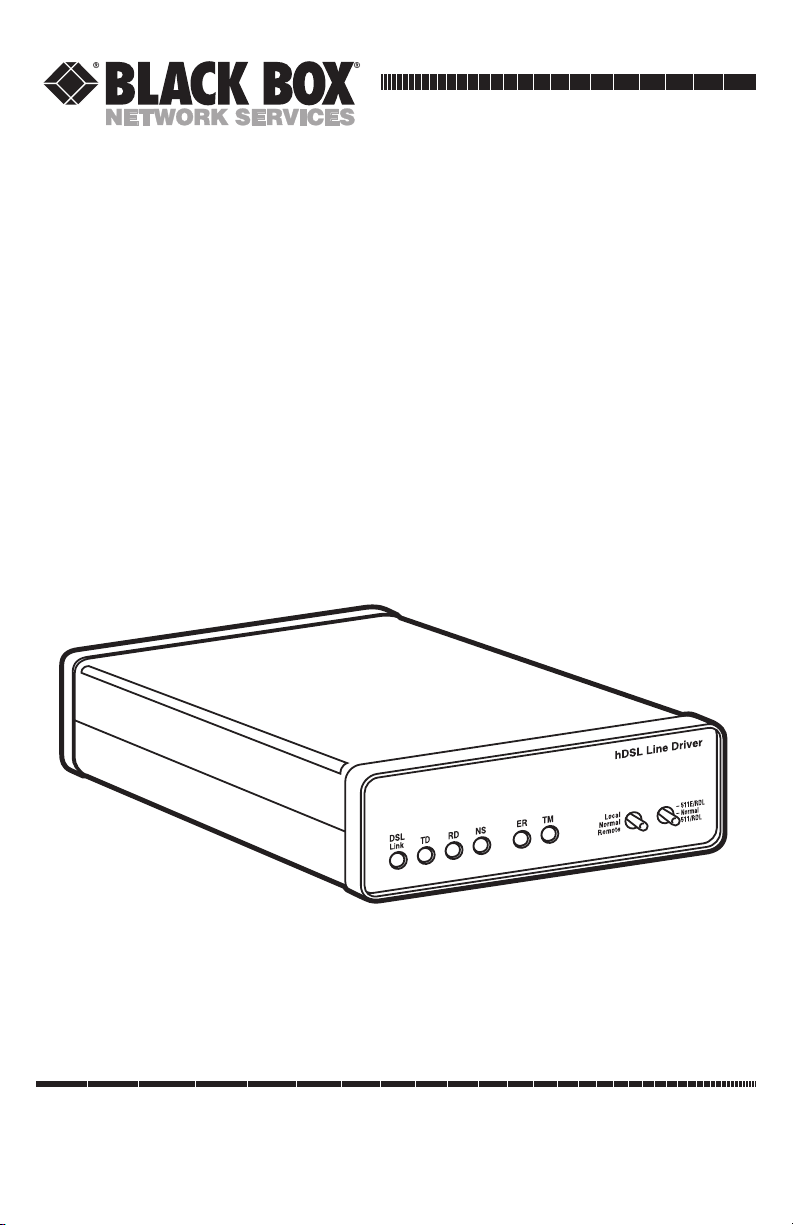

2-Wire Short-Range DSL Line Driver
(HDSL with V.35)
(HDSL with X.21)
1
FCC AND IC RFI STATEMENTS/CE NOTICE
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used properly, that is, in strict accordance with the manufacturer’s
instructions, may cause interference to radio communication. It has been tested
and found to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart B of Part 15 of FCC rules, which are designed to
provide reasonable protection against such interference when the equipment is
operated in a commercial environment. Operation of this equipment in a
residential area is likely to cause interference, in which case the user at his own
expense will be required to take whatever measures may be necessary to correct
the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
EUROPEAN UNION DECLARATION OF CONFORMITY
This equipment complies with the requirements of the European EMC Directive
89/336/EEC.
2
2-WIRE SHORT-RANGE DSL LINE DRIVER (HDSL WITH V.35 OR X.21)
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de
que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca
de la tina de baño, lavabo, sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que
sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más allá
a lo descrito en las instrucciones de operación. Todo otro servicio deberá ser
referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama, sofá,
alfombra o superficie similar puede bloquea la ventilación, no se debe colocar
en libreros o gabinetes que impidan el flujo de aire por los orificios de
ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el aparato.
3
NOM STATEMENT
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización
del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen del
aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas
de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea
usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su
desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
4
2-WIRE SHORT-RANGE DSL LINE DRIVER (HDSL WITH V.35 OR X.21)
TRADEMARKS USED IN THIS MANUAL
Any trademarks mentioned in this manual are acknowledged to be the property of the
trademark owners.
5
CONTENTS
Contents
Chapter Page
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1 Connecting the Twisted-Pair Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 Connecting the HDSL Line Driver’s V.35 Serial Interface . . . . . . . . . . . 15
4.2.1 Connecting the V.35 Line Driver to a DTE Device . . . . . . . . . . . . . . 15
4.2.2 Connecting the V.35 Line Driver to a DCE Device . . . . . . . . . . . . . . 15
4.3 Connecting the Line Driver’s X.21 Serial Interface . . . . . . . . . . . . . . . . . 16
4.3.1 Connecting the X.21 Line Driver to a DCE or DTE Device . . . . . . . 16
4.3.2 Opening the Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4 Connecting Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Power-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.2 LED Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.3 Test Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3.2 Restart Procedure and Timeouts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3.3 Loops and Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.3.4 Using the V.52 (BER) Test-Pattern Generator . . . . . . . . . . . . . . . . . . 27
Appendix A. V.35 Interface Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Appendix B. X.21 Interface Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Appendix C. Transmission Distance Charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6
2-WIRE SHORT-RANGE DSL LINE DRIVER (HDSL WITH V.35 OR X.21)
1. Specifications
Clocking Modes: Internal, external, or receive recovered
DTE Rate: All 64-kbps increments from 64 to 1152 kbps
DTE Interface: ME0006A-V.35: DCE orientation; ME0006A-X.21: DCE or DTE
DTE Connector: ME0006A-V.35: M/34 female; ME0006A-X21: DB15 female
Diagnostics: V.52-compliant (511/511E) pattern generator and detector with error
injection mode controlled by a front-panel switch; local and remote loopback
controlled by either a front-panel switch or from the DTE interface
Indicators: LEDs: DSL Link (green active); TD (yellow/green) idle yellow; RD
(yellow/green) idle yellow; NS (red active); No signal DSL Link; ER (flashing red)
CRC error during normal operation, bit error during pattern-generation test; TM
(active yellow) Test Mode enabled
Configuration: Externally accessible DIP switches or SNMP managed through
ME0003C
Transmission Line: Single twisted pair
Line Coding: 2B1Q
Line Rates (DSL Line): 144, 272, 400, 528, 784, 1040, 1168 kbps
Line Interface: Transformer coupled, 1500-VAC isolation
Connection: RJ-45, 2-wire, polarity insensitive pins 4 and 5
Operating Temperature: 32 to 122°F (0 to 50°C)
Humidity: 5 to 95% noncondensing
Altitude: Up to 15,000 ft. (4572 m)
Power: External desktop transformer, 100 to 240 VAC, 50 to 60 Hz (universal
input), 10 W
Size: 1.6"H x 4.7"W x 6"D (4.1 x 11.9 x 15.2 cm)
Weight: 0.58 lb. (0.26 kg)
7
CHAPTER 2: Introduction
2. Introduction
2.1 Description
The 2-Wire Short-Range DSL Line Driver (HDSL) V.35 or X.21 provides
high-speed 2-wire connectivity to ISPs, PTTs, and corporations using HDSL (High
Bit-Rate Digital Subscriber Line) technology. Supporting multiple line rates from
144 kbps to 1.168 Mbps, the Line Driver provides megabyte speeds to leased line,
LAN-to-LAN interconnection, and WAN access networks over 3.6 miles/5.8 km
(1.054 Mbps on 24-AWG/0.5-mm wire).
The HDSL Line Driver V.35 (ME0006A-V35) provides a V.35 interface on an M/34
female connector. The HDSL Line Driver X.21 (ME0006A-X21) provides an X.21
interface on a DB15 female connector. Features include loopback diagnostics, and
inband SNMP/HTTP remote management capabilities through a DSL Line Driver
Rack Card (ME0003C) CO and externally accessible configuration switches. Both
versions of the Line Driver are compatible with the popular QuikConnect HDSL
Line Driver (ME0007A-HDSL) standalone and DSL Line Driver Rack Card
(ME0003C) as well as the HDSL Line Driver 10BASE-T (ME0006A-10BT).
As a symmetric DSL NTU, the HDSL Line Driver offers the same data rates in both
directions over a single pair of regular telephone lines using 2B1Q modulation.
Line connection is made by an RJ-45 jack. The Line Driver is powered by a 100- to
240-VAC universal power supply.
2.2 Features
• High bit-rate DSL.
• 2B1Q modulation.
• DTE rates up to 1.152 Mbps.
• V.35 and X.21 interfaces.
• Interoperable with ME0003C and ME0007A.
• SNMP Manageable via Managed Micro Rack SNMP/HTTP Card (RM261C-
SNMP) through ME0003C/CO.
• Universal power supply.
• Front-panel status indicators.
• Small, convenient desktop unit.
• CE marked.
8
2-WIRE SHORT-RANGE DSL LINE DRIVER (HDSL WITH V.35 OR X.21)
3. Configuration
The HDSL Line Driver is equipped with two sets of eight DIP switches. This
chapter describes switch locations and explains all possible configurations.
Configuring the Hardware DIP Switches
The 16 external switches are grouped into two eight-switch sets. They’re externally
accessible from the underside of the HDSL Line Driver (see Figure 3-1).

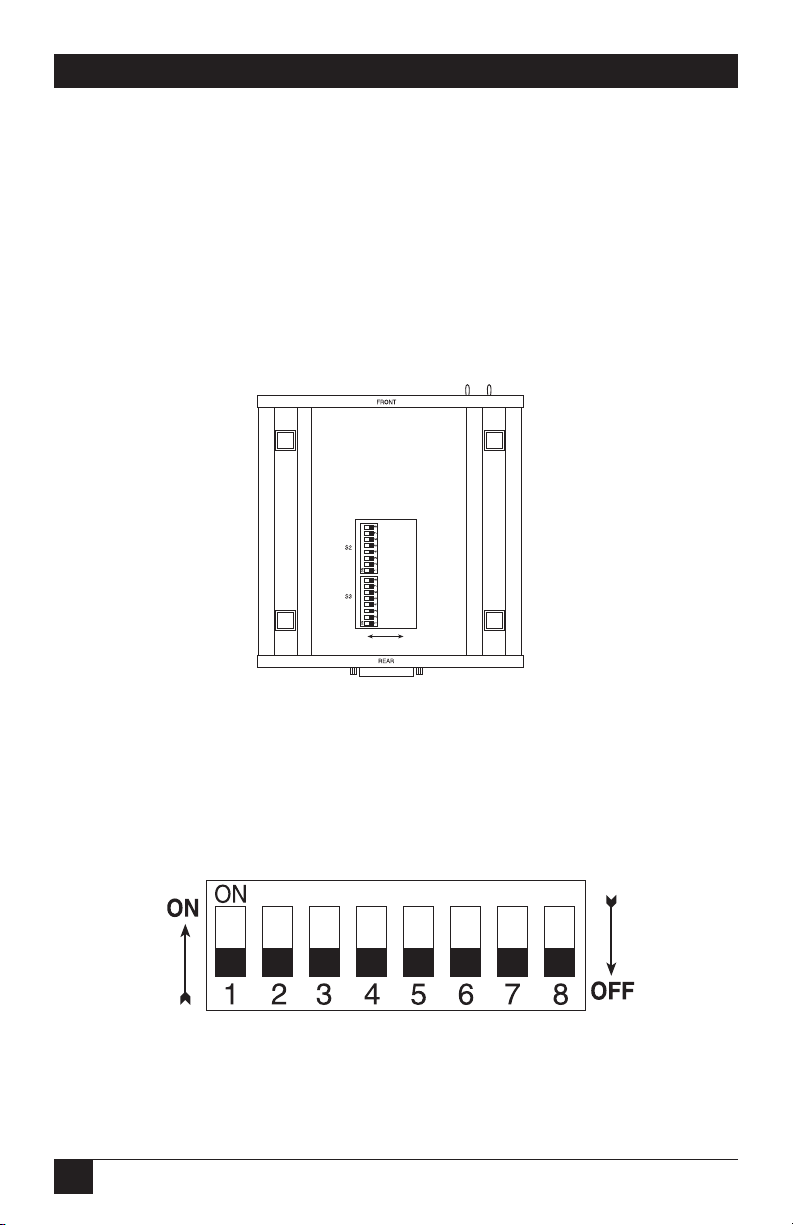

Figure 3-1. Underside of the HDSL Line Driver,
showing the location of the DIP switches.
The two sets of DIP switches on the underside of the HDSL Line Driver are called
S2 and S3. As Figure 3-2 shows, the orientation of all DIP switches is the same with
respect to ON and OFF positions.
Figure 3-2. Close-up of configuration switches
(all sets are identical in appearance).
ON OFF
9
CHAPTER 3: Configuration
DIP-S
WITCH
S2
The configuration switches on S2 allow you to specify the clocking mode and to
enable/disable local and remote loop requests from the V.35 DTE. Default settings
are shown in Table 3-1.
Table 3-1. S2 summary.
Position Function Factory Default
S2-1 Reserved Off
S2-2 Reserved Off
S2-3 Reserved Off
S2-4 Reserved Off
S2-5 Reserved Off
S2-6 Clock Mode On
S2-7 Clock Mode Off
S2-8 Enable loop from DTE Off Disabled
Switch S2-1, S2-2, S2-3, S2-4, and S2-5:
Reserved for factory use and must remain in the OFF position.
}Receive Recover
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Black Box Estensione
Black Box
Black Box CampusLIGHT LCL114A-FEMM Manuale utente
Black Box
Black Box LB320A Manuale utente
Black Box
Black Box MEG101AE-R2 Manuale utente
Black Box
Black Box ServSwitch ACU075A-PS2 Manuale utente
Black Box
Black Box IC569A Manuale utente
Black Box
Black Box LR0005A-KIT Manuale utente
Black Box
Black Box LBNC01A-KIT Manuale utente
Black Box
Black Box AVX-HDMI2-FO-HDB-KIT Manuale utente
Black Box
Black Box ServSwitch ACX310F Manuale utente
Black Box
Black Box AVS-HDB-TX Manuale utente
Black Box
Black Box IC282A Manuale utente
Black Box
Black Box AC555A Manuale utente
Black Box
Black Box IC280A Manuale utente
Black Box
Black Box ServSwitch ACUDLY Manuale utente
Black Box
Black Box LB400A Manuale utente
Black Box
Black Box ACS2004A Manuale utente
Black Box
Black Box ServSwitch KV1400A Manuale utente
Black Box
Black Box LB510A-R3 Manuale utente
Black Box
Black Box ACI-2000A Manuale utente
Black Box
Black Box Emerald Series Manuale utente
