Black Box AC179A Manuale utente

Send one video signal or one video signal

with audio to two locations.

Send one video signal or one video signal

with audio to two locations.

1-to-2 Composite Video Splitters • 1-to-2 S-Video Splitters

FREE 24-hour Tech Support: 724-746-5500

blackbox.com

2 of 2

6/14/2007

#26607

724-746-5500 blackbox.com

FEATURES

• Send video signals from one source,

such as a video camera, to two different

displays, such as a TV, VCR, or monitor.

• Two models (AC178A–AC179A) also

enable you to send stereo audio signals

along with the video signal.

• These splitters also work as video

drivers for long cable runs.

• Individually buffered output ports and

150-MHz bandwidth provide excellent

signal strength and quality.

• Work with NTSC, PAL, or SECAM signals.

Send one video signal to multiple sources!

OVERVIEW

You can use the BLACK BOX®1-to-2 Composite Video

Splitters and 1-to-2 S-Video Splitters to send one video signal

to multiple sources, such as a TV, VCR, or computer monitor.

You can also use the splitters as video drivers for long cable

runs. Two models (AC178A–AC179A) are available for sending

stereo audio along with the video signal.

Individually buffered output ports and 150-MHz

bandwidth provide excellent signal strength and quality.

All models work with NTSC, PAL, or SECAM signals, so they

work just about anywhere you take them.

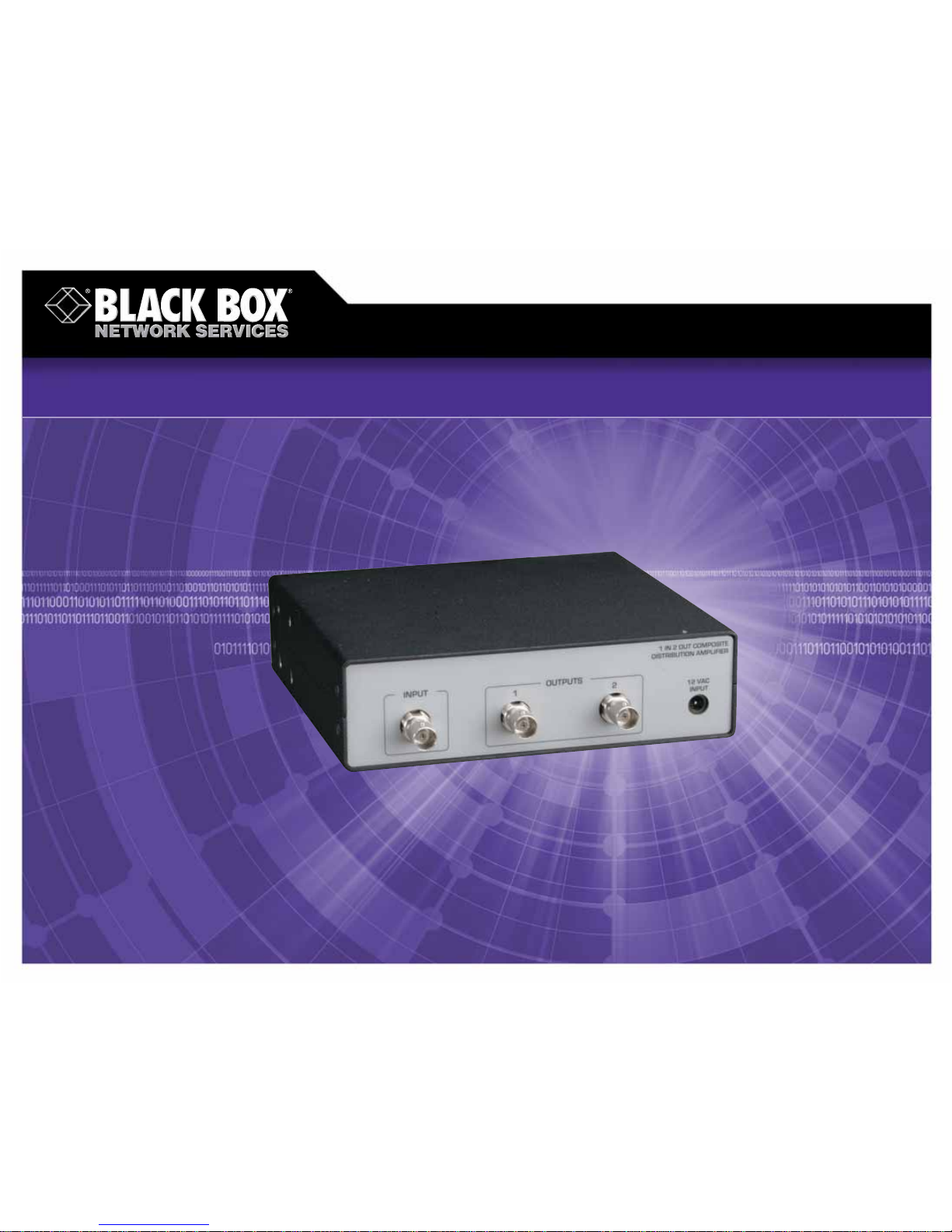

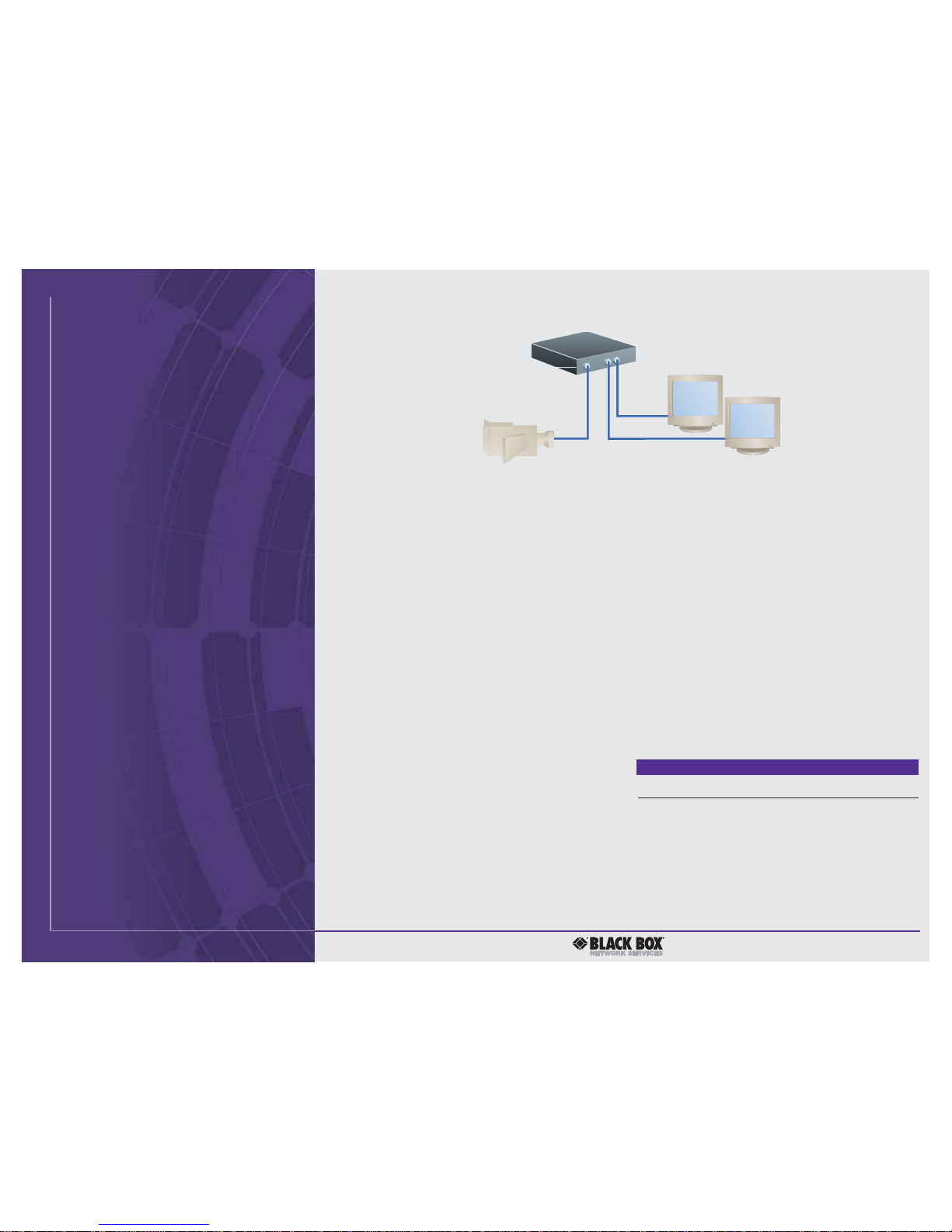

1-to-2 Composite

Video Splitter (AC176A-R2)

Camera Monitors

TECH SPECS

Audio Frequency — AC179A, AC178A: 20 Hz to 20 kHz

Audio Impedance — AC179A, AC178A: Input: 20K ohms balanced;

Output: 100 ohms balanced

Video Bandwidth — 150 MHz

Video Impedance — 75 ohms

Video Standards — NTSC, PAL, SECAM

Video Types — AC176A-R2, AC179A: Composite video;

AC177A-R2, AC178A: S-Video

Connectors —

AC176A-R2, AC179A:

Input: Composite: (1) BNC F; Output: Composite: (2) BNC F;

AC177A-R2, AC178A: Input: S-Video: (1) 4-pin mini DIN F;

Output: S-Video: (2) 4-pin mini DIN F;

AC179A, AC178A also have: Input: Audio: (1) 5-position terminal block;

Output: Audio: (2) 5-position terminal block

Power —110 VAC, 60 Hz, wallmount

Size — 1.75"H x 5.1"W x 3.5"D (4.4 x 13 x 8.9 cm)

Item Code

1-to-2 Composite Video Splitter AC176A-R2

with Stereo Audio AC179A

1-to-2 S-Video Video Splitter AC177A-R2

with Stereo Audio AC178A
