IC350A
IC351A
Fiber Optic Converters
POWER ON
LOCAL
TEST
ON
REMOTE
NORMAL
IN
850NM
IN
1300NM
OUT
1300NM
OUT
850NM
MULTIMODE
TO
SINGLE MODE
SINGLE MODE
TO
MULTIMODE
Fiber Optic Converter
FCC AND IC STATEMENTS, SAFETY WARNING
3
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A
computing device in accordance with the specifications in Subpart J of
Part 15 of FCC rules, which are designed to provide reasonable protection
against such interference when the equipment is operated in a commercial
environment. Operation of this equipment in a residential area is likely to
cause interference, in which case the user at his own expense will be required
to take whatever measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.
SAFETY WARNING
Always observe standard safety precautions during installation, operation, and
maintenance of this product. If you attempt to remove the power-supply fuse,
be sure to disconect the power cord from the power source first, in order to
avoid the possibility of electric shock.
FIBER OPTIC CONVERTERS
NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones
de operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc.
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como
sea recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama,
sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por
los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de
calor como radiadores, registros de calor, estufas u otros aparatos
(incluyendo amplificadores) que producen calor.
4
NOM STATEMENT
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo
del tipo descrito en el instructivo de operación, o como se indique en
el aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que
no sean pisados ni pellizcados por objetos colocados sobre o contra
ellos, poniendo particular atención a los contactos y receptáculos donde
salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos
de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo
no sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del
aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio
en su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.
5
FIBER OPTIC CONVERTERS
Contents
Chapter Page
1. Specifications ............................................................................................... 7
2. Introduction ................................................................................................. 9
3. Installation .................................................................................................. 11
3.1 Unpacking ........................................................................................... 11
3.2 Placement ............................................................................................ 11
3.3 Mounting (Optional) ......................................................................... 12
3.4 Connecting the Power Supply ............................................................ 14
3.5 Connecting the Fiberoptic Cables ..................................................... 14
4. Operation ................................................................................................... 15
4.1 Controls and Indicators ...................................................................... 15
4.2 Power-Up, Normal Operation, and Power-Down ............................. 16
4.3 Diagnostic Testing .............................................................................. 17
5. Troubleshooting ........................................................................................ 19
5.1 Common Concerns ............................................................................. 19
5.2 Calling Black Box ................................................................................ 20
5.3 Shipping and Packaging ..................................................................... 20
Legal Information ............................................................................................. 21
6
7
CHAPTER 1: Specifications
Compliance — FCC Part 15 Class A, IC Class/classe A
Interfaces — Single-mode and multimode
Protocols — Transparent to all protocols
Coding — Supports unipolar two-level codes such as NRZ,
NRZI, RZ, or biphase (CDP or Manchester); does
not support bipolar (multi-level) codes (such as AMI
or HDB3) or uncoded signals
Data Rate — Transparent to all data rates from 100 kbps to
250 Mbps
Wavelength — Single-mode side: 1300 nm;
Multimode side:
IC350A: 850 nm;
IC351A: 1300 nm
Optical Output — Single-mode side: –18 dBm into 9/125 fiber;
Multimode side:
–22 dBm into 50/125 fiber;
–18 dBm into 62.5/125 fiber;
–14 dBm into 100/140 fiber
Receiver
Sensitivity — –32 dBm on both interfaces
Dynamic Range — 20 dB for both interfaces
User Controls — (1) Rear-mounted POWER rocker switch;
(1) Front-mounted TEST toggle switch
Diagnostics — V.54-compliant loopback tests
1. Specifications
8
FIBER OPTIC CONVERTERS
Indicators — (9) Front-mounted LEDS: (1) POWER, (1) ON
LOCAL, (1) ON REMOTE, (4) Activity
Connectors — (4) Front-mounted ST female for data;
(1) Rear-mounted IEC 320 male for power
MTBF — Approx. 80,000 hours
Temperature
Tolerance — 32 to 104˚F (0 to 40˚C)
Humidity
Tolerance — Up to 90% noncondensing
Maximum
Altitude — 8,000 ft. (2438.4 m)
Power — From internal power supply through included or
alternate 5-ft. (1.5-m) power cord:
Input: 90 to 260 VAC, 47 to 63 Hz (autosensing);
Consumption: 6 watts
Size — 1.7"H x 8.5"W x 9.5"D (4.4 x 21.7 x 24 cm)
Weight — 2.4 lb. (1.1 kg)
9
CHAPTER 2: Introduction
The Fiber Optic Converters pass data transmissions between the two standard
types of optical fiber. Transmission lines used to carry fiberoptic signals over
short distances are constructed of a relatively thick fiber called “multimode
(graded index).” A much thinner fiber, “single-mode (graded index),” is used
for transmitting light signals over longer distances. Signal dispersion observed
in multimode fibers is substantially greater than that in single-mode lines
because the size of the fiber and the properties of the light source used.
With a Fiber Optic Converter, you can connect multimode devices such as
RS-232 multiplexors or LAN, ATM (SDH), SONET, or ESCON networks to
the single-mode lines typical of Post, Telephone, and Telegraph companies
(PTTs). This enables these devices to communicate over much greater
distances than those achievable with multimode lines alone.
The Converter module that converts incoming transmissions is entirely
separate from the module performing conversion of outbound signals.
This feature makes the Converters suitable for all applications requiring
unidirectional or bidirectional half-duplex data transmission. You can use
a pair of Converters to connect two devices that have multimode interfaces
across a single-mode line, as shown in Figure 2-1 below, or use one Converter
to connect a multimode device to single-mode equipment, as shown in
Figure 2-2 on the next page.
2. Introduction
FDDI FDDI
TOKEN RING TOKEN RING
FMC-101
FMC-101 FMC-100
FMC-101 FMC-101
FMC-101
1300 nm
850 nm
850 nm
PTT
SINGLE MODE
1300 nm ETHERNETETHERNET

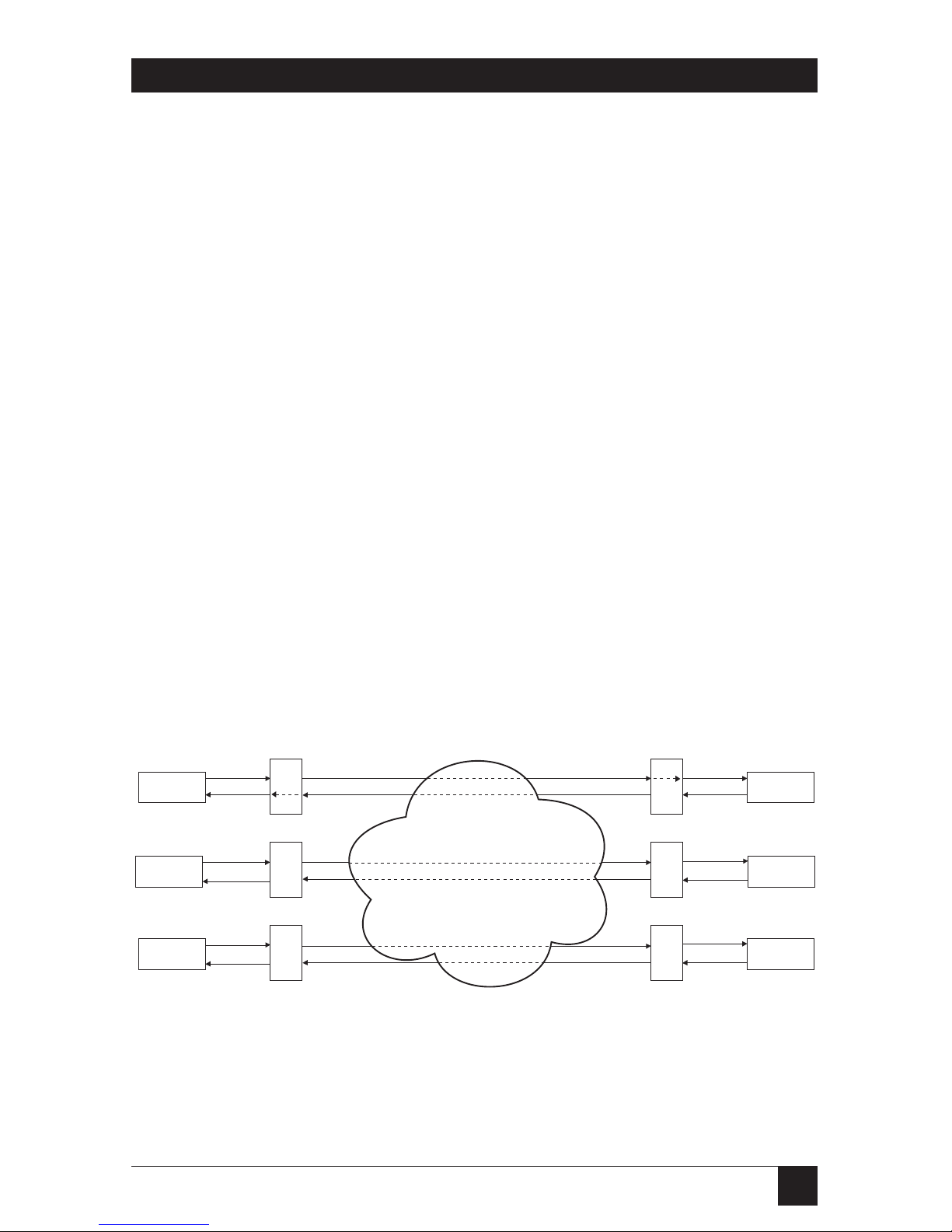

Figure 2-1. Applications using pairs of Fiber Optic Converters.
FOC
FOC
FOC FOC
FOC
FOC
10
FIBER OPTIC CONVERTERS
The Fiber Optic Converters can achieve a data rate of up to 250 Mbps. They
also have built-in diagnostic procedures (local and remote loopback) that
comply with the ITU-TSS (CCITT) V.54 standard. Use the front-panel switch
to determine which type of loopback you want and perform these procedures
with a Bit Error Rate Tester (BERT) connected to the Converter in place of
the local device.
The Converters support unipolar two-level codes, such as NRZ, NRZI, RZ,
and biphase (CDP, Manchester), but not bipolar (multi-level) codes (such as
AMI or HDB3) or uncoded signals.
CAUTION!
Use the Fiber Optic Converter-850NM (our product code IC350A) to
convert to and from multimode cable carrying light at 850 nm. Use the
Fiber Optic Converter-1300NM (our product code IC351A) to convert to
and from multimode cable carrying light at 1300 nm. Neither type of
Converter will work with multimode cables designed for the other type’s
wavelength.
Figure 2-2. Application using a single Fiber Optic Converter.
FMC-101 SINGLE MODE
DEVICE
MULTI MODE
DEVICE
1300 nm
Single mode
850 nm or
1300 nm
Multi-mode
FOC
11
CHAPTER 3: Installation
3.1 Unpacking
Carefully remove the Fiber Optic Converter and included equipment from
the container it came in and place the unit securely on a clean surface.
Inspect the container and everything that was in it for damage, and
immediately report any damage you find.
3.2 Placement
Place the Fiber Optic Converter in an area whose temperature is always within
the range of 0 to 40˚C (32 to 104˚F) and whose relative humidity does not
exceed 90% noncondensing.
The Converter should be installed within 5 ft. (1.5 m) of an easily accessible
grounded AC outlet. (The unit’s universal power supply can accept utility
power ranging from 90 to 260 VAC.) Allow at least 3 ft. (90 cm) of clearance
at the front of the unit for operator access. Allow at least 4" (10 cm) clearance
at the rear of the unit to connect and disconnect its power cord.
3. Installation
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Black Box Convertitore multimediale
Black Box
Black Box CL060A-F Manuale utente
Black Box
Black Box AC211A-R2 Manuale utente
Black Box
Black Box 488 Controller Manuale utente
Black Box
Black Box Video to VGA Converter Manuale utente
Black Box
Black Box LE1500-BNC Manuale utente
Black Box
Black Box DVI2VGA Manuale utente
Black Box
Black Box IC237A Manuale utente
Black Box
Black Box LGC321A-NPS-R2 Manuale utente
Black Box
Black Box IC107A-R3 Manuale utente
Black Box
Black Box LMC5207A Manuale utente
Black Box
Black Box AVSC-VGA-HDMI-R2 Manuale utente
Black Box
Black Box EMEX-HDMI -R2 Manuale utente
Black Box
Black Box PCD50A Manuale utente
Black Box
Black Box LRA1200A-1PS Manuale utente
Black Box
Black Box LMC009A-R5 Manuale utente
Black Box
Black Box IC081A Manuale utente
Black Box
Black Box LG6630C Manuale utente
Black Box
Black Box AC138A Manuale utente
Black Box
Black Box LGC220AE Manuale utente
Black Box
Black Box LPD500A Manuale utente
