Black Diamond Equipment GUIDE BT Manuale utente

GUIDE BT

RECON BT

INSTRUCTIONS

08/2018

Firmware v1

M13107_A

Guide BT Recon BT

Table of Contents

1. Introduction.......................................................................................................................................................3

1.1 Markings............................................................................................................................................................................ 4

1.2 Liability .............................................................................................................................................................................. 4

1.3 Warranty conditions ......................................................................................................................................................... 5

1.4 Manufacturer address & support ..................................................................................................................................... 5

1.5 Intended use ..................................................................................................................................................................... 5

1.6 Target group and previous knowledge............................................................................................................................. 5

1.7 Essentials........................................................................................................................................................................... 6

1.8 Technical specifications .................................................................................................................................................... 6

2. Safety.................................................................................................................................................................6

2.1 Signal words used in the safety instructions .................................................................................................................... 6

2.2 General safety rules and obligations ................................................................................................................................ 7

2.3 Residual risks | Warnings.................................................................................................................................................. 7

3. Packaging...........................................................................................................................................................8

4. General description ............................................................................................................................................8

4.1 Structure ........................................................................................................................................................................... 8

4.2 Carrying system................................................................................................................................................................. 9

4.3 Switching on | Self-Check | Send mode ........................................................................................................................... 9

4.4 Group check ....................................................................................................................................................................10

4.5 Helpful background features ..........................................................................................................................................12

4.5.1 Interference protection ..................................................................................................................................................12

4.5.2 PIEPS iPROBE-Support..................................................................................................................................................... 12

4.6Send Search ................................................................................................................................................................12

4.7 Search Send ................................................................................................................................................................12

4.7.1 Secondary avalanche | Auto-Search-to-Send ................................................................................................................. 12

4.8 Search mode | Search strategy.......................................................................................................................................13

4.8.1 In case of emergency....................................................................................................................................................... 13

4.8.2 Signal search ...................................................................................................................................................................14

4.8.3 Coarse search..................................................................................................................................................................15

4.8.4 Fine search ...................................................................................................................................................................... 15

4.8.5 Pinpointing ...................................................................................................................................................................... 16

4.8.6 Multiple burials | MARK function ................................................................................................................................... 16

4.9 GUIDE BT features...........................................................................................................................................................17

4.9.1 Vibra support................................................................................................................................................................... 17

4.9.2 Extended group check & pro-mode.................................................................................................................................17

4.9.3 Mark range settings........................................................................................................................................................ 17

4.9.4 Inclinometer ....................................................................................................................................................................18

4.9.5 SCAN & victim selection ..................................................................................................................................................18

4.9.6 Analog mode ................................................................................................................................................................... 19

4.9.7 TX600 mode .................................................................................................................................................................... 19

5. Device management with the PIEPS APP ...........................................................................................................19

6. Troubleshooting, maintenance, storage, disposal...............................................................................................20

6.1 Troubleshooting..............................................................................................................................................................20

6.2 Battery replacement .......................................................................................................................................................21

6.3 Cleaning...........................................................................................................................................................................22

6.4 Storage ............................................................................................................................................................................ 22

6.5 Disposal...........................................................................................................................................................................22

7. Conformity.......................................................................................................................................................22

Manual BLACK DIAMOND GUIDE BT/RECON BT | Firmware v1.0 | 08/2018 3 / 23

1. INTRODUCTION

Thank you for purchasing a BLACK DIAMOND GUIDE BT/RECON BT!

The BLACK DIAMOND GUIDE BT/RECON BT is an easy to use avalanche transceiver with reliable high performance.

The BLACK DIAMOND GUIDE BT/RECON BT comes with all tried and tested beacon features:

•3 antenna technology

•Big, circular receiving range for a quick and stable signal detection

•Perfect signal processing, even in difficult situations (multiple burials)

•Mark function

•Comprehensive self-check

•Easy to use group check

•Automatic interference protection

•Auto search-to-send

•iPROBE support

•Device management via PIEPS APP

The GUIDE BT provides additional functionality for maximum support in professional use:

•SCAN function

•Analog mode

•Victim selection

•Group check pro-mode

An avalanche beacon does not protect against avalanches! Detailed knowledge of avalanche prevention is as

indispensable as regularly practicing victim searches in an emergency. The following procedures and tips relate

only to special usage in conjunction with the BLACK DIAMOND GUIDE BT/RECON BT. The basic line of action in an

emergency –as explained in specialist publications and material from avalanche courses –must be followed.

With the BLACK DIAMOND GUIDE BT/RECON BT you have a product that is state of the art in terms of safety and

user-friendliness. Despite this, the BLACK DIAMOND GUIDE BT/RECON BT can pose risks if used inappropriately or

incorrectly. We refer to possible hazards in chapter 2 and with safety notes placed throughout the operating

manual.

This operating manual is intended to ensure the safe use of the BLACK DIAMOND GUIDE BT/RECON BT. The safety

instructions in this document must be followed at all times.

Before you use the BLACK DIAMOND GUIDE BT/RECON BT, you must have read and understand this operating

manual.

Black Diamond Equipment is not liable for technical or printing errors in this operating manual, neither is any

liability accepted for damage caused directly or indirectly by the delivery, performance or use of this operating

manual.

Manual BLACK DIAMOND GUIDE BT/RECON BT | Firmware v1.0 | 08/2018 4 / 23

This translation of the original manual is protected by copyright. All rights, especially the rights of reproduction,

distribution and translation, are reserved. No part of this document may be reproduced or stored, processed,

duplicated or distributed using electronic systems in any form (photocopy, microfilm or other method) without

the written consent of Black Diamond Equipment. Violations may incur criminal penalties.

1.1 MARKINGS

In accordance with applicable regulations, the following marks may be found on the BLACK DIAMOND GUIDE

BT/RECON BT or/and on the packaging:

CE mark of conformity: indicating the fulfillment of the following standards: EMV 2014/30/EU,

RED 2014/53/EU, RoHS 2011/65/EU.

Dustbin symbol: advising users to dispose of waste electrical and electronic equipment

separately from unsorted municipal waste.

FCC ID

FCC ID: indicating the compliance with Part 15 of the FCC Rules.

IC ID

IC ID: indicating the compliance with Industry Canada’s licence-exempt RSS standard(s).

Bluetooth® logo: The Bluetooth® word mark and logos are registered trademarks owned by the

Bluetooth SIG, Inc. and any use of such marks by Black Diamond Equipment is under license.

Other trademarks and trade names are those of their respective owners.

12 digit serial number: identifying the device and is used for device registration. The first 4 digits

indicate year and week of manufacturing.

Recycling symbol.

Battery symbol: indicating battery type and correct position.

Instruction pictogram: advising users to read the instructions and warnings.

Black Diamond brand name.

Black Diamond logo.

PRO BT

Example of the model name.

1.2 LIABILITY

The information contained in this operating manual describes but does not guarantee the features of the product.

No liability is accepted for damage caused by:

•improper use,

•failure to follow the operating manual,

•unauthorized modifications of the BLACK DIAMOND GUIDE BT/RECON BT,

•improper work on and with the BLACK DIAMOND GUIDE BT/RECON BT,

•continuing to use the BLACK DIAMOND GUIDE BT/RECON BT despite evidence of wear and tear,

•unauthorized, improperly carried out repairs,

•emergencies, external influences or force majeure.

NOTICE

Alterations or modifications not explicitly approved by the manufacturer will result in you no

longer being allowed to use the device.

Manual BLACK DIAMOND GUIDE BT/RECON BT | Firmware v1.0 | 08/2018 5 / 23

1.3 WARRANTY CONDITIONS

The manufacturer provides a 2-year warranty covering manufacturing and material defects of the BLACK

DIAMOND GUIDE BT/RECON BT from the date of purchase. Exceptions are the battery, carrying system, hand-loop

and bag as well as any damage caused by improper use or dismantling of the device by unauthorized persons. Any

other warranties and liability for consequential damage are expressly excluded. For warranty claims, please take

proof of purchase and a description of the fault to the point of sale.

•a warranty extension from 2 to 5 years!

•important information on software updates!

1.4 MANUFACTURER ADDRESS & SUPPORT

Black Diamond Equipment, Ltd. 2084 East 3900 South, Salt Lake City, UT 84124

Europe: Black Diamond Europe Hans-Maier-Straße 9, 6020, Innsbruck, Austria

For technical problems, please contact the support: blackdiamondequipment.com

1.5 INTENDED USE

The BLACK DIAMOND GUIDE BT/RECON BT serves as an avalanche victim search device (avalanche transceiver) for

the localization of buried persons and must only be used as intended. Any other use requires the written consent

of Black Diamond Equipment. Improper use can put individuals at risk and result in the device being damaged.

The BLACK DIAMOND GUIDE BT/RECON BT is not an automatically functioning device with partly automated

functionalities –for this reason, the BLACK DIAMOND GUIDE BT/RECON BT may only be commissioned after

having read and understood the documentation. Failure to use the device as intended will result in all liability and

warranty claims being rejected. The BLACK DIAMOND GUIDE BT/RECON BT is to be operated only under the

conditions of use described in the documentation.

1.6 TARGET GROUP AND PREVIOUS KNOWLEDGE

An avalanche beacon should be part of the avalanche emergency equipment of everyone who ventures off from

the secured piste into open, unsecured terrain (e.g. ski touring, freeriding, mountain rescue operations, etc.).

Users of the BLACK DIAMOND GUIDE BT/RECON BT must meet the following conditions:

•Read and understand this operating manual.

•Users with impaired vision must ensure that they can read the labelling and displays on the device as well

as the instructions in the documentation without problem.

•If users with impaired hearing are unable to hear the acoustic signal, they must ensure that they can

correctly interpret the display indications in accordance with the instructions in the operating manual.

•Regular training ensures safe and efficient use of the BLACK DIAMOND GUIDE BT/RECON BT.

Manual BLACK DIAMOND GUIDE BT/RECON BT | Firmware v1.0 | 08/2018 6 / 23

1.7 ESSENTIALS

The BLACK DIAMOND GUIDE BT/RECON BT meets the current state of technology and the applicable health and

safety regulations. However, incorrect operation or misuse can give rise to hazards for:

•the life and health of the users or third parties,

•the BLACK DIAMOND GUIDE BT/RECON BT and property of the user,

•the efficient use of the BLACK DIAMOND GUIDE BT/RECON BT.

1.8 TECHNICAL SPECIFICATIONS

Name

BLACK DIAMOND GUIDE BT/RECON BT

Transmission frequency

457 kHz

Field strength

max. 7 dBµA/m (2,23 µA/m) at a distance of 10 m

Power supply

3x Alkaline (AAA) LR03 1.5 V or 3x Lithium (AAA) FR03 1.5V

Battery lifetime

400/200 h (Alkaline) 600/300 h (Lithium)

Maximum range

60 m

Search strip width

60 m

Dimensions (LxWxH)

118 x 76 x 29 mm

Weight

230/220 g (incl. battery)

Temperature range

-20°C to +45°C (-4°F to +113°F)

Storage temperature range

-25° C to +70° C (-13° F to +158° F)

2. SAFETY

This operating manual is structured in accordance with the applicable EU regulations and contains safety

instructions. Each individual is personally responsible for complying with the safety instructions. This chapter

contains all safety-related information.

Should anything be unclear or difficult to understand, please contact our support team.

2.1 SIGNAL WORDS USED IN THE SAFETY INSTRUCTIONS

DANGER

Imminent threat to the life of individuals

A safety instruction with the signal word DANGER indicates an imminent threat to the life and

health of individuals!

WARNING

Risk of personal injury (serious injuries) and possible material damage

A safety instruction with the signal word WARNING indicates a dangerous situation which

could affect the health of individuals.

CAUTION

Risk of material damage and possible minor risk of injury

A safety instruction with the signal word CAUTION indicates a possibly dangerous situation

which could primarily result in material damage.

NOTICE

This symbol with the text NOTICE indicates supporting information.

Manual BLACK DIAMOND GUIDE BT/RECON BT | Firmware v1.0 | 08/2018 7 / 23

2.2 GENERAL SAFETY RULES AND OBLIGATIONS

The following safety rules and obligations apply in general for using the BLACK DIAMOND GUIDE BT/RECON BT:

•The BLACK DIAMOND GUIDE BT/RECON BT must only be used in perfect condition.

•It is forbidden to alter or change the BLACK DIAMOND GUIDE BT/RECON BT without the written

permission of Black Diamond Equipment.

•Do not attempt to repair damage or malfunctions without authorization. Instead, contact our support,

who will tell how to proceed. The BLACK DIAMOND GUIDE BT/RECON BT must not be used until the

damage/malfunction has been repaired.

•The safety and operating instructions in the operating manual must be followed at all times.

2.3 RESIDUAL RISKS | WARNINGS

Even though the BLACK DIAMOND GUIDE BT/RECON BT has been designed with maximum care and all safety-

related facts have been taken into consideration, residual risks may exist and must be evaluated by means of a

risk assessment. All residual risks and warnings from the risk assessment are listed in this chapter.

DANGER

Risk of device loss

Always carry the device in the included carrying system or an approved apparel pocket!

Always leave the device cord-secured!

DANGER

Risk of a not transmitting device due to enabled Bluetooth

The Bluetooth mode is supposed for device management and training mode only! Never use

the Bluetooth mode in avalanche terrain!

DANGER

Risk of device loss during slope angle measurement

Although the GUIDE BT keeps transmitting while the inclinometer is active, the function

should only be used for training reasons. Never use the inclinometer function in avalanche

terrain!

DANGER

Risk of battery explosion due to improper battery types or damaged batteries

Only use batteries of type “Alkaline (AAA) LR03 1.5 V or 3x Lithium (AAA) FR03 1.5V“!

Never use damaged batteries!

The use of Lithium batteries must be confirmed in the PIEPS APP!

DANGER

Risk of incorrect battery capacity reading due to improper battery types

Only use batteries of type “Alkaline (AAA) LR03 1.5 V or 3x Lithium (AAA) FR03 1.5V“!

The use of Lithium batteries must be confirmed in the PIEPS APP!

WARNING

Risk of hearing damage due to the high noise level

Never hold the device directly next to your ear! A minimum distance of 50 cm is recommended.

CAUTION

Risk of crushing

Be aware of a crushing risk when using the sliders!

Manual BLACK DIAMOND GUIDE BT/RECON BT | Firmware v1.0 | 08/2018 8 / 23

CAUTION

Risk of device malfunction or damage due to extreme temperatures

Do not expose the device to extreme temperatures outside of the operating limits! Store the

device protected from direct sunlight! Extreme temperatures can result in malfunction or

damage!

NOTICE

The user must read the operating manual!

3. PACKAGING

•1x BLACK DIAMOND GUIDE BT/RECON BT

•3x Alkaline battery (in battery compartment)

•1x BLACK DIAMOND GUIDE BT/RECON BT carrying system

•1x Hand loop

•1x Quick Start Guide

Check that the contents are complete and undamaged after unpacking. If necessary, contact your point of sale or

our support team.

A correct disposal of the packaging is an environmentally friendly manner (paper to paper, plastic to plastic, etc.).

4. GENERAL DESCRIPTION

4.1 STRUCTURE

GUIDE BT RECON BT

(1A) LCD display (backlight)

(1B) Slider OFF/SEND/SEARCH

(1C) Slider lock

(1D) Button MARK

(1E) Button SCAN*

(1F) Speaker

(1G) Transmit control LED

(1H) Battery compartment

Manual BLACK DIAMOND GUIDE BT/RECON BT | Firmware v1.0 | 08/2018 9 / 23

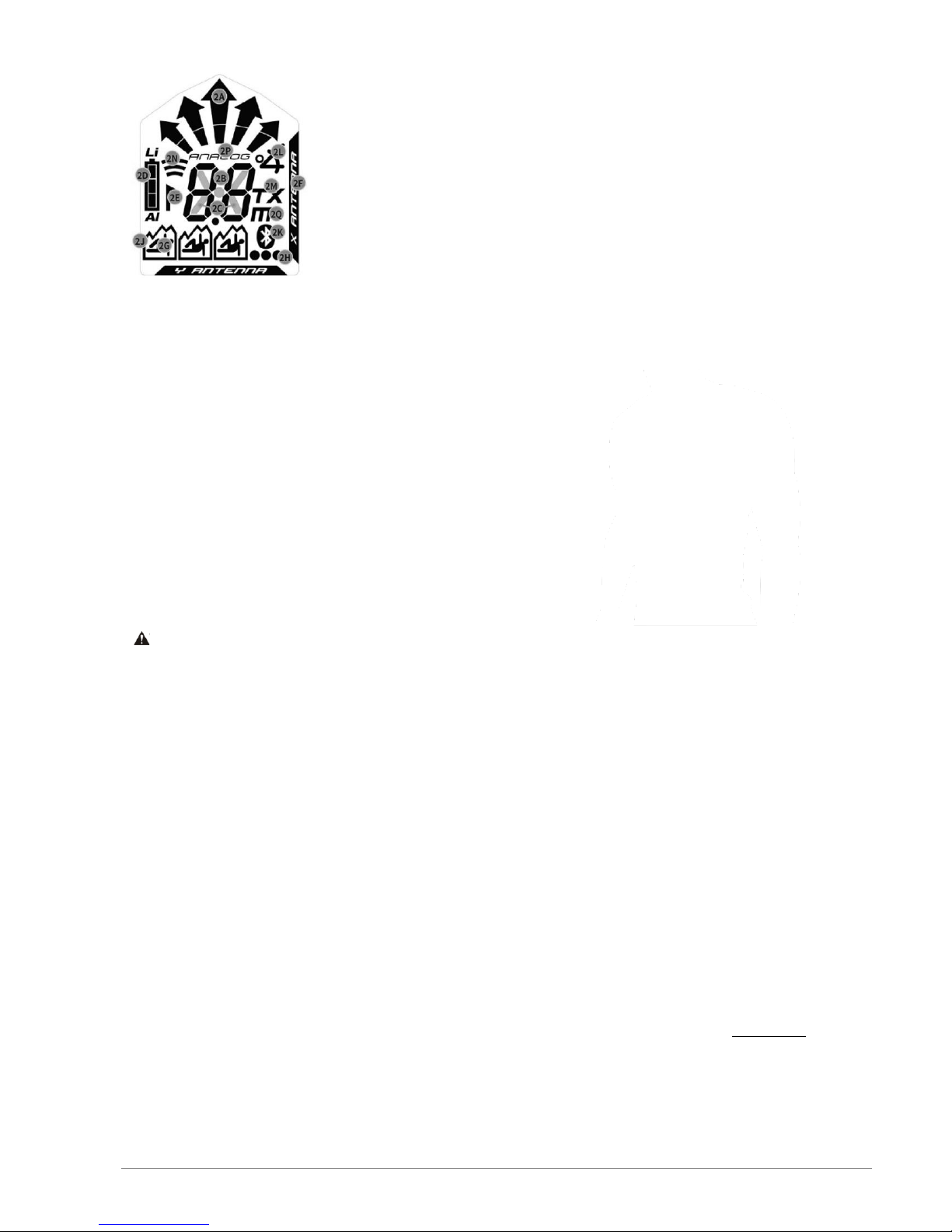

(2A) Direction indication

(2B) Distance indication

(2C) Transmit symbol

(2D) Battery capacity/type

(2E) MARK (marking possible)

(2F) Active transmitting antenna

(2G) Number of burials (1-3)

(2H) Number of burials (4 or

more)

(2J) Transmitter marked

(2K) Bluetooth active

(2L) Inclinometer mode*

(2M) TX600 mode*

(2N) SCAN mode*

(2P) Analog mode*

(2Q) Meter symbol for SCAN /analog

mode*

* GUIDE BT only

4.2 CARRYING SYSTEM

BLACK DIAMOND recommends using the included carrying system

(3A) or an approved apparel pocket. In order to protect the

beacon’s display, carry the beacon with its display facing inwards

(3B). The transmit control LED (1G) is visible in the pouch´s window

(3C).

The included hand loop is intended to be used for training sessions.

DANGER

Risk of device loss

Always carry the device in the included carrying system or an approved apparel pocket!

Always leave the device cord-secured!

4.3 SWITCHING ON | SELF-CHECK | SEND MODE

Switching on: Move the slider lock (1C) to the left and the slider (1B) upwards into the position SEARCH. Then

release the slider lock (1C) and move the slider (1B) downwards, until it locks in the position SEND.

The display shows firmware version, battery capacity, self-check progress (4A), self-check result (4B), group check

countdown (4C) and finally the send display with the active transmitting antenna (4D).

The device is now in send mode, the transmit control LED (1G) is blinking.

NOTICE

A minimum distance of 5 m from other devices and all electronic, magnetic and metallic sources

of interference should be kept during the self-check.

If the self-check is successful, “OK” is indicated on the display (4B). In the event of a device warning, an alert signal

sounds and the display indicates “E” in combination with a number (4E). For error codes, see chapter 6.1.

Altri manuali per GUIDE BT

Questo manuale è adatto per i seguenti modelli

Indice

Manuali Ricetrasmettitore popolari di altre marche

Yaesu

Yaesu FT-7B Manuale utente

Kenwood

Kenwood ProTalk TK-3201 Manuale utente

Texas Instruments

Texas Instruments TLK10232 Manuale utente

Mizuho

Mizuho MX-2 Guida del prodotto

Kenwood

Kenwood TK-3180 Manuale operativo e di manutenzione

Blitz

Blitz MJ-398U Manuale utente

Utilicom

Utilicom LongRanger 2050 Manuale utente

Standart

Standart HX290UKA Manuale utente

Altronix

Altronix Pace1PTM Manuale utente

Kirisun

Kirisun PT2208 Manuale utente

ELECRAFT

ELECRAFT KX2 Manuale utente

Zodiac

Zodiac K3 Manuale utente

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manuale utente

Kenwood

Kenwood TK-2217 Manuale utente

Siemens

Siemens PSO 4000 Manuale utente

Kenwood

Kenwood TS-590SG Manuale utente

Midland

Midland G8E-BT Manuale

ComNav

ComNav Mariner X2 Manuale utente
