Black Stone 1859 Manuale utente
17" TABLETOP
GRIDDLE
Parts & Assembly
MODEL
SIDE BURNER STOVETOP & FRYER
North Atlantic Imports LLC | 1073 West 1700 North, Logan UT 84321 | Blackstoneproducts.com
Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly
PARTS & ASSEMBLY
ILLUSTRATED PARTS LIST
01. Body (1 piece) 02. Griddle Top & Hood (1 piece) 03. Hood Handle (1 piece)
& Handle grommets (2 pieces)
& M6x16 bolts (2 pieces)
04. Cast Iron Grate (1 piece) 05. Knobs (2 pieces) 06. Griddle Handle (2 pieces)
07. Fryer Cage (1 piece) 08. Fryer Bin (1 piece)
& Fryer Lid (1 piece)
09. Fryer Basket (1 piece)
10. Cooking Thermometer (1 piece) 11. Grease Cup (1 piece) 12. M6X12 Screws (9 pieces)
13. Hard cover (1 piece)
& Hard cover handle (1 piece)
14. Rubber feet (4 pieces) 15. Regulator (1 piece)
17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly
01
ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench

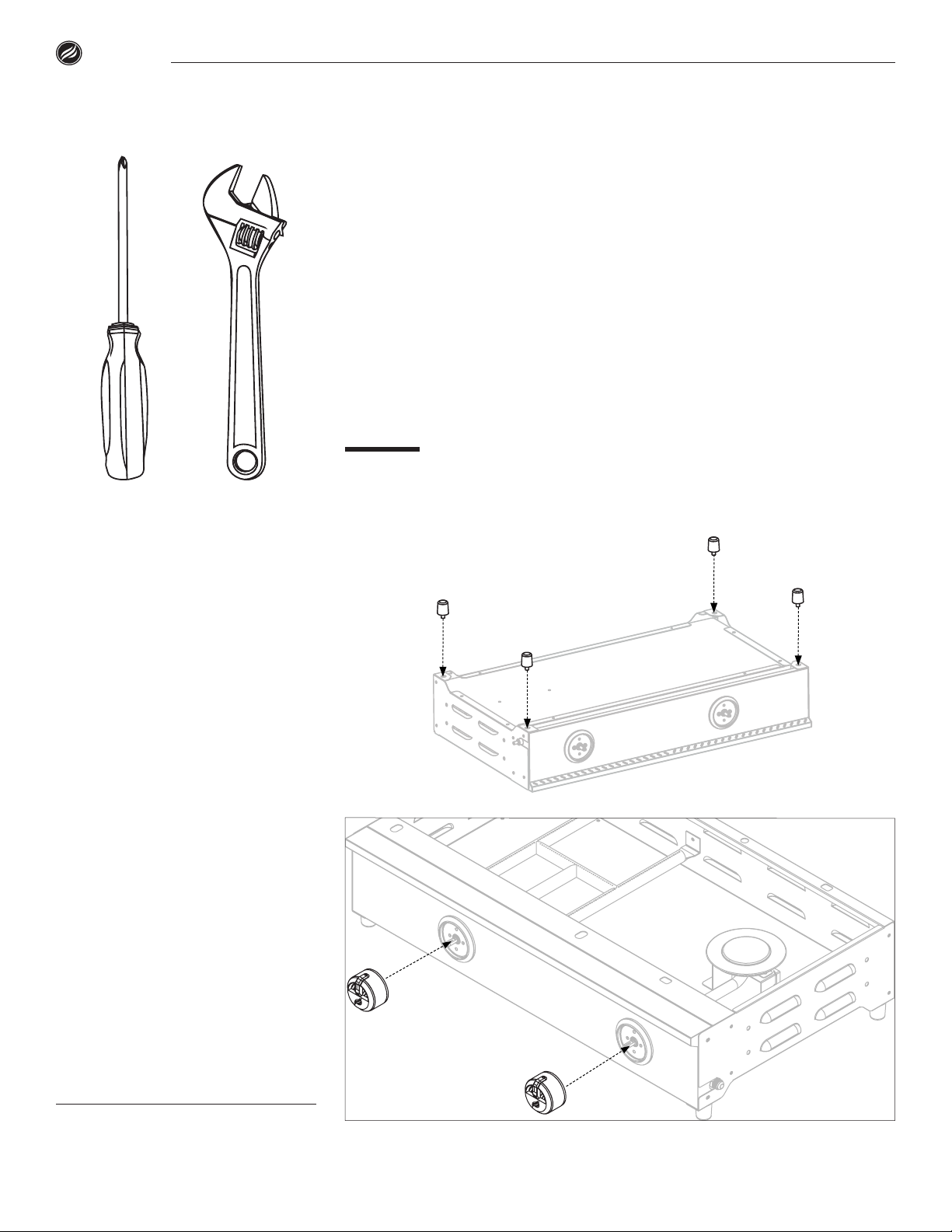

STEP 01
Remove the griddle body from the packaging and lay it upside down on
a smooth, at surface. Attach the four (4) rubber feet to the bottom of the
griddle, then ip over and install the two (2) knobs by pushing them in place.
17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly
02
!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.
STEP 02
Attach the handle to the le side of the griddle body with four (4) M6X12
screws tightened from the outside. Repeat this step with an additional four (4)
M6X12 screws and four (4) Flange nuts on the right side of the griddle body.
STEP 03
Attach the handle to the hardcover with one (1) M6X12 screw secured from
the bottom. Then, place the cast iron grate on top of the side burner.
17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly
03
STEP 04
Place the fryer cage on top of the cast iron grate. It will t securely when
placed correctly. Then insert the fryer bin into the fryer cage.
STEP 05
Unfold the fryer basket handle and push the handle to lock it into place. Put
the fryer basket into the fryer bin. Place the lid on to the bin and the ther-
mometer into the lid’s slot to complete the fryer assembly setup.
!CAUTION
Place the included hardcover on
the burner when not in use or
if it begins to rain. Never leave
oil exposed in the rain. This can
lead to severe burns.
17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly
04

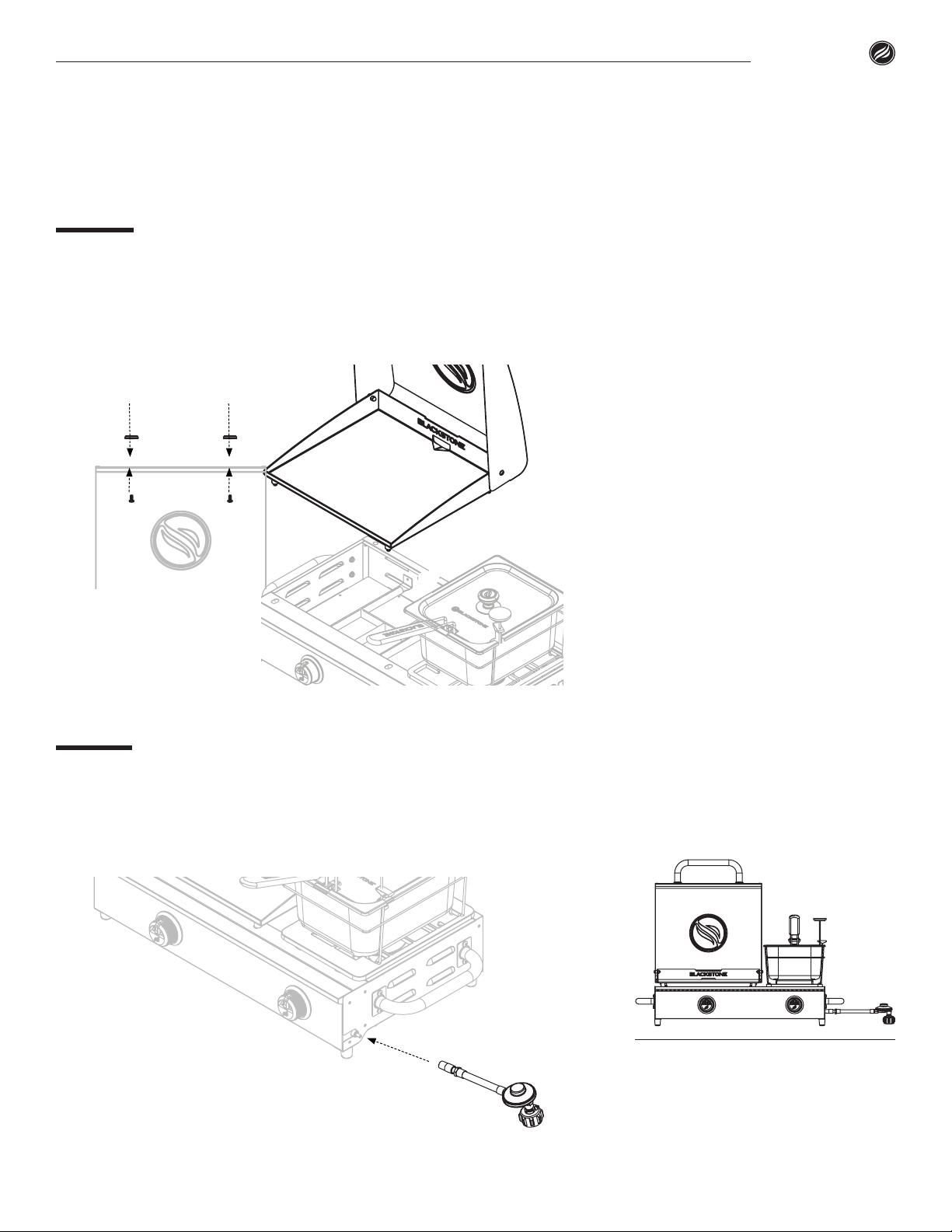

STEP 06
First, attach the handle to the hood with two (2) handle grommets and two (2)
M6x16 bolts, then place the griddle top onto the griddle body by aligning the
four pins to the holes on top of the body. Make sure the pins are fully seated
in the holes. Place the grease cup on the back of the griddle body in the center
of the unit.
STEP 07
Attach the regulator assembly to the griddle body ensuring that it is tight.
Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy
cooking outdoors on your Blackstone 17” Tabletop Griddle Side Burner
Stovetop & Fryer!
NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
support@blackstoneproducts.com
17” Tabletop Griddle Side Burner Stovetop & Fryer | Parts & Assembly
