28" GRIDDLE
COOKING STATION
Parts & Assembly
MODEL
Before proceeding, make certain
that you read and understand the
Owner’s Manual included with
your griddle.
Hazardous fire or explosion may
result if instructions are ignored.
It is the consumer’s responsibility
to see that the griddle is prop-
erly assembled, installed, and
maintained. Failure to follow the
instructions in this manual could
result in bodily injury and/or
property damage.
SAFETY ALERT KEY
Read and follow all of the notices
found throughout the manual.
INSTALLER/ASSEMBLER:
Leave these instructions with consumer.
CONSUMER:
Keep this manual for future reference.
TO REGISTER your Blackstone product please go to
www.blackstoneproducts.com/register-griddle
Model Number _____________________________
Serial Number______________________________
Date Purchased ____________________________
!DANGER
Indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
!WARNING
Indicates the possibility of serious
bodily injury if the instructions
are not followed.
!CAUTION
Indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
28” Pro Series Griddle Cooking Station | Parts & Assembly
PARTS & ASSEMBLY
ILLUSTRATED PARTS LIST
01. Griddle body (1 piece) 02. Griddle top & hood (1 piece) 03. Side shelf (2 pieces)
04. Cabinet handle (2 pieces) &
Hood handle (1 piece) 05. Inner shelf (1 piece) 06. Knobs (2 pieces) &
Grease cup (1 piece)
07. Wheels (2 pieces) 08. Caster wheels (2 pieces) 09. Grease cup (1 piece) & Garbage
bag holder (1 piece)
10. Black cap (4 pieces) 11. Mica sheet (2 pieces) 12. Metal pegs (6 pieces) &
Washers (6 pieces)
13. M6X12 screws (14 pieces)
M6X16 screws (4 pieces) 14. Small thumbscrew (1 piece) NOT INCLUDED - 20lb LP Gas Tank
& AA Battery
28” Pro Series Griddle Cooking Station | Parts & Assembly
01
ASSEMBLY INSTRUCTIONS
Please read all instructions thoroughly before proceeding. Make sure all
the plastic packing material is removed before assembling
Find a large, clean area to assemble your griddle. Please refer to the parts list
and assembly diagrams as necessary.
Griddle assembly involves large components; therefore, it is advised to have
two people assemble the unit.
TOOLS NEEDED: Phillips Head
Screwdriver & Adjustable Wrench
STEP 01
With the help of another person, place the griddle unit on a smooth at
surface. Install the control knobs by pushing them into place.
28” Pro Series Griddle Cooking Station | Parts & Assembly
02
!CAUTION
Two people are recommended for
the assembly of this product.
!WARNING
The manufacturer has made every
eort to eliminate any sharp
edges. However, you should
handle all components with care
to avoid accidental injury.
Some parts may contain sharp
edges, especially as noted
in these instructions. Wear
protective gloves if necessary.
!WARNING
The use of alcohol, prescription
or non-prescription drugs may
impair the consumer’s ability
to properly assemble or safely
operate the appliance.
STEP 02
With the help of another person, place the griddle upside down. Unscrew the
bolt and nut from the two (2) wheels and use them to attach the wheel to the
le side of the unit. Then, lock the caster wheels to keep them from spinning
and screw them into the griddle base.
STEP 03
With the help of another person, set the griddle unit on its wheels. Attach
the handle to right cabinet door with two (2) M6X12 screws and two (2) black
caps. Repeat this with the le cabinet door using two (2) M6X12 scews and
two (2) black caps.
STEP 04
Place the inside shelf onto the
four built-in hooks on the inside
of the griddle unit cabinet.
28” Pro Series Griddle Cooking Station | Parts & Assembly
03

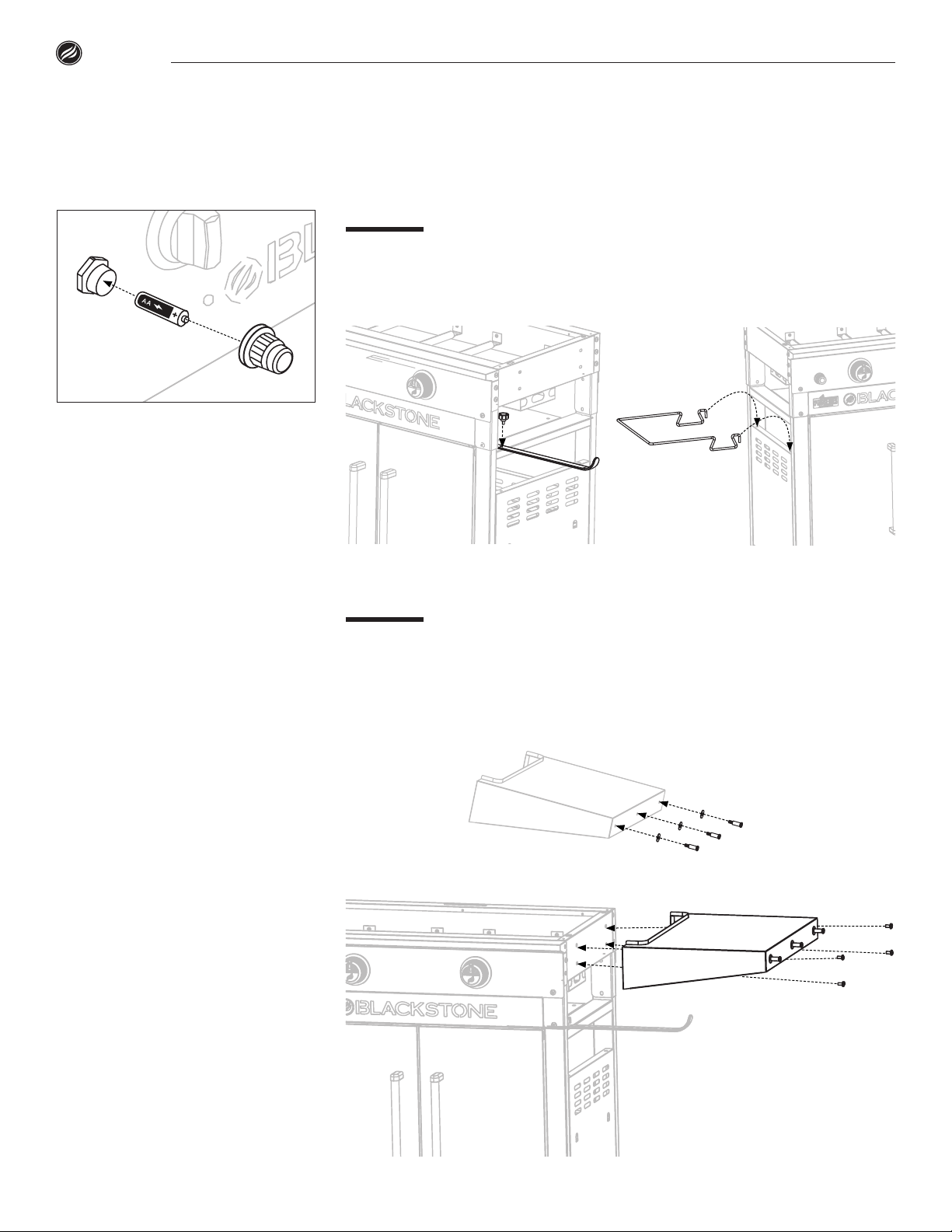

STEP 05
Attach the paper towel holder on to the griddle body by a small thumbscrew.
Place the garbage bag holder on the le side of the griddle body into the holes
on the griddle unit.
STEP 06
Unscrew the three metal pegs and washers from the back of both the right
and le side shelves and then attach them to the front. Attach the right side
shelf to the griddle body with four (4) M6X12 screws. Attach the le side shelf
to the griddle body with four (4) M6X12 screws.
Insert one AA battery (not included)
into the battery socket with the
positive terminal facing out, and
then screw on the Ignition Button
until tight, be careful not to
over tighten.
28” Pro Series Griddle Cooking Station | Parts & Assembly
04
STEP 07
With the help of another person, place the griddle top and hood onto the
griddle body by aligning the four pins to the holes on top of the griddle unit.
Make sure the pins are fully seated in the holes.
STEP 08
Attach the handle to the hood with two (2) M6X16 screws and two (2) mica
sheets as shown. Place the grease cup at the rear of the griddle.
STEP 09
Proceed to seasoning instructions (pg 18) in the Owner’s Manual. Enjoy
cooking outdoors on your Blackstone 28” Griddle!
NEED HELP? Call Blackstone Information
Center for missing parts, assembly or and
operation questions: 435-252-3030
or email us at:
support@blackstoneproducts.com
ÉTAPE
28” Pro Series Griddle Cooking Station | Parts & Assembly
05
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com
28" PLANCHA
ESTACIÓN DE COCINA
MODELO
Piezas y ensamblaje
Antes de continuar, asegúrese
de leer y comprender el Manual
del propietario incluido con
su plancha.
Se pueden producir incendios
o explosiones peligrosas si se
ignoran las instrucciones.
Es responsabilidad del
consumidor ver que la plancha
esté correctamente ensamblada,
instalada y mantenida. Si no se
siguen las instrucciones de este
manual, se podrían producir
lesiones corporales y/o daños
a la propiedad.
LLAVE DE ALERTA DE
SEGURIDAD
Lea y siga todos los avisos que
se encuentran en el manual.
INSTALADOR/ENSAMBLADOR:
Entréguele estas instrucciones al consumidor.
CONSUMIDOR:
Guarde este manual para futuras referencias.
PARA REGISTRAR su producto Blackstone, vaya
a www.blackstoneproducts.com/register-griddle
Número de modelo__________________________
Número de serie ____________________________
Fecha de compra ___________________________
!PELIGRO
Indica una situación de peligro
inminente que, si no se evita,
causará la muerte o lesiones graves.
!ADVERTENCIA
Indica la posibilidad de lesiones
corporales graves si no se siguen
las instrucciones.
!PRECAUCIÓN
Indica una situación
potencialmente peligrosa que,
si no se evita, puede resultar
en una lesión moderada.
Plancha de 28“ Serie Pro | Piezas y montaje
